Installation

10
English ...

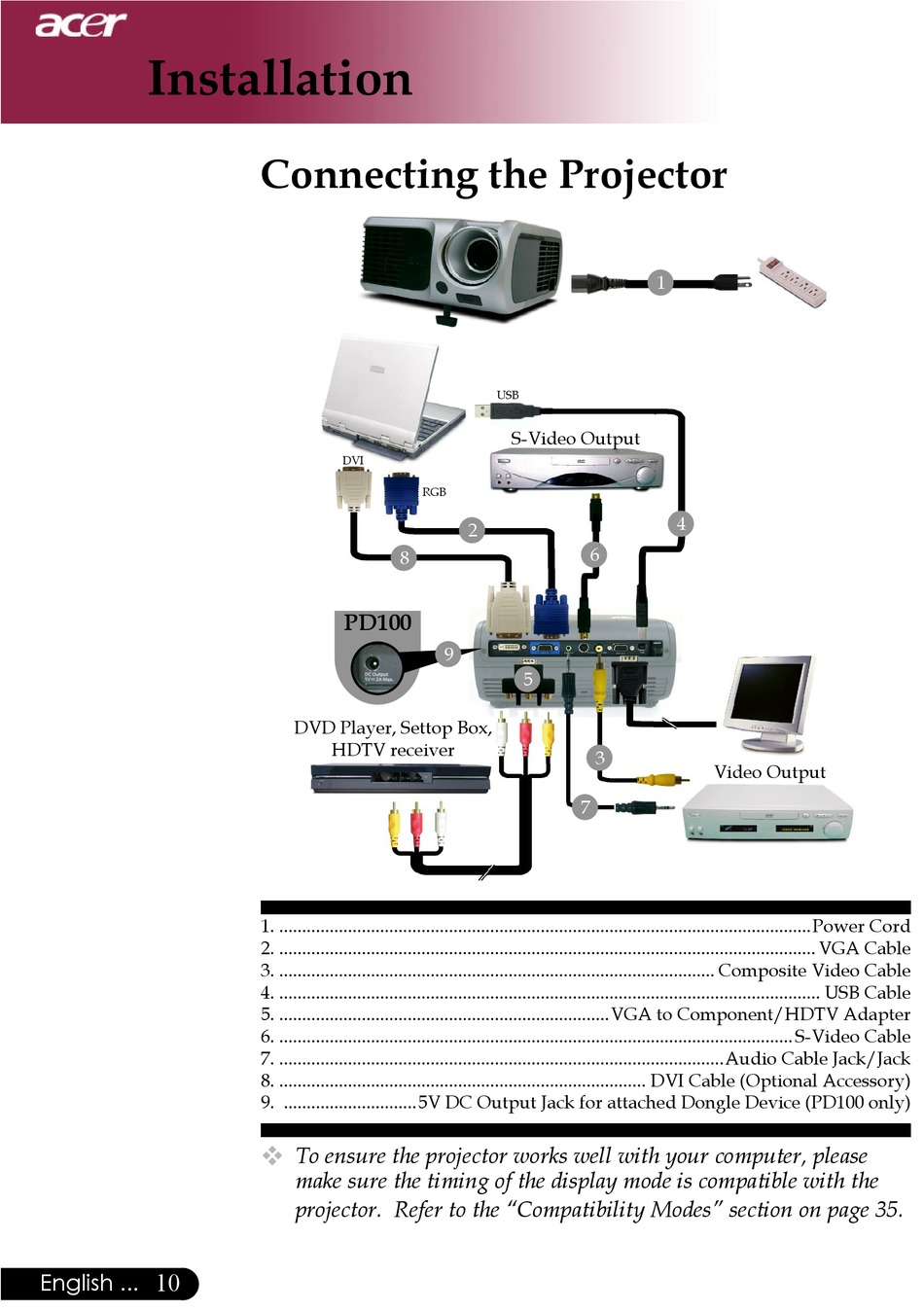

Connecting the Projector

DVI
RGB
8
PD100
DVD Player, Settop Box,
HDTV receiver
1. ....................................................................................................................Power Cord
2. ..................................................................................................................... VGA Cable
3. ............................................................................................... Composite Video Cable
4. ...................................................................................................................... USB Cable
5. ........................................................................VGA to Component/HDTV Adapter
6. ................................................................................................................ S-Video Cable
7. .................................................................................................Audio Cable Jack/Jack
8. ................................................................................ DVI Cable (Optional Accessory)
9. .............................5V DC Output Jack for attached Dongle Device (PD100 only)
To ensure the projector works well with your computer, please

make sure the timing of the display mode is compatible with the
projector. Refer to the "Compatibility Modes" section on page 35.
USB
S-Video Output
2
6
9
5
3
7
1
4
Video Output
