GPRINTER GP-1124T Quick Installation Manual

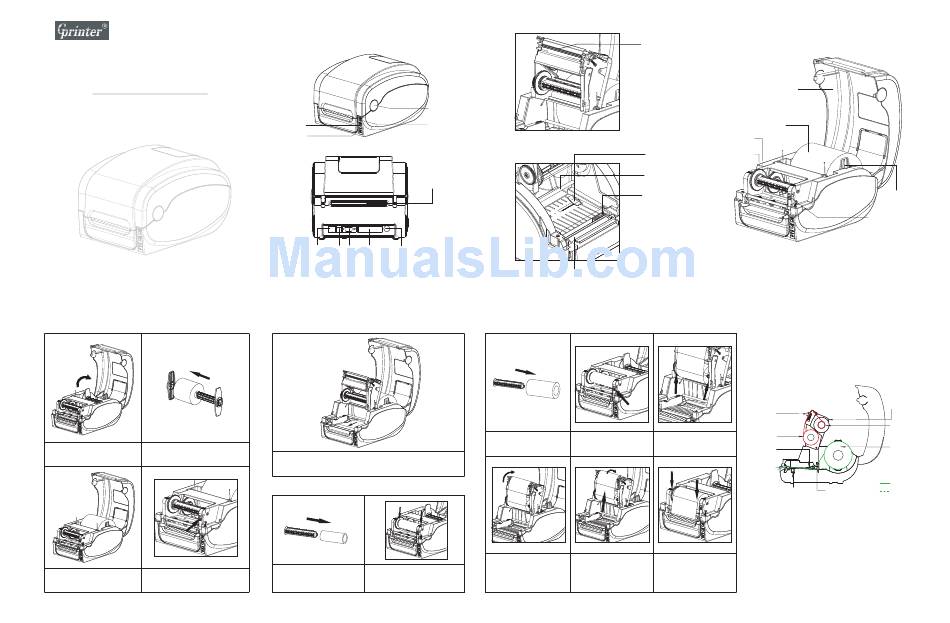

Quick Installation Guide

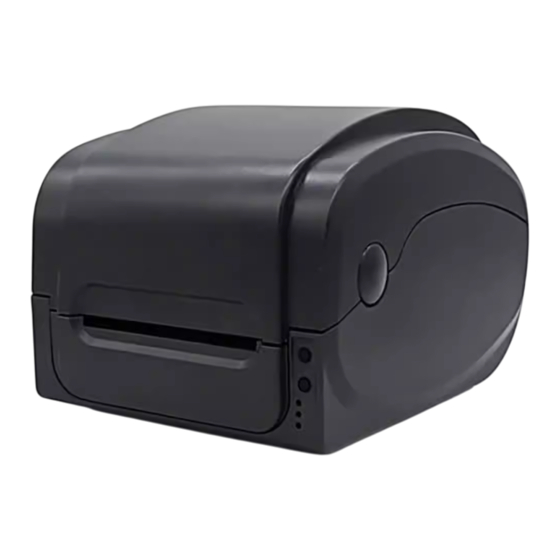

GP-1124T/1125T Thermal Transfer Barcode Printer

Remark:

GP-1124T 3 in 1 interface(Serial+USB+Parallel), without external paper holder
but with paper roll and ribbon.
GP-1125T 4 in 1 interface(Serial+USB+Ethernet+Parallel), with external paper
holder, paper roll and ribbon.

Paper Installation:

2.Insert the paper roll into the shaft as picture
1.Press two buttons in left and right side
of top cover to lift and open the cover. showing, and fix the label roll in the middle.
3.Put paper roll into the printer. 4.Press the button to open print head
mechanism.
LED Indicator:
*ON LINE
*ERROR
*RIBBON Status
Cover-open button
PAUSE button
FEED button
LED indicator
External paper entrance
Ethernet USB Serial Parallel Power port
Note:The picture showing ports is for GP-1125T.
5.Pull out the paper, use the paper guide to fix the label in correct position till the
label pass gap sensor and rubber roller.

Ribbon Installation:

2.Install ribbon take-up shaft and empty
1.Insert the ribbon take-up shaft into
roll into the printer, left side first, right
an empty roll.
side afterwards.
Print head
Paper guide
Paper guide rod
Gap/Black mark sensor
Rubber roller
5.Install ribbon supply shaft into the
3.Insert ribbon supply shaft into 4.Open print head by pressing the
printer, left side first, right side
picture showing button
new ribbon
afterwards.
6.Pull out ribbon and let it touch the 7.Adjust the running wheel to let 8.Close the print head by pressing
print head and roll onto the step 1 the ribbon touch print head flat mechanism two sides to make sure
showing empty roll print head is closed completely for
good quality printing
Top cover
Paper roll
Ribbon take-up shaft
Ribbon take-up running wheel
*If you need more information about the product, please refer to the User's Manual in CD.
*The printer specification, accessory, spare parts and program are subject to change
without prior notice.
Ribbon & Paper installation diagram
Print head
Ribbon
Media guide
Platen roller
Gap/Black mark sensor Media guide rod
Label paper fixing stand
Push button for thermal
print head open
Ribbon rewind hub
Ribbon core
Media
Outward rolling media
Inward rolling media
