Mitsubishi FX2N-4AD-PT User Manual

FX -4AD-PT SPECIAL FUNCTION BLOCK
2N
This manual contains text, diagrams and explanations which will guide the reader in the correct
installation and operation of the FX -4AD-PT special function block and should be read and understood
2N
before attempting to install or use the unit.
Further information can be found in the FX PROGRAMMING MANUAL(ΙΙ) and FX
SERIES HARDWARE MANUAL.
Guidelines for the Safety of the User and Protection of the FX
special function block.
This manual should be used by trained and competent personnel. The definition of such a person or
persons is as follows:
a) Any engineer using the product associated with this manual, should be of a competent nature,
trained and qualified to the local and national standards. These engineers should be fully aware of
all aspects of safety with regards to automated equipment.
b) Any commissioning or service engineer must be of a competent nature, trained and qualified to
the local and national standards.
c) All operators of the completed equipment should be trained to use this product in a safe and
coordinated manner in compliance to established safety practices.
Note: The term 'completed equipment' refers to a third party constructed device which contains or uses
the product associated with this manual.
Notes on the Symbols Used in this Manual
At various times throughout this manual certain symbols will be used to highlight points of information
which are intended to ensure the users personal safety and protect the integrity of equipment.
1) Indicates that the identified danger WILL cause physical and property damage.
2) Indicates that the identified danger could POSSIBLY cause physical and property
damage.
• Under no circumstances will Mitsubishi Electric be liable or responsible for any consequential damage
that may arise as a result of the installation or use of this equipment.
• All examples and diagrams shown in this manual are intended only as an aid to understanding the
text, not to guarantee operation. Mitsubishi Electric will accept no responsibility for the actual use of
the product based on these illustrative examples.
• Owing to the very great variety in possible applications for this equipment, you must satisfy yourself as
to its suitability for your specific application.
1. INTRODUCTION

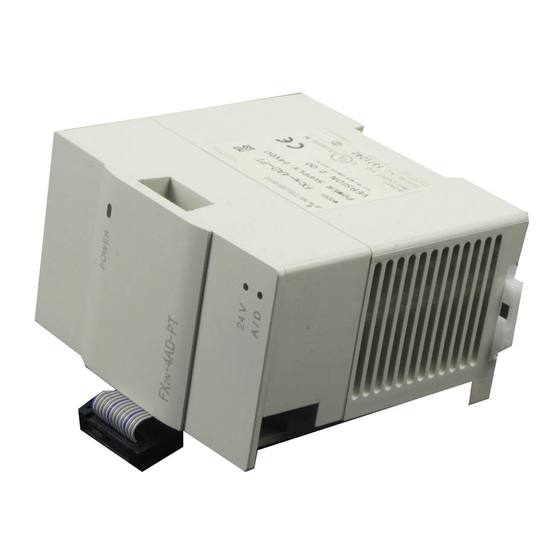

• The FX -4AD-PT analog block amplifies the input from four platinum temperature sensors (PT 100, 3
2N
wire, 100 Ω) and converts the data into 12 bit reading's stored in the main unit. Both Centigrade (°C)
and Fahrenheit (°F) can be read. Reading resolution is 0.2°C to 0.3°C / 0.36°F to 0.54°F.
• The FX -4AD-PT can connected to the FX , FX , FX
2N 0N 1N
Controllers (PLC).
• All data transfers and parameter setups are adjusted via software control of the FX
of the TO/FROM applied instructions in the PLC.
• The FX -4AD-PT occupies 8 I/O points on the PLC expansion bus. The 8 I/O points can be allocated
2N
from either inputs or outputs. The FX -4AD-PT draws 30mA from the 5V rail of the main unit or
2N
powered extension unit.
Industrial automation
Elincom Group
European Union: www.elinco.eu
Russia: www.elinc.ru
2. EXTERNAL DIMENSIONS
USER'S GUIDE
JY992D65601B
D I N r a i l
m o u n t i n g s l o t
3 5 m m ( 1 . 3 8 )
/FX /FX /FX
0N 1N 2N 2NC
-4AD-PT
2N
3. CONNECTION WITH PLC
3.1 Connection with PLC
1) Up to 4 FX
2N
up to 4 for an FX
However the following limitation exists when the undermentioned special function blocks are
connected.
FX : Main unit and powered extension units of 32 I/O points or less. Current consumption
2N
available for the undermentioned special function blocks ≤ 190mA
FX : Main unit and powered extension units of 48 I/O points or more. Current consumption
2N
available for the undermentioned special function blocks ≤ 300mA
FX : Up to 4 undermentioned special function blocks can be connected regardless of the system
2NC
I/O.
When using an FX
FX / : Main unit and powered extension units. Up to 2 undermentioned special function blocks can
0N 1N
be connected regardless of the system I/O.
2) Each block occupies 8 I/O points (The 8 points can be allocated from either inputs or outputs).
3) FX -4AD-PT consumes 30mA from the 5V DC bus.
2N
The total 5V consumption of all special function blocks connected to an FX
FX extension unit must not exceed the 5V source capacity of the system.
2N
4) The FX -4AD-PT and main unit are connected by a cable on the right of the main unit.
2N
3.2 Special function block numbers
Other special units of blocks that use FROM/TO instructions, such as analog input blocks, analog output
blocks and high-speed counter blocks, can be directly connected to the main unit of the PLC or to the right
side of other extension blocks or units.
C O M X 0
L N 2 4 + X 1
F X 2 N - 4 8 M R - E S / U L
Y 0 Y 2 Y 4
C O M 1 Y 3 C O M 2 Y 5
F X - 4 8 M R - E S / U L
2 N
X 0 0 0 - X 0 2 7
Y 0 0 0 - Y 0 2 7
and the FX series Programmable
2N 2NC
4. WIRING
-4AD-PT; by use
2N
4.1 Wiring
PT100 1
shielded CH1
PT100 1
shielded
DC24V±10% 50mA 2
4
3
Grounding
PLC
(100 or less)
Extension cable
Weight: Approx. 0.3 kg (0.66 lbs) Dimensions: mm (inches)
8 7 ( 3 . 4 3 )
5 5 ( 2 . 1 7 )
M o u n t i n g h o l e s 4 ( 0 . 1 6 )
4 . 5 m m ( 0 . 1 8 ) d i a .
P O W E R
2 4 V
L E D
2 4 V
A / D A / D
L E D
E x t e n s i o n c a b l e
9 ( 0 . 3 5 ) 4 ( 0 . 1 6 )
T e r m i n a l s c r e w s M 3 ( 0 . 1 2 )
a n d c o n n e c t o r
-4AD-PT units can connect to the FX series PLC, up to 5 for FX
0N
series PLC, all with powered extension units.
2NC
an FX -CNV-IF is required.
2NC 2NC
2N
I N 0
1
2
3
4
5
6
X 2 X 4 X 6 X 1 0 X 1 4 X 1 6 X 2 0 X 2 2 X 2 4 7 C O M X 0 X 2 X 4
X 5 X 7 X 1 3 X 1 5 X 1 7 X 2 1 X 2 3 X 2 5 L N 2 4 + X 1 X 3
P O W E R P O W E R P O W E R
0 1 2 3 4 5 6 7 2 0 2 1 2 2 2 3 2 4 2 5 2 6 2 7
I N
1 0 1 1 1 2 1 3 1 4 1 5 1 6 1 7
P O W E R
T . V
P R O G . E
6 7 2 0 2 1 2 2 2 3 2 4 2 5 2 6 2 7
C P U . E
1 6 1 7 F X - 4 A D F X - 1 6 E X F X - 4 D A
2 N 2 N 2 N
Y 6 Y 1 0 Y 1 4 Y 2 0 Y 2 2 Y 2 4 Y 2 6 C O M 5 Y 0 Y 2 Y 4 Y 6
Y 7 C O M 3 Y 1 3 C O M 4 Y 1 5 Y 2 1 Y 2 3 Y 2 5 Y 2 7 I N 0 C O M 1 Y 1 Y 3 C O M 2 Y 5 Y 7
1
2
3
A / D 4 D / A
5
2 4 V 6 2 4 V
7
F X - 4 A D F X - 1 6 E X F X - 4 D A F X - 3 2 E R
2 N 2 N 2 N
2 N
S p e c i a l b l o c k X 0 3 0 S p e c i a l b l o c k X 0 5 0 - X 0 6 7
- X 0 4 7
N o . 1 Y 0 3 0 - Y 0 4 7
N o . 0
5V The cable of the PT 100 sensor or a twisted shielded
4.7K 4.7K
cable should be used for the analog input cable. This
L+
100K
L-
analog input cable should be wired separately from
100K
I-
AG
power lines or any other lines which may induce noise.
FG
The three wire method improves the accuracy of the
sensors by compensating voltage drops.
CH4
L+
L- If there is electrical noise, connect the FG (frame
5V
I-
FG ground) terminal with the ground terminal. (In CH1, there
AG
is no FG terminal. Use FG terminal of other channels.)
24+ +15V
DC/DC
AG
converter Connect the ground terminal on the FX
24- -15V
with the grounded ter minal on the main unit. Use
FX -4AD-PT grounding on the main unit, if grounding is possible.
2N
5 5 ( 2 . 1 7 )
4.2 Using crimp terminations
l e s s t h a n
6 . 2 m m ( 0 . 2 4 )
U s e M 3 ( 0 . 1 2 )
l e s s t h a n
6 . 2 m m ( 0 . 2 4 )
5. INSTALLATION NOTES AND USAGE
5.1 Environmental specification
Item
Environmental specifications
Dielectric withstand voltage
5.2 Power supply specification
, up to 8 for FX or,
1N 2N
Item
Analog circuits
Digital circuits
5.3 Performance specification
Analog Inputs
Item
Both °C and °F are available by reading the appropriate buffer memory (BFM).
Platinum Temperature PT 100 sensors (100 Ω), 3-wire, 4-channel (CH1, CH2,
Analog input signal
CH3, CH4), 3850 PPM/°C (DIN 43760, JIS C1604-1989)
1 mA. sensor: 100 Ω PT 100
Current to sensor
Compensated range -100°C to +600°C
-1000 to 6000
or FX main unit or
2NC
Digital output
12-bit conversion 11 data bits +1 sign bit
Minimum resolvable
0.2°C to 0.3°C
temp.
± 1% full scale (compensated range)
Overall accuracy
-see section 7.0 for special EMC considerations
Conversion speed 15 ms for 4 channels
Analog Inputs continued...
X 6 X 1 0 X 1 2 X 1 4 X 1 6
X 5 X 7 X 1 1 X 1 3 X 1 5 X 1 7
I N
P O W E R
0 1 2 3 4 5 6 7
1 0 1 1 1 2 1 3 1 4 1 5 1 6 1 7
P O W E R
+6,000
O U T
0 1 2 3 4 5 6 7
1 0 1 1 1 2 1 3 1 4 1 5 1 6 1 7
Y 1 0 Y 1 2 Y 1 4 Y 1 6
C O M 3 Y 1 1 Y 1 3 C O M 4 Y 1 5 Y 1 7
Conversion
2 4 V
A / D
Characteristics
-100°C
F X - 4 A D - P T
2 N
S p e c i a l b l o c k
N o . 2
Miscellaneous
Item
Isolation
Number of occupied I/O points
-4AD-PT unit
2N
Either an external or the 24V built-in supply in the PLC
may be used.
For additional data regarding EMC considerations
please see section 10.
• Use crimp terminals as indicated on the left.
• Secure the terminal using a tightening torque of between 5 and 8
⋅
kg cm.
• Wire only to the module terminals discussed in this manual. Leave all
others vacant.
Specification
Same as those for the main unit
500V AC, 1min (between all terminals and ground)
Specification
24V DC ± 10%, 50mA
5V DC, 30mA (internal power supply from the main unit)
Centigrade Fahrenheit
-148°F to +1112°F
-1480 to +11120
0.36°F to 0.54°F
+11,120
Digital Digital
output output
-148°F
+600°C +1,112°F
-1,000 -1,480
Temp. input°F
Temp. input°C
Specification
Photo-coupler isolation between analog and digital circuits.
DC/DC converter isolation of power from the main unit.
No isolation between analog channels.
The block occupies 8 I/O points
(can be either inputs or outputs)
