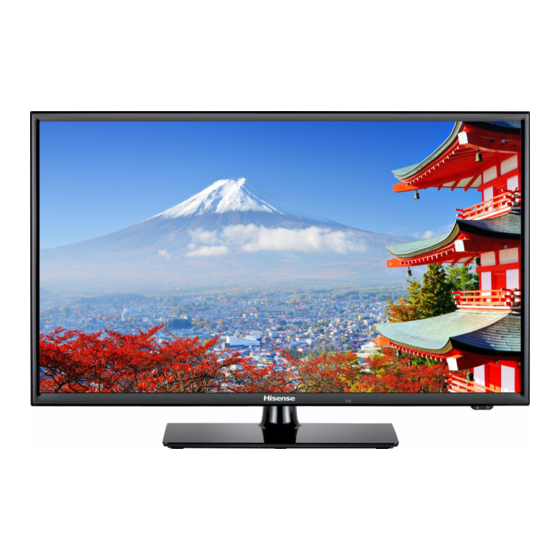

Hisense 24D33 Quick Setup Manual

24D33
1 ACCESSORIES LIST
User Manual Quick Setup Guide Remote Control
Batteries: AAA × 2 Screws (ST4 × 12F) × 3 Screws (M4 × 16) × 2
Screws (ST3 × 16C) × 2
If the item is not specified in the accessories list, it should be provided by customer.
•
2 INSTALLING THE STAND
CAUTION
Carefully place your TV facedown on a soft, cushioned surface to prevent
damage to the TV or scratching to the screen.
1. Use the screws (ST4x12F) X 3 to fix the Neck and Base.
2. Attach the stand to the TV set as shown in the picture.
3. Use the screws (M4x16) X 2 and screws (ST3x16C) X 2 to fix the stand tightly.
Neck
1
Base
3
2
TV Set
Stand
NOTE
Product image is only for reference, actual product may vary in appearance.
3 INSTALLING A WALL-MOUNT BRACKET
If you want to attach the TV to a wall-mount bracket (not provided),Make sure the TV
is laid face-down on a clean,safe, and cushioned surface.
Attach purchased bracket on the TV with the 4 screws (not provided) .
Wall-mount Bracket
Wall monuted-screws
M4 x 20mm
To prevent internal damage to the TV and ensure the TV is mounted securely, be sure
to use fixing screws (Not provided) which are 7 mm to 9 mm in length when measured
from the attaching surface of the mounting hook.
Screws M4
7~9 mm
Wall-mount Bracket
Screw
the TV's rear cover
Wall-mount hole pattern VESA (mm) 100 × 100
Wall-mount screw size (mm) M4
Follow instructions provided with the wall bracket.
If you are not sure of your ability to complete the installation, contact a
professional installer or service technician for assistance. The manufacturer is
not responsible for any damages or injuries that occur due to mishandling or
incorrect assembly.
Be sure to use the provider spacers between the TV and the bracket when
attaching the mount.
QUICK SETUP GUIDE
4 REMOTE FUNCTIONS
Remote sensing Window
Power button
Available source selection
Switch to DTV Radio program Zoom image
Analog/ Digital TV Mute the sound
Start video recorder
Select USB-Digital Set the sleep time
Media player mode
Select Audio language
Mono/Stereo operation, Display the subtitle
Audio select button content of the signal
Fast access to your saved
favorite programs
Red, Green, Yellow and Blue
are used in media mode
Display the main menu Exit: Exit all menu display
/ Back menu display
Enter or confirm the operation,
Up/Down/Left/Right
Display informations Electronic program guide
Picture mode selecting
Channel Up/ Channel Down Volume Up/ Volume Down
Sound mode selecting
1,2,...numbers: For direct channel access
Freeze picture To return to the last view program
Time shift in DTV Mode
Text, Size, Reveal, Hold, Index, Subpage
(refer to teletext function)
Video recorder list
Play/ Pause, Stop, etc.
are used in media mode
ER-22601A
CHANGE THE BATTERIES
1. Slide open the battery cover on the back of the remote control.
2. Install two AAA size (1.5V) batteries. Match the "+" and "-" signs on the batteries to the
signs on the battery compartment.
3. Close the battery cover.
1 Gently Push 2 3
NOTES
Dispose of your batteries in a designated disposal area. Do not throw the
batteries into fire.
Do not mix battery types or combine used batteries with new ones.
Remove depleted batteries immediately to prevent battery acid from leaking
into the battery compartment.
If you do not intend to use the remote control for a long time, remove the
batteries.
The effective range of remote control is suggested in the figure below.
REMOTE CONTROL RANGE
1. The maximum distance is 8
meters in front of the TV set.
2. The remote control is effective
within 30 Degrees of horizontal
angle, or 15 Degrees of vertical
angle at maximum distances of
6 meters.
6m 30° 30°
6m
8m
5 TV FRONT
AC Power ON/OFF Remote Sensor
item Description
Receive remote signals from the remote control.
Remote Sensor
Do not put anything near the sensor, as its function may be affected.
Remote Indicator Red light up in standby mode. Blue light up in power on mode.
MENU Open the OSD menu.
Select among the different signal sources.
SOURCE
CH + - Select the channel.
VOL + - Adjust the volume.
STANDBY Turn on the TV or put the TV in standby mode.
NOTES
FOR ILLUSTRATION ONLY.
Powering up or down the TV requires several seconds of processing time.
Do not rapidly turn the TV on/off as abnormal operation may occur.
6 MAKING CONNECTIONS
ANT/CABLE IN Connect an antenna or cable TV to this jack.
HDMI (High-Definition Multimedia Interface)provides
HDMI
uncompressed video data and digital audio data.
Support: 480i\480p\576i\576p\720p\1080i\1080p
COMPONENT IN Connect to a DVD player, Digital Set-Top-Box, or other A/V
devices with component (YPBPR) video and audio output jacks.
Component audio Jack share AV IN audio Jack.
Support: 480i\480p\576i\576p\720p\1080i\1080p
AV&COMP AUDIO IN Connect to the composite video and audio (L/R) output jacks
on external video devices.
VGA
Connect to a PC or other devices with a VGA interface.
PC/DVI AUDIO IN
AUDIO OUT Connect to headphone for private listening.
Video , MP3, JPEG play and software update.
USB
Connect to an external digital audio device.
COAXIAL
Check the jacks' for position and type before making any
connections.Loose connections can result in image or color
problems. Make sure that all connections are tight and secure.
ANT
Connect an outdoor VHF/UHF antenna.
TV JACK
Outdoor
Antenna
ANT/CABLE IN
6m
15°
8m
15°
Turning the TV On for the First Time
6m
Connect an RF cable from the TV's input called "ANT/CABLE IN" and to your TV
Aerial socket.
OSD Language:
Press [◄ / ►] button to select the language to be used for menus and message.
Mode Setting: Press [◄ / ►] button to select mode.
Country: Press [◄ / ►] button to select the country you want to.
Auto Scan: Press [◄ / ►] button to select Mode: DTV+ATV, DTV, ATV.
VGA & AUDIO
Connect a VGA cable and an audio cable from the PC.
• To select the PC: Press [Source] button, when the list of In Source appears,
press [▲/▼] to select the source PC, then press [OK] to connect.
VGA PC/DVI AUDIO IN
Remote Indicator
HDMI / COMPONENT IN / AV IN
Connect an HDMI cable or Component in/AV IN Adapter from an external A/V
equipment. No sound connection is needed for HDMI to HDMI connection. If the
device signal resolution does not match the specification table you need to change the
setting of device according to the table. Please consult your device user manual for
instruction.
• To select the HDMI / Component / AV
Press [Source] button, when the list of Input Source appears, press [▲/▼] to select
the source [HDMI] / [Component] / [AV], then press [OK] to connect.
TV JACK
HDMI Cable
(not included)
Red(R) Red(R)
White(L) White(L)
AV Cable
(not included)
Yellow(Video) Yellow(Video)
Red(R)
TV Side View
Audio Cable
White(L)
(not included)
P /C
R R
P /C
Component Cable
B B
(not included)
Y
USB
Connect a USB 2.0 device port for browsing photos, listening music and watching
recorded movies.
• Press [◄ / ►] button to select USB in the Source menu, then press [OK] button
to enter.
TV Bottom Panel
COAXIAL audio
1. Use a coaxial cable to connect the A/V device's digital audio in jack to the TV's
DIGITAL AUDIO OUT jack.
2. Plug the connected devices into the mains socket before switching on the TV.
3. Select the corresponding source from the TV.
TV JACK
COAXIAL
Coaxial Cable
(not included)
AUDIO OUT Connect Headphone for audio out of the TV.
AUDIO OUT
7 SPECIFICATIONS
Size with base (mm)
557×160×381
Size without base (mm) 557×47×344
5.3
Gross Weight (kg)
Net Weight (kg)
4.3/3.6
(with base/without base)
Screen Diagonal Size 24 inches
Screen Resolution 1366 × 768
Sound Output (RMS) 2.5 W + 2.5 W
Power Consumption 35 W
Power Supply
220V - 240V
Colour System PAL, SECAM
Television System PAL B/G D/K, SECAM B/G D/K, DVB-T
Temperature: 5°C - 45°C
Environmental
Humidity: 20% - 80% RH
Conditions
Atmospheric pressure: 86 kPa - 106 kPa
480i\480p\576i\576p\720p\1080i\1080p
Component mode
VGA mode 640×480, 800×600, 1024×768, 1280×1024 60Hz
480i\480p\576i\576p\720p\1080i\1080p
HDMI mode
Attention： Excessive sound pressure from earphones and headphones can
cause hearing loss.
NOTE
Features, appearance and specifications are subject to change without notice.
you refer to the Trouble Shooting tips in the User Manual.
PC
ES-M140701
EXTERNAL DEVICES
VCR
R
L
DVD Player/Recorder
Video
A/V OUT
Video Set-top box
Camera
Red(R)
R
Satellite
White(L)
antenna
L
P /C
R R
P
R
Satellite Receiver
P /C
B B
P
B
Y
Y
Equipment with A/V jacks
Component
Portable Storage
Device
EXTERNAL DEVICES
Powerless
Audio Amplifier Speaker
Bass Speaker
Headphone
50Hz/60Hz
