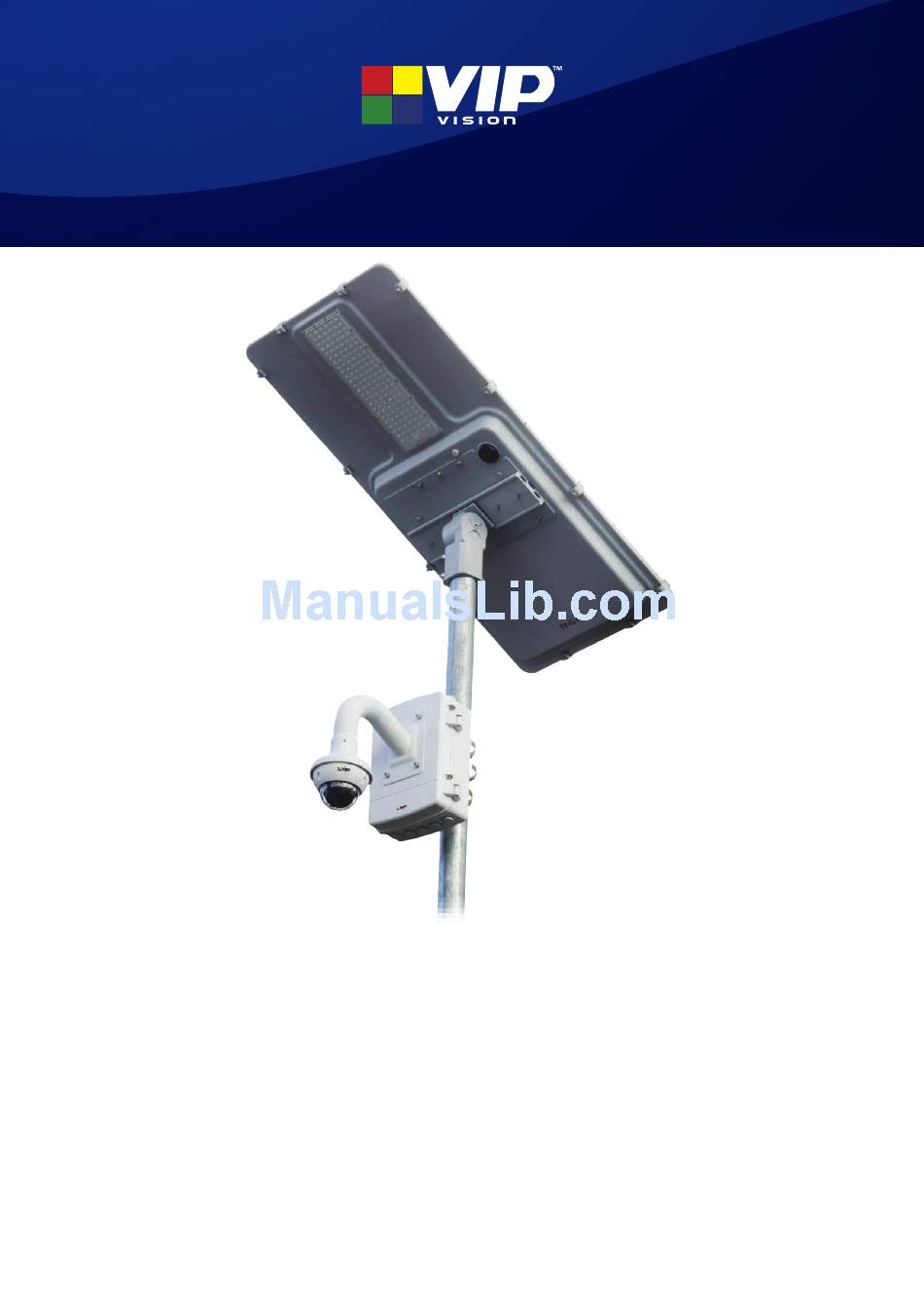

Solar Surveillance Installation Guide
SLR-A45 Series
WiFi Solar Surveillance System (SLR-A75-4W)
4G Solar Surveillance System (SLR-A75-4G)
Thank you for purchasing a SLR-A45 Series Solar Surveillance System.
This install guide covers basic setup, installation and use of your surveillance system.
For more information, please visit:
www.vip-vision.com
Version 130618
Advertisement
Table of Contents
Related Manuals for Vip-Vision SLR-A75-4G
Summary of Contents for Vip-Vision SLR-A75-4G
- Page 1 Solar Surveillance Installation Guide SLR-A45 Series WiFi Solar Surveillance System (SLR-A75-4W) 4G Solar Surveillance System (SLR-A75-4G) Thank you for purchasing a SLR-A45 Series Solar Surveillance System. This install guide covers basic setup, installation and use of your surveillance system. For more information, please visit: www.vip-vision.com...
-
Page 2: Included Components
SLR-A45 Series | Solar Surveillance 1. Pre-install Information 1.1 Included components Part Product Code Image Solar Panel SSL-A40MN (Optional config remote) 4.0MP Mini PTZ Dome Camera VSIP4MPPTZMINI Camera Adapter VSBKTA107 Wall Mount Adapter VSBKTA110 Right Angle Bracket VSBKTB300S Junction Box VSBKTA140 Pole Mount Bracket VSBKTA150... - Page 3 Pole Diameter (Spigot) Ø60mm This solar panel includes a motion-activated LED light which is disabled by default. For more information, refer to 4. Solar Panel LED Configuration (p16). LED light configuration requires the solar panel remote control (provided on request). www.vip-vision.com...
- Page 4 SLR-A45 Series | Solar Surveillance Solar Panel Dimensions 526mm 1063mm Solar Panel Screw Diagram M8*30 x 4 M6*15 C x 4 M8 x 4 M6 O x 4 O x 2 M6 O x 2 C x 2 6 C x 2 M8*2 0 x 2 M6*16 x 2...
-
Page 5: Camera Information
Stream Type General Encode Type H.265 Encode Type H.265 Resolution 2592x1520 Resolution 704x576 (D1) StreamCTRL StreamCTRL Quality 6 (Best) Bit Stream 512Kbps Ref Stream 1536-8192Kbps Ref Stream 139-768Kbps I Frame Interval I Interval Watermark 1 (off ) Characters DigitalCCTV www.vip-vision.com... -
Page 6: Installation
SLR-A45 Series | Solar Surveillance 2. Installation 2.1 Mounting the solar panel to the pole 1. Drill an 8mm hole in the pole (minimum 15cm down from the top of the pole) on the same side that the camera will be mounted. This is for the solar panel cable to run through. The position of the hole will vary depending on what position on the pole the camera is to be mounted. - Page 7 43° 35° 12.5° 34° 38° Fig. 2.2a Fig. 2.2b Solar panel angle adjust cover Solar panel angle adjust Allen head 3. Tighten the bolt after adjusting the angle to secure the solar panel in place. 4. Replace the cover. www.vip-vision.com...
- Page 8 SLR-A45 Series | Solar Surveillance 2.3 Mounting the camera to the pole The installation order for mounting the junction box & camera to the pole. Note that this has partially been assembled already: • The camera, camera adapter, wall mount adapter are already connected (A, B, C & D). •...
- Page 9 2. Open the junction box (Fig. 2.3c). Fig. 2.3c Junction box interior (no 4G router) Note: This image shows the inside of the junction box as seen with the WiFi kit. The 4G kit will also have the 4G router pre-installed inside the junction box. www.vip-vision.com...
- Page 10 SLR-A45 Series | Solar Surveillance Caution: Do not allow the negative and positive power supply wires from the solar panel to touch (short circuit) - this will cause the lithium polymer battery to enter protection mode and output voltage will drop to 0V. The only way to recover from this is to disconnect and then reconnect the battery inside the panel - Please contact VIP Vision™...
- Page 11 5. (Optional) Connect the network switch to an NVR (The camera includes a microSD card for edge recording). 6. (Optional) Connect the network switch to a router. Refer to the next page for a WiFi system map example using a PoE injector. www.vip-vision.com...
- Page 12 SLR-A45 Series | Solar Surveillance Ethernet Power Solar Panel WiFi Wireless Bridge (AP) Camera Wireless Bridge 240VAC Power (Station) PoE Injector Network Switch Router (optional) NVR (optional) Internet Fig. 3.1a Example WiFi Setup Crucial evidence. Always.
- Page 13 SLR-A45 Series | Solar Surveillance 3.2 Connect using 4G (SLR-A75-4G) NOTE: 4G setup requires an active SIM card (not included). For more information on how to configure the 4G router, refer to the 4G router manual (included). 1. Insert an active SIM card into the SIM slot.
- Page 14 SLR-A45 Series | Solar Surveillance QR code remote access setup (4G) 1. Install the free app from the App Store for iOS (iDMSS) or Play Store for Android (gDMSS). 2. Open the iDMSS/gDMSS you have installed on your device and select “Camera” 3.
- Page 15 SLR-A45 Series | Solar Surveillance 3.3 Finish camera installation 1. Close the junction box and securely fasten the 4 attached bolts (Fig. 3.3a). Fig. 3.3a Complete solar surveillance system www.vip-vision.com...
- Page 16 SLR-A45 Series | Solar Surveillance 4. Solar Panel LED Configuration (Optional) This section covers how to set up the motion-activated 40W LED light on the solar panel. Our example will show you how to configure your solar panel & light with the remote control, showing you the steps required to set up the light to activate after motion is detected at night.
-
Page 17: Operation
(as shown in the diagram below): Sunset Interval 1 Daytime operation Daytime 14 hours operation (Light off ) (Motion activates light at 10% brightness for 20 sec) Note: To change solar panel settings back to factory default, set Re-Deflt to YES www.vip-vision.com... - Page 18 SLR-A45 Series | Solar Surveillance Disabling Motion Activated LED Light To the LED light system again, simply change all S-Time values (S-Time-1, S-Time-2 & S-Time-) back to 0H. This will skip every Interval after the sun sets, so editing other values after this point is unnecessary. 4.2 Check Solar Panel Configuration Fig.
-
Page 19: Troubleshooting
3. My camera doesn't have power. • Check the connections from the solar panel battery to the camera. • If the battery is out of power, the camera should automatically turn on once the solar panel absorbs more light. www.vip-vision.com... - Page 20 SLR-A45 Series | Solar Surveillance Note: All products, designs and software here are subject to change without prior written notice. Please visit our website for more information. For more information, please visit: www.vip-vision.com Crucial evidence. Always. Crucial evidence. Always.
