LG T70CSA13P Owner's Manual

Hide thumbs

Advertisement

Quick Links

Owner's Manual
Please read this manual carefully and thoroughly
before operating this unit.
Record model name and serial number of the set.
Quote this information to your dealer when you
require service.
MODEL : T70CBA13P
T70CSA13P
3828EU3034H

Advertisement

loading

  Summary of Contents for LG T70CSA13P

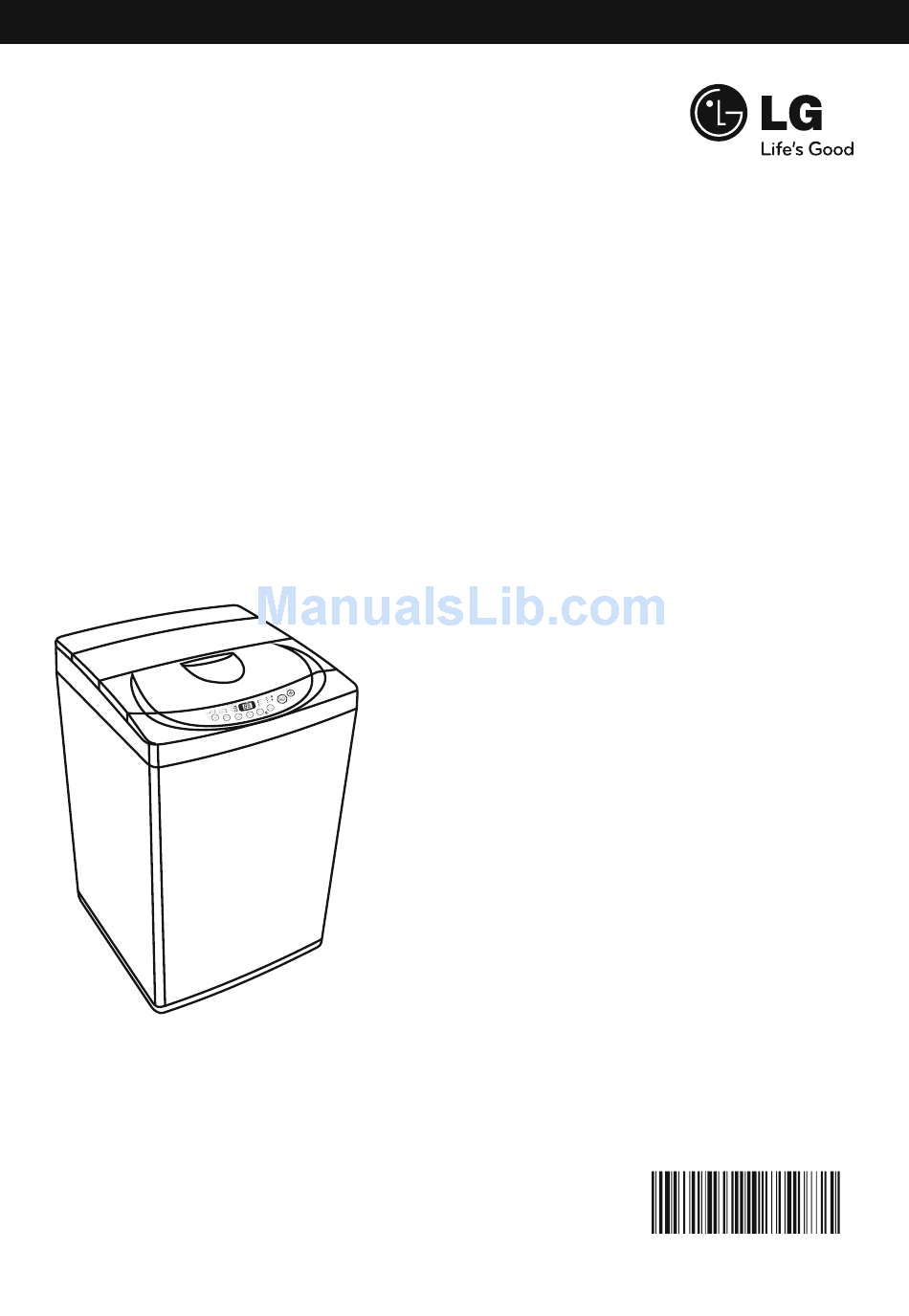

  • Page 1 Owner's Manual Please read this manual carefully and thoroughly before operating this unit. Record model name and serial number of the set. Quote this information to your dealer when you require service. MODEL : T70CBA13P T70CSA13P 3828EU3034H...
  • Page 2: Table Of Contents

    ontents Read this manual Inside you will find many helpful hints on how to use and maintain your washer properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your washer. You will find many answers to common problems in the Troubleshooting section.
  • Page 3: Product Features

    roduct Features Washer doesn't operate while the lid is open. If the lid is open during the wash, rinse or spin cycles, the operation stops for safety. Fuzzy Logic Control A built-in load sensor automatically detects and measures the laundry load and a microprocessor optimizes washing conditions such as ideal water level, washing time and optimum detergent quantity indication.
  • Page 4: Safety Information

    afety Information Read carefully and thoroughly through this booklet as it contains important safety information that will protect the user from unexpected dangers and prevent potential damages to the product. This booklet is divided into 2 parts : Warning and Caution. : This is a warning sign specifying user’s applications which might be dangerous.
  • Page 5: The Washer

    afety Information YOUR WARNING LAUNDRY AREA • Keep the area underneath and around your appliances free of combustible materials such as lint, paper, rags, chemical, etc. Operating with such materials around the machine may trigger explosion or fire. • Close supervision is necessary if this appliance is used by or near children. Do not allow children to play on, with, or inside this or any other appliance.
  • Page 6 afety Information WHEN USING WARNING THE WASHER Do not use a plug socket and wiring equipment for more than their rated capacity. Exceeding the limit may lead to electric shock, fire , break down, and/or deformation of parts. Do not mix chlorine bleach with other household chemicals such as toilet cleaners, rust removers, acids (such as vinegar) or product containing ammonia.
  • Page 7: Identification Of Parts

    dentification of Parts Body POWDER DETERGENT BOX FOR DELAYED WATER SUPPLY WASHING HOSE Make sure the water does not leak. SOFTENER INLET Softener will automatically flow into the tub. POWER PLUG If the supply cord is damaged, it must be INLET HOLE FOR replaced by the BLEACH...
  • Page 8: Placing, Leveling And Installation

    lacing, Leveling and Installation Improper installation of the washer may cause noise and malfunctioning. Note : The ventilating openings in the base area must not be obstructed by carpeting when the washing machine is installed on a carpeted floor. Install the washing machine on a level and firm Installation area surface, any tilt should be less than 4°.
  • Page 9: Connecting Water Supply Hose

    onnecting Water Supply Hose Normal Type (Normal tap without thread & one touch type inlet hose.) Separate Middle connector from Water Supply Hose Separate Middle connector from the Water Middle Fixed Sticker connector Supply Hose by pulling the Pressing Rod and the Pressing Handle Pressing Handle that is attached to the Water Pressing Rod...
  • Page 10: Connecting Drain Hose

    onnecting Drain Hose Before connecting Drain Hose, check your Drain Hose model and choose the correct instructions. § How to connect the drain hose Insert the drain hose to the connect- Press the hose clip. ing area at the body. While pressing, push the hose towards the body.
  • Page 11: Preparation Before Washing

    Use nylon nets for long, DELICATE items. For laundry with long strings or long length , a net will prevent tangling during washing. Fasten zippers, hook, and strings to make sure that these items don't snag on other clothes. Nylon net is not supplied by LG. Before Starting to Wash...
  • Page 12: Use Of Water, Detergent, Bleach And Softener

    se of Water, Detergent, Bleach and Softener Deposit laundry and Without water, the pulsator A proper water level press the START/ turns to the left and right for and the amount of PAUSE button. about 4 seconds to sense the detergent is dis- amount of laundry.
  • Page 13: Water Level And Amount Of Detergent

    se of Water, Detergent, Bleach and Softener Water Level and Amount of Detergent Concentrated detergent: 20g per 30 liters of water. Amount of Detergent Water Amount Amount Level of Water of laundry Concentrated Regular synthetic Regular synthetic detergent: 30g per 30 liters of water. Less than* When sensing water levels automatically, the amount of 61 l...
  • Page 14 se of Water, Detergent, Bleach and Softener Using Fabric Softener Dilute fabric softener with water. Undiluted fabric softener may result in spots that look like oil stains. Measure and add the recommended amount of fabric softener into the Softener dispenser ( compartment marked with this symbol ( Follow manufacturer's direction.
  • Page 15: Stain Removal Techniques

    pecial Guide for Stain Removal For successful stain removal: • Remove stains promptly. • Determine the kind of stain, then follow the recommended treatment in the stain removal chart below. • To pretreat stains, use a prewash product, liquid Detergent, or a paste made from granular Detergent and water.
  • Page 16 Applicable for : T70CBA13P, T70CSA13P Before Starting to Wash...
  • Page 17 Before Starting to Wash...
  • Page 18 AUTO OFF AUTO OFF PROGRAM AUTO OFF PROGRAM AUTO OFF PROGRAM AUTO OFF PROGRAM PROCESS Washing Programs...
  • Page 19 START PAUSE START PAUSE START PAUSE START PAUSE START PAUSE Washing Programs...
  • Page 20: Washing Process

    ashing Process START PAUSE AUTO OFF PROGRAM PROCESS START PAUSE AUTO OFF PROCESS START PAUSE AUTO OFF PROCESS START PAUSE AUTO OFF PROCESS AUTO OFF PROCESS WATER LAVEL PROGRAM PROGRAM PROCESS Washing Process...
  • Page 21 START PAUSE Washing Process...
  • Page 22: Delay Start (Reservation) Wash

    unction Options AUTO OFF PROCESS DELAY START PROGRAM PROGRAM PROCESS START PAUSE PROCESS PROGRAM START PAUSE PROCESS WATER LAVEL Additional Features...
  • Page 23 START PAUSE WATER LAVEL Additional Features...
  • Page 24: Cleaning The Filter In The Inlet Valve

    Push Press & Pull When the lint filter is worn out, etc., contact a LG Service Center for a new one. Care and Maintenance...
  • Page 25 leaning and Maintenance To prevent freezing in winter Close water tap and remove the water Press the SPIN button and let Unplug the power cord. hose. Direct the hose toward the bot- it spin for 1 min. to remove tom and completely remove water water from the tub and drain from the hose.
  • Page 26: Grounding Method

    rounding Method Earth wire should be connected. If the earth wire is not connected, there is possible a danger of electric shock caused by the current leakage . Grounding Method with Ground insert space Terminal Ground terminal If the AC current outlet has a ground terminal, then separate grounding is not required.
  • Page 27: Common Washing Problems

    ommon washing problems Many washing problems involve poor soil & stain removal, residues of lint and scum, and fabric damage. For satisfactory washing results, follow these instructions. WASH PROBLEM Problems Possible Causes Solutions & Preventive Measures Poor soil Not enough detergent Use correct amount of detergent for load size, amount of removal Wash water temperature...
  • Page 28 roubleshooting If a abnormal symbol appears in the display window, check the following before calling Customer Service Centre. SYMPTOM ITEM TO BE CHECKED Turbo Abnormal water supply Wash Rinse I the water tap Spin s the water frozen? Is the water pressure Is hot water selected when only a cold (At this time, the lamps of lowered or the filter...
  • Page 29: Specification

    Model T70CBA13P / T70CSA13P Size 540(W)x540(D)x815(H) Water tap pressure 30 -800 kPa (0.3 -8 kgf /cm ) Weight 30 kg In our continuing effort to improve the quality of our appliances, it may be necessary to make changes to the appliance without revising this manual.
