OST iConverter 10GXT User Manual

3) VERIFY OPERATION

Once the module has been installed and configured per steps 1 and 2, verify the module is
operational by viewing the LED indicators.
LED Function
Color OFF State
"Legend"
Power
Green No power
"PWR"
P1 Negotiation Mode Port is configured for Manual
Green
"AN" operation
P1 Link Activity
Green Port not linked at 100M
"100"
P1 Link Activity
Green Port not linked at 1000M
"1000"
P1 Link Activity
Green Port not linked at 10M
"100" and "1000"
Port is configured for half
P1 Duplex
Green duplex per DIP-switch or
"FDX"
resolved by auto-negotiation
P2 Speed
Green/
"P2 1000" Port not linked at 1000M
Amber
(SFP+ Model Only)
P2 Speed
Green Port not linked at 10G
"10G"
Port is has negotiated to
P2 FDX Green half duplex or port has not
established a link
Transceiver does not support
P2 DDMI Green/
digital diagnostic or no
"Stats" Amber
transceiver is installed
Figure 5: LED Indicators
LED Legend/State
"1000" "100"
OFF OFF
OFF ON
ON OFF
ON ON
Figure 6: Port 1 Speed LED Indicators
©2016 Omnitron Systems Technology, Inc. iConverter is a registered trademark of Omnitron Systems Technology, Inc.
Trademarks are owned by their respective companies. Specifications subject to change without notice. All rights reserved.
Omnitron Systems Technology * 38 Tesla, * Irvine, CA 92618
949.250.6510 tel * 949.250.6514 fax * www.omnitron-systems.com
ON/Blinking State
Solid Green: Module has power
Solid Green: Port is configured for auto-
negotiation
Blinking Green: Port is configured for
auto-negotiation but has not completed
the process with attached link partner
Solid Green: Port linked at 100M
Blinking Green: Data activity
Solid Green: Port linked at 1000M
Blinking Green: Data activity
Solid Green: Port linked at 10M
Blinking Green: Data activity
Solid Green: Port is configured for
full duplex operation per DIP-switch or
resolved by auto-negotiation
Solid Green: Port linked at 1000M
Blinking Green: Data activity
Blinking Amber: Port is operating at
1000M and receiving a remote fault
Solid Green: Port linked at 10G
Blinking Green: Data activity
Solid Green: Port is negotiated to full
duplex operation by auto-negotiation
Green Solid: Transceiver supports
digital diagnostic and no DDMI alarm
detected
Amber Solid: Transceiver supports
digital diagnostic and DDMI alarm
detected
Link Speed
Port not linked
Port linked at 100Mbps
Port linked at 1000Mbps
Port linked at 10Mbps
040-08580-001A 1/16
iConverter
Standalone Module User Manual

Product Overview

The iConverter 10GXT is a 10/100/1000BASE-T copper to 1000BASE-X or 10GBASE-R fiber
media converter, and is available as a compact, unmanaged standalone unit. The iConverter
10GXT supports jumbo frames up to 10,056 bytes. The 10GXT models are available with
SFP+ or XFP transceivers.

Installation Procedure

1) Configure DIP-switches

2) Install Standalone Module and Connect Cables
3) Verify Operation
1) CONFIGURE DIP-SWITCHES
DIP-SWITCH BANK 1

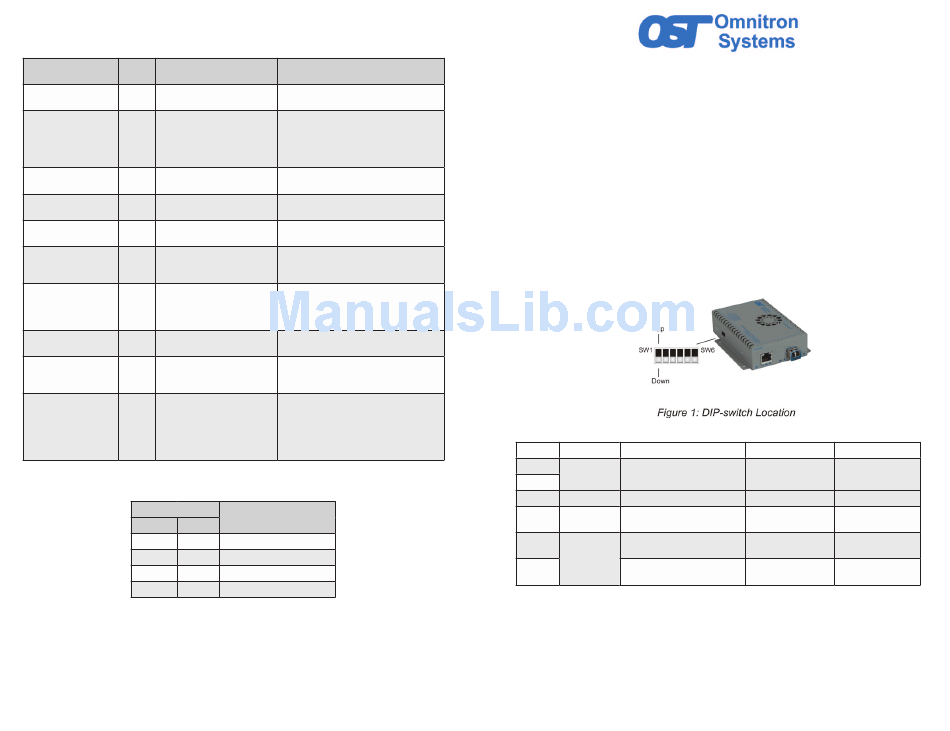

The location of the DIP-switches is shown in Figure 1.
The function of DIP-switch Bank is outlined in Figure 2.
Switch Legend Function
SW1
P1 AN/MAN

Port 1 Speed and Duplex

SW2
SW3 10G/1000 Port 2 Speed
Port 2 Negotiation
SW4 P2 AN/MAN
(1G Mode Only)
Asymmetrical Link Propagate
SW5
Port 1 to Port 2

Link Modes

Asymmetrical Link Propagate
SW6
Port 2 to Port 1
Figure 2: DIP-switch Definitions
Page 1
10GXT
®
DOWN (Default) UP
Auto Manual
10G 1000
Auto Manual
Link Propagate
Link Segment
Port 1 to Port 2
Link Propagate
Link Segment
Port 2 to Port 1
