OST iConverter GX/TM2 Quick Start Manual

Management Options
Network Management
1: Chassis and Module Management
2: Set Module Name Preferences
Management Module Preferences
3: IP and Control Preferences
4: SNMP Preferences
5: Abandon Preference Changes
6: Save Preference Changes
7: Restore Factory Defaults
8: Restart Management Module
9: Other Networking Features
Management Module Maintenance
10: Firmware Update
11: Set Date/Time
IP Address = 192.168.1.220
Chassis Number = 1
Enter Choice, <H>elp, E<x>it >
Figure D: Command Line Interface Menu Options
The CLI interface allows for the detailed configuration of the module. It is recommended
to configure the module with an IP address associated with the attached network.
Also, SNMP traphost address should be configured if the module is managed with
an SNMP-based Management System. See the GX/TM2 User Manual for complete
information.
4) VERIFy oPERATIon
Once the module has been
LED Function
installed and configured per
"legend"
steps 1 - 3, verify the module
Power "Pwr"
is operational by viewing the
1000Mbps
LED indicators.
Fiber Optics
"FO"
The Power LED indicates
the module is receiving
UTP port
100Mbps
power.
"100"
The Fiber Optic link LED
UTP port
indicates the fiber optic
1000Mbps
"1000"
c o n n e c t i o n h a s b e e n
UTP port
established.
10Mbps
The UTP link LED indicates
"100" + "1000"
the module has established
UTP port
Full-Duplex
a connection across its UTP
"FDX"
port.
Omnitron Systems Technology * 140 Technology Dr. #500 * Irvine, CA 92618
949.250.6510 tel * 949.250.6514 fax * www.omnitron-systems.com
iConverter, Serial Agent
Color Off State On / Blinking State
Green No Power On: Module has power
On: Fiber Link
Green No Fiber Link
Blinking: Fiber Data Activity
Not linked at On: UTP linked at 100Mbps
Green
100Mbps Blinking: UTP Data Activity
Not linked at On: UTP linked at 1000Mbps
Green
1000Mbps Blinking: UTP Data Activity
On: UTP linked at 10Mbps
Green Not linked at 10Mbps
Blinking: UTP Data Activity
Half-Duplex when
On: Full-Duplex when any
Green any UPT link is
UTP link is active
active
Figure E: LED Indicators
Form 040-8920N-001C
iConverter
GX/TM2 Standalone Module QUICK START GUIDE
iConverter
The ® GX/TM2 media converter and Network
Interface Device (NID) provides 10BASE-T, 100BASE-TX
or 1000BASE-T UTP to 1000BASE-X fiber media
conversion.
The GX/TM2 has built-in Operation, Administration and
Maintenance (OAM) functionality enabling the GX/TM2 to
operate as a managed demarcation point at the customer
premises and network edge, offering Quality of Service
capabilities.
The GX/TM2 can be managed using
party SNMP Client, Telnet or the Command Line Interface (CLI).
For the complete User Manual on this product, access Omnitron's secure download
site and request access.
http://www.omnitron-systems.com/login.php

InSTAllATIon PRoCEDURE

1) Configure DIP-Switches
2) Install Standalone Module and Connect Cables
3) Configure Module via Command Line Interface
4) Verify Operation
1) ConFIGURE DIP-SwITChES
DIP-SwITCh BAnK 1
Sw1 - FIBER AUTo/MAnUAl nEGoTIATIon "An/MAn"
When this DIP-switch is in the DOWN "AN"
position (factory default), the fiber optic
port automatically determines the duplex
and pause modes of the connecting fiber
optic device. If the connecting fiber optic
device cannot provide the proper signal
to indicate its own mode of operation, the
DIP-switch should be set to the UP fiber
optic "Man" position. When Port 1 is in
1000X manual mode, no capabilities are
advertised.
NOTE: The fiber optic port of the GX/TM2 is always in Full-Duplex mode.
Sw2, Sw3, Sw4 AnD Sw5 - UTP ConTRol
DIP-switches SW2, SW3, SW4 and SW5 control the setting of the UTP port. See Figure
C for the UTP Configuration matrix.
NOTE: Refer to the table in Section 3.2.1.2 of the GX/TM2 User Manual for the
more detailed information.
9/10
NetOutlook
® SNMP Management Software, third-

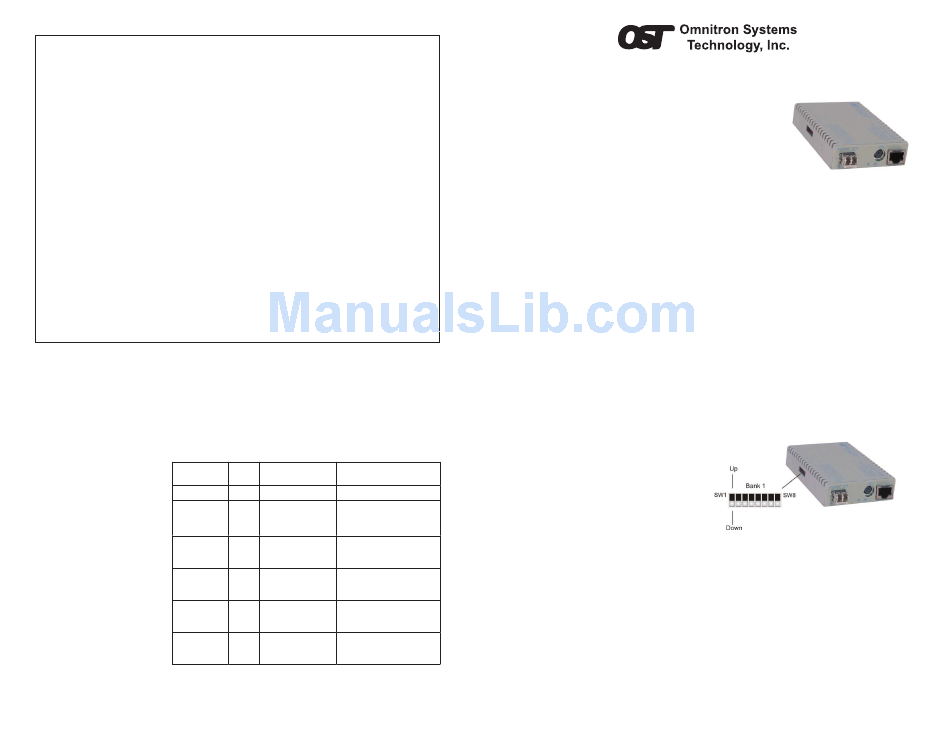

Figure A: DIP-Switch Location
Page 1
