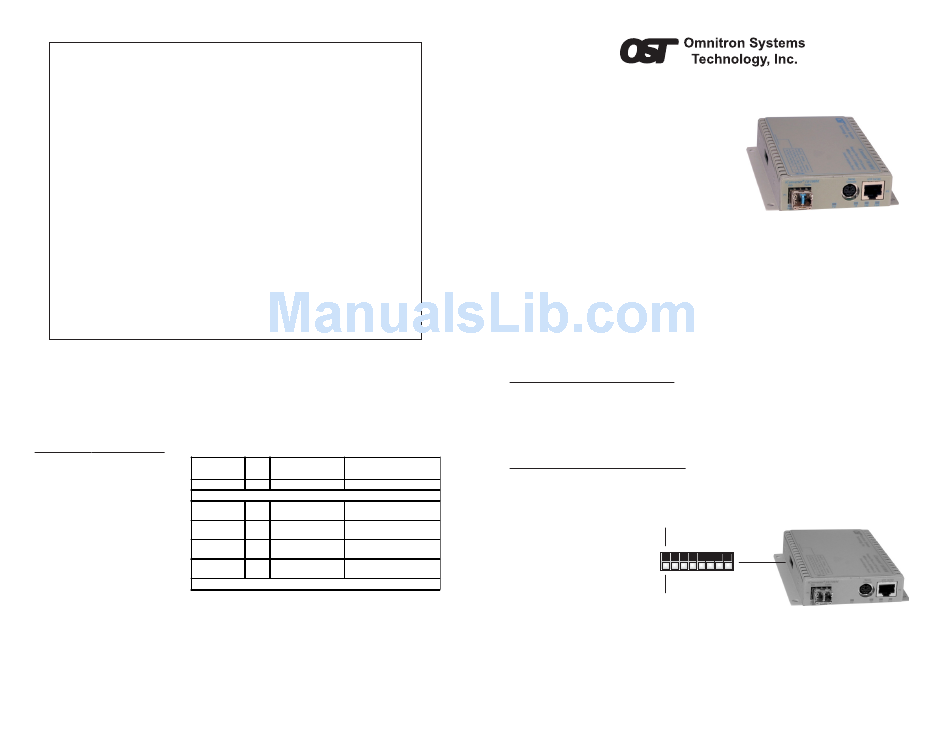

OST iConverter 10/100M Quick Start Manual

Management Options iConverter, Serial Agent
Network Management
1: Chassis and Module Management
2: Set Module Name Preferences
Management Module Preferences
3: IP and Control Preferences
4: SNMP Preferences
5: Abandon Preference Changes
6: Save Preference Changes
7: Restore Factory Defaults
8: Restart Management Module
9: Other Networking Features
Management Module Maintenance
10: Firmware Update
11: Set Date/Time
IP Address = 192.168.1.220
Chassis Number = 1
Enter Choice, <H>elp, E<x>it >
Figure C: Command Line Interface Menu Options
The CLI interface allows for the detailed configuration of the module. It is recommended
to configure the module with an IP address associated with the attached network.
Also, SNMP traphost address should be configured if the module is managed with an
SNMP-based Management System. See the 10/100M User Manual for complete
information.
4) VERIFY OPERATION
Once the module has been
LED Function
"Legend"
installed and configured per
Power "Pwr"
steps 1 - 3, verify the module
is operational by viewing the
Fiber Optics
LED indicators.
"FO"
10Mbps UTP
The Power LED indicates the
"10"
module is receiving power.
100 Mbps UTP
"100"
The Fiber Optic link LED
UTP Full-Duplex
indicates the fiber optic "FDX"
*Review Link Modes section for other LED display patterns
connection has been
established. Verify the Link
Mode selection is set to Link
Segment (LS). Until a stable link is established, leave the Link Mode configured for
LS. After a Link presence is established, the Link Mode selection can be modified.
The UTP link LED indicates the module has established a connection across its UTP
port.
Omnitron Systems Technology * 140 Technology Dr. #500 * Irvine, CA 92618
949.250.6510 tel * 949.250.6514 fax * www.omnitron-systems.com
Color OFF State ON / Blinking State
Amber No power On: Module has power
Network Ports Status*
On: Fiber link is active
Green No Fiber Link
Blinking: Fiber Data Activity
10Mbps not selected On: 10Mbps UTP link
Green
or disconnected Blinking: UTP Data Activity
100Mbps not selected On: 100Mbps UTP link
Green
or disconnected Blinking: UTP Data Activit
Green Half-Duplex Full-Duplex
Figure D: LED Indicators
Form 040-08900-001 K 12/07
iConverter
10/100M Standalone Module QUICK START GUIDE
®
The Omnitron iConverter 10/100M is a
carrier-class media converter and a Network
Interface Device (NID) that provides
10BASE-T or 100BASE-TX (10/100) to
100BASE-FX Fiber media conversion with
integrated management.
The 10/100M conforms to Ethernet in the First
Mile (EFM) fiber standards to support Fiber-
to-the-X (FTTX) Metropolitan access and
Enterprise LAN networks. Built-in Operation,
Administration and Maintenance (OAM) functionality enables the 10/100M to operate
as a managed copper demarcation point at the customer premises and network edge,
offering service provisioning functions, such as Quality of Service and Bandwidth
Control (rate-limiting) capabilities.
The 10/100M can be managed using Omnitron's
Software, 3rd Party SNMP Client, Telnet or the Command Line Interface (CLI).
For more information including the complete User Manual on the 10/100M module,
access Omnitron's documentation download web page to view all relevant documents:
http://www.omnitron-systems.com/downloads.php
INSTALLATION PROCEDURE
1) Configure DIP-Switches
2) Install Standalone Module and Connect Cables
3) Configure Module via Command Line Interface
4) Verify Operation
1) CONFIGURE DIP-SWITCHES
DIP-SWITCH BANK 1
SW1 - UTP/FIBER PAUSE ENABLE
When a port is operating
Up
in Auto-Negotiation (AN),
its Pause operation
SW1
mode is determined by
the Pause capability
Bank 1
advertised during AN
between itself and the Down
link partner. The port
advertises its Pause
capability (Symmetrical or No Pause) during AN based on the Pause Disable/Enable
DIP-switch setting.
When a port is operating in Manual mode, its Pause operation mode is based on the
Pause Disable/Enable DIP-switch setting.
NetOutlook TM
SNMP Management
SW8
Figure A: DIP-Switch Location
