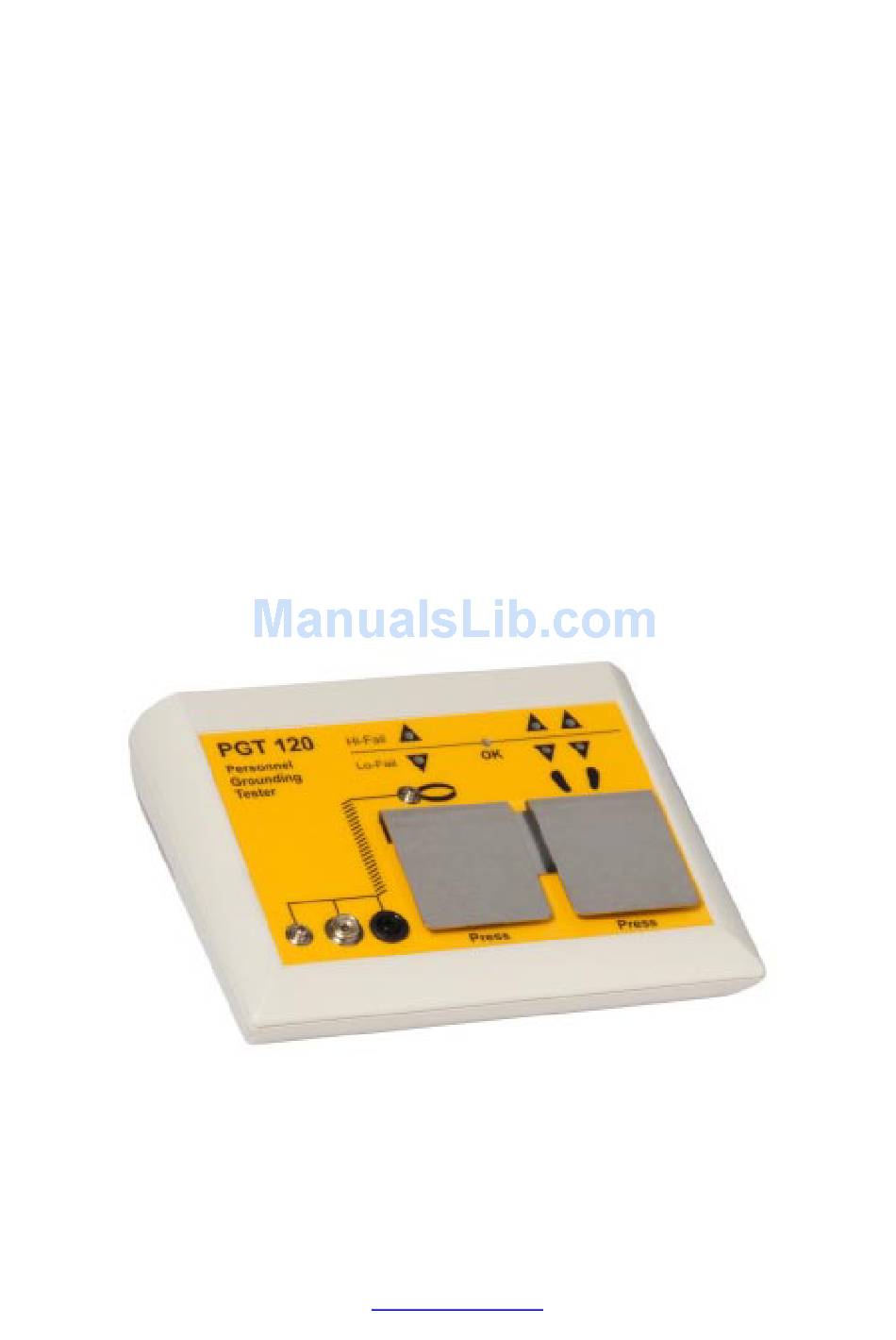

- Page 1 User's Manual PGT 120 Up to Serial No. 00259 Wolfgang Warmbier Untere Gießwiesen 21 D-78247 Hilzingen www.warmbier.com...
-
Page 2: Table Of Contents
PGT 120 User's manual (up to SN: 00259) Part No. 7100.PGT120 Table of contents INTRODUCTION........................3 INSTALLATION ........................4 OPERATION..........................5 Wrist strap test........................5 Coil cord test ........................5 Footwear test (single shoe)....................5 Wrist strap and footwear test....................6 Footwear in series .......................6 CONFIGURATION .........................8 CONNECTORS........................9... -
Page 3: Introduction

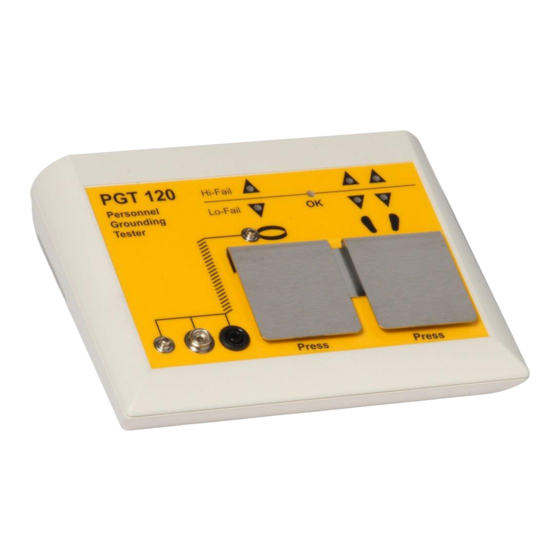

PGT 120 User's manual (up to SN: 00259) Part No. 7100.PGT120 Introduction The Personnel Grounding Tester PGT120 is an electronic test instrument for checking personnel grounding systems such as wrist straps, coil cords and footwear. The PGT120 is suitable for compliance verification of the above products, according to the IEC 61340-5-1 Edition 1.0 (2007-08) or ANSI/ESD S20.20-2007 (2007-03). -
Page 4: Installation
PGT 120 User's manual (up to SN: 00259) Part No. 7100.PGT120 Installation The Unit is for desktop or wall mounting. The optionally available wall mounting frame (Part No. 7100.PGT100.101) can be used to fix the unit to a wall. The power is either supplied by a 9V battery or by a power supply. Insert the batteries by opening the battery compartment flap on the bottom side of the unit. -
Page 5: Operation
PGT 120 User's manual (up to SN: 00259) Part No. 7100.PGT120 Operation This tester has no power switch. Pressing an electrode or activating "footwear in series" activates the electrical circuit. The measuring voltage is preset to 100V. Use the DIP switches 4+5 to adjust the voltage to either 30V or 50V. -
Page 6: Wrist Strap And Footwear Test
PGT 120 User's manual (up to SN: 00259) Part No. 7100.PGT120 Stand on the foot electrode, then press the right electrode and keep it pressed. A peep signal indicates the start of measurement. After a short measuring time the result is displayed. - Page 7 PGT 120 User's manual (up to SN: 00259) Part No. 7100.PGT120 Stand with both feet onto the foot electrode. If the shoes are dissipative the measurement starts automatically with a peep signal. After a short measuring time the result is displayed and the connected gate will open.
-
Page 8: Configuration
PGT 120 User's manual (up to SN: 00259) Part No. 7100.PGT120 Configuration The unit can be configured with the DIP switches on the rear according to the table below. Standard settings are marked bold. Switch 1 Switch 2 Test mode "OR"... -
Page 9: Connectors
PGT 120 User's manual (up to SN: 00259) Part No. 7100.PGT120 Connectors The connectors for the power supply, the foot electrodeand the door opener are located on the rear side of the unit. Use a "RJ12" western modular plug to connect the dry contact of the door opener. -
Page 10: Wall Mounting Instructions
PGT 120 User's manual (up to SN: 00259) Part No. 7100.PGT120 Wall mounting instructions (Part No. 7100.PGT100.101) Fix the wall mounting plate with the supplied dowels and screws and stick the self-adhesive Velcro tapes according to the picture. 1. The surface of the plate and the bottom side of the PGT120 have to be clean, dry and free of grease. -
Page 11: Specifications
PGT 120 User's manual (up to SN: 00259) Part No. 7100.PGT120 Specifications Operating voltage: 9V E 6F22 battery external power supply 230V / 50Hz Operating conditions: 15 ... 40°C up to 75% relative humidity, non condensing Storage conditions: -10 ... 60°C... -
Page 12: Pictures
PGT 120 User's manual (up to SN: 00259) Part No. 7100.PGT120 Pictures Page 12 of 13 V0108... - Page 13 PGT 120 User's manual (up to SN: 00259) Part No. 7100.PGT120 Page 13 of 13 V0108...
