Warmbier ESD Field Meter, Wrist Strap Tester
ESD Safe

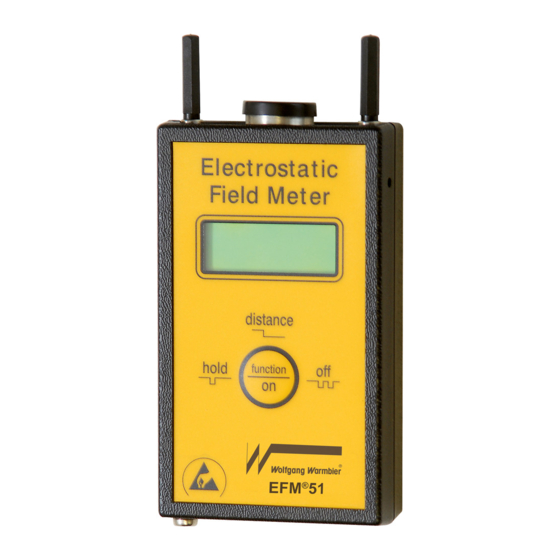

Warmbier Germany, Electrostatic Field Meter EFM51
Handheld, portable, digital electrostatic field meter with rotating chopper
Detects and accurately measures electrostatic fields
Measures: fields, potentials and discharge time
Automatic field to voltage conversion according to selected distance
Very stable zero adjust

Technical data:

Power supply:
Range:
Display:
Dimension:
Weight:
Distance:
1 cm
2 cm
5 cm
10 cm
20 cm
E-Field mode
CPS mode
1.000 to
Wrist Strap Tester
Use anywhere to check personnel ESD grounding quickly
Checks contact resistance between Wrist Strap and skin
Power Supply: 9V Battery Grounding Wire: 2.5 meter
Operation
Grounding Wire
of Wrist Strap Tester
Simply touch circular surface on Tester with your hand and
connect ground wire. In case of a safe ground, LED will be
'Green'. Opposite Table summarizes test indications.
shown trademarks are property of their respective owners.
While the information contained herein in, has been carefully compiled to the best of our knowledge, nothing is intended as representation and warranty on our part; and no statement shall be construed as recommendation to infringe any of existing
patents. We accept no liability of whatsoever for any faults and errors in the information contained herein. Contents of this catalogue and specifications of the products, are subject to change without notice due to continuous improvements.
www.indeonline.in
9V battery IEC6F22
or rechargeable battery
0 - 160 kV / 0 - 800 kV/m
2 row LCD-display
70 x 122 x 26 mm (W x L x H)
130 g (without battery)
Range:
Max. resolution
0 - 8 kV
0 - 16 kV
0 - 40 kV
0 - 80 kV
0 - 160 kV
0 - 800 kV/m
100 volts
Wrist Strap
Grounding Wire
of Wrist Strap
Cell: 09316134502
1 volt
2 volts
10 volts
10 volts
20 volts
100V/m
0,1 sec.
LED Indication
Power Low (Red)
Good (Green)
High (Red)
Fax: 0172-4640415
reliable & caring since 1976
Warmbier P/N: 7100.EFM51
Supplied with:
9V battery
Grounding cable
Carrying bag
User Manual
Calibration certificate
Inde P/N: ISM-498
Resistance
Buzzer
OFF
< 750 KΩ
750KΩ ~ 10MΩ
ON
OFF
> 10 MΩ
Email: headoffice@indeonline.in
29

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EFM51 and is the answer not in the manual?

Questions and answers

TANAWAT TANGLEK
January 27, 2025

yes Don't have in manual

User image 679731f379d38
1 comments:
Mr. Anderson
May 14, 2025

The available information for the Warmbier EFM51 that is not included in the manual includes the price (€911.21), availability (sold and dispatched by Dönges), return policy (returnable within 30 days of receipt), and product availability issues (some enhancements are not available from the selected seller).

This answer is automatically generated

TANAWAT TANGLEK
January 27, 2025

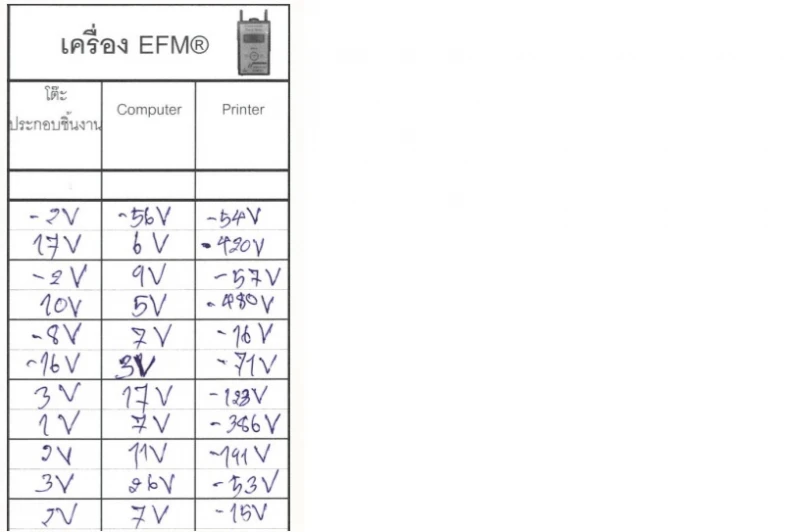

Why is it -420?

1 comments:
Mr. Anderson
May 14, 2025

For the Warmbier EFM51, "-420" refers to a measured electrostatic voltage of negative 420 volts. The device displays electrostatic voltage levels, and a negative value indicates the polarity of the charge.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for Warmbier EFM51

  • Page 1: Technical Data

    Warmbier ESD Field Meter, Wrist Strap Tester reliable & caring since 1976 ESD Safe Warmbier Germany, Electrostatic Field Meter EFM51 Warmbier P/N: 7100.EFM51 Handheld, portable, digital electrostatic field meter with rotating chopper • Detects and accurately measures electrostatic fields •...
  • Page 2 The Instrument must be grounded when high electrostatic charges are present. Sparking on the modular system can cause damage to the unit and need to be avoided. The EFM51 includes: • Electro Field Meter EFM 51 including the 9V battery and 2 cm distance guides •...
  • Page 3 Warranty Distance guides We provide12 months limited warranty. The instrument is supplied with two 2cm distance guides which are fitted on the front plate. The warranty does not include the battery, mechanical damage or unauthorized opening of the The alphanumeric Liquid Crystal Display (LCD) consists of 2 lines of 12 digits each. The measured instrument.
