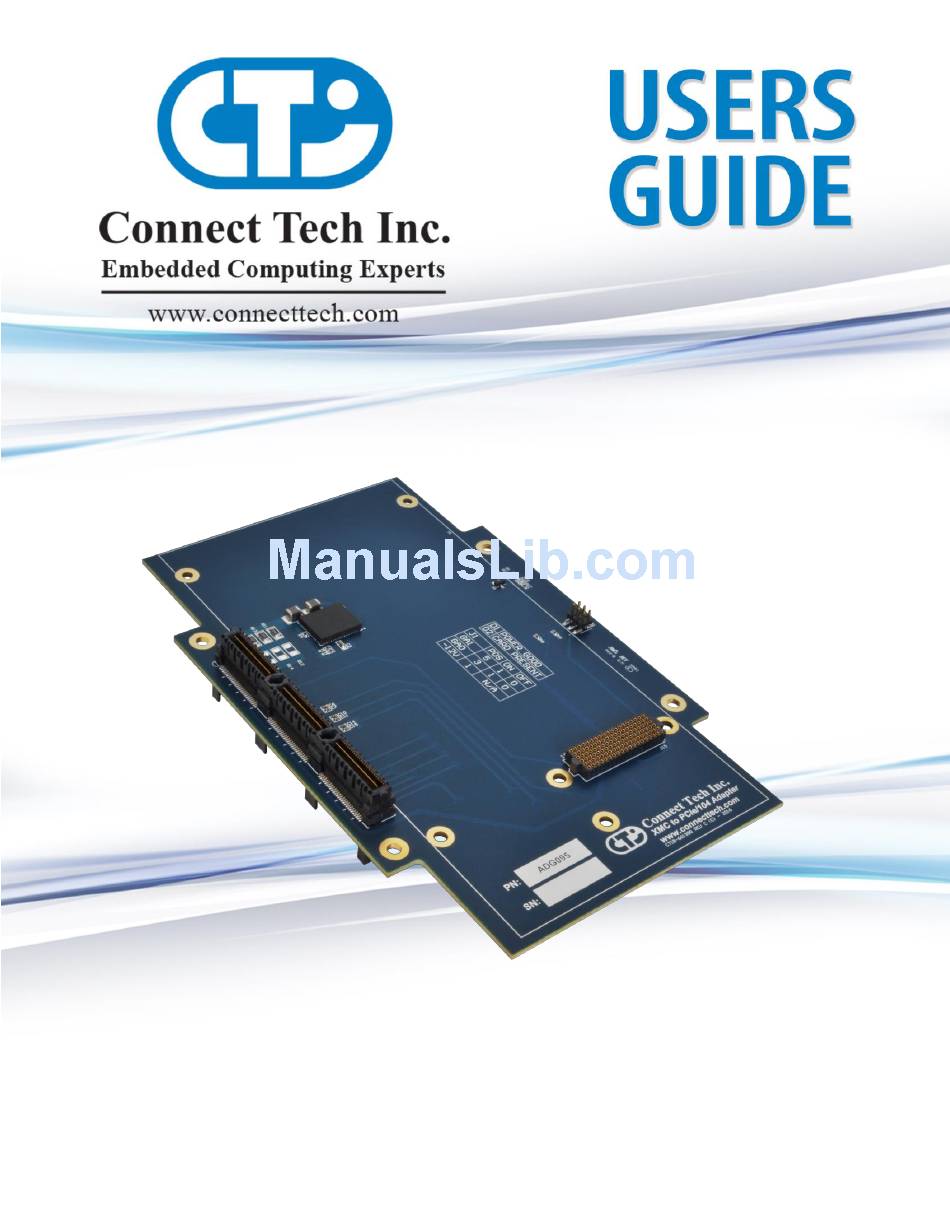

- Page 1 XMC to PCIe/104 Adapter Connect Tech Inc. Tel: 519-836-1291 42 Arrow Road Toll: 800-426-8979 (North America only) Guelph, Ontario Fax: 519-836-4878 N1K 1S6 Email: sales@connecttech.com www.connecttech.com support@connecttech.com CTIM-00467 Revision 0.00 2016-09-27...
-
Page 2: Table Of Contents
Description ............................10 Connectors & Jumpers ........................10 Indicator LEDs .............................. 11 Description ............................11 Connectors & Jumpers ........................11 Typical Installation ..........................12 Document: CTIM-00467 Page 2 of 12 Date: 2016-09-27 Revision: 0.00 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 3: Preface
The information contained within this user’s guide, including but not limited to any product specification, is subject to change without notice. Connect Tech assumes no liability for any damages incurred directly or indirectly from any technical or typographical errors or omissions contained herein or for discrepancies between the product and the user’s guide. -
Page 4: Limited Product Warranty
You may obtain warranty service by delivering this product to an authorized Connect Tech Inc. business partner or to Connect Tech Inc. along with proof of purchase. Product returned to Connect Tech Inc. must be pre-authorized by Connect Tech Inc. with an RMA (Return Material Authorization) number marked on the outside of the package and sent prepaid, insured and packaged for safe shipment. -
Page 5: Esd Warning
ESD Warning Electronic components and circuits are sensitive to ElectroStatic Discharge (ESD). When handling any circuit board assemblies including Connect Tech COM Express carrier assemblies, it is recommended that ESD safety precautions be observed. ESD safe best practices include, but are not limited to: ... -
Page 6: Introduction
Introduction Connect Tech’s XMC to PCIe/104 Adapter Board is an engineering tool for the purpose of enabling rapid development of systems requiring the use of next generation form factor peripheral cards. This product complies with the VITA 42 specification. -
Page 7: Product Overview
XMC to PCIe/104 Adapter Users Guide www.connecttech.com Product Overview Connector Summary & Locations ADG095 Top View Document: CTIM-00467 Page 7 of 12 Date: 2016-09-27 Revision: 0.00 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 8: Jumper Summary & Locations
Designator Description PCIe/104 Top Connector PCIe/104 Bottom Connector XMC Connector Power Good LED Card Present LED Jumper Summary & Locations Designator Description Miscellaneous Header Document: CTIM-00467 Page 8 of 12 Date: 2016-09-27 Revision: 0.00 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 9: Detailed Feature Description
Specification, Rev 2.01 Function PCIe/104 Bottom Interface Location Type Samtec fine pitch stacking connector part number: ASP-129646-03 Pinout Refer to PCI/104-Express & PCIe/104 Specification, Rev 2.01 Document: CTIM-00467 Page 9 of 12 Date: 2016-09-27 Revision: 0.00 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 10: Xmc Expansion Slot
Connector for XMC peripheral cards PN: ASP-103612-04 Pinout See ANSI/VITA 42.3 Specification for full details Function Miscellaneous Header Location Type PN: TMM-103-01-L-D-SM Pinout Description -12V input -12V input Document: CTIM-00467 Page 10 of 12 Date: 2016-09-27 Revision: 0.00 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 11: Indicator Leds
XMC to PCIe/104 Adapter Users Guide www.connecttech.com Indicator LEDs Description Indicator LED’s Connectors & Jumpers Function Indicator LED’s Location D1, D2 Power good Card Present Document: CTIM-00467 Page 11 of 12 Date: 2016-09-27 Revision: 0.00 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 12: Typical Installation
Typical Installation Card may be installed in a stack-up or stack-down configuration. 10mm height, M2.5 standoffs required between XMC adapter and XMC expansion card. Example stack-up on Connect Tech’s Com Express Type 6 104e Carrier shown below: Document: CTIM-00467...
