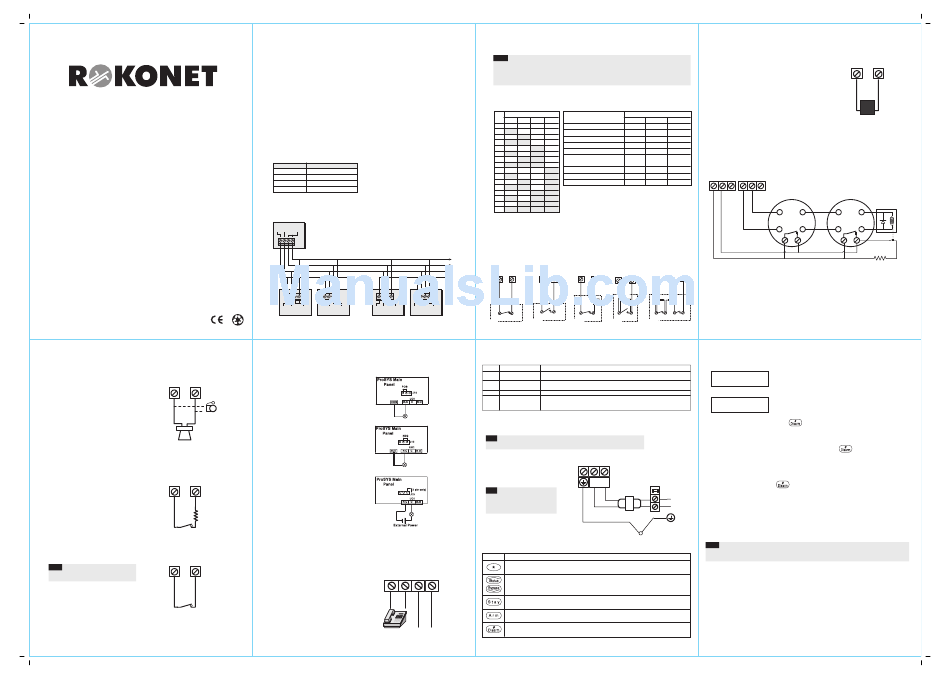

Rokonet WAVESYS Quick Start Instructions

R I S C O G R O U P
ProSYS / WaveSYS*
QUICK START
INSTRUCTIONS GUIDE
(For full comprehensive instructions refer
to the ProSYS Installer Manual 5IN128IM)
www.rokonet.com
ISRAEL USA UK
Rokonet Electronics, Ltd. Rokonet Industries, Inc. Rokonet U.K. Ltd.
14 Hachoma st. 75655 Tel: +1-305-592-3820 Tel: +44-1527-576-765
Rishon Letzion Fax: +1-305-592-3825 Fax: +44-1527-576-816
Tel: +972-3-961-6555 Toll Free: 1-800-344-2025 Free Phone: 0800-269881
Fax: +972-3-961-6584 e-mail: sales@rokonetusa.com e-mail: info@rokonet.co.uk
e-mail: info@rokonet.co.il
www.rokonet.com
ITALY BRAZIL
Rokonet Electronics SRL Rokonet Brasil Ltda.
Tel: +39-02-392-5354 Tel: +55-21-2496.3544
Fax:: +39-02-392-5131 Fax:: +55-21-2496.3547
e-mail: info@rokonet.it e-mail:rokonet-brasil@uol.com.br
* WaveSYS Installation & Programming Instructions in this document
are equivalent to ProSYS 40.
5IN128IMQ
4. Bell Sounder Wiring
The Bell/LS terminal determines the output for the bell
PROSYS MAIN PANEL
or external sounder. When connecting the internal
sounding device pay attention to the polarity.
BELL/LS
To avoid Bell Loop Trouble, if NO connection is made
to an internal sounder, use a 2.2KΩ resistor in its place.
+ -
It is important to position the BELL/LS Jumper (J3)
correctly. The position varies depending on the type
of internal sounder. A maximum of 900 mA may be
drawn from this terminal.
BELL
LOUDSPEAKER
(13.8 v, 900 mA MAX)
5. Bell Tamper Wiring
Connect the bell tamper to the BELL TMP and COM
BELL
terminals on the Main Panel, as illustrated.
COM
TMP
2.2 K EOL
RESISTOR
BELL TAMPER
6. Box Tamper Wiring
Connect the box tamper to the BOX TMP and COM
BOX
terminals on the Main Panel, as illustrated.
COM
TMP
Note:
The Box Tamper input provides double protection,
wall and box.
BOX TAMPER
(N.C)
page 5

Introduction

ProSYS is a modular integrated system that combines access control, security protection, and home automation, with the
advantage of controlling the whole system through one interface.
ProSYS is available in three models that use the same accessories, but have different maximum capabilities (ProSYS 128,
ProSYS 40, ProSYS 16) . Through its 4-wire BUS, it can support a variety of optional modules, including multiple Keypads,
Zone Expanders, a Wireless Interface, supplemental Power Supplies, a Voice module, capabilities for Access Control, an
X-10 Interface, Event Log, and Utility Outputs. All these devices communicate with the system by sending commands and
data over the BUS, which originates at the Main Panel.
We recommend reading and fully understanding the ProSYS Installation manual and User's manual before any installation
of the system is carried out. The Quick Start Instructions guide is intended for those who have experience in installing Rokonet
security panels. For additional information refer to the ProSYS Installer Manual (p/n 5IN128IM).

STEP 1: Mounting the Main Panel

Consideration in locating the fixing of the main panel should be given to:
● Dry place near an AC power supply (switched off).
● With a good earth connection.
● With access to the customer's phone lines.
● Access for the routing of cables for the system from detection devices.

STEP 2: Wiring the Main Panel

1. BUS Connection

A: Wiring External Modules

The set of four terminals on the left of the Main Panel represents the Expansion BUS. These support the connection
of keypads and expansion modules. The connections are terminal-to-terminal with color-coded wires, as follows:
BUS Terminal Description
AUX RED +12V power
COM BLK Black 0V common
BUS YEL Yellow DATA
BUS GRN Green DATA
The parallel wiring system supports parallel connections from any point along the wiring. The maximum wire run
permitted is 300 meters (1000 feet) for all legs of the BUS. To prevent a possible drop in voltage due to multiple
keypads and long wire runs, use a quality 4-conductor cable with an appropriate gauge size.
Control Panel
Bus Connectors
AUX COM BUS
RED BLK YEL GRN
DATA DATA
DATA DATA
0V 0V
BREAK +12V AT
+12V +12V
X INPUT TO EACH
POWER SUPPLY
(KEEP 0V COMMON)
AUX COM BUS AUX COM BUS AUX COM BUS AUX COM BUS
RED BLK YEL GRN RED BLK YEL GRN RED BLK YEL GRN RED BLK YEL GRN
Expansion Module Expansion Module Power Supply Expansion Module
Bus Connectors Bus Connectors Bus Connectors Bus Connectors
page 2
7. Utility Output Wiring
UO1: Relay output (3 Amps). Usually used for an external
siren connection. Use the J10 jumper located on the main
board to determine the UO1 (behaviour) as follows:
Positive (POS): When the J10 connector is placed on POS,
the C terminal on UO1 supplies 13.8V.
Negative (NEG): When the J10 connector is placed on NEG,
the C terminal on UO1 supplies COM.
Single pin: If the J10 connector is placed only on 1 pin, the
UO1 acts as a dry contact.
UO2-UO6: Transistor outputs (UO2 — 500 mA, UO3-UO6 70 mA). Connect the positive connection of the device to AUX
(+) and the negative (-) connection to the UO's terminals.

8. Telephone Line Connection

PROSYS MAIN PANEL
Connect the incoming telephone line to the Main
Panel's LINE terminals.
SET LINE
Connect any telephone on the premises to the
SET terminals.
T R TIP RING
TO TELEPHONE
LINE
page 6
When connecting the Power Supply Module do NOT make any connection to the AUX (RED) terminal from the Main
Panel. It is used for the outgoing BUS to supply voltage to other modules. The module supplies power to all modules
and/or keypads located AFTER the point that it is connected to the BUS.
Notes:
In the ProSYS 16 and the ProSYS 40, there is only one BUS, which can be connected to the BUS 1 terminal block
or to one of the two BUS 1 plugs (J1 and J5).
In the ProSYS 128, there is also a BUS 2, which is separate from BUS 1. You can connect to the BUS 2 terminal
block or to the BUS 2 plug (J8). In addition, if one of the BUSes is shorted or there is any kind of problem that
interrupts the BUS data, the other one will continue to operate normally.

B: Defining Modules ID number

Each accessory has its ID category number, which is defined by dipswitches. ID numbers are defined per category
and the first module in each category is defined as ID=1. Before setting power on, define each module's ID number
by setting the dipswitches as follows:
Dipswitches Modules ID Range
ID Category
1 2 3 4
ProSYS 16 ProSYS 40 ProSYS 128
01 OFF OFF OFF OFF
Zone Expanders (include wireless) 1 1-4
02 ON OFF OFF OFF
Keypads 1-8 1-12
03 OFF ON OFF OFF
Output Modules 1-2 1-4
04 ON ON OFF OFF
Supervised Power Supply 1-8 1-8
05 OFF OFF ON OFF
Access Control Modules 1-2 1-4
06 ON OFF ON OFF
Memory Expansion - ID=1
07 OFF ON ON OFF
(512 events) (512 or 999)
08 ON ON ON OFF
Digital Key Readers 1-16 1-16
09 OFF OFF OFF ON
Voice Module 1 1
10 ON OFF OFF ON
11 OFF ON OFF ON Wireless Key Buttons 1 1-4
12 ON ON OFF ON
13 OFF OFF ON ON
14 ON OFF ON ON
15 OFF ON ON ON
16 ON ON ON ON
2. Zone Inputs Connection
To connect a hardwired zone use a 4-conductor cable wiring.
Connect each zone to the appropriate Zone (Z) terminal and its related COM terminal. Each pair of zones shares a
COM terminal. It is recommended that you use an End-of-Line Resistor at the far end of each hardwired zone to prevent
short-circuits (16 resistors are supplied). For a zone with a tamper switch, you can use a Double End-of-Line Resistor
to save additional Main Panel connections
Zone Terminations
NORMALLY CLOSED
NORMALLY OPEN ZONE END OF LINE ZONE DOUBLE END OF LINE
END OF LINE ZONE
ZONE CONFIGURATION CONFIGURATION (N.C CONTACT) ZONE CONFIGURATION
(N.O CONTACT)
zone zone com zone
com zone com
zone com
2.2
K 2.2
ALARM
ALARM ALARM ALARM ALARM
DETECTOR DETECTOR DETECTOR DETECTOR
DETECTOR
page 3

9. Setting Jumpers

Use the following table to position the jumpers located on the ProSYS main board
Jumper Jumper Description Jumper Operation
J2 Default jumper For regular operation position the default jumper over one of the J2
connector pins for safekeeping. To default the system position the jumper over the 2 pins
J3 Bell/Loudspeaker Set this jumper according to the type of siren connected to the system
(bell or loudspeaker)
J4 SIG IN Connect to the voice module p/n RP200VC
J6 Voice Connector This connector transmits signals from the Advanced Digital Voice module to the telephone
line during remote communication, and is essential for normal operation of the Digital
Voice module.
J1, J5, J8 are used as quick BUS connectors. Use the 4 pin BUS plugs for easy connection of the BUS Adapter Cable
(RP296EBA) or the Memory Transfer Card.

10. Ground Connection

Connect the metal box and the door of the metal box to main earth (ground).
Note:
Connecting to ground must be performed according to the local National Electrical Code.
PROSYS MAIN PANEL

11.Main Power Connection

Connect the 230V AC to the mains fuse
FUSE
input terminal block (N,L). Fasten the AC
cord to the metal box using adjustable
315 mA
A C
clamps. 16.5 VAC
Note:
40 VA
Be sure to connect the live wire of the AC
power through the AC fuse. The size of
the conductors must not be less than
0.75mm 2 (18AWG).

STEP 3: Installer Programming

The ProSYS can be programmed from local or remote Upload/Download software or from the LCD Keypad used as an
interface tool. The following keys are used in the programming procedure. For additional information refer to the Installer
manual.
Key Programming Mode Function
Use this key to exit the current programming selection and move up to the next higher level in the programming
hierarchy catalog.
Press either one of these keys to move back and forth through the programming level functions.
These keys also change the position of the flashing cursor. When editing a selection, the cursor moves to
the left or right respectively.
Use this key to toggle forward through the programming
choices within a selection.
Use this key to toggle backward through the programming
choices within a selection.
Use this key to enter selected information into the system or to accept the current selection and access the
lower level of options in the programming hierarchy.
page 7

3. Wiring Auxiliary Devices

The main panel has 2 aux terminals. Use the Auxiliary Power
AUX (+) COM (-) terminals to power PIRs, glass-break detectors
(4-wire types), smoke detectors, audio switches, photoelectric
systems and/or any device that requires a 12V DC power supply.
The total power from the AUX terminals should not exceed
600mA.
If the auxiliary outputs are overloaded (exceed 600mA) and
are shut down, you must disconnect all loads from the outputs
for a period of at least 10 seconds before you reconnect any
load to the auxiliary outputs.
Auxiliary device as: PIR,Glass
break detector , Audio switch ...
1-8
1-16
1-8
1-8
1-8
ID=1
1-16 PROSYS MAIN PANEL TYPICAL FIRE ZONE WIRING
1 (Two 4 wire smoke detectors)
Z COM UO AUX
1-4
+IN +OUT +IN
ALRM
-IN -OUT -IN
CONTACT
com
2.2
K K
TAMPER
page 4
◆ Initial Setting
1. When defaulting the panel (position J2 on both pins and then power on the system) you enter the installer Programming
menu and the Auto Install feature (Automatic Module recognition). The first display will be:
ROKONET
Please Wait...
2. After a short delay the following display appears:
To Install
Press *
3. Press [ * ]. The keypad prompts you for the Installer code.
4. Enter the default Installer Code followed by depending on the ProSYS Model:
●
ProSYS 128: [0][1][2][8]
● ProSYS 40: [0][1][4][0]
● ProSYS 16: [0][1][1][6]
5. The system enters the automatic accessories recognition process. Press
6. To exit Installer programming press "0" from the Installer's main menu.
Position the J2 default jumper on one pin to save data.
◆ To access the Installer Programming Menu from the regular operation mode: (J2 is on one pin)
1. From the regular (user) operation mode press: [ * ][7][1]
2. The keypad prompts you for the Installer code.
3. Enter the Installer Code followed by for accessing the Installer menu.
L
◆ Reset to default modes
To restore the Main Panel to the manufacturer's defaults:
N
1. Disconnect all power from the Main Panel.
2. Position the J2 default jumper on both of the J2 pins.
3. Reconnect the power to the main and backup battery to the Main Panel. The keypad sounds a long beep and all
of the LEDs flash once. After 20 seconds the following message is displayed: "To Install Press *"
4. On the Main Panel, reposition the J2 default jumper on one of the J2 pins (where it resides for safekeeping).
5. Remember that the Installer Code has been restored to the manufacturer's default setting.
Note:
To enable the restore of the manufacturer's default, the system bit "Default Enable/Disable" (defined in quick key
[1][7] in the main Installer menu) must be defined as Enable.
page 8
PROSYS MAIN PANEL
AUX COM
+OUT
ALRM
-OUT
CONTACT
2.2 K EOL RESISTOR
to acknowledge each module.
7.
