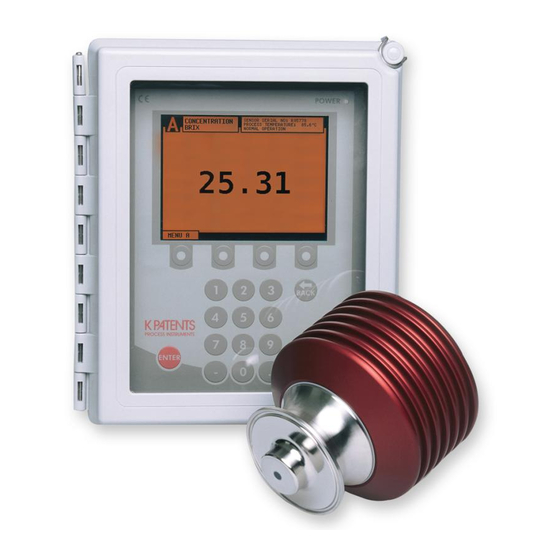

K-Patents PR-23-GP Instruction Manual

Pr-23 series. inline refractometer
Hide thumbs
Table of Contents

Advertisement

Quick Links

PROCESS INSTRUMENTS
PROCESS
REFRACTOMETER
PR-23
INSTRUCTION
MANUAL
IM-EN-PR23 Rev. 1.88

Advertisement

Table of Contents
loading

Related Manuals for K-Patents PR-23-GP

Summary of Contents for K-Patents PR-23-GP

  • Page 1 PROCESS INSTRUMENTS PROCESS REFRACTOMETER PR-23 INSTRUCTION MANUAL IM-EN-PR23 Rev. 1.88...
  • Page 3 THE PASSWORD FOR PR-23 IS 7 8 4 5 1 2 This product manual is delivered to the end user with a K-Patents product. Information in this manual is subject to change without notice. When the manual is changed, a revised copy is published at http://www.kpatents.com/.
  • Page 4 PR-23 instruction manual...

  • Page 5: Table Of Contents

    Table of contents Introduction ............1 PR-23 refractometer models .
  • Page 6 5.4.4 Temperature measurement ........5.4.5 Sensor head humidity ........Sensor verification .
  • Page 7 8.1.8 Message ........69 HIGH SENSOR TEMP 8.1.9 Message...
  • Page 8 9.6.1 PR-23-GP sensor model code ........9.6.2 PR-23-GP specifications...
  • Page 9 Safe-Drive™ ............141 11.1 System description .
  • Page 10 14.3 Declaration of Conformity for PR-23-...-IA models (ATEX) ... . Glossary and abbreviations ......... . . Index .

  • Page 11: Introduction

    1 Introduction 1 Introduction The K-Patents PR-23 inline refractometer is an instrument for measuring liquid con- centration in the process line. The measurement is based on the refraction of light in the process medium, an accurate and safe way of measuring liquid concentration.

  • Page 12: Principle Of Measurement

    PR-23 instruction manual 1.2 Principle of measurement The K-Patents inline refractometer sensor determines the refractive index n of the process solution. It measures the critical angle of refraction using a yellow LED light source with the same wavelength (580 nm) as the sodium D line (hence n ).

  • Page 13: General Safety Considerations

    1 Introduction The position of the shadow edge is measured digitally using a CCD element (Fig- ure 1.4) and is converted to a refractive index value n by a processor inside the sensor. This value is then transmitted together with the process temperature via an interconnecting cable to the Indicating transmitter for further processing, display and transmission.

  • Page 14: Warranty

    K-Patents is rigorous in ensuring that all products manufactured and supplied by K-Patents shall be free of defects in material and workmanship. K-Patents agrees to ei- ther replace or repair free of charge any product found to be defective, or parts thereof when returned to the nearest authorized K-Patents repair facility within two (2) years of the product’s delivery date.

  • Page 15: Inline Refractometer Sensor

    2 Inline refractometer sensor 2 Inline refractometer sensor 2.1 Sensor description Figure 2.1 below shows a cutaway picture of a PR-23 inline refractometer sensor. The measurement prism (A) is flush mounted to the surface of the probe tip. The prism (A) and all the other optical components are fixed to the solid core module (C), which is springloaded (D) against the prism gasket (B).

  • Page 16: Mounting The Sensor

    For the Sanitary compact refractometer PR-23-AC see Section 9.3, for the Probe san- itary refractometer PR-23-AP see Section 9.4, for the Process probe refractometer PR-23-GP see Section 9.6, for the Teflon body refractometer PR-23-M and Teflon body semicon refractometer PR-23-MS see Section 9.8 and for the Saunders body refrac- tometer PR-23-W see Section 9.9.

  • Page 17: Mounting Guide

    2 Inline refractometer sensor 2.2.2 PR-23 mounting guide...

  • Page 18: Check List For Pipe Mounting

    2.2.4 Check list for mounting in a tank, a vessel or a large pipe A probe sensor PR-23-AP or PR-23-GP can be inserted with a flange or clamp into tanks and vessels which either don’t have a scraper or where the mixer doesn’t touch the vessel wall.

  • Page 19: Indicating Transmitter Dtr

    3 Indicating transmitter DTR 3 Indicating transmitter DTR 3.1 Indicating transmitter description The Indicating transmitter DTR is a specialized computer designed to process data received from one or two sensors. The Indicating transmitter enclosure (Figure 3.1) contains a front panel with a backlit Liquid Crystal Display (LCD) and a keyboard. The front panel swings open to give access for connections and service.

  • Page 20: Mounting Indicating Transmitter

    Figure 3.3. The LCD is best viewed when approximately on the eye level of the user. In sanitary installations, K-Patents recommends using a DTR with stainless steel en- closure. If standard polycarbonate enclosure is used, it should be installed as remotely as practical from the product areas or connections.

  • Page 21: Connecting Sensor

    3 Indicating transmitter DTR The junction box enables the use of customer’s own cable as long as it meets IEC 61158-2 type A standard requirements, see Section 10.3.2, “Interconnecting cable specifications”. 3.3.2 Connecting sensor 1. Remove the four screws holding the Sensor nameplate (Figure 3.4). The terminal strip is under the nameplate.

  • Page 22: Connecting The Indicating Transmitter

    PANEL SCREW Figure 3.5 Opening the Front panel of the Indicating transmitter Figure 3.6 The recommended external power switch, K-Patents part nr PR-10900. The ratings of the switch are 10A/230V. Warning! Check that the power is off before opening the Front panel. If the...
  • Page 23 3 Indicating transmitter DTR completely turn the power off, use the external power switch. The external power switch shall be installed in accordance with the local installation requirements. Figure 3.7 Motherboard of the Indicating transmitter for AC power POWER Figure 3.8 Motherboard of the Indicating transmitter for 24V DC power...

  • Page 24: Power Terminals For Ac Power

    PR-23 instruction manual Description of the terminals on the H1 interface card PR-10701 and on the Transmit- ter motherboard PR-10600 (Figure 3.7): On H1 A 1 2 3 Connection for Sensor A, signal wires (1, 2), cable shield (3). B 1 2 3 Connection for Sensor B, signal wires (1, 2), cable shield (3).
  • Page 25 3 Indicating transmitter DTR reset button, the display will black out for a few seconds. The instrument will be back to full operation within 30 seconds. Reset button Figure 3.9 Location of the reset button...
  • Page 26 PR-23 instruction manual...

  • Page 27: Prism Wash Systems

    4 Prism wash systems 4 Prism wash systems 4.1 Prism coating Deposit build-up on the prism surface disturbs the measurement. Look out for an abnormally high concentration reading or an upward concentration (CONC) drift. In most applications the prism will keep clean due to the self-cleaning effect. If coating −...

  • Page 28: Recommended Wash Pressures And Times

    Figure 4.5. Warning! In high pressure wash systems, pressure increase can occur in a closed pipe section when the high pressure pump is operated. K-Patents recommends to mount a pressure relief valve in the pipe section. Relief pressure should be according...
  • Page 29 4 Prism wash systems Figure 4.1 A prism wash system for steam (non-sanitary)
  • Page 30 PR-23 instruction manual Figure 4.2 A sanitary prism wash system for steam...
  • Page 31 4 Prism wash systems Figure 4.3 Wiring for a prism wash system for steam...
  • Page 32 PR-23 instruction manual Figure 4.4 A prism wash system for high pressure water (non-sanitary)
  • Page 33 4 Prism wash systems Figure 4.5 A sanitary prism wash system for high pressure water...
  • Page 34 PR-23 instruction manual Figure 4.6 Wiring for a prism wash system for high pressure water...

  • Page 35: Prism Wash Nozzles

    For probe refractometers, select the wash nozzle according to wash medium and refractometer model, see Table 4.1 below. Figure 4.9 shows the mounting of the wash nozzle for Sanitary probe refractometer PR-23-AP. Figure 4.10 shows the mounting of the wash nozzle for Process refractome- ter PR-23-GP. Part no. Quantity Drawing no.
  • Page 36 PR-23 instruction manual Figure 4.8 Process connection of a wash nozzle in a flow cell PR-23-AP PR-23-GP Steam nozzle PR-9321 PR-9324 Water nozzle PR-9320 PR-9323 Pressurized water nozzle PR-9322 PR-9325 Table 4.1 Prism wash nozzle selection...
  • Page 37 08.04.14 TL AHä Date Rev. by Appr. Mark Rev. Leakage port detail, welding recommendation added 25.04.14 TL AHä K-Patents recommends to weld miniclamp directly to nozzle pipe Leakage port SUPPLIED BY K-Patents K-Patents DETAIL A SCALE 2 : 5 Description...
  • Page 38 PR-23 instruction manual Figure 4.10 Mounting of the wash nozzle for Process refractometer PR-23-GP...

  • Page 39: Startup And Use

    5 Startup and use 5 Startup and use 5.1 Startup 5.1.1 Initial check 1. Check the wiring, Section 3.3, “Electrical connections”. 2. Connect the power. The Power indicator light (Figure 3.5) and the screen should light up within a few seconds. 3.

  • Page 40: Calibration Check

    PR-23 instruction manual 6. For a connected sensor, the diagnostic message at start-up should be NORMAL OP- or, if the process pipe is empty, . Otherwise, see Section 8.4, ERATION NO SAMPLE “Diagnostic messages table”. 7. The TEMP value should show the current process temperature. 8.

  • Page 41: Keyboard Functions

    5 Startup and use 5.2.1 Keyboard functions Number keys: The 10 number keys, minus sign, and decimal point are used to enter numerical parameters. They are also used for menu selections. ENTER key: The ENTER key is used to implement the selected (highlighted) menu command or to accept an entered value.
  • Page 42 PR-23 instruction manual Figure 5.3 Display setup menu Main display format: As you can see in Figure 5.1, there are four different Main dis- play formats: the dual sensor format shows information on both sensors while the three different single sensor formats show selected information on one sensor at a time.

  • Page 43: Viewing System Information

    5 Startup and use the DTR. The default language is English and it is always available. The order and number of the languages in the language menu varies depending on what languages are loaded into the DTR. Language change through this menu is immediate. 5.3 Viewing system information selection from the Main menu (Figure 5.2) opens a path to complete DESCRIPTION...

  • Page 44: Viewing Sensor Status

    PR-23 instruction manual 5.4 Viewing sensor status Select at the Main menu. SENSOR STATUS 5.4.1 Optical image There are two different image detection algorithms in the PR-23. The original image detection algorithm has been complemented with an advanced IDS (Image Detection Stabilization) algorithm which compensates for some unwanted noise in the image.

  • Page 45: Diagnostic Values

    5 Startup and use Empty pipe Normal conditions Figure 5.8 Typical optical images with IDS Figure 5.9 A slope graph with IDS It should be noted that the "empty" optical image may have vertical left and/or right edge close to the edge of the image. In the example, only the right edge is visible. 5.4.3 Diagnostic values −...

  • Page 46: Temperature Measurement

    PR-23 instruction manual − − − = Indicating transmitter temperature, see Section 5.4.4. DTR TMP gives the voltage from the power module, the nominal value is 24V. DTR V1 gives the DC supply voltage, the nominal value is 3.3 V. DTR V2 Note: The Slope display also has a soft key which can be used to...

  • Page 47: Configuration And Calibration

    6 Configuration and calibration 6 Configuration and calibration All changes of configuration and calibration are made through the Calibration menu selected from the Main menu by 5 CALIBRATION Password: It may be necessary to enter a password before proceeding to the Calibra- tion menu.

  • Page 48: Linear Damping

    PR-23 instruction manual 6.1.2 Linear damping If the process has fast step changes, linear (fast) damping gives shorter settling time. In the linear damping (fast damping), the output is the running average of the signal during the damping time. After a step change the signal rises linearly and reaches the final value after the damping time.

  • Page 49: External Hold

    6 Configuration and calibration 0.5 /s 0.2 /s 0.05 /s 90 100 110 120 Time [s] Figure 6.3 Slew rate damping 1. By using an external hold switch (see Section 6.3.2) 2. During prism wash (see Section 6.5.2) 3. For a preprogrammed time when there is an intermittent loss of sample on the prism (due to voids in the process) When the measurement result is in hold, the displayed concentration value and mA output do not change.

  • Page 50: Tolerance Time

    PR-23 instruction manual 6.2.3 Tolerance time The tolerance time setting can be used in processes where there are intermittent breaks in the measurement due to non-representative sample on the prism. This typ- ically occurs when there are large voids in the process liquid. If the optical image can be interpreted, the tolerance time setting does not have any effect.

  • Page 51: Hold Source Interactions

    6 Configuration and calibration the user defined value the image status changes to after the user de- NO OPTICAL IMAGE fined tolerance time (see Section 6.2.3 for tolerance time). By default the QF threshold value is -500. 6.2.5 Hold source interactions There are three different reasons why the measurement signal may be in hold.

  • Page 52: Hold Functions With

    PR-23 instruction manual 6.2.7 Hold functions with DD-23 The K-Patents Digital Divert Control System DD-23 uses the displayed concentration value in its decision logic. Due to this, the external hold functionality must not be used with a DD-23, as it could potentially render the system unsafe by freezing the measurement result.
  • Page 53 6 Configuration and calibration Figure 6.6 Relay menu for Relay 1 The contact is also closed when message is SAMPLE Closed contact if there is no equipment mal- FUNCTION INSTRUMENT OK function. See also Section 8.4 on page 73. Used as alarm relay, closing contact if source FUNCTION LOW LIMIT value is below set limit.

  • Page 54: Configuring Input Switches

    PR-23 instruction manual soft key. The current status of the relay (open or closed) is displayed next to the relay name, see Figure 6.7 below: Figure 6.7 The manual set display for relays 6.3.2 Configuring input switches For the electrical properties of the four input switches, see Section 3.3. To see which switches are closed, check the Description menu, see Section 5.3.

  • Page 55: Configuring Ma Outputs

    6 Configuration and calibration Figure 6.9 Arrival to Switch 1’s sensor selection menu, sensor A selected Factory setting NOT DEFINED When used with a built-in wash relay, this function is useful HOLD for an intermittent process: the prism is washed when the process stops (as indicated by contact closure).The wash is repeated when the process restarts (if the stop lasts over 60 seconds).
  • Page 56 PR-23 instruction manual − First select in the Main menu and enter password if necessary. Then 5 CALIBRATION − select in the Calibration menu. In the Outputs menu, select 2 OUTPUTS 5 mA OUT- PUTS Select the mA output, 1 or 2, to get to the Output menu (Figure 6.10 below) where the output can be configured.

  • Page 57: Calibrating The Concentration Measurement

    Note: If you want to ’turn off’ the mA output, select in the Source menu. NOT DEFINED 6.4 Calibrating the concentration measurement The concentration calibration of the K-Patents inline refractome- mA OUTPUT ter PR-23 is organized in six lay- CONC ers.

  • Page 58: The Chemical Curve

    A chemical curve is specific to the given process medium, e.g. sucrose or sodium hy- droxide. The set of parameters is given by K-Patents and should not be altered, except in case of changing to another process medium. The parameters can be changed by...

  • Page 59: Field Calibration

    <info@kpatents.com>. Fax the completed Field calibration form to either K-Patents headquarters or your local K-Patents representative. A computer analysis of the data will be made at K-Patents and optimal calibration parameters will be sent to be en- tered in the Indicating transmitter DTR.

  • Page 60: Entering Field Calibration Parameters

    Thus calibration using the process liquid should always be made inline. 6.4.4 Entering field calibration parameters The field calibration parameters supplied by K-Patents are entered by selecting 5 CAL- from the Main menu, followed by first IBRATION 1 CHEMICAL &...

  • Page 61: Wash Cycle

    6 Configuration and calibration 6.5.1 Wash cycle The wash logic is shown in Figure 6.15 as a flow diagram. The automatic prism wash cycle (Figure 6.14) consists of three phases: precondition, wash and recovery. The op- tional preconditioning function is used to e.g. blow out the condensate before wash- ing.
  • Page 62 PR-23 instruction manual Preventing automatic wash: The preconditioning and wash relays are never activated by the automatic wash con- − trol: Under the diagnostic message (see Section 8.2.6) as this indicates a NO SAMPLE − clean prism in an empty process line. The diagnostic message is WASH STOP/NO SAMPLE −...
  • Page 63 6 Configuration and calibration NOTES 1. Remote wash is triggered at The other the closing of the switch. If sensor the switch is held closed, washing? only one wash cycle is carried out. 2. The wash is inhibited if there is no sample, no sensor or the sensor cannot MANUAL measure correctly.
  • Page 64 PR-23 instruction manual Precondition enabled? Precondition 1 s wait Start washing Wash auto-cut enabled? nD < nD limit? Wash time reached? Wash time reached? Stop washing Recovery Figure 6.16 Wash cycle...

  • Page 65: Setting Prism Wash Parameters

    6 Configuration and calibration 6.5.2 Setting prism wash parameters To set the prism wash parameters for a given sensor, first select the sensor, then select from the Main menu, and then . This menu contains the 5 CALIBRATION 4 PRISM WASH alternatives (factory settings are given in parentheses): 0–30 s (0 s) PRECONDITION TIME...
  • Page 66 PR-23 instruction manual To set a low temperature limit, choose and enter the temper- 8 TEMP LIMIT VALUE °C ature (in °C!) where the limit should be. The empty pipe check prevents washing if message is , i.e. there’s no NO SAMPLE process liquid in the pipe.

  • Page 67: Regular Maintenance

    Section 7.3.3 to replace them. Important: In 3-A certified sensors, prism gasket replacement and other repairs must be done by authorized K-Patents service centers only. If gaskets of 3-A certi- fied sensors are replaced in the field, the certification is no more valid.

  • Page 68: Disassembling The Sensor

    PR-23 instruction manual process line. Never remove the sensor if there is process liquid in the pipe (except when using the Safe-Drive™ system designed for safe sensor removal during process). 7.3.1 Disassembling the sensor The letters in the text refer to Figure 7.1. The instructions are valid for all PR-23 mod- els.

  • Page 69: Replacing The Dryer

    7 Regular maintenance 7.3.2 Replacing the dryer 1. Follow the instructions in Section 7.3.1. 2. Place the sensor cover (D) with the bus terminator card (F) upwards. 3. Open five hexagon socket screws holding the bus terminator card (F) and remove the card.
  • Page 70 PR-23 instruction manual Figure 7.3 Removal of prism 9. Remove prism support (b) kept by two rounded hexagon socket screws (c). 10. Remove old prism gasket (d). 11. To remove the prism (e), push it gently against the springs machined into the prism plate (f), as indicated by an arrow in Figure 7.4.
  • Page 71 7 Regular maintenance Figure 7.4 The prism and prism plate 16. Tighten the screws (c) to the bottom. Important: Make sure you are using the original round-headed screws. 17. Check that the temperature element (a) is properly spring-loaded. In outer posi- tion, the sensor tip should be level with the prism sensor, Figure 7.5.
  • Page 72 PR-23 instruction manual Figure 7.6 Tightening the spring holders 21. Clean the window of the CCD element. Attach the CCD card (L) to the core module (S) by the three spacer screws. 22. Attach the sensor processor card (E) with the three hexagon socket screws. Con- nect the ribbon cable (H), the LED connector, and the temperature element screw terminal.

  • Page 73: Troubleshooting

    8 Troubleshooting 8 Troubleshooting 8.1 Hardware To troubleshoot refractometer hardware problems, it is often important to localize the different cards inside the DTR. The Diagnostic LEDs on the cards help solve the problems and give an indication on whether a connection is good. Figure 8.1 Positions of the transmitter cards Figure 8.2 Motherboard PR-10600 and H1 interface card PR-10701 in detail.

  • Page 74: Blank Display

    PR-23 instruction manual 8.1.1 Blank display Is Power indicator light on? Processor See figure on next page to Power supply card LEDs troubleshoot power supply. problem blinking? Processor card PR-10500 or Front panel bad. Processor Processor card card LEDs PR-10500 bad. blinking? Contrast and backlight are reset by pressing .
  • Page 75 8 Troubleshooting Important safety considerations +24 V Always switch off the mains before Power supply OK disconnecting or reconnecting cables, modules, etc. Beware of the high voltage terminals 34 and 35 Mains Have it fixed Measuring instructions Use a DMM (Digital Multimeter) to measure the voltage Measure the +24 V from terminals Disconnect +24 V from...

  • Page 76: Diagnostic Leds

    PR-23 instruction manual 8.1.2 Diagnostic LEDs Figure 8.1 and Figure 8.2 assist to localize the diagnostic LEDs. Status Indication Front panel green LED DTR power is on; 8.1.1 Processor card PR-10500 is active. Transmitter processor card PR-10500 2 yellow LEDs blinking Processor card ok.

  • Page 77: Display Unreadable

    8 Troubleshooting Important: A lit red LED on PR-10701 always indicates a problem. Red LEDs are always turned off in normal operation, whether any sensors are connected or not. Transmitter processor card POWER DISPLAY 24 V/3 V KEYBOARD 3 V DC 24 V DC Power supply module...

  • Page 78: Message No Sensor

    PR-23 instruction manual 8.1.4 Message NO SENSOR Cause: The current in the cable to this sensor is below 20 mA. Normally this means that there’s no sensor connected to the cable or that there’s no cable to the DTR. If this message comes up while a sensor properly is connected, the most likely cause of this message is a fault in the sensor.

  • Page 79: Message High Sensor Humidity

    8 Troubleshooting 8.1.7 Message HIGH SENSOR HUMIDITY Tells that humidity measured at the Sensor processor card exceeds 60 % relative hu- midity. The reason may be moisture leaking in through prism seal or the cover being open. If the sensor cover has been off for a long time, see Section 7.3.2 “Replacing the dryer”.

  • Page 80: Measurement

    PR-23 instruction manual 8.2 Measurement 8.2.1 Message OUTSIDE LIGHT ERROR Cause: The measurement is not possible because too much outside light reaches the camera. Action: Identify the light source (for example sun shining into an open tank or a translucent pipe) and block the light from getting to the prism at the sensor tip. 8.2.2 Message NO OPTICAL IMAGE The optical image can be seen from selecting...

  • Page 81: Message Outside Light To Prism

    8 Troubleshooting 8.2.4 Message OUTSIDE LIGHT TO PRISM Cause: Some light from the outside reaches the sensor and may disturb the measure- ment. Action: Identify the light source (for example sun shining into an open tank or a translucent pipe) and block the light from getting to the prism at the sensor tip. 8.2.5 Message LOW IMAGE QUALITY Cause: The most likely cause for this message is scaling on the prism.

  • Page 82: Wash

    PR-23 instruction manual 8.3 Wash 8.3.1 Message EXTERNAL HOLD The concentration measurement is on HOLD due to an external switch closure. For explanation, see Section 6.3.2, “Configuring input switches”. − 8.3.2 Messages PRECONDITIONING WASH RECOVERING − : An optional preconditioning relay is closed, see Section 6.5 PRECONDITIONING −...

  • Page 83: Diagnostic Messages Table

    8 Troubleshooting 8.4 Diagnostic messages table Important: The messages are listed in descending order of priority. Example: If both are activated, only NO OPTICAL IMAGE TEMP MEASUREMENT FAULT NO OPTICAL will be shown. The wash related messages have priority only during the wash IMAGE cycle (preconditioning–wash–recovery).
  • Page 84 PR-23 instruction manual...

  • Page 85: Sensor Specifications

    Electrically: All the K-Patents PR-23 refractometer sensors are interchangeable. The PR-23 sensors are not interchangeable with the PR-01 and PR-03 range sensors. Fur- thermore, the PR-23 sensors are not compatible with the K-Patents PR-01 / PR-03 indicating transmitter IT-R. Mechanically: The sanitary process refractometer PR-23-AC-62-HSS fits the same 2 1/2"...

  • Page 86: Sanitary Process Refractometer Pr-23-Ac

    PR-23 instruction manual The refractometer models PR-23-M/MS and PR-23-W for aggressive solutions and ultra-pure fine chemicals can be equipped with a sapphire prism with a refractive in- dex range 1.2600–1.4600, Figure 9.3. M74/W74 M62/W62 1.25 1.30 1.35 1.40 1.45 1.50 1.55 Figure 9.3 PR-23-M/MS/W rangeability with a sapphire prism (74) and with a standard prism (62)

  • Page 87: Pr-23-Ac Mounting Hardware Model Code

    9 Sensor specifications 9.3.2 PR-23-AC mounting hardware model code Mounting hardware (without wash nozzles) MODEL AND DESCRIPTION MODEL AFC = Elbow flowcell Sensor connection -H = Sanitary 3A clamp, 2 1/2 inch Construction material SS = AISI 316 Process connection -H = Sanitary 3A clamp Pipe section diameter 10 = 25 mm (1 inch) (A)

  • Page 88: Pr-23-Ac Specifications

    Built-in Pt-1000 Temperature compensation: Automatic, digital compensation Instrument verification: With certified refractive index liquids and K-Patents documented procedure Ambient temperature: Sensor: max. 45 °C (113 °F), min. -20 °C (-4 °F) Indicating transmitter: max. 50 °C (122 °F), min. 0 °C (32 °F)

  • Page 89: Pr-23-Ac Parts List

    9 Sensor specifications 9.3.4 PR-23-AC parts list Item Pcs. Part No. Description PR-9205 2.5” Sanitary ferrule PR-9201 2.5” Sanitary clamp PR-9202 2.5” Sanitary gasket EPDM PR-9203 2.5” Sanitary gasket NBR PR-9204 2.5” Sanitary gasket PTFE (Teflon®) PR-10001 PR-23 H head (3A sanitary clamp connection) PR-10021 PR-23 E head (Varivent®connection) PR-10048...

  • Page 90: Pr-23-Ac Mounting Specifics

    2. Efficient drainage when the pipe is emptied. For pipe diameters of 3" or above, a ferrule is welded directly to the pipe wall, Figure 9.4 (a ferrule, length 21.5 mm, is delivered with standard sensor delivery from K-Patents). Figure 9.4 Mounting with sanitary ferrule Pipe diameter 3"...
  • Page 91 Figure 9.5 Flowcell AFC-HSS- Sanitary gasket 1"/1.5" EPDM Customer Sanitary clamp 1"/1.5" AISI304 Customer PR-03-A/PR-23-AC sensor K-Patents H10 for pipe diameter 1" (25 mm) and H15 for pipe diameter 1 1/2" (40 mm) Rev. Date Rev. by Appr. Mark AFC-HSS-H10/H15-SI/RI Flow cell...
  • Page 92 PR-23 instruction manual SECTION A-A SCALE 1 : 2 Flow cell type 48.6 51.6 89.0 AFC-HSS-H20-SI 48.6 48.6 51.6 89.0 AFC-HSS-H20-RI 35.6 60.3 64.1 108.0 AFC-HSS-H25-SI 60.3 Figure 9.7 Flowcell AFC-HSS- H20 for pipe diameter 2" (50 mm) and H25 for pipe diameter 2 1/2" (65 mm) SECTION A-A SCALE 1 : 2 Flow cell type...

  • Page 93: Pr-23-Ac I-Line Fitting

    K-Patents offers a 3A Sanitary Standard Accepted repair and maintenance package in which all wetted parts, prism, gaskets and dryer are replaced. Note that this repair service can be completed only by a 3A authorized service center (K-Patents factory or regional headquarters).

  • Page 94: Sanitary Probe Refractometer Pr-23-Ap

    PR-23 instruction manual 9.4 Sanitary probe refractometer PR-23-AP The K-Patents Sanitary probe refractometer PR-23-AP provides an accurate on-line BRIX measurement in cookers and tanks. 9.4.1 PR-23-AP model code MODEL AND DESCRIPTION MODEL PR-23 = Sensor PR-23 Sensor model -A = 3A approved...

  • Page 95: Pr-23-Ap Specifications

    Temperature compensation: Automatic, digital compensation Instrument verification: With certified refractive index liquids and K-Patents documented procedure Ambient temperature: Sensor: max. 45 °C (113 °F), min. -20 °C (-4 °F) Indicating transmitter: max. 50 °C (122 °F), min. 0 °C (32 °F)

  • Page 96: Pr-23-Ap Parts List

    PR-23 instruction manual 9.4.4 PR-23-AP parts list Item Pcs. Part No. Description PR-9205 2.5” sanitary ferrule VFMA-23-PSS MT4 DN25/1T APV tank bottom flange PR-4275 4” sanitary ferrule PR-9201 2.5” sanitary clamp PR-9270 4” sanitary clamp PR-9202 2.5” sanitary gasket EPDM PR-9203 2.5”...

  • Page 97: Pr-23-Ap Mounting Specifics

    To ensure that the measurement is representative and that the prism stays clean, the probe should be installed close to a stirrer. K-Patents probe refractometer, types PR-23-AP-T is connected to the process by a 2 1/2" 3A sanitary clamp, Figure 9.10. PR-23-AP-R is connected by 4" sanitary clamp.

  • Page 98: Pr-23-Ap I-Line Fitting

    Such surfaces may not stay clean in processing. K-Patents offers a 3A Sanitary Standard Accepted repair and maintenance package in which all wetted parts, prism, gaskets and dryer are replaced. Note that this repair...

  • Page 99: Compact Process Refractometer Pr-23-Gc

    9 Sensor specifications service can be completed by 3A authorized service center only (K-Patents factory or regional headquarters). 9.5 Compact process refractometer PR-23-GC The K-Patents Compact process refractometer PR-23-GC is designed for the general industry small pipeline and bypass line applications e.g. in chemical, oil, gas, petro- chemical and kraft pulping processes.
  • Page 100 PR-23 instruction manual Wafer flowcell model code MODEL AND DESCRIPTION MODEL WFC = Wafer flowcell Sensor connection -K = Sandvik L coupling 76.1 mm (insertion length 12 mm) Construction material -SS = AISI 316 L -HA = Alloy 20 -HC = Hastelloy C / ASTM C276 HC -NI = Nickel 200 -TI Titanium ASTM B248 -SU = AISI 904L (A)

  • Page 101: Pr-23-Gc Specifications

    Built-in Pt-1000 Temperature compensation: Automatic, digital compensation Instrument verification: With certified refractive index liquids and K-Patents documented procedure Ambient temperature: Sensor: max. 45 °C (113 °F), min. -20 °C (-4 °F) Indicating transmitter: max. 50 °C (122 °F), min. 0 °C (32 °F)

  • Page 102: Pr-23-Gc Parts List

    PR-23 instruction manual 9.5.3 PR-23-GC parts list Item Pcs. Part No. Description PR-9280 Sandvik ferrule 76.1 PR-9283 Sandvik 76.1 reducing ferrule PR-9282 Sandvik clamp FCLC-76.1 PR-9281 Sandvik O-ring FCLG-T-76.1 Teflon® PR-9291 Sandvik O-ring FCLG-V-76.1 Viton PR-9284 PR-23/33-GC head PR-10048 68x3 O-ring Alignment pin PR-10005-SC PR-23 base...

  • Page 103: Pr-23-Gc Mounting Specifics

    9 Sensor specifications 9.5.4 PR-23-GC mounting specifics The Compact refractometer is mounted either in a pipe elbow by a Sandvik coupling connection or in a straight pipe via a Wafer flow cell or a Pipe flow cell. Both flow cell mounting designs create optimum flow velocity on the measurement surface pro- viding a good self-cleaning effect.
  • Page 104 PR-23 instruction manual Figure 9.13 Mounting the sensor in a 2" pipe Figure 9.14 Mounting the sensor with a pfc flow cell...
  • Page 105 9 Sensor specifications Figure 9.15 Mounting the sensor with a wfc flow cell...
  • Page 106 PR-23 instruction manual Use gasket material appropriate to the process media Use PTFE Teflon tape for all threaded connections Figure 9.16 Mounting the Wafer flow cell and sensor in a vertical pipe...
  • Page 107 9 Sensor specifications Use gasket material appropriate to the process media Use PTFE Teflon tape for all threaded connections Figure 9.17 Mounting the Wafer flow cell and sensor in a horizontal pipe...

  • Page 108: Probe Process Refractometer Pr-23-Gp

    PR-23 instruction manual 9.6 Probe process refractometer PR-23-GP The K-Patents Probe process refractometer PR-23-GP is a general industry model for measuring liquid concentrations in various in-line applications, like chemicals, fibers, plastics, salts and sodium components. It is typically installed in large pipes and ves- sels.

  • Page 109: Pr-23-Gp Specifications

    9 Sensor specifications 9.6.2 PR-23-GP specifications General specifications Refractive Index range: Full range n 1.3200–1.5300 (corresponds to hot water – 100 Brix) Accuracy: Refractive index n ± 0.0002 (corresponds typ- ically to ± 0.1 % by weight) Repeatability and stability correspond to accu-...

  • Page 110: Pr-23-Gp Parts List

    PR-23 instruction manual 9.6.3 PR-23-GP parts list Item Pcs. Part No. Description PR-10009 PR-23-GP-L head PR-10010 PR-23-GP-D head PR-10011 PR-23-GP-D-NC head ANSI 3” 150 lbs flange DIN 80 PN 25 flange JIS 80A 10k flange Item Pcs. Part No. Description...

  • Page 111: Pr-23-Gp Mounting Specifics

    Customer’s pipe <2” Customer’s pipe <2” Centering hole Centering hole 0.787 0.787 20.0 20.0 Customer’s pipe <2” Customer’s pipe <2” Figure 9.18 PR-23-GP-A/D/JSS Y flowcell Model Model 26.7 [1.051] 26.7 [1.051] 108 [4.252] 108 [4.252] PFC-23-GP-ASS-A10-NC PFC-23-GP-ASS-A10-NC 190.5 [7.5] 190.5 [7.5]...
  • Page 112 PR-23 instruction manual Customer’s pipe Customer’s pipe 0.787 0.787 Customer’s pipe Customer’s pipe Figure 9.20 PR-23-GP-LSS Y flowcell 25 [1] 25 [1] 125 [6.102] 125 [6.102] PFC-23-GP-LSS-D20-NC PFC-23-GP-LSS-D20-NC PFC-23-GP-LSS-J20-NC PFC-23-GP-LSS-J20-NC 51 [2] 51 [2] 155 [6.102] 155 [6.102] Figure 9.21 PR-23-GP-LSS flowcell...

  • Page 113: Process Refractometer Pr-23-Rp

    9 Sensor specifications 9.7 Process refractometer PR-23-RP K-Patents Process Refractometer PR-23-RP is a heavy-duty refinery model that is de- signed to support the unique requirements of the refining and petroleum industries. Typical applications are in accurate liquid concentration mesurements, e.g. acid in alkylation, glycol or amines in gas processing and multi-product (crude oil, fuel oil, diesel) interfaces in transfer operations.

  • Page 114: Pr-23-Rp Specifications

    Temperature compensation: Automatic, digital compensation Instrument verification: With certified refractive index liquids and K-Patents documented procedure Ambient temperature: Sensor: max. 45 °C (113 °F), min. -20 °C (-4 °F) Indicating transmitter: max. 50 °C (122 °F), min. 0 °C (32 °F)

  • Page 115: Pr-23-Rp Parts List

    9 Sensor specifications 9.7.3 PR-23-RP parts list Item Pcs. Part No. Description PR-10043 PR-23-RP-SS head PR-10043-HC PR-23-RP-SS Hastelloy® C 276 Item Pcs. Part No. Description PR-10043-HA PR-23-RP-SS Alloy® 20 head PR-10103 Sensor processor card PR-10048 68x3 O-ring Screw M3x6 DIN 912 A2 Alignment pin PR-10300 Bus terminator card...

  • Page 116: Pr-23-Rp Head Parts List

    PR-23 instruction manual REV. DESCRIPTION DATE APPR. 30.3.2012 Code changed, PR-numbers added 6.6.2012 9.7.4 PR-23-RP head parts list Torque 6Nm (4,4 lbs/ft) PR-10043 Item Pcs. Part No. Description Item Pcs. Part No. Description PR-10043-HC PR-10043-HA PR-23-RP head 2” ANSI 300 flange PR-23-RP head Hastelloy C PR-10049 O-ring 50x3 FPM...

  • Page 117: Pr-23-Rp Dimensions

    9 Sensor specifications 9.7.5 PR-23-RP dimensions Figure 9.22 PR-23-RP-73-M20...

  • Page 118: Pr-23-Rp Mounting Specifics

    PR-23 instruction manual 9.7.6 PR-23-RP mounting specifics The Refractometer sensor is installed in the process, either directly by welding a mounting flange to 2 inch or larger pipes or vessels, or via a 1 inch, 2 inch or 3 inch cross flowcell.
  • Page 119 PR-23-RP mounting in CFC 1” line Figure 9.23 CFC-RP-M20-SS/HC/HA-M10-NC-PG/SN/WP flowcell Item. Description Supplied by Pcs. Item. Description Supplied by Pcs. Sensor PR-23-RP-73-M20 K-Patents Bolt, washer and nut for 1”flange Customer CFC-RP-M20-M10-NC-PG/SN/WP K-Patents 1’’ flange gasket Customer 2”ANSI 300 Wash nozzle K-Patents 2’’ flange gasket Customer 1”ANSI 300 blind flange...
  • Page 120 Figure 9.24 CFC-RP-M20-SS/HC/HA-M20-NC-PG/SN/WP flowcell Item. Description Supplied by Pcs. Item. Description Supplied by Pcs. Sensor PR-23-RP-73-M20 K-Patents 2”flange gasket Customer CFC-23-RP-M20-M20-NC-PG/SN/WP K-Patents 2”ANSI 300 Welding neck flange Customer 2’’ ANSI 300 Wash nozzle K-Patents Bolt, washer and nut for 2”flange Customer 1’’...

  • Page 121: Pr-23-Rp Prism Wash System

    A prism wash system is available for the PR-23-RP. This requires the use of a CFC- RP-M20 flow-cell in combination with a 2” ANSI 300 CFC wash nozzle. Both of these components are available from K-Patents. All the further components specifically re- quired for the wash system installation, are obtained independently by the customer.

  • Page 122: Teflon Body Refractometer Pr-23-M/Ms

    PR-23 instruction manual 9.8 Teflon body refractometer PR-23-M/MS K-Patents Teflon body refractometer PR-23-M/MS is designed for use in chemically aggressive solutions and ultra-pure fine chemical processes. PR-23-M is an all-purpose model, PR-23-MS is designed especially for the semicon- ductor industry. The sensor has a built-in flowcell designed to keep all metal and other easily corroding parts from coming into contact with the process liquid.

  • Page 123: Pr-23-M Sensor Model Code

    9 Sensor specifications 9.8.1 PR-23-M sensor model code MODEL AND DESCRIPTION MODEL PR-23 = Sensor PR-23 Sensor model -M = Aggressive medium adapter Refractive Index range limits 73 = n 1.320–1.530 (0–100 Brix) Sapphire prism 74 = n 1.260–1.470 Sapphire prism Electrical classification -GP = General purpose -AX = ATEX certified EX II 3 G Eex nA II T4 (up to Zone 2)

  • Page 124: Pr-23-M Specifications

    Built-in Pt-1000 Temperature compensation: Automatic, digital compensation Instrument verification: With certified refractive index liquids and K-Patents documented procedure Ambient temperature: Sensor: max. 45 °C (113 °F), min. -20 °C (-4 °F) Indicating transmitter: max. 50 °C (122 °F), min. 0 °C (32 °F)

  • Page 125: Pr-23-M Parts List

    9 Sensor specifications 9.8.3 PR-23-M parts list Item Pcs. Part No. Description Item Pcs. Part No. Description Screw M5x60 DIN 7991 A4 PR-10036 PR-23 compact sensor CORE module PR-23-M endplate PR-9011 Thermal conductor PR-9129 PR-03/23-M protection cover PR-9010 Disc spring set Screw DIN 912 M4x10 A4 Disc spring PR-9120...

  • Page 126: Pr-23-Ms Sensor Model Code

    PR-23 instruction manual 9.8.4 PR-23-MS sensor model code MODEL AND DESCRIPTION MODEL PR-23 = Sensor PR-23 Sensor model -MS = Aggressive medium adapter, semiconductor industry Refractive Index range limits 73 = n 1.320–1.530 (0–100 Conc% b.w.) Sapphire prism 74 = n 1.260–1.470 Sapphire prism Electrical classification -GP = General purpose...

  • Page 127: Pr-23-Ms Specifications

    Built-in Pt-1000 Temperature compensation: Automatic, digital compensation Instrument verification: With certified refractive index liquids and K-Patents documented procedure Ambient temperature: Sensor: max. 45 °C (113 °F), min. -20 °C (-4 °F) Indicating transmitter: max. 50 °C (122 °F), min. 0 °C (32 °F)

  • Page 128: Pr-23-Ms Parts List

    PR-23 instruction manual 9.8.6 PR-23-MS parts list Item Pcs. Part No. Description Screw M5x60 DIN 7991 A4 PR-23-MS endplate PR-9129-EC PR-23-MS protection cover Item Pcs. Part No. Description Screw DIN 912 M4x10 A4 PR-9120 PR-03/23-M-PV-R05 flow cell (PVDF) PR-9010 Disc spring set PR-9121 PR-03/23-M-TF-R05 flow cell (PTFE) Disc spring...

  • Page 129: Pr-23-M/Ms Mounting Specifics

    9 Sensor specifications 9.8.7 PR-23-M/MS mounting specifics K-Patents Teflon body refractometer PR-23-M/MS is connected to the process by a G1/2" female or a 1/2" NPT process connection, Figure 9.27 below. Important: Always install PR-23-M/MS with sensor support to prevent the sensor weight from pulling at the non-metallic piping.

  • Page 130: Saunders Body Refractometer Pr-23-W

    Indicating Transmitter. The sapphire plate, PVDF or PTFE®Teflon and PFA microprocessor system displays the optical image (flow cell lining material). The K-Patents PR-03-W and implements an image analyzing algorithm. has a stainless steel sensor cover. The Indicating Transmitter contains a power supply,...

  • Page 131: Pr-23-W Sensor Model Code

    9 Sensor specifications 9.9.1 PR-23-W sensor model code MODEL AND DESCRIPTION MODEL PR-23 = Sensor PR-23 Sensor model -W = Aggressive medium Saunders body flowcell Refractive Index range limits 73 = n 1.320–1.530 Sapphire prism 74 = n 1.260–1.4700 Sapphire prism Sensor wetted parts material ®...

  • Page 132: Pr-23-W Specifications

    Built-in Pt-1000 Temperature compensation: Automatic, digital compensation Instrument verification: With certified refractive index liquids and K-Patents documented procedure Ambient temperature: Sensor: max. 45 °C (113 °F), min. -20 °C (-4 °F) Indicating transmitter: max. 50 °C (122 °F), min. 0 °C (32 °F)

  • Page 133: Pr-23-W Parts List

    9 Sensor specifications 9.9.3 PR-23-W parts list Item Pcs. Part No. Description Saunders valve body PFA lining ANSI 2”/DIN 50/JIS 50 Saunders valve body PFA lining ANSI 3”/DIN 80/JIS 80 Saunders valve body PFA lining ANSI 4”/DIN 100/JIS 100 Facing for 2” valve body Facing for 3”...

  • Page 134: Pr-23-W Mounting Specifics

    PR-23 instruction manual 9.9.4 PR-23-W mounting specifics PR-23-W Saunders valve body flowcell can be mounted either vertically or horizon- tally. Special sensor support is not needed as the valve body (piping) supports the sensor. Either way sensor cover should always be horizontal to avoid sedimentation or gas/air pocket on the prism.

  • Page 135: Process Refractometers In Potentially

    The PR-23 refractometer series can be used in locations with potentially explosive atmosphere with following modifications, made by K-Patents Oy. The refractometer sensor’s compliance with the Essential Health and Safety Requirements is assured by complying with standard EN 50 021:1999.
  • Page 136 PR-23 instruction manual The ATEX/FM/CSA approved sensors PR-23-...-AX/FM/CS are identified by the sensor nameplate, see Figure 9.1. The Indicating transmitter is a standard DTR. The approvals are valid for sensors PR-23-AC, PR-23-AP, PR-23-GP, PR-23-M, PR-23-MS, PR-23-SD, PR-23-W and PR-23-RP. PR-23-AC/AP-...-AX nameplate...

  • Page 137: Installation

    All wiring of PR-23-...-FM systems must run in a conduit. Important: Tampering and replacement with other than K-Patents original components is not allowed because this may affect adversely the safe use of the system.
  • Page 138 PR-23 instruction manual Safe sensor wiring according to WRG-367 (100-240 VAC) Safe sensor wiring according to WRG-350 (24 VDC) Figure 9.32 Safe sensor wiring...

  • Page 139: Intrinsically Safe Refractometers Pr-23

    C22.2 No. 60529:2005, CSA C22.2 No. 61010.1-1:2004, CSA E60079-0:2007 and CSA E60079-11:2002. Note: Servicing of the intrinsically safe PR-23-...-IA/-IF refractometer is only allowed for trained service personnel of K-Patents and its representatives. Servicing must be done according to separate instructions defined by K-Patents and must be reported to K-Patents.
  • Page 140 The equipment is intrinsically safe only if all mounting instructions in Section 9.11.2 are followed. If the instrument has been in any way damaged during transportation, return it to your nearest K-Patents service point for checkup before installation. Never install a damaged instrument into the process line.

  • Page 141: Intrinsically Safe Mounting

    If any of the system parts is affected by a sudden impact, power it off immediately and have it checked by trained K-Patents service personnel before it is used again. The electrical connections for PR-23-...-IA are described in Figure 9.37. The electrical...
  • Page 142 PR-23 instruction manual Figure 9.37 Intrinsically safe wiring, PR-23-...-IA according to WRG-362...
  • Page 143 9 Sensor specifications Figure 9.38 Intrinsically safe wiring, PR-23-...-IF according to WRG-478 Notes: In the United States, installation must be in accordance with the applicable require- ments of ANSI/ISA RP12.6 and the national electrical code (ANSI/NFPA 70). In Canada installation must be in accordance with the applicable requirements of Cana- dian electrical code part I C22.2.1 section 18 and appendix F.

  • Page 144: Isolator/Barriers

    PR-23 instruction manual − Cables for intrinsically safe installation: 10 m (33 ft) cable, part number PR-8230-010, connecting the Indicating transmit- − ter STR and the Isolator unit. The maximum cable length is 100 m (330 ft). 10 m (33 ft) power cable, part number PR-8250-010, connecting the Indicating −...

  • Page 145: Indicating Transmitter Dtr Specifications

    10 Indicating transmitter DTR specifications 10 Indicating transmitter DTR specifications PROCESS REFRACTOMETER DTR–M–GP –AC S/N: T05880 100 – 240 V AC, 50/60 Hz, 30 VA TAG: Figure 10.1 Indicating transmitter DTR serial number label PROCESS REFRACTOMETER STR–M–GP DC – S/N: T01013 24 V DC, 30 VA TAG: Figure 10.2 Indicating transmitter STR serial number label...

  • Page 146: Transmitter Program Versions

    DTR program version. Program version 4.07: The DTR program version 4.07 is compatible with any K-Patents DTR and any PR-23 sensor with program version 1.00 or higher. This DTR program version contains fol- −...

  • Page 147: Model Code

    10 Indicating transmitter DTR specifications 10.2 Model code 10.2.1 Transmitter model code MODEL AND DESCRIPTION MODEL DTR = Indicating transmitter (connectivity for two sensors) STR = Indicating transmitter (connectivity for one -IA/-IF sensor) Cable connection -U = ½ inch NPT type conduit hubs for CSA certified Transmitter -M = M20x1.5 metric cable glands for general purpose Transmitter Electrical classification -GP = General purpose...

  • Page 148: Specifications

    PR-23 instruction manual 10.3 Specifications 10.3.1 Indicating transmitter specifications Display: 320x240 pixel graphical LCD with LED backlight Keypad: 18 membrane keys Current output: Two independent current sources, 4-20 mA, max. load 1000 Ohm, galvanic isolation 1500 VDC or AC (peak), hold function during prism wash Power: AC input 100-240 VAC, ±10%, 50/60 Hz/30 VA, optional 24 VDC, Overvoltage Category II, Pollution...

  • Page 149: Transmitter Parts List

    10 Indicating transmitter DTR specifications 10.4 Transmitter parts list Figure 10.3 Indicating transmitter DTR (STR) parts...
  • Page 150 PR-23 instruction manual...

  • Page 151: Safe-Drive

    11 Safe-Drive™ 11 Safe-Drive™ The K-Patents Safe-Drive™ system is used for safe insertion and removal of a refrac- tometer sensor while the process line is under full process flow and pressure. The Safe-Drive™ system is typically used in a continuous process with infrequent shut- downs and large pipe size, diameter 50 mm (2") or above, e.g.

  • Page 152: Specifications

    Temperature compensation: Automatic, digital compensation Instrument verification: With certified refractive index liquids and K-Patents documented procedure Ambient temperature: Sensor: max. 45 °C (113 °F), min. -20 °C (-4 °F); Indicating transmitter: max. 50 °C (122 °F), min. 0 °C (32 °F) SAFE-DRIVE™...

  • Page 153: Parts Lists

    11 Safe-Drive™ 11.3 Parts lists 11.3.1 PR-23-SD sensor 12 13 16 17 23 22 Item Pcs. Part No. Description Item Pcs. Part No. Description PR-10015 PR-23-SD head Screw M5x10 DIN 912 A2 PR-10101 Sensor processor card Safe-Drive™ flange Screw M3x5 DIN 7380 A4 PR-10300 Bus terminator card ®...

  • Page 154: Safe-Drive™ Isolation Valve

    PR-23 instruction manual 11.3.2 Safe-Drive™ Isolation valve Item Pcs. Part No. Description Item Pcs. Part No. Description PR-11000 SDI flange and nozzle M12 nut A4 weld assembly SAF 2205 SDI isolation valve handle PR-11001 DN 40 ball valve assembly: parts 2, 6, 7 Safety lock screw DN 40 ball valve Safety lock...

  • Page 155: Safe-Drive™ Retractor

    By special order the Safe-Drive™ Isolation valve can also be welded to a suitable length of pipe at the K-Patents factory to be part of the piping on site. Floor, work platform 1000-1500 (3-5ft) Figure 11.3 Selecting the mounting location...

  • Page 156: Welding Isolation Valve To Pipe

    PR-23 instruction manual The Safe-Drive™ system is mounted on a vertical pipe or horizontal pipe. When choos- ing mounting location, keep in mind that you have to be able to lift the Retractor with sensor inside over and off the isolation valve for sensor insertion and removal. Side view 10.71 11.6...
  • Page 157 11 Safe-Drive™ the holes correctly, K-Patents delivers with the valve an installation guide sticker (see Figure 11.6). Welding steps (see Figure 11.7 or Figure 11.8): 1. Clean the surface of the pipe around the installation area and place the guide sticker across the pipe. Make sure that the flow marker is parallel to the pipe and points to the correct flow direction.
  • Page 158 PR-23 instruction manual Installation guide sticker (1:1) DIN 985 Stainless Nylon Insert Lock Nuts Valve handle always on top Large bayonet always on top DETAIL A SCALE 1 : 2 Assembly/disassembly of isolation valve Bolt torque 17Nm (13 ft lb) Material SAF2205 25 (1.0) Welding...
  • Page 159 DN250 dimension added 21.08.2015 uts added 29.9.2015 11 Safe-Drive™ Installation guide sticker (1:1) Ensure correct torque! 50Nm (37ft lb) Lower nut DIN 985 Stainless Nylon Insert Lock Nuts Valve handle always on top Large bayonet always on top DETAIL A SCALE 1 : 2 Assembly/Disassemble isolation valve for welding Material SAF2205...

  • Page 160: Wiring

    PR-23 instruction manual 11.4.2 Wiring Figure 11.9 PR-23-SD system wiring...

  • Page 161: Steam Piping For Sdi2 (Eg Weak And Black Liquor)

    11 Safe-Drive™ 11.4.3 Steam piping for SDI2 (eg weak and black liquor) Box steam flushing before retraction Warning: Drain valves, normally closed Figure 11.10 Mounting steam wash to isolation valve...

  • Page 162: High Pressure Water Piping For Sdi2 (Eg Green Liquor)

    PR-23 instruction manual 11.4.4 High pressure water piping for SDI2 (eg green liquor) Prism wash -see manual 4.2.1 for recommended wash pressures and times Box flushing before retraction Warning: Drain valves, normally closed Description Extended nipple 5344 1/4" ball valve PR-3516 Check valve PR-3304...

  • Page 163: Sdi2 Upgrade Kit

    11 Safe-Drive™ 11.4.5 SDI2 upgrade kit It is possible to purchase an upgrade kit for a Safe-Drive™ generation 1 setup. PR-11023-KIT SDI2 Steam wash nozzle SN2 PR-11023-KIT including PR-11023, PR-11030, PR-3516 and PR-3304 PR-11030 PR-11025 PR-11032 Screws for SDI2 wash nozzle Nozzle isolation valve assembly for SDI2 Valve handle PR-3304...

  • Page 164: Safe Sensor Insertion And Removal

    PR-23 instruction manual 11.5 Safe sensor insertion and removal Warning! Always use the Safe-Drive™ Retractor for sensor insertion and re- moval! Safe sensor insertion and removal can only be guaranteed when the Retractor tool is used and these instructions are carefully followed. Removing the sensor with- out the Retractor tool may cause a life-threatening situation if there’s any pressure in the pipe.

  • Page 165: Sensor Insertion

    11 Safe-Drive™ 11.5.1 Sensor insertion • Before you start • check that the gaskets and gasket surfaces are clean and undamaged remove the sensor cable gland and unlock Inner casing 1 Insert the sensor to the Inner casing. Make sure that the sensor cable gland has been taken off...
  • Page 166 PR-23 instruction manual 1 Close the blow-out ball valve underneath the Isolation valve. 2 Lift up the Isolation valve handle locking plate. 3 Open the Isolation valve by turning the valve handle 90 degrees counterclockwise. The valve is open when the ball valve handle is parallel to the Retractor and sensor.
  • Page 167 11 Safe-Drive™ 1 Lift up the latch of the Inner casing to unlock. 2 Turn the casing 60 degrees left to release it from the flange. Lift the Inner casing away from the sensor head. Power off the DTR. Connect sensor cable to the DTR. 1 Take off...

  • Page 168: Sensor Removal

    PR-23 instruction manual 11.5.2 Sensor removal Switch off the DTR to cut off power from the sensor. 1 Remove the sensor nameplate and the gasket underneath. 2 Screw off the cable gland. 3 Disconnect the interconnecting cable. 4 Remove the cable from sensor. 5 Place gasket and nameplate on the sensor head and screw the sensor nameplate back on.
  • Page 169 11 Safe-Drive™ Open and remove the four M12 nuts on the bolts holding the sensor to the Isolation valve using a 19 mm or 3/4" wrench. 1 Turn the hand wheel clockwise until it stops to remove the sensor from process. 2 At this stage about 140 mm (5.5") of the thread should stick out from the middle of the wheel.
  • Page 170 PR-23 instruction manual Take a firm grip on the hand wheel and the handle and pull out the Safe-Drive™ Retractor with the sensor inside. Warning! A firm hold of the tool is essential as the combination of the tool and the sensor is noticeably heavier than Retractor alone.

  • Page 171: Wash Nozzle Insertion And Removal

    11 Safe-Drive™ 11.6 Wash nozzle insertion and removal 11.6.1 Wash nozzle insertion Check the nozzle and the valve before installing the wash nozzle. Use thread seal tape for all thread connections. Warning! Always shut the main steam valve before performing any work on the wash nozzle.

  • Page 172: Wash Nozzle Removal

    PR-23 instruction manual 11.6.2 Wash nozzle removal Warning! Always shut the main steam valve before performing any work on the wash nozzle. 1 Close the steam line supply valve (1). 2 Remove the steam supply line (2) and the sensor flush flexible line (2) from the nozzle WARNING Make absolutely certain that the steam supply is shut off...

  • Page 173: Blinding The Sd System

    11 Safe-Drive™ 11.7 Blinding the SD system A Safe-Drive™ connection that is no longer used can be secured with blind plugs. Use teflon tape SPARE PART ITEM NO. PART NUMBER DESCRIPTION QTY. 1203003 Tapered connector , DN10 PR-9336 1202303 Conical hat, DN10 3825 PR-23-SD-PG O-ring...
  • Page 174 PR-23 instruction manual...

  • Page 175: Ethernet Connection Specification

    12 Ethernet connection specification 12 Ethernet connection specification The Ethernet connection enables data download from a DTR to a computer. The con- nection works both directly between DTR and computer or via a hub or switch, local area network (LAN), wireless network (WLAN) or fiber Ethernet. Any type of computer (PC, Mac, PDA, mainframe...) with a compatible network con- nection can be configured to download data from the DTR.

  • Page 176: Connecting The Ethernet Cable

    PR-23 instruction manual If you are connecting the DTR to a hub or switch or WLAN access point, please con- sult the user’s guide of your hub/switch/access point for the correct cable type (Fig- ures 12.3 and 12.4). POWER POWER Hub/Switch PROCESS INSTRUMENTS PROCESS INSTRUMENTS...

  • Page 177: Connection Settings

    12 Ethernet connection specification Figure 12.6 Ethernet connector on the underside of the Front panel. Note: The DTR has automatic speed negotiation, i.e. it will automatically find out what the optimal speed for the connection is and choose accordingly either 10 Mbit/s or 100 Mbit/s speed.

  • Page 178: Testing The Ethernet Connection

    PR-23 instruction manual If you are using Windows (or Mac OS X 10.3 or newer or any recent Linux distrib- ution) and the computer has the default network settings, change the DTR IP ad- dress to 169.254.x.y, where x=1–254 and y=1–254, for example 169.254.100.100 or 169.254.123.1.

  • Page 179: Troubleshooting The Connection

    12 Ethernet connection specification very simple: go to the command interface (for example the Command Prompt), type the name of the command and the IP address you want to check and press Enter. If the Ethernet connection is good, the DTR is powered on and the address given to ping is correct, the DTR will answer to ping and return any data packets sent to it, see Fig- ure 12.8.

  • Page 180: Instrument Homepage

    PR-23 instruction manual If the green LED is lit, your Ethernet connection is made correctly with the right type of cable. In this case, try pinging the DTR and check if the orange LED flashes during ping. If the LED does not flash, re-check the IP address (so that you are really pinging the DTR in question).

  • Page 181: Remote Panel

    12 Ethernet connection specification Opening the instrument homepage: 1. Establish a working Ethernet connection (see above) to the DTR. 2. Start your preferred web browser (for example Internet Explorer, Mozilla Firefox, Safari, Opera or Chrome). 3. The address (URL) of the instrument homepage is the DTR’s IP address, for a fac- tory set DTR it is http://192.168.23.254/ (the figure 12.10 above uses a different address, not the default).

  • Page 182: Collecting Data Via Ethernet

    The main purpose of the Ethernet connection is to collect measurement data from the instrument. For this data acquisition, you’ll need to have suitable software on your computer. One solution is to get the software package from K-Patents. The package contains a ready-to-use data acquisition program for Windows 2000/XP/Vista.

  • Page 183: Request-Response Pair Specification

    StatusMessage = "Normal Operation" Note: All the key identifiers (see Section 12.5.2 for additional information) are case- insensitive. However, K-Patents recommends that they are written as in this specifi- cation. The server (DTR) may send the response keys in any order. It will send the mandatory keys (marked with an asterisk in Section 12.5.2) of the specific request, but it may omit...
  • Page 184 PR-23 instruction manual NULL message The null message is included in the query messages for debugging purposes as it can be used to check whether the server is listening. The message gives a high-level ’ping’ functionality. 0x00000000 Request ID (none) Request data Response key : IP address...

  • Page 185: Error Message Specification

    : string, error details There may also be error-dependent extra keys. Other error codes may be returned. 0x00000003 is to be handled as unknown request. Codes with higher numbers refer to internal errors; contact K-Patents for more information on these.
  • Page 186 PR-23 instruction manual...

  • Page 187: Sensor Verification

    The sample holder keeps the sample on the prism surface and also keeps the ambient light out. The K-Patents universal sample holder PR-1012 (Figure 13.1) can be used with any K-Patents PR-23 sensor (in PR-23-M only the top part of the sample holder is needed).

  • Page 188: Verification Procedure

    As the specified accuracy of PR-23 is ±0.0002, then the representative level is the sum of the three accuracy specifications, that is ±0.0004. K-Patents provides a set of standard R.I. liquids, PR-2300, containing these five liquids. The set can be ordered directly from K-Patents or through your nearest K-Patents rep- resentative. 13.2 Verification procedure To start the verification process, select in the Main menu of your sensor.
  • Page 189 Figure 13.5 Verification in process The sample holder keeps the sample on the prism surface and also blocks the ambi- ent light from reaching the prism. The K-Patents universal sample holder PR-1012 (Figure 13.1) can be used with any K-Patents sensor.

  • Page 190: Sensor Verification Certificate

    PR-23 instruction manual Pressing in the verification display finishes the verification procedure and COMPLETE calls up the verification results. If verification is successful, i.e. all measurements are within ±0.0004 of the nominal values, you get the message , see Figure 13.6 below. VERIFICATION OK Figure 13.6 Verification completed successfully (here only with one RI liquid) Note: The sensor verification concerns only the refractive index n...
  • Page 191 Important: When you have performed a verification on a sensor, reload/refresh the verification page to view the newest results. The date given on the verification page is the page load date, not necessarily the verification date. K-Patents PR-23 Refractometer System: Sensor verification http://192.168.23.250/verif.shtml PROCESS REFRACTOMETER PR-23...

  • Page 192: Corrective Action

    Figure 13.9 Verification failed If verification fails even on the repetition of the verification procedure, fill in the PR-23 sensor verification form (available in Appendix C and send it to K-Patents or your nearest K-Patents representative or email the collected information to <info@kpatents.com>...
  • Page 193 13 Sensor verification Figure 13.10 Finding verification information for PR-23 sensor verification form...
  • Page 194 PR-23 instruction manual...

  • Page 195: Regulatory Compliance And Certifications

    14 Regulatory compliance and certifications 14 Regulatory compliance and certifications 14.1 Declaration of Conformity for PR-23 series of refractometers The following Declaration of Conformity confirms compliance with the applicable EU/EEA requirements and applies to all K-Patents PR-23 refractometer models:...

  • Page 196: Declaration Of Conformity For Pr-23

    PR-23 instruction manual 14.2 Declaration of Conformity for PR-23-...-AX models (ATEX) The following Declaration of Conformity confirms compliance with the European ATEX requirements and applies to K-Patents PR-23-...-AX refractometer models:...

  • Page 197: Declaration Of Conformity For Pr-23

    14 Regulatory compliance and certifications 14.3 Declaration of Conformity for PR-23-...-IA models (ATEX) The following Declaration of Conformity confirms compliance with the European ATEX requirements and applies to K-Patents PR-23-...-IA refractometer models:...
  • Page 198 PR-23 instruction manual...

  • Page 199: A Glossary And Abbreviations

    K-Patents PR-23 refractometer system. • LCD = Liquid Crystal Display, used as transmitter display. • LED = Light Emitting Diode, the light source in a K-Patents refractometer sensor. • = Refractive index (of a liquid), see Section 1.2. Sensor code:...

  • Page 201: B Index

    B Index coating APV tank bottom flange 88 prism coating see prism coating air cooling 6 compatibility alarm relay Indicating transmitter see Indicat- relay see relay ing transmitter ambient sensor see sensor temperature see temperature configuration automatic display see display prism wash input switch see input switch prism wash see prism wash...
  • Page 202 inversion 32 humidity 70 language 31 Main 29 reset 67 Indicating transmitter setup 31 compatibility 135 specifications 138 connecting 12 temperature range 10 description 9 timeout 32 language 31 units 48 Motherboard 63, 67 disposal 4 Motherboard temperature 36, 69 divert mode 136 motherboard 13, 36, 140 dryer 58...
  • Page 203 ing transmitter laboratory determinations 49 sensor see sensor language display see display refractive index see refractive index light source verification LED see LED refractive index see refractive index linear damping 38 nozzle prism wash see prism wash Main display 29 Main menu 31, 33 OUTSIDE LIGHT ERROR message 70 Motherboard...
  • Page 204 pressure liquids see certified standard re- high pressure wash see high pres- fractive index liquids sure wash rangeability 75 process pressure see process pres- refractive index 2 sure verification 177 principle of measurement 2 refractive index liquids prism coating 8, 17, 70, 71 certified standard refractive index prism gasket 57, 60, 62 liquids see certified standard re-...
  • Page 205 sample holder 177 compensation 9, 48 sampling valve 49 motherboard scale selection 45 Indicating transmitter see Indi- seal cating transmitter calibration see calibration probe 5 sensor process 6, 9, 30, 36, 49, 87 compatibility 75 sensor processor card 36 connecting temperature element 47, 58, 59, 62 standard sensor 11 fault 71...
  • Page 206 wash pressure wiring prism wash see prism wash Indicating transmitter see Indicat- wash relay ing transmitter relay see relay prism wash see prism wash wash stop Safe-Drive see Safe-Drive prism wash see prism wash sensor see sensor wash time 4–20 mA 14, 42, 138 prism wash see prism wash signal range 48 water wash...

  • Page 207: C Pr-23 Sensor Verification Form

    C PR-23 sensor verification form Fill in this form and fax it to K-Patents Oy or to your local service representative. For contact information, please see <http://www.kpatents.com/>. Sensor serial no: Customer: Address: Fax: Email: Date: Verification made by: VERIFICATION RESULTS DISPLAY...

  • Page 209: D Pr-23 Field Calibration Form

    D PR-23 field calibration form Fill in this form and fax it to K-Patents Oy or to your local service representative. For contact information, please see <http://www.kpatents.com/>. Sensor serial no: Customer: Address: Fax: Email: Sample description: Solvent (water/other): Laboratory method:...

  • Page 211: Edtr Command Selection Tree

    E DTR command selection tree...

  • Page 213: Fstr/Divert Mode Command Selection Tree

    F STR/Divert mode command selection tree...
  • Page 215 1804 Centre Point Circle, Suite 106 Naperville, IL 60653, USA tel. (630) 955 1545 fax (630) 955 1585 info@kpatents-usa.com K-Patents (Shanghai) Co., Ltd Room 1509, Tomson Commercial Building, No.710 Dongfang RD Pudong District, Shanghai, China tel. +86 21 5087 0597/0598 fax +86 21 5087 0598 www.kpatents.com...

This manual is also suitable for:
