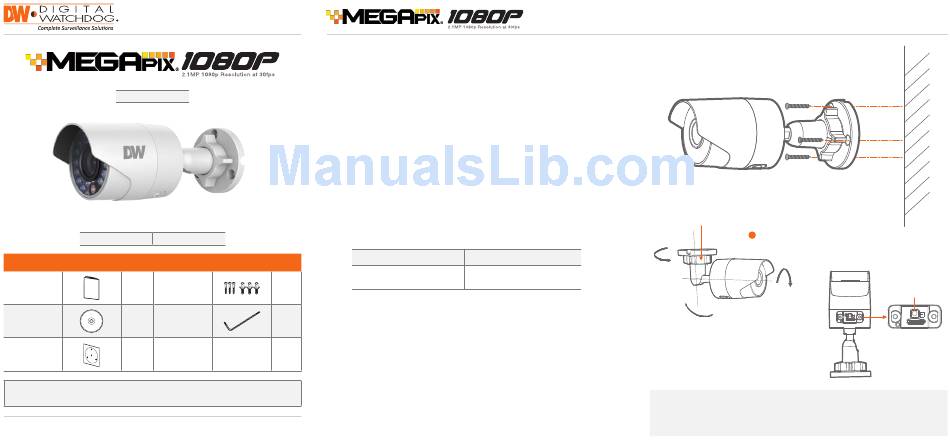

Digital Watchdog DWC-MBH2i4WV Quick Start Manual

DWC-MBH2i4WV
Username: admin Password: admin
WHAT'S IN THE BOX
Screw & Plastic
QSG Manual 1 Set
Anchor – 3pcs
Manual CD 1 Set L-Wrench
Template Sheet
for installing by 1 Set
Bolt & Nut
ATTENTION: This document is intended to serve as a quick reference page for initial set-up. It is recommended
that the user read the entire instruction manual for complete and proper camera usage.
Tel: 866-446-3595 / 813-888-9555
Technical Support Hours: 9:00AM – 8:00PM EST, Monday thru Friday
Quick Start Guide
Step 1 – PREPARING TO MOUNT THE CAMERA
1.
The mounting surface must bear five times the weight of your camera.
2. Do not let the cables get caught in improper places or the electric line cover to be damaged.
This may cause a breakdown or fire.
3. Using the mounting template sheet or the camera itself, mark and drill the necessary holes in
the wall or ceiling.
Step 2 – CABLING THE CAMERA TO EXTERNAL DEVICES
5. Pass the wires through the mount bracket and make all necessary connections.
a. NETWORK CONNECTIONS – If you are using a PoE Switch, connect the camera using
an Ethernet cable for both data and power.
b. NETWORK CONNECTIONS – If you are using a non-PoE switch, connect the camera
to the switch using an Ethernet cable for data transmission and use a power adapter to
power the camera.
Power Requirements
DC 12V
PoE IEEE 802.3atPoE+ / PoE Class 2
1 Set
Step 3 – INSTALLING THE CAMERA
1 Set
6. Using the included three (3) screws, mount and secure the camera to the wall or ceiling.
7. Use the camera's bracket to adjust the camera's view. To adjust the camera's view:
a.
Loosen the adjustable nut.
b.
Adjust the pan direction [0°~360°].
c. Adjust the tilt direction [0°~90°].
d. Rotate the camera [0~360°] to adjust the lens to the surveillance angle.
e. Tighten the adjustable nut to complete the installation.
digital-watchdog.com
Power Consumption
LED Off: 5W, 416mA
LED On: 7W, 583mA
Adjust Nut
7
0°~360°
0°~360°
0°~90°
Resetting the camera: Press RESET about 10 seconds when the camera is powering on
or rebooting to restore the default settings, including the user name, password, IP address,
port No., etc.
Quick Start Guide
WPS / Reset
