Sony MEX-DV1100 Installation/Connections

3-276-508-E1 (1)
Multi Disc Player
Installation/Connections
MEX-DV1100
© 2007 Sony Corporation
Printed in Thailand
  
  
× 2

Equipment used in illustrations (not supplied)
Front speaker Power amplifier
Rear speaker CD changer
Rotary commander RM-X4S
A
VIDEO OUT
Monitor*
REAR
AUDIO OUT
* not supplied
B
BUS AUDIO IN /
AUX AUDIO IN
BUS CONTROL IN VIDEO OUT
Monitor*
* not supplied
BUS AUDIO IN /
AUX AUDIO IN
Source selector*
XA-C40
BUS CONTROL IN VIDEO OUT
Monitor*
* not supplied
Caution

Cautions

Handle the bracket  carefully to avoid injuring your
fingers.
• This unit is designed for negative ground (earth) 12 V
DC operation only.
• Do not get the leads under a screw, or caught in moving
parts (e.g. seat railing).
• Before making connections, turn the car ignition off to
avoid short circuits.
• Connect the power supply lead  to the unit and

speakers before connecting it to the auxiliary power
Catch
connector.
• Run all ground (earth) leads to a common
Note
ground (earth) point.
Before installing, make sure that the catches on both sides of
• Be sure to insulate any loose unconnected leads with
the bracket  are bent inwards 2 mm. If the catches are straight
electrical tape for safety. or bent outwards, the unit will not be installed securely and may
spring out.

Notes on the power supply lead (yellow)

• When connecting this unit in combination with other
stereo components, the connected car circuit's rating

Connection example

must be higher than the sum of each component's fuse.
• When no car circuits are rated high enough, connect
the unit directly to the battery. Notes (-A)
• Be sure to connect the ground (earth) lead before connecting
the amplifier.
• The alarm will only sound if the built-in amplifier is used.

Parts list

Tip (-B- )
For connecting two or more CD changers, the source selector
XA-C40 (not supplied) is necessary.
• The numbers in the list are keyed to those in the
instructions.
• The bracket  and the protection collar  are

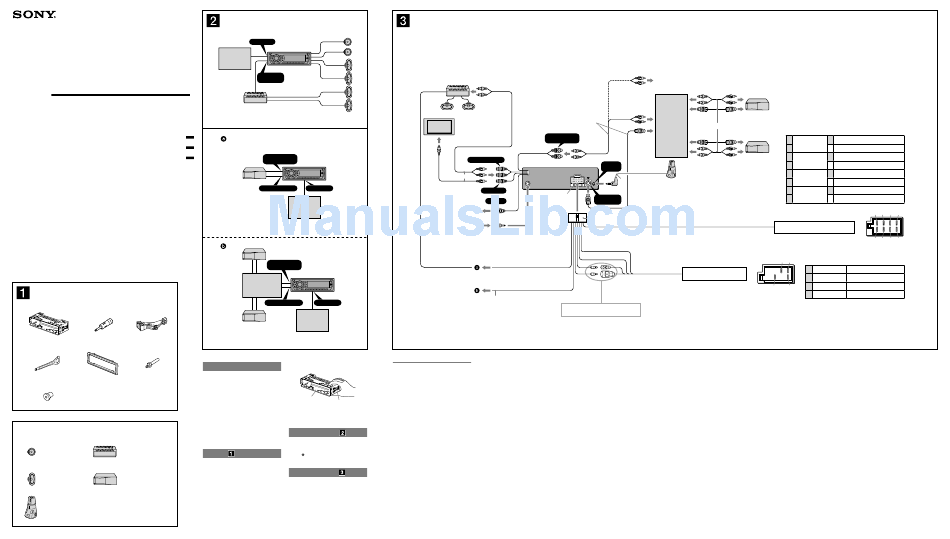

Connection diagram
attached to the unit before shipping. Before mounting
the unit, use the release keys  to remove the bracket
 and the protection collar  from the unit. For
 To AMP REMOTE IN of an optional power
details, see "Removing the protection collar and the
amplifier
bracket ()" on the reverse side of the sheet.
This connection is only for amplifiers. Connecting any other
• Keep the release keys  for future use as they
system may damage the unit.
are also necessary if you remove the unit from  To the parking brake switch cord
your car.
 To the microphone (not supplied)
Supplied with XA-C40
Monitor (not supplied)
BUS AUDIO IN /
AUX AUDIO IN
REAR AUDIO OUT
*
2
VIDEO OUT
Fuse (10 A)
*
MIC IN 5
* 1
from car antenna (aerial)

Max. supply current 0.3 A AMP REM Blue/white striped
PARKING
BRAKE Light green
*
4
See "Power connection diagram" on the reverse
side for details.
Warning
If you have a power antenna (aerial) without a relay box,
connecting this unit with the supplied power supply lead
 may damage the antenna (aerial).
Notes on the control and power supply leads
• The power antenna (aerial) control lead (blue) supplies +12 V
DC when you turn on the tuner, or when you activate the AF
(Alternative Frequency) or TA (Traffic Announcement) function.
• When your car has built-in FM/MW/LW antenna (aerial) in the
rear/side glass, connect the power antenna (aerial) control
lead (blue) or the accessory power supply lead (red) to the
power terminal of the existing antenna (aerial) booster. For
details, consult your dealer.
• A power antenna (aerial) without a relay box cannot be used
with this unit.
Memory hold connection
When the yellow power input lead is connected, power will
always be supplied to the memory circuit even when the ignition
switch is turned off.
Notes on speaker connection
• Before connecting the speakers, turn the unit off.
• Use speakers with an impedance of 4 to 8 ohms, and with
adequate power handling capacities to avoid its damage.
• Do not connect the speaker terminals to the car chassis, or
connect the terminals of the right speakers with those of the
left speaker.
• Do not connect the ground (earth) lead of this unit to the
negative (–) terminal of the speaker.
• Do not attempt to connect the speakers in parallel.
• Connect only passive speakers. Connecting active speakers
(with built-in amplifiers) to the speaker terminals may damage
the unit.
• To avoid a malfunction, do not use the built-in speaker leads
installed in your car if the unit shares a common negative (–)
lead for the right and left speakers.
• Do not connect the unit's speaker leads to each other.

Notes on connection

• If speaker and amplifier are not connected correctly, "FAILURE"
appears in the display. In this case, make sure the speaker and
amplifier are connected correctly.
• If you are to use the monitor for the rear seats, connect the
parking brake switch cord to the ground (earth).
*
7
Source selector
(not supplied)
Supplied with the CD changer
XA-C40
* 6
REMOTE
IN
*
3
BUS
CONTROL IN

from the car's power connector
* Note for the antenna (aerial) connecting
1
If your car antenna (aerial) is an ISO (International Organization for
Standardization) type, use the supplied adaptor  to connect it. First
connect the car antenna (aerial) to the supplied adaptor, then connect
it to the antenna (aerial) jack of the master unit.
* RCA pin cord (not supplied)
2
* 3 Insert with the cord upwards.
* For details on connecting to the parking brake switch cord, see
4
"Connecting the parking brake cord ()" on the reverse side.
* 5 For details on connecting to the MIC input cord, see "Connecting a
microphone ()" on the reverse side.
* 6 If you connect an optional device to BUS CONTROL IN, AUX AUDIO
IN is not available.
* 7 Auxiliary device such as hideaway navigation device, TV tuner box, etc.
1 + Speaker, Rear, Right
Purple
2 – Speaker, Rear, Right
3 + Speaker, Front, Right
Gray
4 – Speaker, Front, Right
5 + Speaker, Front, Left
White
6 – Speaker, Front, Left
7 + Speaker, Rear, Left
Green
8 – Speaker, Rear, Left
Negative polarity positions 2, 4, 6 and 8 have striped leads.
1 3 5 7
from the car's speaker connector
2 4 6 8
5 7
4 Yellow continuous power supply
5 Blue power antenna (aerial) control
7 Red switched power supply
4 8
8 Black ground (earth)
Positions 1, 2, 3 and 6 do not have pins.
