Newall E70 Quick Start Up Manual

HEAD OFFICE
Newall Measurement Systems Ltd.
Technology Gateway, Cornwall Road
South Wigston
Leicester LE18 4XH
United Kingdom
Telephone: +44 (0)116 264 2730
Facsimile: +44 (0)116 264 2731
Email: sales@newall.co.uk
Web: http://newall.com
Newall Electronics, Inc.
1778 Dividend Drive
Columbus, OH 43228
Telephone: +1 614 771 0213
Toll Free: 800.229.4376
Facsimile: +1 614 771 0219
Email: sales@newall.com
Web: http://newall.com
023-81340/0
A full hard copy of the manual is available free of charge on request
E70 Quick Start up Guide
N
For the complete manual please download from:
http://newall.com , Click technical Support to access the download
page.
Warnings
The mains supply is connected through a detachable supply cord supplied. If another supply cord is
used, it must have fitted a IEC320, 10A, EARTHED mains connector with a cord rated for at least 10A.
The PROTECTIVE EARTH CIRCUIT of the mains supply MUST BE CONNECTED to the protective earth
terminal of the cabinet through the supply cord.
If a mains plug is not already fitted to the supply cord or is of the wrong type, then a suitable EARTHED
plug should be used which complies with the relevant specifications for plugs and socket-outlets.
The mains supply fuse is a 20x5mm, type T0 .5A, 250v, Disconnect mains before replacing fuse.
The mains supply must be removed before opening the unit and completed by qualified personnel.
Technical Specification
Environmental
Operating Temperature Storage Temperature
0 to 45°C -20 to 60°C
Environmental Conditions - indoor use, IP20 (IEC 529)
Relative Humidity - maximum 80% for temperature up to 31°C
decreasing linearly to 33% at 45°C
Transient overvoltage according to INSTALLATION CATEGO-
RY II of IEC664
Pollution Degree 2 in accordance with IEC664
Disposal
At the end of it's life, you should dispose of the E70 in a safe
manor applicable to electronic goods.
The case work is suitable for recycling. Please
consult local regulations on disposal.
Note: Newall Measurements Systems reserves the right to change specifications without notice.

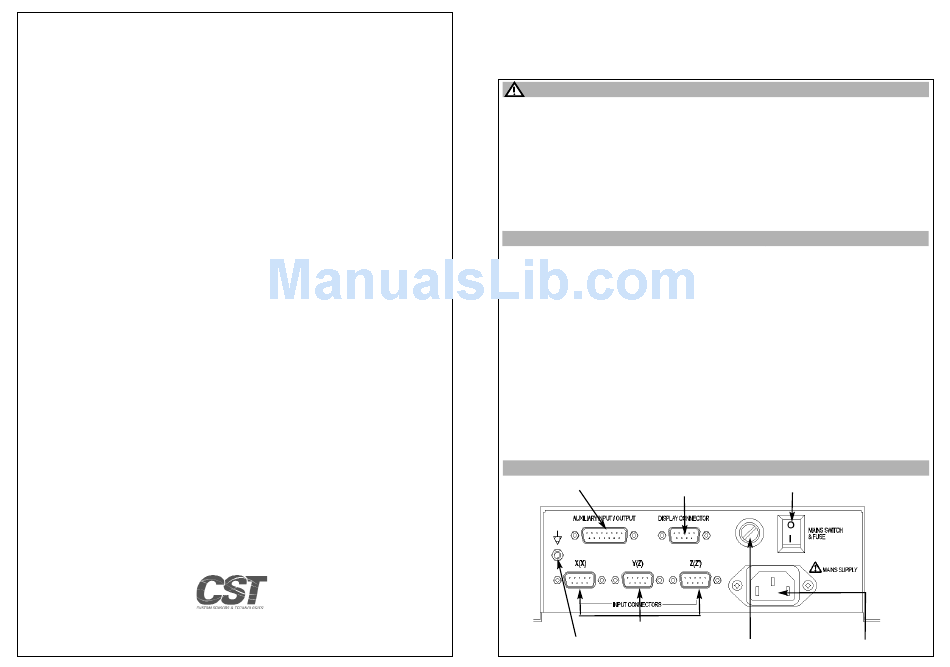

DSU Connections
Connection to the display
Auxillary connection (optional)
(Cable supplied)
Input connectors 2 or 3
according to model
Cabinet equipotential terminal
for grounding to machine
Electrical
EMC and Low Voltage Compliance
BS EN 61000-6-4:2001
BS EN 61000-6-2:2001
BS EN 61010-1:2001
Operating Voltage
100 - 240V
Supply Voltage Fluctuation
not to exceed 10% of operating voltage
Supply Frequency
50 to 60Hz
Maximum Power Consumption
18VA
On / off Switch
Mains supply fuse IEC Inlet (Mains Supply)
