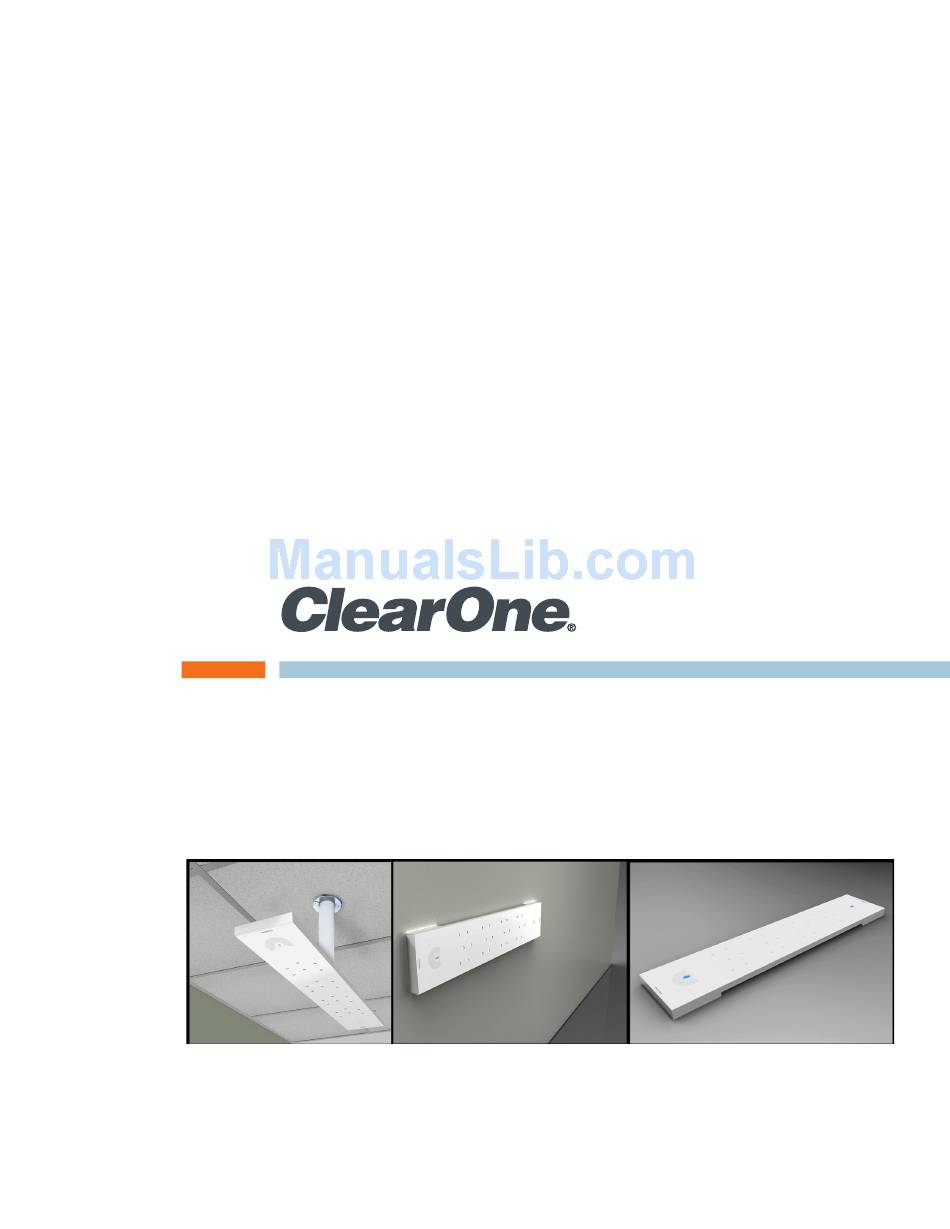

- Page 1 Beamforming Microphone Array 2 Group Microphone for Professional Conferencing eiling ount nstallation uide...
- Page 2 All rights reserved. No part of this document may be reproduced in any form or by any means without written permission from ClearOne. Printed in the United States of America. ClearOne reserves specific privileges. Information in this document is subject to change without...
-
Page 3: Table Of Contents
Table of Contents Chapter 1: Getting Started ......................1 Connections ..................................1 Powering a Beamforming Microphone Array 2 ......................1 PoE Connection ................................1 P-Link Connections ..............................2 SKUs Used ..................................4 BFM2 Ceiling Mounting Kits ............................4 Chapter 2: Ceiling Mount Installation ..................5 Tools Required ...................................6 Parts Received...................................6... -
Page 4: Chapter 1: Getting Started
Chapter 1: Getting Started Congratulations on purchasing your Beamforming Microphone Array 2 (BFM2). The BFM2 is a 2nd generation Beamforming Microphone Array product featuring 24 microphones, and beamforming and adaptive steering technology designed specifically for the CONVERGE® Pro 2 products: 128, 128D, 128T, 128TD, 128V, 128VD, 120, and 48T. -
Page 5: P-Link Connections
onnections BFM2 units are connected to CONVERGE Pro 2 units and to other BFM2 units via the P-Link. Each BFM2 unit has a P-Link In and P-Link Out connection that allows units to be “chained” together with the P-Link Out of one unit connecting to the P-Link In of the next unit. power-source-selection switch Figure 2... - Page 6 CP2 unit stack. 200 ft. Figure 4 Instructions for connecting the BFM2 are in the Beamforming Microphone Array 2 Quick-Start Guide, and in the CONVERGE Pro 2 CONSOLE online help for configuring the BFM2. Converge Pro 2 P-Link 200 ft.
-
Page 7: Skus Used
Instructions for updating BFM2 firmware are included in the Beamforming Microphone Array 2 Quick-Start Guide, which is found on the ClearOne website at: http://www.clearone.com/resources#professional_microphones Physically, the BFM2 supports use in ceiling-mounted, wall-mounted or table-mounted modes, giving you the option of a clutter-free conference room table area. -
Page 8: Chapter 2: Ceiling Mount Installation
Once you have verified all the firmware updates and necessary connections made while executing the tasks outlined in the Beamforming Microphone Array 2 Quick-Start Guide, you can proceed to the physical installation of the BFM2 using one of our 2nd generation ceiling mount kits. -
Page 9: Tools Required
IMPORTANT: ClearOne makes no claim that the information contained herein covers » all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. TOOLS REQUIRED The following tools are required for suspension ceiling mount installation of the BFM2:... - Page 10 QTY 4 QTY 1 QTY 1 Ceiling Tile Cutter (M). The ClearOne parts received are designed to be mounted into a suspended ceiling. » NOTE: Your suspension column will vary by length based on the SKU purchased. » NOTE: For SKUs without suspension columns and other ceiling types, the mount is also designed to be mounted to a 1.5”...
-
Page 11: Required Parts Checklist
Ceiling Plate (Example Only) Varies by brand and model » IMPORTANT: The installer is responsible to be sure the Beamforming Microphone Array is firmly attached to sturdy support (studs, or other mounting hardware) to hold the weight of the Beamforming Microphone Array and its mounting hardware. equired arts hecklist... -
Page 12: Mounting To Suspended Ceiling
MOUNTING TO SUSPENDED CEILING The following diagrams show how to mount the BFM2 from a suspended ceiling. reparation 1. Determine exact location of suspension column on suspended ceiling. Mark location on lower (finished) side of ceiling tile with pencil. 2. Remove affected ceiling tile and any adjacent tiles required for access. 3. -
Page 13: Support Cable Installation
upport aBle nstallation » IMPORTANT: Installer is responsible for making sure ceiling structure can support five times the combined weight of all equipment. Reinforce ceiling structure as necessary before installing cables. olid oncrete eiling tructure IMPORTANT: Anchors must be installed into structurally sound solid concrete with »... -
Page 14: Wood Ceiling Structure
3. Position tray (A) with four screws (G) as required: • For 24” (610mm) Framework: Install screws through end bracket inside holes. • For 600mm (23-5/8”) Framework: Install screws through end bracket outside holes. 24" (610mm) 600mm (23-5/8") Figure 12 Figure 13 Beamforming Microphone Array 2... -
Page 15: Suspension Column Installation
4. Thread each cable (C) completely through cable lock (F), corresponding hole in corner of tray (A), and completely through opposite side of cable lock (F). Adjust cable tension until tray (A) is supported entirely and evenly by all four support cables (C), but not so tight as to distort ceiling tile framework. - Page 16 (J and K) 5. Install suspension column ring (B) on suspension column below ceiling tile. If necessary, bend four tabs inward to secure ring to column. 6. Reinstall remaining ceiling tiles as required. Figure 17 (top view) Beamforming Microphone Array 2...
-
Page 17: Mount Alignment
3. Turn security screw using a Phillips screwdriver until screw cannot be seen through access hole in mount. (bottom view) Figure 18 BEAMFORMING MICROPHONE ARRAY 2 INSTALLATION nstall nterface racket 1. Secure interface bracket (P) to BFM2 using M3 x 8mm screws (I) and washers (Q). -
Page 18: Install And Secure Mount To Bracket
4. Verify bracket standoff fasteners are properly seated in mounting slots in mount (O) base. Figure 20 5. Move locking lever to “Locked” position as shown in Figure 21. 6. Insert key (not pictured) into lock and turn to secure BFM2 to mount (O). Figure 21 Beamforming Microphone Array 2... -
Page 19: Adjustments
Example of complete BFM2 installation with cables connected and routed: Figure 22 Cable Retention Clips Cable Retention Clips P-Link Out Cable P-Link In and PoE Cables (if unit is powered via PoE Injector or PoE Switch) djustments 2.28 BOLT CIRCLE Figure 23 THREADS ONTO 1-1/2' LOCKING SWITCH... - Page 20 2. Turn YAW, PITCH, or ROLL micro-adjustment screw right or left using a #2 Phillips screwdriver until BFM2 is properly aligned. 3. Tighten YAW, PITCH, or ROLL adjustment locking screw using a #2 Phillips screwdriver. itch djustment Figure 25 djustment Figure 24 Figure 26 djustment Beamforming Microphone Array 2...
-
Page 21: Service And Support
Fax: 801.303.5711 e-mail: tech.support@clearone.com e-mail: sales@clearone.com © 2016 ClearOne. All rights reserved. Other product names may be trademarks of their respective owners. Specifications subject to change without notice. QSG-0034-001 Rev. 1.0 - OCTOBER 2016. Chapter 2: Ceiling Mount Installation...
