7. LAN connection and configuration

7.1

PC direct connection

CSMIO/IP-M controller can be connected directly to the PC computer without any switches or routers. In
this connection, you should remember to use the crossover cable. This cable is attached to the controller.

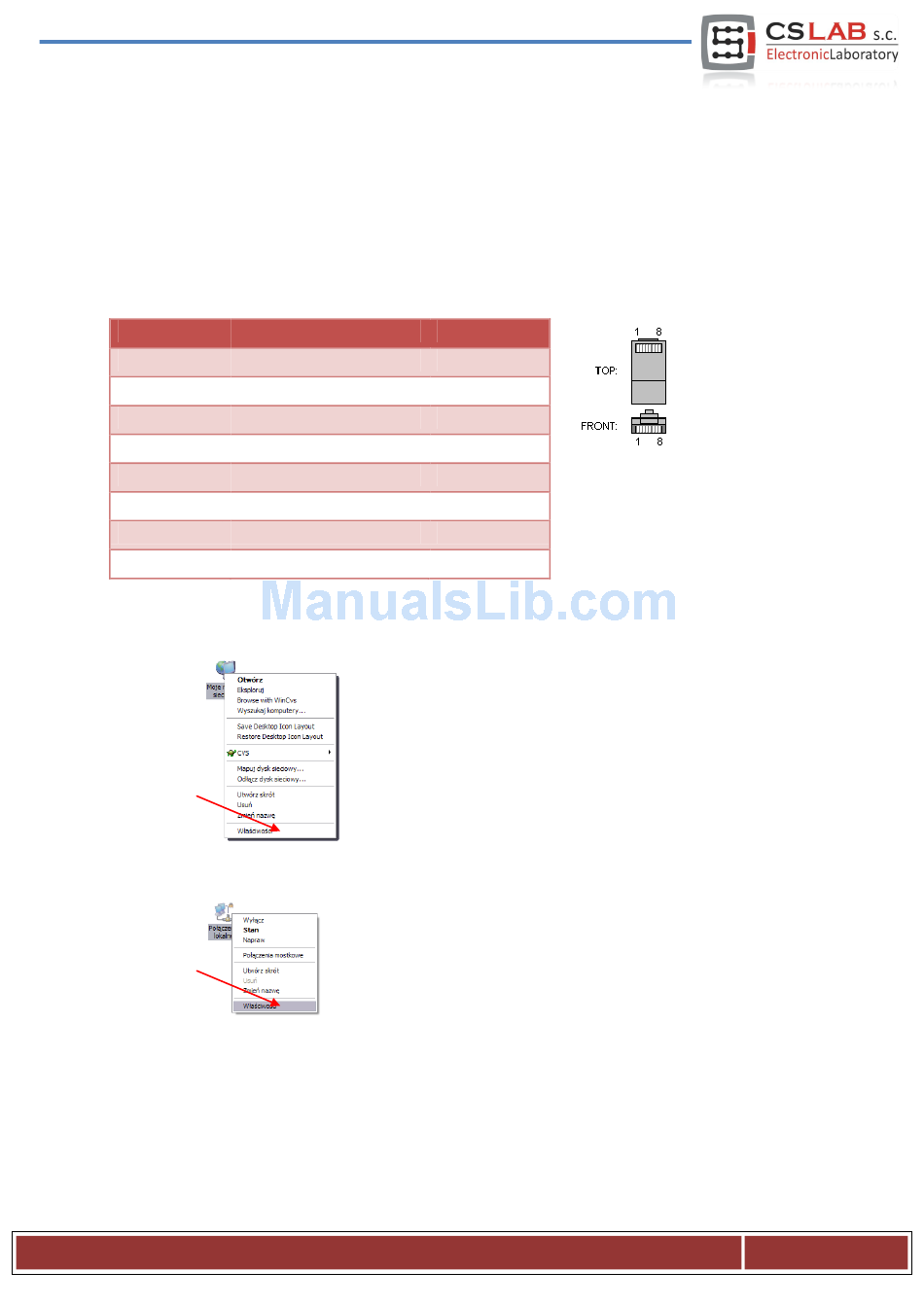

Below – how to perform the wiring.
Plug-in 1
1 white-orange
2 orange
3 white-green
4 blue
5 white-blue
6 green
7 white-brown
8 brown
In the direct connection, you should set on your computer static IP address: 10.1.1.1 and mask:
255.255.255.0. In Windows®XP you perform it like this:
Click right mouse button on the „My Network Places" icon and select the „Properties"
•
position from the menu. You will see the window with the icons/icon of network connections.
Click right mouse button on the icon of the connection we want to use to communicate with
•
CSMIO/IP-M (usually it is a "local connection") – then choose the „Properties".
C S - L a b s . c . – C N C C S M I O / I P - M c o n t r o l l e r
Cable color Plug-in 2
3
6
1
7
8
2
4
5
