COLORATO CLHR-0015FC Instruction Manual

Infrared heaters with carbon heating lamp

www.colorato.net

INFRARED HEATERS

WITH CARBON HEATING LAMP

MODEL: CLHR-0015FC

Read carefully these instructions before using the appliance and

save them for future reference

Table of Contents

Need help?

Do you have a question about the CLHR-0015FC and is the answer not in the manual?

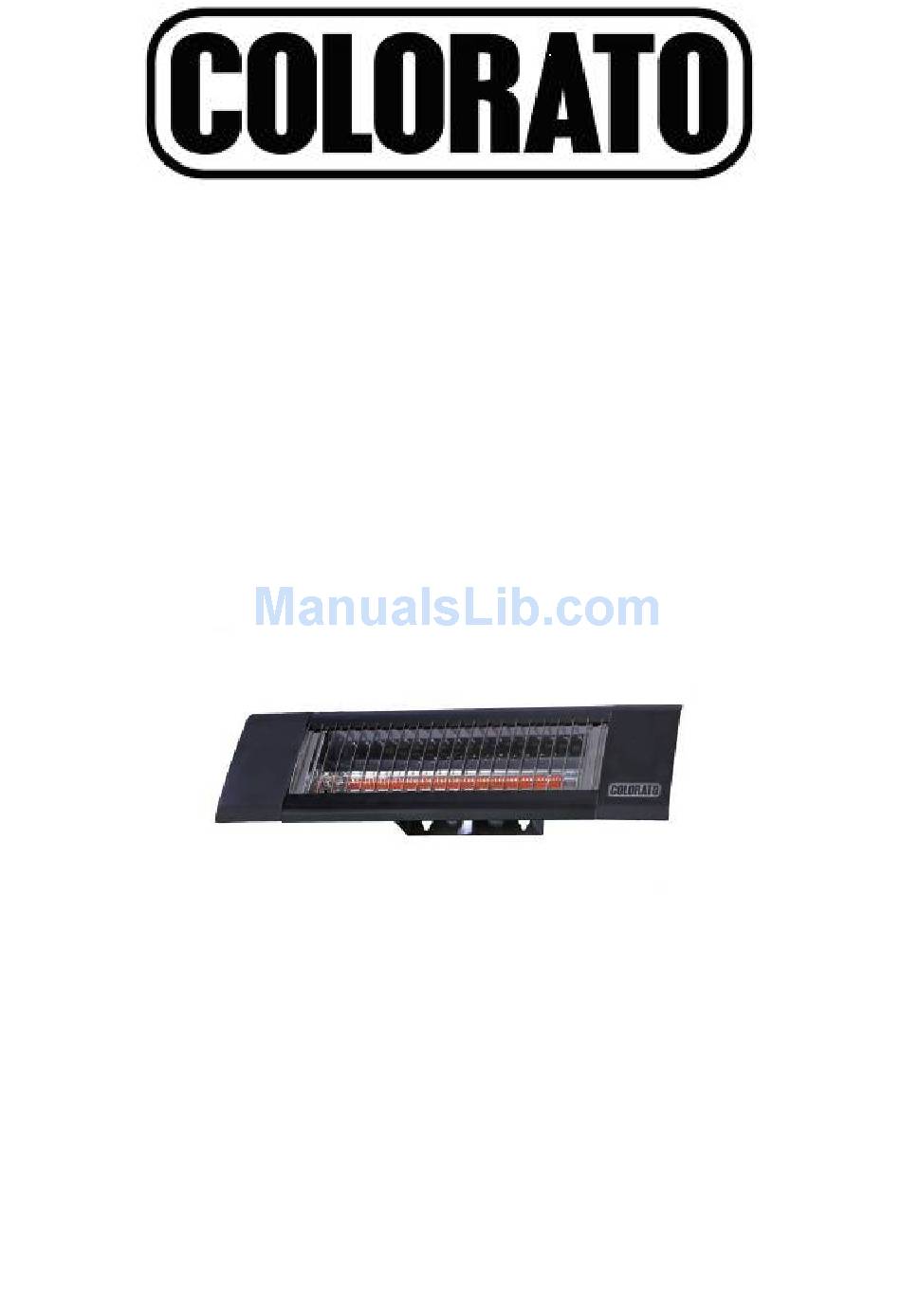

Page 1 INSTRUCTION MANUAL OF INFRARED HEATERS WITH CARBON HEATING LAMP MODEL: CLHR-0015FC Read carefully these instructions before using the appliance and save them for future reference...
Page 2 1. Product Specifications Generally:  Rapid heating: heat lamp can be full started within 6 seconds.  Efficiency: infrared heating lamp, can achieve the best heat effect.  Lightweight body: aluminum shaped material, lightweight with high strength.  Unique shape: fashionable, simple, compact and easy to use. ...
Page 3 2. Structure and Size:...
Page 4 3. Schematic Circuit Diagram 4. Instruction 4.1 Installation Height -provides wide heat distribution (60º), recommended installation height 1.8-2.5 m. -provides directed heat distribution (40º), recommended installation height 2.3-3.5 m. Design and specifications are subject to change without notice.
Page 5 4.2 Installation Suggestion:  Power 220-240V 50HZ/60HZ, maximum power 1500W.  Effective heating area within 15 m².  Sockets withstand current not less than 10A, with grounding protection.  Power on, plug into socket, heater began to work, heating lamp emit heat. ...
Page 6 6. Maintenance Method 6.1 Do not perform maintenance until the heater has been turn off and temperature cool down. 6.2 Do not clean heater with water directly, wipe off surface with dry or moist tool. 6.3 Replace damaged cable and spare lamp in time. Assemble Parts 1.
