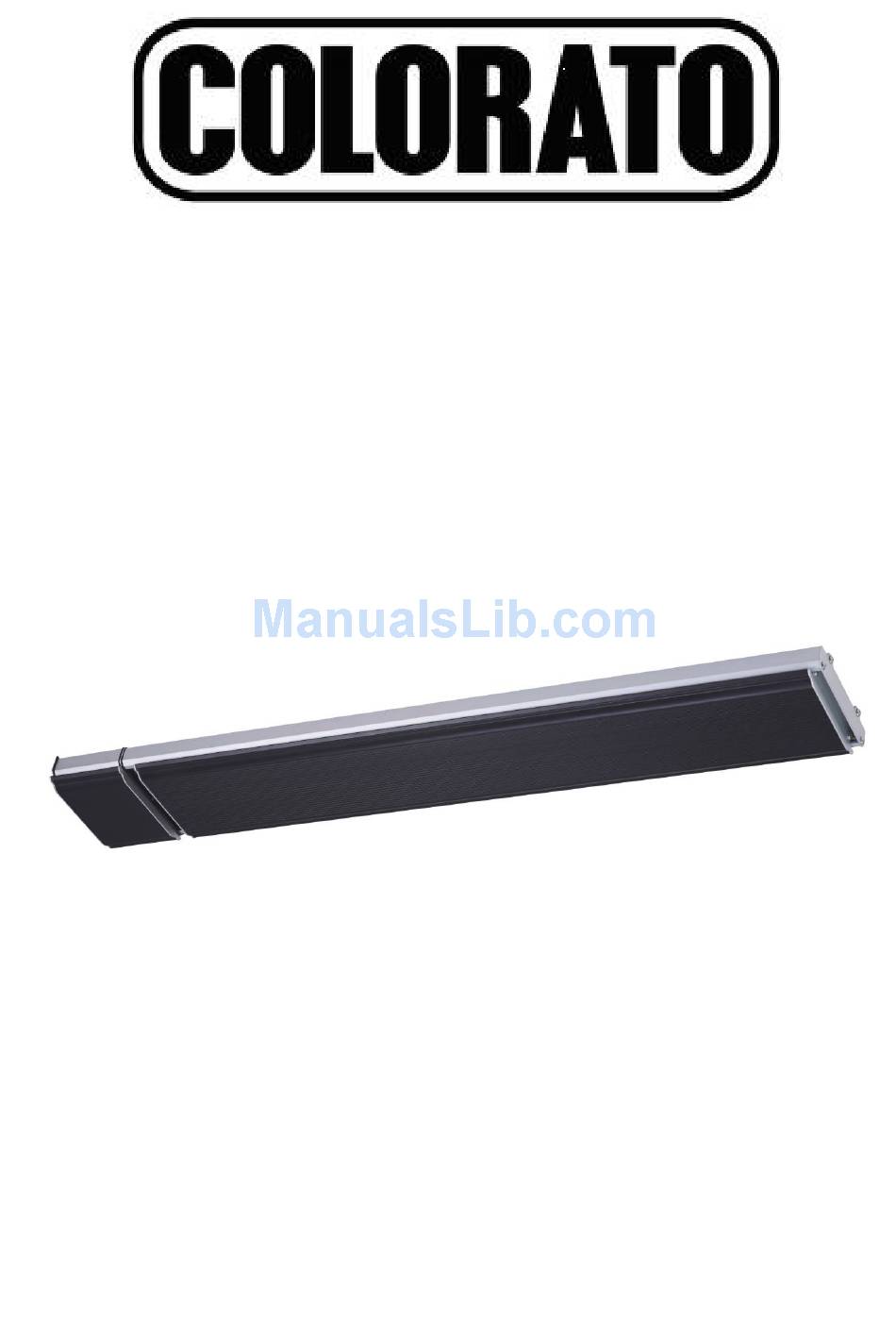

- Page 1 INSTRUCTION MANUAL FOR ELECTRIC RADIANT INFRARED HEATERS MODELS: CLHR-150A / CLHR-180A / CLHR-240A / CLHR-320A Read carefully this manual before using the appliance and keep them for future reference...
-
Page 2: What's In The Box
IMPORTANT INFORMATION Carefully read the operation manual before using the infrared heater. This operation manual contains important information on your safety, as well as some recommendations on proper use of the appliance and its maintenance. Keep the operation manual along with the warranty certificate, sales receipt, and, if possible, cardboard package and packing material. - Page 3 manufacturer and may cause fire, electric shock or injury. Do not use abrasive cleaning products on this appliance. Clean with a damp cloth (not wet) rinsed in hot soapy water only. Always remove plug from the mains supply before cleaning. ...
-
Page 4: How To Operate The Heater
HOW TO OPERATE THE HEATER General design layout 1. Heating element 2. Control box 3. Bracket for wall or ceiling mounting 4. Power cords and plug (CH32A4 no plug) 5. ON/OFF main power switch 6. Indicator of heating status Operation principle The infrared heater is an appliance with an electric heating element and extruded aluminum plate. - Page 5 Technical Specification MODEL NAME CLHR-150A CLHR-180A CLHR-240A CLHR-320A Voltage 230-240V~ 50Hz 230-240V~ 50Hz 230-240V~ 50Hz 230-240V~ 50Hz Rated power (W) 1500 1800 2400 3200 Ideal Mounting height (M) Electric protection class Water splash proof rate IP65 IP65 IP65 IP65 Unit size- L*W*H(mm)
-
Page 6: Installation
Operation Before switching the heater, it is necessary to thoroughly wipe the surface of the radiating boards first with a soft rag moistened in alcohol and then with a dry rag in order to exclude appearance of burnt spots. ... - Page 7 Warning: The heater must never be installed in the upwards or inwards facing position, the heating surface must always be positioned to direct the heat in a downwards or outwards direction. Clearances Minimum clearances when mounting the heater on A VERTICAL WALL Minimum clearances when mounting the heater parallel with A CEILING...
- Page 8 Minimum clearances when mounting the heater at an ANGLE TO A CEILING. Installation Process WARNING! Mounting of the infrared heater and its connection to the electric mains should be carried out only by qualified specialists according to the Electrical Installation Regulations and Power System Safety Standards 1.
- Page 9 “B” Model No MINIMUM DISTANCE (mm) 530 ±50 CLHR-150A CLHR-180A 710 ±50 990 ±50 CLHR-240A 1400 ±50 CLHR-320A 6. Set the adjustable angle mounting brackets to desired angle and fasten brackets by spanner κλειδί. For ceiling mounted installations the available mount angles are restricted to 0°, 15° and 30° only.
-
Page 10: Maintenance
Before connection, make sure that specifications of the electric mains at the connection point meet the parameters indicated on the appliance nameplate. Models CLHR-150A, CLHR-180A και CLHR-240A with plug to connect to supply mains, and model CLHR-320A is fixed wiring. -
Page 11: Troubleshooting
TROUBLESHOOTING Possible malfunctions are given in table below. SYMPTOM CAUSE Will not heat / No operation indicator Check that power is connected and switched on Heater smells when first used. This is caused by oil or dust left over from the manufacturing process and will stop after a short time Faint smell... - Page 12 WIRING SCHEMATIC DIAGRAM CORRECT DISPOSAL OF THIS PRODUCT The symbol on the product means that at the end of its life, the appliance has not to be considered a common waste. It is a special waste and has to be demolished in specific recovery and disposal area, as prescribed by the EC Directive 2002/96/EC(WEEE).
