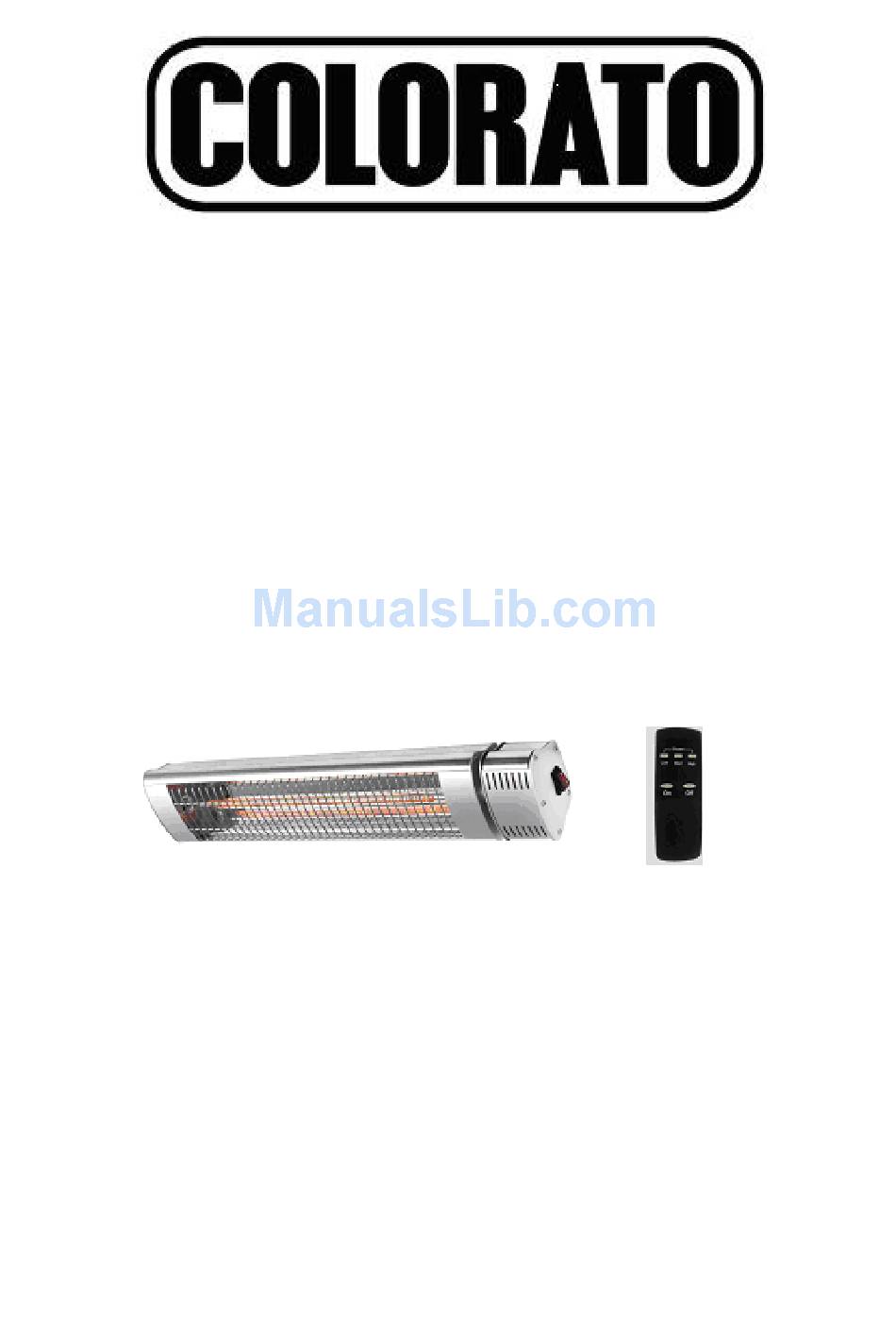

- Page 1 INSTRUCTION MANUAL FOR ELECTRIC INFRARED HEATERS MODEL: CLHR-20WR Read carefully this manual before using the appliance and keep it for future reference...
- Page 2 IMPORTANT INFORMATION Read carefully this instruction manual before using the infrared heater. This instruction manual contains important information on your safety, as well as some recommendations on proper use of the appliance and its maintenance. Keep the instruction manual along with the warranty certificate, sales receipt, and, if possible, cardboard package and packing material.
- Page 3 at the back of the heater. They should be located outside the physical footprint of the units to minimize heat build-up behind the heater. The installation must be equipped with an all-pole disconnection mechanism with a break contact distance of at least 3mm. The All-pole disconnection mechanism must be installed on the height less than 1.8m from the floor.
- Page 4 2. Installation 2.1 Safe distances required for installation Attention: The appliance must only be operated in a horizontal position with max ±5°slope. Never install the appliance on a combustible surface (plastics, nylon, carton etc.) When the electrical connection is outside, it is recommended that a waterproof socket is used for the ...
- Page 5 3. Installation process Step 1.: Check the accessories packed with the appliance. series Parts name Specification Quantity Screw M6x20 On the heater Bracket set Aluminum In the package Bolt+Nut M6x100+M6 Fixed on the No.2 Bracket set Bolt+Nut M8x100+M8 Fixed on the No.2 Bracket set Expansion bolt M6x60 In the package...
- Page 6 Step 4: Drill two holes (Ф8*40) on the wall, its distance is 55mm. Install the hanger (No.4 in accessories list) on the wall with 2pcs M6*60 (No.3 in accessories list) by the spanner. Step 5: Fix the heater on the hanger with the bolt M8x60 (No.5 in accessories list), fasten the nut M8 (No.5A) by Hand and screwdriver.
- Page 7 Never immerse the appliance in water! Danger to life! 6. Maintenance Any maintenance or repairs including replacing the bulb element should only be carried out by a qualified electrician. 7. Specifications MODEL CLHR-20WR Switch Remote controller Voltage / Frequency 230V ~ 50 Hz Power 2000...
