COLORATO CLFH-10SS Operation Instructions Manual

Flame heater
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

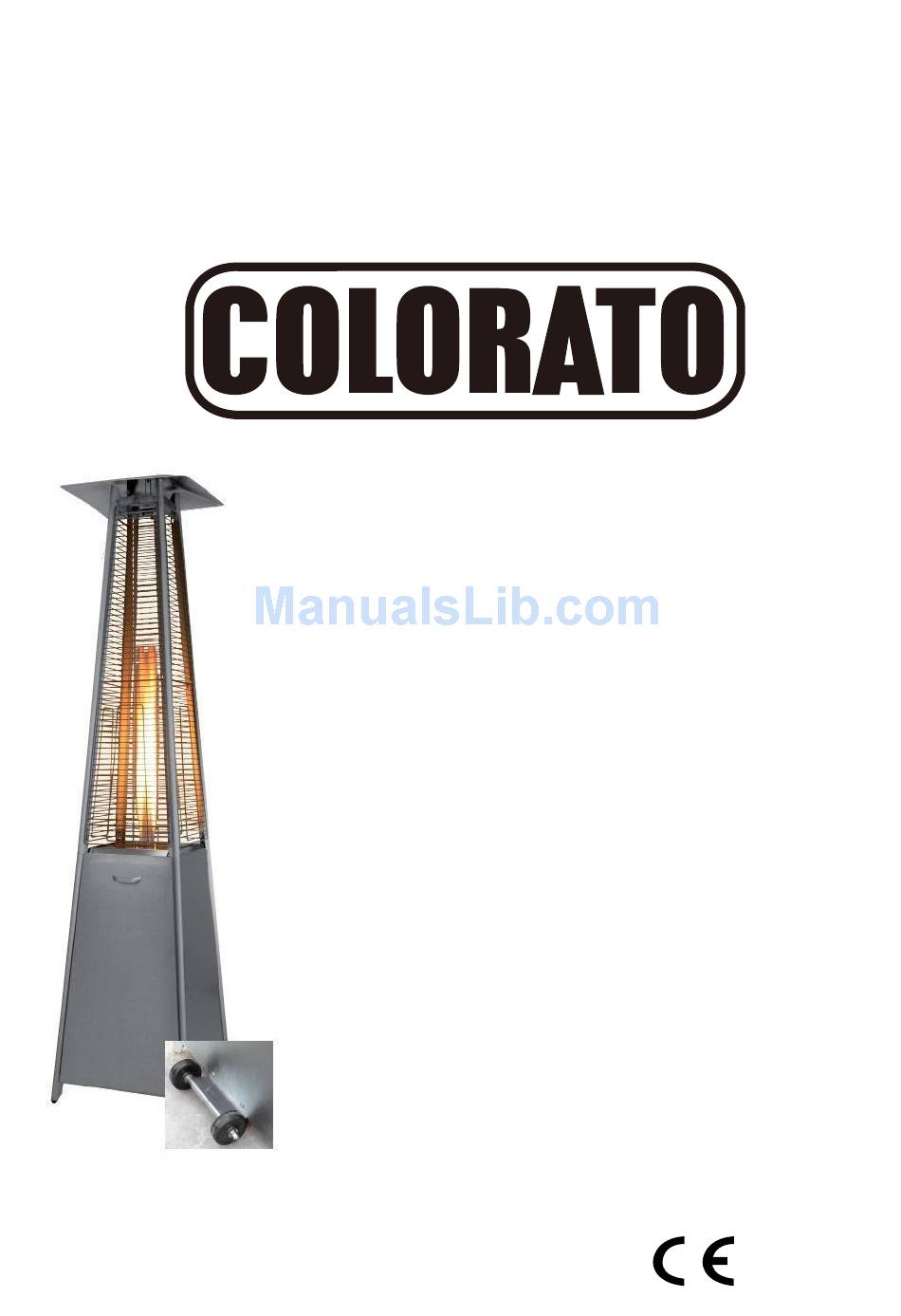

FLAME HEATER PYRAMID CLFH-10SS

OPERATION INSTRUCTIONS

www.colorato.net
For outdoors use only
Uses propane, butane or LPG only
Reflector: 47x47 mm
Total Height: 2250 mm
Regulator's external pressure: 28-30 mbar
Max. Power: 9,3 kW
Area of heating coverage: 5 ~ 10 sqm
0359-16
Keep this instructions manual for future use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLFH-10SS and is the answer not in the manual?

Questions and answers

Related Manuals for COLORATO CLFH-10SS

Summary of Contents for COLORATO CLFH-10SS

  • Page 1: Operation Instructions

    FLAME HEATER PYRAMID CLFH-10SS OPERATION INSTRUCTIONS www.colorato.net For outdoors use only Uses propane, butane or LPG only Reflector: 47x47 mm Total Height: 2250 mm Regulator’s external pressure: 28-30 mbar Max. Power: 9,3 kW Area of heating coverage: 5 ~ 10 sqm 0359-16 Keep this instructions manual for future use.
  • Page 2 Flame Heater – CLFH-10SS ASSEMBLY AND OPERATION INSTRUCTIONS WARNING Read this instruction before using this appliance. The appliance must be installed in accordance with the instructions and local regulations. The use of this appliance in enclosed areas can be dangerous and is PROHIBITED.
  • Page 3 PRECAUTIONS · Installation and services should only be a qualified person. · Do not use the heater in an explosive atmosphere. · Before to use, check the hose. · Disconnect LPG cylinder before moving the heater. · Do not attempt to alter any parts of the heater. Example: Using the heater without reflector or protection guard.

  • Page 4: Leakage Test

    APPLIANCE STAND AND LOCATION The appliance is for outdoor use only. Do not use it for indoor or in an enclosed area. Always maintain proper clearance from combustible materials, i.e. top 800mm and sides 650mm minimum. LEAKAGE TEST Gas connections on the appliance are leak tested at the factory prior to shipment. Possible mishandling of the appliance during the shipment might contribute to product integrity as a whole.
  • Page 5 PARTS LIST-1 Part NO. Part Name Picture Remarks Middle Plate Control Box Preassembled in the Middle plate Bottom Plate Lower Support Upper support Upper Plate Plate cover Preassembled in the Middle plate Glass tube One more spare glass tube is provided Damper Preassembled in...
  • Page 6 PARTS LIST-2 Part NO. Part Name Picture Remarks Lower protection guard Connecting tube Fixing bracket Side panel Front panel A chain is preassembled in this panel Screw M3/16’’ All preassembled in relative parts Handle Chain Preassembled in the front panel AA battery Optional part INJECTOR...
  • Page 7 HEATER ASSEMBLY Tools Required: 1 Phillips head screwdriver, 1 adjustable spanner Take the control box(2) and the plate Connect and fix the 4 lower cover(7) out off the middle plate(1) by supports(4) to bottom plate(3) and unscrew the screws(17) middle plate(1) by the screws(17) Connect 4 upper supports (5) to the Fix the plate cover(7) onto the lower supports (4) and fixed by...

  • Page 8: Lower

    Install a AA battery(20) into the Carefully put the glass tube(8) up control box, then, fix the control through the center hole in the upper box(2) underneath the middle plate(1) plate(6), Make sure the rubber ring is by screws (17) attached on the lower end of the glass tube(8).

  • Page 9: Side Panel

    9. Fix 3 side panels (15) by the screw (17). Note: Don’t cove the side where the control knob is. 10. Screw the handle(18) onto the front panel(16), attached the connector(12) back the front panel, screw them with 2pcs Completed M4X8 bolts, hook the chain(19) to the hole in control box, then Close panel to the middle plate ,the panel is attracted by the magnets.

  • Page 10: Aa Battery

    OPERATION Preparation: You will need to purchase a LPG cylinder。You need a suitable size LPG cylinder that can be installed to the compartment. You have to use pressure regulator with an outlet pressure comply with the appliance category. The flexible tube must be approved also. Connect the hose to the hose connector in the control box Warning: Always test the hose for leaks with soapy water at both of the ends.

  • Page 11: Cleaning And Maintenance

    CLEANING/MAINTENANCE/STORAGE CLEANING AND MAINTENANCE: To enjoy outstanding performance of your heater for years make sure to perform the following ● maintenance activities on a regular basis: Keep exterior surfaces clean. ● -Use warm soapy water for cleaning. Never use flammable, corrosive or abrasive cleaners. -While washing your unit, be sure to keep the area around the burner and pilot assembly dry at all time.

  • Page 12: Technical Specifications

    Technical specifications Item number: CLPH-10SS/PH08-A FLAME HEATER Nominal heat input: 9.5kW (Hs) Appliance category: G30/G31 Reference gas: 28-30/37mbar 30mbar Normal gas pressure: Country of Destination: I3+ for BE-CH-ES-FR-GB-GR-IE-IT-PT 28-30/37mbar I3B/P for CY-CZ-DK-EE-FI-LT-LV-MT-NL-NO-SE-SI-SK-BG-RO-TR 30mbar Troubleshooting PROBLEM PROBABLE CAUSE SOLUTION Pilot will not light Gas valve may be OFF Turn the gas valve ON LPG cylinder empty...

This manual is also suitable for:

Clph-10ss/ph08-a
