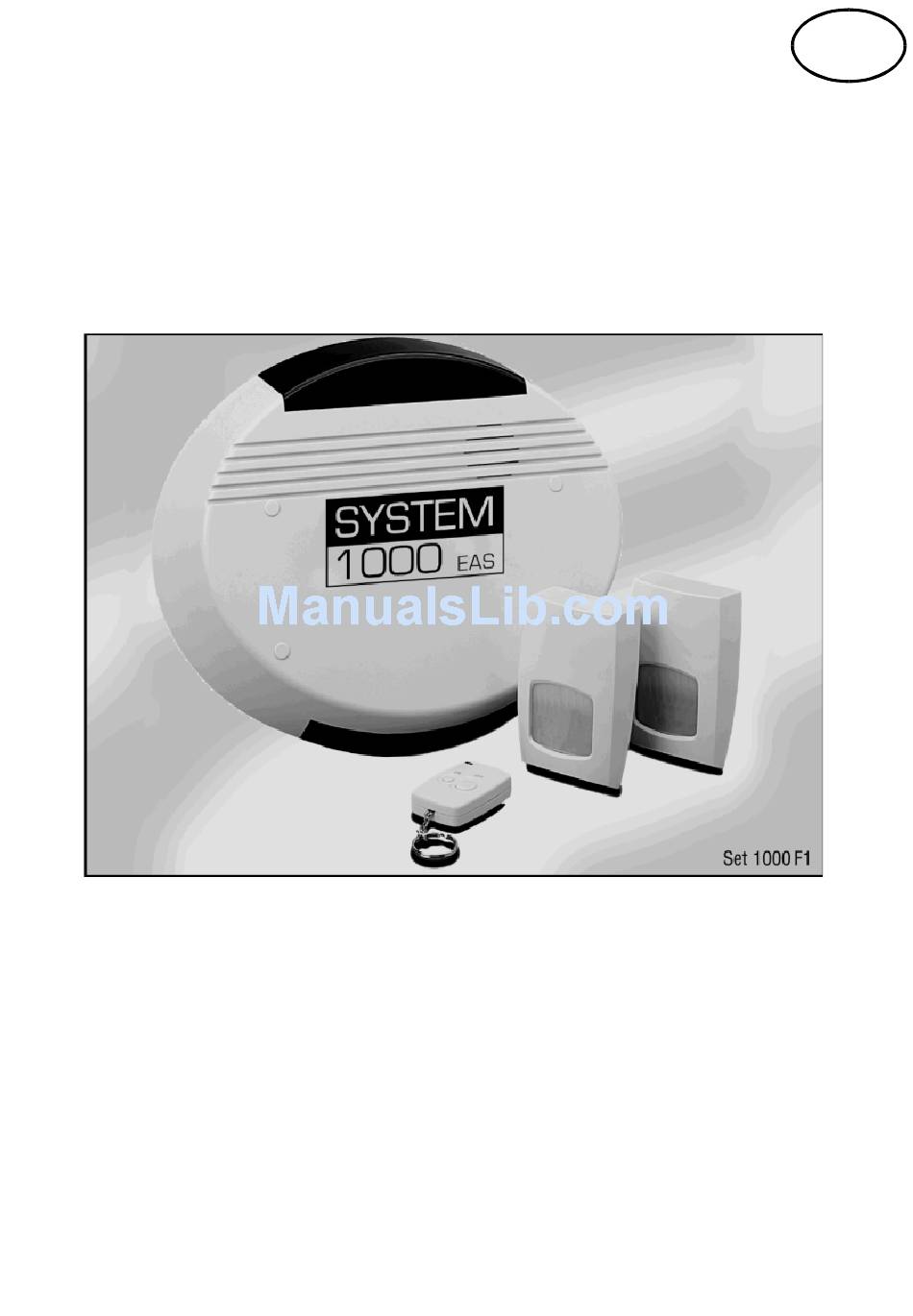

Wirefree Burglar Alarm SYSTEM 1000 E.A.S. Installation and Operating Instructions 1. Contents 1. Contents page 13. System Operation 2. Introduction 14. Anti-jamming 3. Kit Contents 15. Changing the Batteries 4. Safety Notes 16. Troubleshooting 5. Declaration of Conformity 17. Maintenance 6. -
Page 2: Introduction
2. Introduction The Wirefree Burglar Alarm System 1000 can provide protection for flats and detached family houses. It is simple to install and to operate. The alarm system is armed with a wirefree remote keyfob on exit from your property and disarmed on return. If, during this time, a movement is detected by the PIR, the siren will be activated for two minutes. -
Page 3: How The System Works
6. How the System Works The keyfob sends an RF signal which activates or deactivates the siren. In the armed state, when a PIR senses a movement in its detection path, it sends an RF signal to the siren to activate. The siren then sounds for two minutes, and the system is in the armed state again. -
Page 4: Accessories
Pets may also trigger an alarm. When the system is armed, keep pets out of areas protected by PIR sensors. If this is not possible, install the PIR upside down so that there is an area beneath the rays left for the pet. In this case it is neccessary to check the detection range especially thoroughly. How quick a movement is detected depends also on the ambient temperature. -
Page 5: Fitting The Batteries
10. Fitting the Batteries We recommend you to use good quality alkaline batteries (e.g. Duracell). 10.1. Keyfob The keyfob is supplied with a 12V battery. Lightly loosen the screw at the back side of the casing, and pull out the transit battery protective tab. Retighten the screw. -
Page 6: Checking The Components
11. Checking the Components 11.1 Keyfob To arm the siren, press the ON button on the keyfob once. The siren emits a bleep, and the LED flashes once. If the siren does not react, keep a minimum distance of 1m to the keyfob and press the ON button once more. -
Page 7: Installation
12. Installation 12.1 Checking the Function of the System at the Place of Installation Before installing the PIRs and the siren, repeat the steps described in section 11.3 with the components in the positions where you want to install them (see “Planning your System”). Hold the components provisionally in the intended positions, and check the detection range of the PIRs and the radio link to the siren. - Page 8 12.4 Setting the Siren to Operating Mode The anti-tamper jump link is factory set in disable mode with the jump link covering both pins. If the siren is installed to an even surface, the anti-tamper spring jump link is pressed down. If the siren is forced from ist mounting, the anti-tamper switch will trigger an alarm.
-
Page 9: System Operation
13. System Operation Action Command Confirmation To arm Keyfob: Press the ON button Siren bleeps once, LED flashes once. Further bleep after 10 seconds. Panic alarm Keyfob: Hold down the ON or Siren sounds for 15 seconds OFF button for 3 seconds To disarm Keyfob: Press the OFF button Siren bleeps twice (1), LED... -
Page 10: Changing The Batteries
15. Changing the Batteries 15.1 Keyfob When the LED on the keyfob does not light when you press the ON/OFF buttons, the battery may need replacing. Remove the fixing screw and separate the casing. Ensure the replacement battery (12V, type 23 A) is correctly fitted (check for polarity), and replace the case. -
Page 11: Troubleshooting
The casing can be cleaned with a dry or moistened cloth. We recommend that you clean the cover of the solar panel in the siren at least once a year. 18. Specifications Siren 1000 ZS Operating voltage: 4.5V DC Power supply: solar cells (max. -
Page 12: Optional Accessories
The system can be expanded with the addition of the following accessories: wirefree keyfob 1000 R wirefree PIR sensor 1000 P wirefree door contact 1000 M (see section 21) To convert the code into your house code, remove the wire links in the accessory components. Instructions are supplied with the components. -
Page 13: Guarantee Conditions
21.1. Coding When you receive the door contact, it is not factory preset to any special code. Please follow the instructions on the packaging of the door contact 1000 M to adjust the code to your system. 21.2 Fitting the Battery The door contact is supplied with a battery. - Page 14 21.3 Checking the Function Place the door contact and the magnet so that the arrows are facing towards each other. Arm the system by pressing the ON button on the keyfob. The siren bleeps once, and the LED flashes. After ten seconds, the siren bleeps once again.
- Page 15 The parts should be arranged according to the kind of frame they are fixed on (see fig. 24 and 25). The parts can be fixed to the wall with the self-adhesive pads supplied or with screws. When installing the door contact to a window, pay attention to the length of the screws.
-
Page 16: Drilling Template
If the anti-tamper switch is enabled, do not take the siren off the wall after the anti- tamper spring is depressed. If the siren sounds, press the OFF button on the keyfob to silence the alarm. Indexa GmbH Paul-Böhringer-Str. 3 D – 74229 Oedheim System1000_GB_130705.doc...
