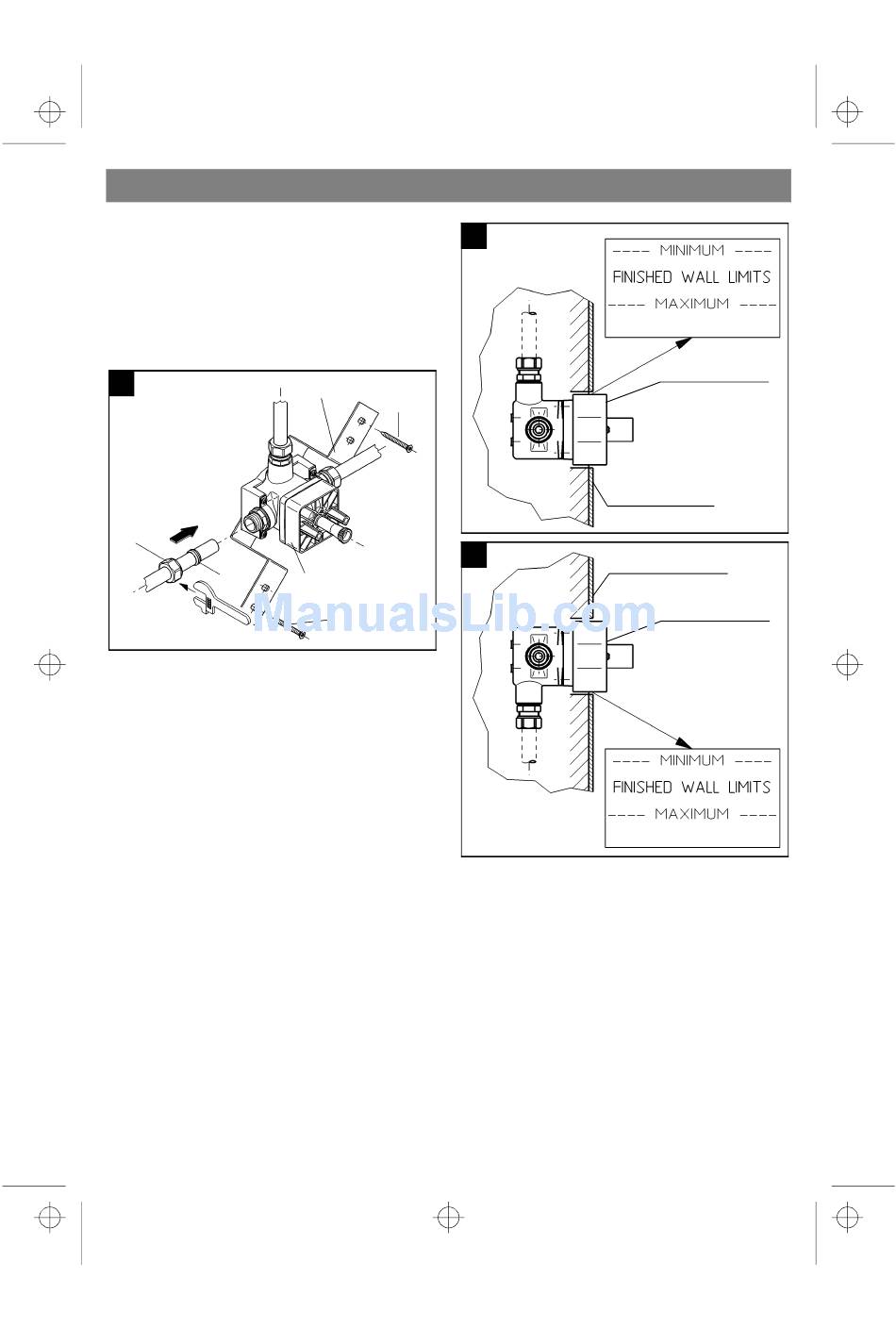

6.Slide the compression nut (C1), then the
ring (C2), over the pipe. Insert the pipe
ends into the openings of the inlet and
outlet connectors of valve body. Then slide
the rings (C2) and nuts (C1) into place and
tighten the compression nuts (torque min.
20 Nm), see Fig. [7].
7
C1
C2
7.Fix valve (E) with bracket (A) to wall by
using supplied screws (A1).
The hot water supply must be connected on
the left and the cold water supply on the
right. In case of reversed supply pipes refer
to chapter "Reversed Supplies Instal-
lation" on page 12.
Important:
Shut off valves must not be installed in the
outlet (mixed water line) of this concealed
Pressure Balancing Valve.
Open hot and cold water supply.
Check the pipework and connections to the
pressure balance valve for leaks.
Reinstall fitting template for finishing wall
surface.
8.Observe the installation depth in accor-
dance with the instructions given on the
fitting template, see Figs. [8] for Head-
shower and [9] for Handshower.
Installation
A
A1
E
A1
9.Fitting template must remain intact for
Plaster and tile the wall.
Do not remove fitting template before
installation is completed.
9
8
Face of tiles
9
Face of tiles
finished wall surface measurements and
as a template for plastering and / or tiling.
On tiled wall surface grouting must be
either flush or raised for proper sealing of
gasket on the wall plate.
On prefabricated walls, it is recommended
to use sealant around the wall plate to
prevent water condensation from seeping
into wall.
Front face of
fitting template
Front face of
fitting template
