Bottom Outlet Installation

1.Install the mixer with the outlet down.
2.Shut off hot and cold water supply!

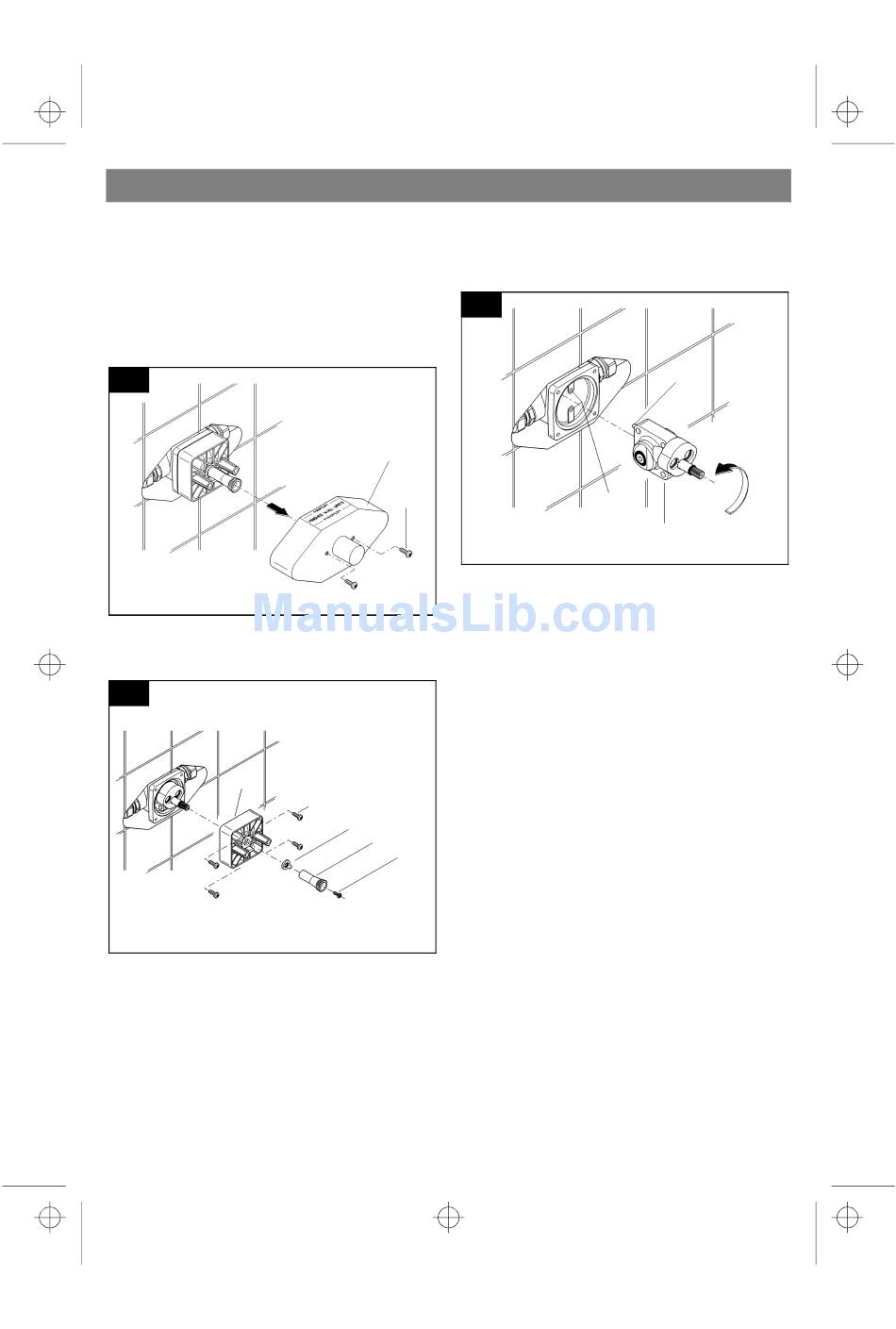

3.Remove the two screws (B1) from the
fitting template (B), then remove the
template, see Fig. [14].
14
4.Loosen screw (G1) and pull off driver (G),
see Fig. [15].
15
J
5.Detach stop ring (N) and note position.
6.Loosen the four corner screws (J1) and
remove valve cover (J).
Installation
7.Pull the pressure balancing cartridge (O)
out of the valve body. Do not damage the
O-ring seals, see Fig. [16].
16
B
B1
8.Reverse the pressure balancing cartridge
180° by turning it upside down. Place it
into the valve body. Ensure the two
alignment pins (O1) on the rear of the
pressure balancing cartridge are properly
seated in the holes (Z) of the valve body.
Reassemble in reverse order. Be sure
that the stop ring (N) is in the previously
noted position.
9.Replace the template to show the instal-
J1
lation depth and hot and cold connection
labels upper most.
N
G
G1
11
O1
Z
O
