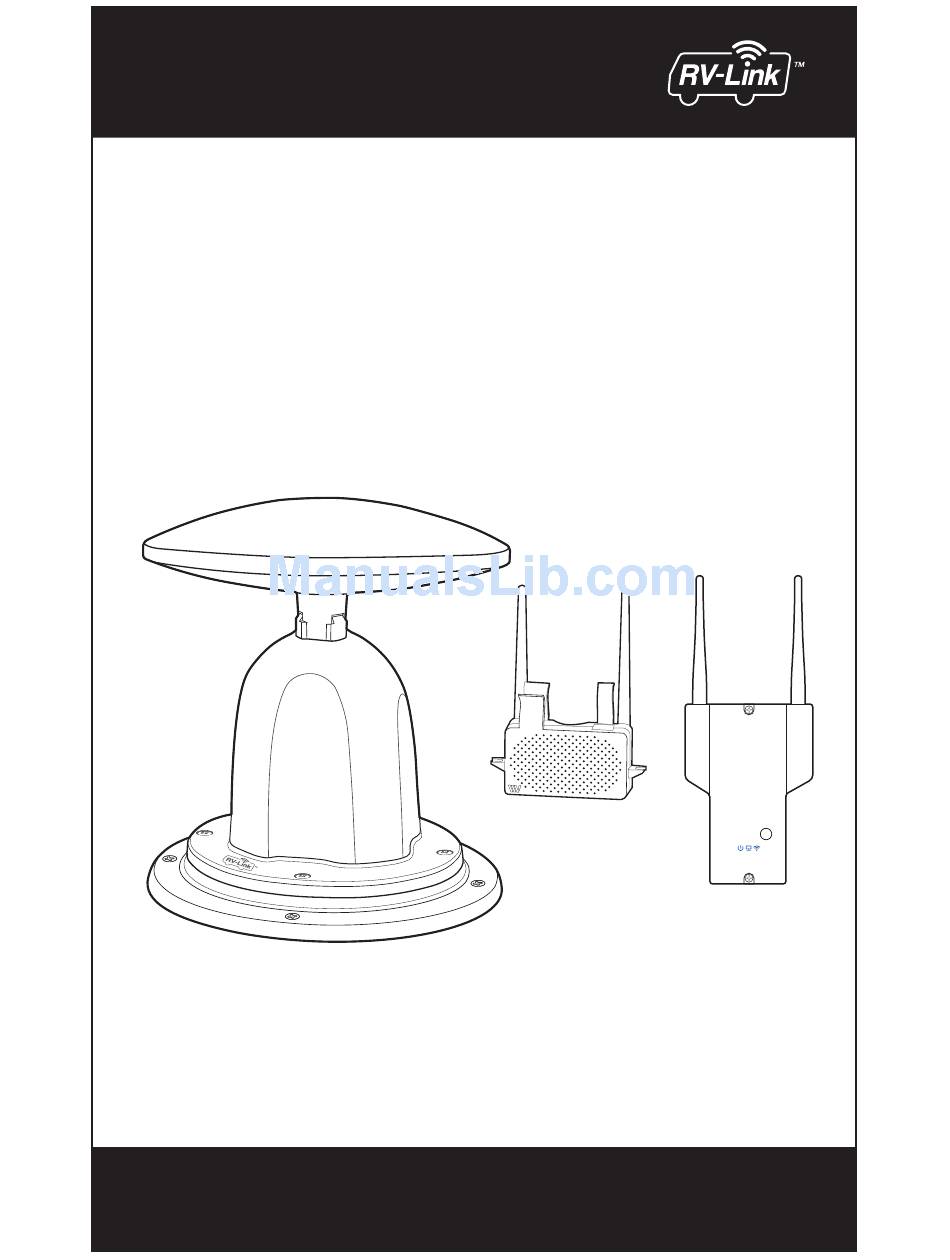

Page 1: Installation Manual
WiFi System Installation Manual RV2400 Extender RV2458 Router WiFi Antenna Base/Housing For Technical Assistance, please call (800) 638-3600, or visit www.magnadyne.com... - Page 2 Ethernet Cable Power Cable Wire Tie Cover Plate Remove cover plate from wall. A) Bring Blue Ethernet and Blue Power Cables through the wall. B) Cut wire-tie & discard cover plate. RV2458 Control Unit A) Bring Blue Ethernet and Blue Power Cables Mount Router Control Unit to wall near through center hole of new cover plate.
- Page 3 WARNING Do not connect a computer or electronic device to Ethernet port. #10-24 UNC WiFi Will Cause Damage Threaded Housing Machine Screws Lock Washers Roof Repeater Only Bottom View Connect Blue Ethernet and Blue Power Cables Remove 4 Machine Screws to RV2458 Control Unit as pictured.
- Page 4 Antenna Roof Cable Repeater Base Place RV2400 Roof Repeater into Base in A) Plug Blue Ethernet Cable into RV2400 Roof location shown and screw to posts using Repeater unit. included screws. B) Wire-tie Blue Ethernet Cable to RV2400 WARNING Roof Repeater as shown. Add new wire-tie Use screwdriver and Hand Tighten only.
