Magnadyne WS-W Installation Instructions

Installation

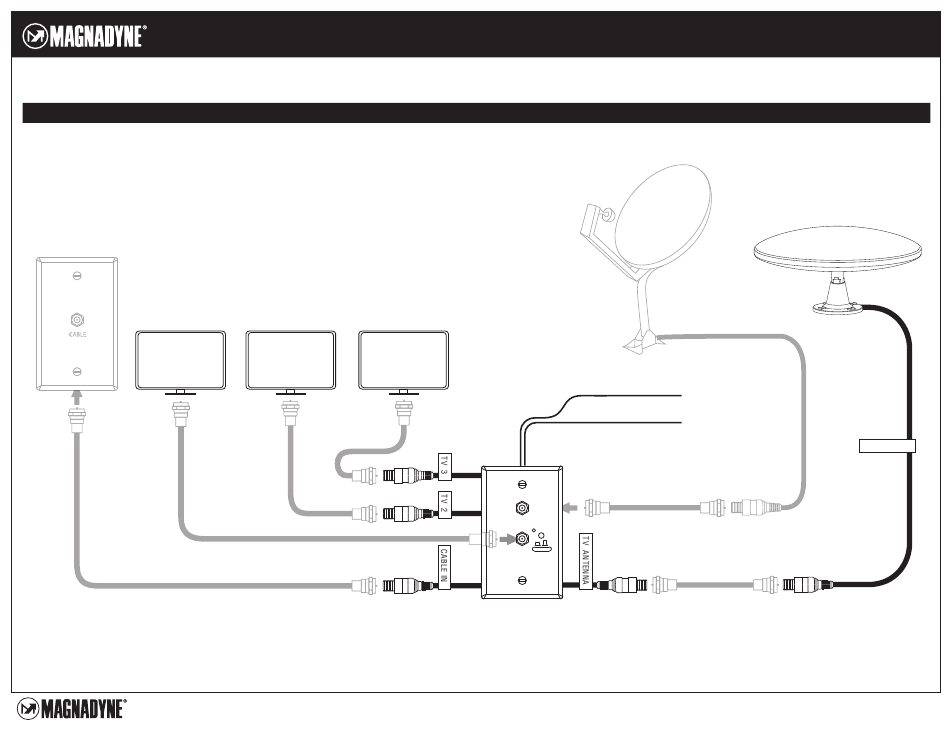

Wiring: Connect all Coaxial cables to the Distribution Wall Plate according to the diagram below.
Connect the power cables from the Distribution Wall Plate according to the diagram below.
Outside Cable
Input Plate
(Not Supplied)
TV 1
Coaxial Cables
(Purchased Separately)
Coaxial Cable
(Purchased Separately)
1111 West Victoria Street
Compton, CA 90220
Installation Instructions
TV 2 TV 3
(White)
(Black)
(Blue)
www.magnadyne.com
© Copyright 2016 Magnadyne
Satellite Antenna
(Not Supplied)
Red Wire +12V DC
Black Wire Ground
(Purchased Separately)
Satellite
ON OFF
TV 1
ON = TV
OFF = Cable
(Yellow)

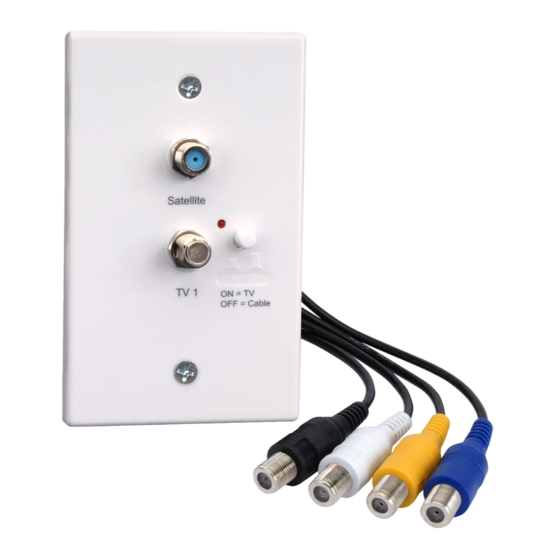

Distribution Wall Plate
Models: WS-W , WS-B ,
(White) (Black)
WS-W12V or WS-B12V
(White) (Black)
For Technical Assistance, please call (800) 638-3600
Models: WS-W (White), WS-B (Black)
WS-W12V (White), WS-B12V (Black)
Coaxial Cable
Coaxial Cable
(Purchased Separately)
WS-x-IMUM | WS-x12V-IMUM Rev. A 10-18-16
TV Antenna
RVTV-B2
RVTV-W2
(Not Supplied)
TV ANTENNA
