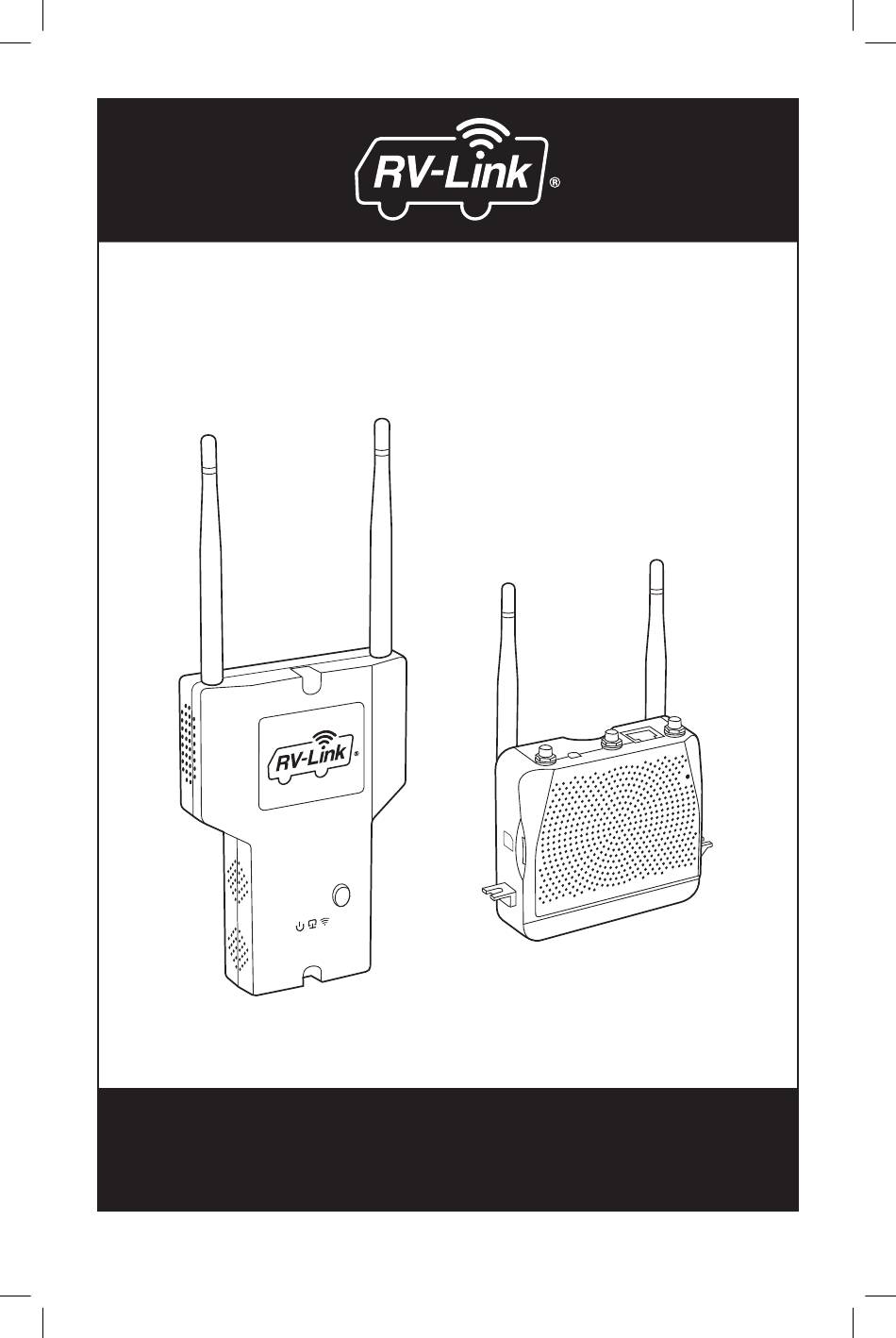

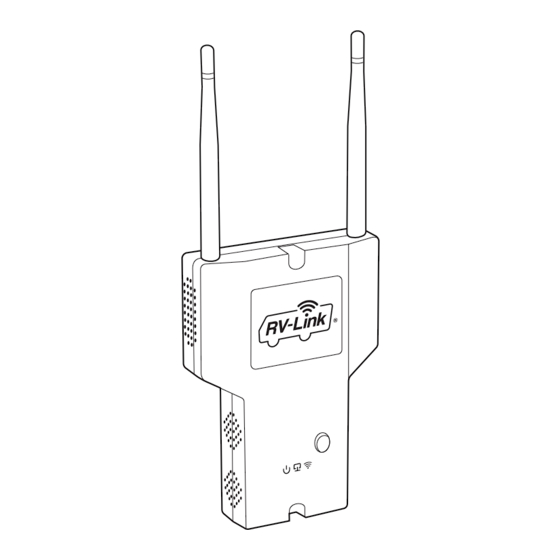

- Page 1 WF-CON-LTE Installation Manual RV2402 Extender RV2458 Router For Technical Assistance, please call (310) 735-2000, or visit www.magnadyne.com Patent No.: US D855,591 S Patent No.: US 10,622,709 B2...
- Page 2 WF-CON-LTE Installs Into These Pre Wired Antenna Models Type A Type B...
- Page 3 Whats in the Kit RV2402 Extender LTE Paddle Antennas (2) with Self Adhesive Tape RV2458 Router Cable Tie RV2458 Router Cover Plate RV2402 Extender Cover Plate Screws (2) Screws (2) Control Unit Screws (2) Recommended Tools 1) #2 Phillips Screwdriver 2) Small Open Ended Adjustable Wrench 3) Rubbing Alcohol Be Sure to Read the Entire Manual Before Installation...
- Page 4 RV2458 Router Installation Ethernet Cable Wire Tie 310 735-2000 Power Cable RV-Link.com Cover Plate A) Bring Blue Ethernet and Blue Power Cables through the wall. Remove cover plate from wall. B) Carefully cut wire-tie & discard cover plate. RV2458 Control Unit A) Bring Blue Ethernet and Blue Power Cables through center hole of new cover plate.
- Page 5 RV2402 Installation Type A Antenna Type B Antenna #10-24 UNC Threaded WiFi / LTE Housing Machine Wi-Fi / LTE Screws Housing Lock Washers #8-32 UNC Threaded Pan Head Screw Remove 4 Machine Screws (#10-24 UNC Remove Machine Screw (#8-32 UNC Threaded Threaded) and 4 Lock Washers from housing Pan Head Screw).
- Page 6 RV2402 Installation (continued) Type A Antenna Type B Antenna Paddle Antenna Paddle Antenna Paddle Antenna Paddle Antenna LTE Antenna LTE Antenna RV-Link Logo Locking Screw Hole Position Position Location (topside) A) To create a clean surface for the paddle A) To create a clean surface for the paddle antennas, wipe down the inside of the antennas, wipe down the inside of the Wi-Fi / LTE housing with rubbing alcohol.
- Page 7 RV2402 Installation (continued) Wire Tie RV2402 Blue Ethernet Roof Cable Repeater Base Place RV2402 Roof Repeater into base in A) Plug Blue Ethernet Cable into RV2402 location shown and screw to posts using Roof Repeater unit. included screws. B) Wire tie Blue Ethernet Cable to center WARNING Hand tighten with screw driver only tube of base.
- Page 8 ONE (1) YEAR LIMITED WARRANTY Magnadyne Corporation or its authorized agents will within one year from the date of sale to you, repair, replace or refund the retail sales price of said product or any part thereof, at the option of the Magnadyne Corporation or its authorized agents, if said product or part is found defective in materials or workmanship, when properly connected and operating on the correct power requirements designated for the specific product.
