Pentair HYDROMATIC 118 Installation And Service Manual

Sump pump hide-away basin package

Table of Contents

Download this manual

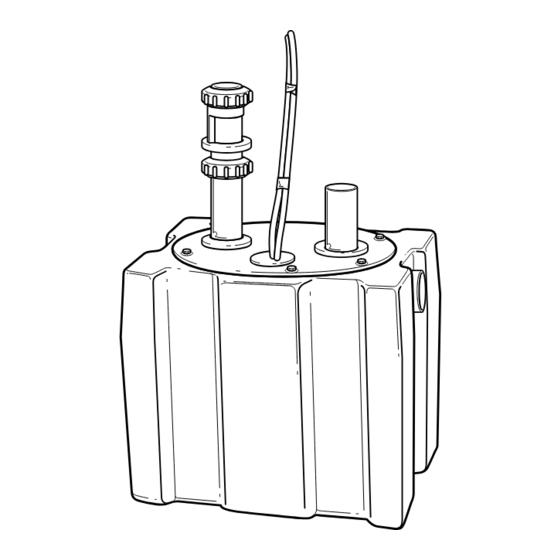

V-A1/1 18 Hide-Away System Includes:

• V-A1, 1 15V Automatic

Submersible Sump Pump

• Polyethylene water box

with cover, schedule

40 PVC nipple and

swing check valve

NOTE! TO THE INSTAllEr: Please make sure

you provide this manual to the owner of the

Pumping equipment or to the responsible party

who maintains the system.

293 WriGhT STreeT, Delavan, Wi 53115 WWW.hyDrOmaTic.cOm

Ph: 888-957-8677

269 Trillium Drive, KiTchener, OnTariO, canaDa n2G 4W5

Ph: 519-896-2163

PumP InStAllAtIon And

SerVICe mAnuAl

118 System

Sump Pump Hide-Away

Basin Package

W-03-440 (rev. 03/04/13)

Table of Contents

Need help?

Do you have a question about the HYDROMATIC 118 and is the answer not in the manual?

Page 1 293 WriGhT STreeT, Delavan, Wi 53115 WWW.hyDrOmaTic.cOm Ph: 888-957-8677 269 Trillium Drive, KiTchener, OnTariO, canaDa n2G 4W5 Ph: 519-896-2163 W-03-440 (rev. 03/04/13) © 2013 Pentair, ltd. all rights reserved.
Page 2 The model 118 Hide-Away Basin Discharge: General System is specially designed for Do not restrict discharge line below Information pumping wastewater from laundry 1-1/4". A check valve MUST be trays, washing machines, wet bars, installed to prevent backflow of Thank you for purchasing your water softeners, dehumidifiers, etc.
Page 3 DO NOT cut off ground pin or use an adapter fitting. DO NOT use an extension cord. The pump power cord should be connected to a separately fused, grounded 115 volt line with a minimum capacity of 15 amps. NEVER touch the pump when it is connected to electrical power.
Page 4: Limited Warranty
Limited Warranty HYDROMATIC warrants to the original consumer purchaser (“Purchaser” or “You”) of HYDROMATIC Sump Pumps, Effluent Pumps, Sewage Pumps (other than 2-1/2”), and Package Systems, that they will be free from defects in material and workmanship for the Warranty Period of 36 months from date of manufacture. Our warranty will not apply to any product that, in our sole judgement, has been subject to negligence, misapplication, improper installation, or improper maintenance.

V-a1/118
