Spacepro Bedside Unit Assembly Instructions

Hide thumbs
1
2
3
4
5

Advertisement

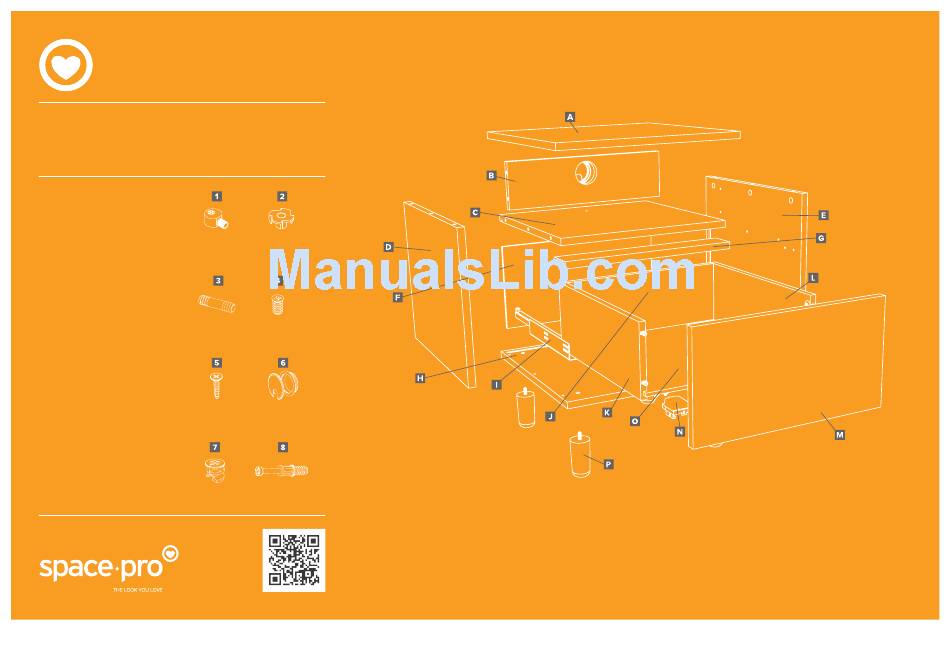

Table of Contents

bedside unit

Contents:

A
1x Top panel
B
1x Top back panel
C
1x Shelf
D
1x Side panel (left)
E
1x Side panel (right)
F
1x Lower back panel
G
1x Drawer infill
H
1x Base
I
2x Soft close drawer runners
(1x left, 1x right)
J
1x Drawer back
K
1x Drawer side (left)
L
1x Drawer side (right)
M
1x Drawer front
N
2x Soft close clips
(1x left, 1x right)
O
1x Drawer base
P
4x Legs
Page 1 of 5
4x
4x
One piece
T-nuts
connectors
4x
4x
Plastic
Euro
dowels
screws
4x
1x
Wood
Cable
screws
hole plug
27x
27x
Cams
Dowels
www.spacepro.co.uk/instructions-2/
V1
SPR_INSTRUC_BU_05.2016
