chest of drawers & tall boy
Assembly Instructions

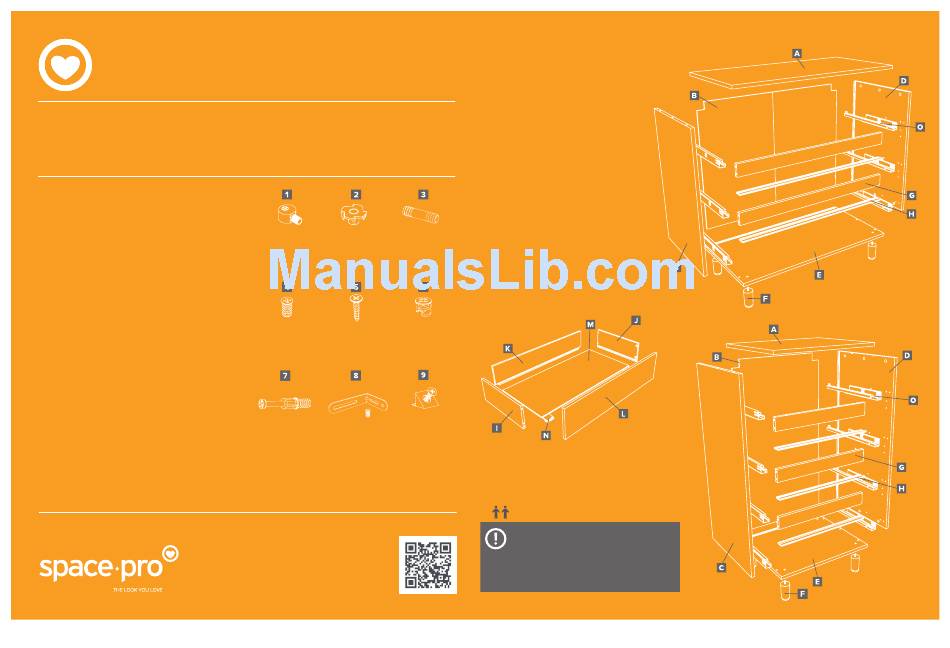

Chest of drawers & tall boy contents:
A
1x Top panel
B
2x Back panels
(1x for Tall Boy)
C
1x Side panel (left)
D
1x Side panel (right)
E
1x Base
F
4x Legs
G
2x Drawer infills
(3x for Tall Boy)
H
2x Infill covers
(3x for Tall Boy)
I
3x Drawer sides (left)
(4x for Tall Boy)
J
3x Drawer sides (right)
(4x for Tall Boy)
K
3x Drawer backs
(4x for Tall Boy)
L
3x Drawer fronts
(4x for Tall Boy)
M
3x Drawer bases
(4x for Tall Boy)
N
6x Soft close clips (3x left, 3x right)
(8x for Tall Boy, 4x left, 4x right)
O
6x Soft close drawer runners (3x left, 3x right)
(8x for Tall Boy, 4x left, 4x right)
Page 1 of 5
12x
4x
12x
One piece
T-nuts
Plastic dowels
connectors
(16x for Tall Boy)
(16x for Tall Boy)
18x
12x
20x
Euro Screws
Wood Screws
Cams
(24x for Tall Boy)
(16x for Tall Boy)
(24x for Tall Boy)
20x
2x
12x
Dowels
Wall mounting
Drawer bottom
(24x for
brackets
support brackets
Tall Boy)
(Chest of
Drawers only)
www.spacepro.co.uk/instructions-2/
Recommended:
• Tools:
Screwdriver & Hammer
• Two person build
We recommend you use the Wall
Mounting Brackets provided to fix
the Chest of Drawers/Tall Boy to
a wall (where possible). This will
prevent the unit being pulled over.
Use suitable fixings.
Chest of drawers
Tall boy
SPR_INSTRUC_DU_TB_05.2016
V1
Advertisement
Table of Contents
Related Manuals for Spacepro Chest of Drawers and Tallboy
Summary of Contents for Spacepro Chest of Drawers and Tallboy
- Page 1 • Two person build We recommend you use the Wall Mounting Brackets provided to fix the Chest of Drawers/Tall Boy to a wall (where possible). This will prevent the unit being pulled over. Use suitable fixings. Page 1 of 5 www.spacepro.co.uk/instructions-2/ SPR_INSTRUC_DU_TB_05.2016...
- Page 2 Note: C panel shown STEP 1 STEP 2 Bottom 1 – Insert Cams. 2 – Remove film then attach infill covers. Ensure the infills are faced towards the bottom. Repeat on both drawer infills. Page 2 of 5 www.spacepro.co.uk/instructions-2/ SPR_INSTRUC_DU_TB_05.2016...
- Page 3 Lay unit on its back, then insert legs into Tap plastic dowels (3) gently into place with a hammer Note: 6x for Chest of Drawers, 8x for Tall Boy. holes and turn until tight. (Repeat on all drawer sides). Page 3 of 5 www.spacepro.co.uk/instructions-2/ SPR_INSTRUC_DU_TB_05.2016...
- Page 4 1 – Slide the drawers so that the prong goes into the hole in the back of the drawer. 2 – Pull the sliders forward, until you hear a click, repeat on both sides. Page 4 of 5 www.spacepro.co.uk/instructions-2/ SPR_INSTRUC_DU_TB_05.2016...
- Page 5 Drawers/Tall Boy to a wall (where possible). This will prevent the unit being pulled over. Use suitable fixings. Fix the Wall Mounting Bracket to both sides of the Unit(s). (Use suitable fixings when attaching to the wall). Page 5 of 5 www.spacepro.co.uk/instructions-2/ SPR_INSTRUC_DU_TB_05.2016...
