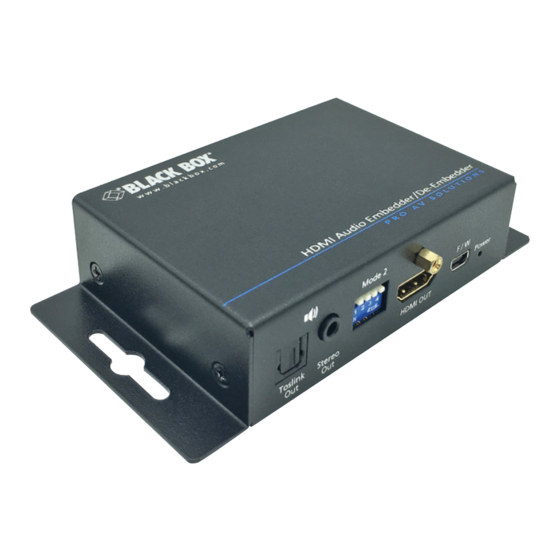

  • Page 1 AEMEX-HDMI -R2 Audio Embedder/De-embedder - HDMI 2.0 Extract audio from an HDMI stream or embed a separate audio signal to an HDMI stream. Contact Order toll-free in the U.S. or for FREE 24/7 Technical Support: Information Call 877-877-BBOX (outside U.S. call 724-746-5500) www.blackbox.com •...
  • Page 2 Trademarks Used in this Manual Trademarks Used in this Manual Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc. HDMI is a registered trademark of HDMI Licensing LLC. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.
  • Page 3 FCC and IC RFI Statements/NOM Statement FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufac- turer’s instructions, may cause inter ference to radio communication.
  • Page 4 NOM Statement 5. El aparato eléctrico no deberá ser usado cerca del agua — por ejemplo, cerca de la tina de baño, lavabo, sótano mojado o cerca de una alberca, etc. 6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que sean recomendados por el fabricante.
  • Page 5: Safety Notice

    NOM Statement/Safety Notice 17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean derramados sobre la cubierta u orificios de ventilación. 18. Servicio por personal calificado deberá ser provisto cuando: A: El cable de poder o el contacto ha sido dañado; u B: Objectos han caído o líquido ha sido derramado dentro del aparato;...
  • Page 6: Table Of Contents

    Table of Contents Table of Contents Specifications ..................7 Overview ....................9 2.1 Introduction ..................9 2.2 Features ..................9 2.3 What’s Included ................9 2.4 Hardware Description ..............10 DIP Switch Settings ..............12 Connection Diagrams ................13 Contacting Black Box ................15 877-877-2269 | blackbox.com Page 6...
  • Page 7: Specifications

    Chapter 1: Specifications 1. Specifications Approvals HDMI 2.0, HDCP, CE, FCC, RoHS2, WEEE, UL Audio Support Supports HDMI, 3.5-mm analog audio, TOSLINK optical audio inputs and outputs; Embeds audio from either 3.5-mm or optical source to an HDMI or DVI-D signal Video Bandwidth Single-link 594 MHz (18 Gbps) Video Support...
  • Page 8 Chapter 1: Specifications 1. Specifications (continued) Environment Temperature Tolerance: Operating: 32 to 104° F (0 to 40° C); Storage: -4 to +140° F (-20 to +60° C) Relative Humidity: 20–90%, noncondensing; Maximum Altitude: 10,000 feet (3125 m) Power Power supply (wallwart style): Input: 100 to 240 VAC, 50/60 Hz, 0.58 A;...
  • Page 9: Overview

    • Audio Embedder/De-Embedder - HDMI 2.0 (AEMEX-HDMI-R2) • 5-VDC, 4-A power supply with adapter clips To download this user manual from the Black Box web site: 1. Go to www.blackbox.com 2. Enter the part number (AEMEX-HDMI-R2) in the search box.
  • Page 10: Hardware Description

    Chapter 2: Overview If you have any trouble accessing the Black Box site to download the manual, you can contact our Technical Support at 877-877-2269 or info@blackbox.com. 2.4 Hardware Description Figures 2-1 and 2-2 show the front and back panels of the unit. Table 2-1 describes its components.
  • Page 11 Chapter 2: Overview Table 2-1. AEMEX-HDMI-R2 components in Figures 2-1 and 2-2. Number Component Description (1) TOSLINK Connects to digital S/PDIF audio output. Audio OUT connector (1) 3.5-mm Stereo OUT connector (1) 4-position See Table 2-3. DIP switch (1) HDMI HDMI OUT female connector...
  • Page 12: Dip Switch Settings

    Chapter 2: Overview DIP Switch Settings Table 2-2. 2-Position DIP switch (shown in Figure 2-2). Switch Position Description Number ON (DOWN) Enable Audio Embedder function. OFF (UP) Disable Audio Embedder function. ON (DOWN) S/PDIF connector selected on Audio Embedder. OFF (UP) 3.5-mm connector selected on Audio Embedder.
  • Page 13: Connection Diagrams

    Chapter 3: Connection Diagrams 3. Connection Diagrams HDMI Blu-ray cable player HDMI Audio Audio IN Back Front Audio Embedder/ Flat-panel display De-Embedder - with HDMI HDMI 2.0 (AEMEX-HDMI-R2) Figure 3-1. 877-877-2269 | blackbox.com Page 13...
  • Page 14 Chapter 3: Connection Diagrams Blu-ray player HDMI cable Audio Embedder/ Back De-Embedder - HDMI 2.0 (AEMEX-HDMI-R2) Front Flat-panel HDMI HDMI display Audio OUT cable (Extraction) Audio Figure 3-2. 877-877-2269 | blackbox.com Page 14...
  • Page 15: Contacting Black Box

    • Package it carefully. We recommend that you use the original container. • If you are returning the unit, make sure you include everything you received with it. Before you ship for return or repair, contact Black Box to get a Return Authorization (RA) number.
  • Page 16 Great tech support is just 60 seconds away at 877-877-2269 or blackbox.com. About Black Box Black Box provides an extensive range of networking and infrastructure products. You’ll find everything from cabinets and racks and power and surge protection products to media converters and Ethernet switches all supported by free, live 24/7 Tech support available in 60 seconds or less.
