BTFP71875
PNEUMATIC STAPLER
ENGRAPADORA NEUMÁTICA
AGRAFEUSE PNEUMATIQUEDE
OPERATION and MAINTENANCE MANUAL
MANUAL DE OPERACIÓN Y DE MANTENIMIENTO
MANUEL D'INSTRUCTIONS ET D'ENTRETIEN
BEFORE OPERATING THIS TOOL, ALL OPERATORS SHOULD STUDY THIS MANUAL TO
UNDERSTAND AND FOLLOW THE SAFETY WARNINGS AND INSTRUCTIONS. KEEP THESE
INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE. IF YOU HAVE ANY QUESTIONS,
CONTACT YOUR BOSTITCH REPRESENTATIVE OR DISTRIBUTOR.
ANTES DE OPERAR ESTA HERRAMIENTA, TODOS LOS OPERADORES DEBERÁN ESTUDIAR
ESTE MANUAL PARA PODER COMPRENDER Y SEGUIR LAS ADVERTENCIAS SOBRE
SEGURIDAD Y LAS INSTRUCCIONES. MANTENGA ESTAS INSTRUCCIONES CON LA
HERRAMIENTA PARA FUTURA REFERENCIA, SI TIENE ALGUNA DUDA, COMUNÍQUESE CON
SU REPRESENTANTE DE BOSTITCH O CON SU DISTRIBUIDOR.
LIRE ATTENTIVEMENT LE PRÉSENT MANUEL AVANT D'UTILISER L'APPAREIL. PRÉTER UNE
ATTENTION
TOUTE
PARTICULIÈRE
AUX
CONSIGNES
DE
SÉCURITÉ
ET
AUX
AVERTISSEMENTS. GARDER CE MANUEL AVEC L'OUTIL POUR FUTUR RÉFÉRENCE. SI VOUS
AVEZ
DES
QUESTIONS,
CONTACTEZ
VOTRE
REPRÉSENTANT
OU
VOTRE
CONCESSIONNAIRE BOSTITCH.
9R201853RB 05/13
BOSTITCH FASTENING SYSTEMS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BTFP71875 and is the answer not in the manual?

Questions and answers

Paul C
February 25, 2025

The staple gun will not pish out staples. I can hear it making the pneumatic noise but nothing comes out. Cannot see any jammed staples. Any suggestions?

2 comments:
Mr. Anderson
February 25, 2025

1. Check the Air Supply – Ensure the tool is receiving adequate air volume and pressure. Inspect for undersized fittings, clogged hoses, or restricted airflow that could reduce driving power.

2. Inspect for Air Leaks – If the tool is leaking air, stop using it and contact a Bostitch representative for repairs.

3. Examine the Fasteners – Confirm that the correct TRA700 Series staples within the 1/4" - 9/16" (6mm - 14mm) range are being used.

4. Clear Any Jams – Open the staple magazine and remove any jammed staples that might be preventing proper operation.

5. Check Trigger Operation – Ensure the secondary trigger is being used correctly, as improper handling can prevent the tool from actuating.

6. Inspect for Internal Blockages – Look for dirt, debris, or buildup inside the tool that may be causing misfeeds or reduced performance.

7. Replace Worn Parts – Use only Bostitch replacement parts if any components appear damaged or worn out.

If the problem persists, contact a Bostitch representative for further assistance.

This answer is automatically generated

Paul C
February 25, 2025

@Mr. Anderson

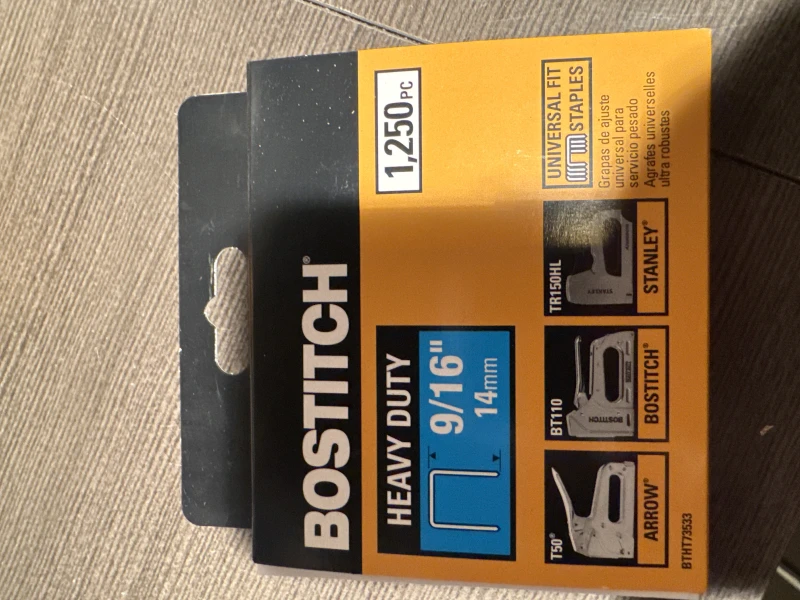

User image 67be4d01b9e7c

Summary of Contents for Bostitch BTFP71875

  • Page 1 ESTE MANUAL PARA PODER COMPRENDER Y SEGUIR LAS ADVERTENCIAS SOBRE SEGURIDAD Y LAS INSTRUCCIONES. MANTENGA ESTAS INSTRUCCIONES CON LA HERRAMIENTA PARA FUTURA REFERENCIA, SI TIENE ALGUNA DUDA, COMUNÍQUESE CON SU REPRESENTANTE DE BOSTITCH O CON SU DISTRIBUIDOR. LIRE ATTENTIVEMENT LE PRÉSENT MANUEL AVANT D’UTILISER L’APPAREIL. PRÉTER UNE ATTENTION TOUTE PARTICULIÈRE...
  • Page 2: Safety Instructions

    To obtain warranty service in the U.S. return the product, together with proof of purchase, to the U.S. Stanley-Bostitch National or Regional Independent Authorized Warranty Service Center. In the U.S. you may call us at 1-800-556-6696 or visit www.BOSTITCH.com for the location most convenient for you. In Canada please call us at 1-800-567-7705 or visit www.BOSTITCH.comus at 1-800-556-6696 or visit www.BOSTITCH.com for the location most convenient for you.
  • Page 3: Air Supply And Connections

    When working on air tools note the warnings in this manual and use extra care when evaluating problem tools. TOOL SPECIFICATIONS MODEL LENGTH HEIGHT WIDTH WEIGHT BTFP71875 8.55” (217 mm) 6.98” (177 mm) 1.73” (44 mm) 2.3 lb (1.1 kg) FASTENER SPECIFICATIONS: MODEL...
  • Page 4 AIR CONSUMPTION: Model BTFP71875 requires 0.41 cubic feet per min (c.f.m.) of free air to operate at the rate of 100 fasteners per minute, at 100 PSI (6.9 bars). Take the actual rate at which the tool will be run to determine the amount of air required. For instance, if your fastener usage averages 50 fasteners per minute, you need 50% of the tool's c.f.m.
  • Page 5: Tool Operation

    NOTE: Non-side shielded spectacles and face shields alone do not provide adequate protection. BEFORE HANDLING OR OPERATING THIS TOOL: READ AND UNDERSTAND THE WARNINGS CONTAINED IN THIS MANUAL. BOSTITCH OFFERS ONE TYPE OF OPERATION FOR THE BTFP71875 SERIES TOOLS, TRIGGER OPERATION WITH SECONDARY TRIGGER OPERATION TRIGGER OPERATION WITH A SECONDARY TRIGGER: When the secondary trigger is pulled, the tool will actuate each time the trigger is pulled.
  • Page 6: Maintaining The Pneumatic Tool

    When working on air tools, note the warnings in this manual and use extra care evaluating problem tools. REPLACEMENT PARTS: Use only BOSTITCH replacement. Do not use modified parts or parts which will not give equivalent performance to the original equipment. AIR SUPPLY-PRESSURE AND VOLUME: Air volume is as important as air pressure.
