User Manual

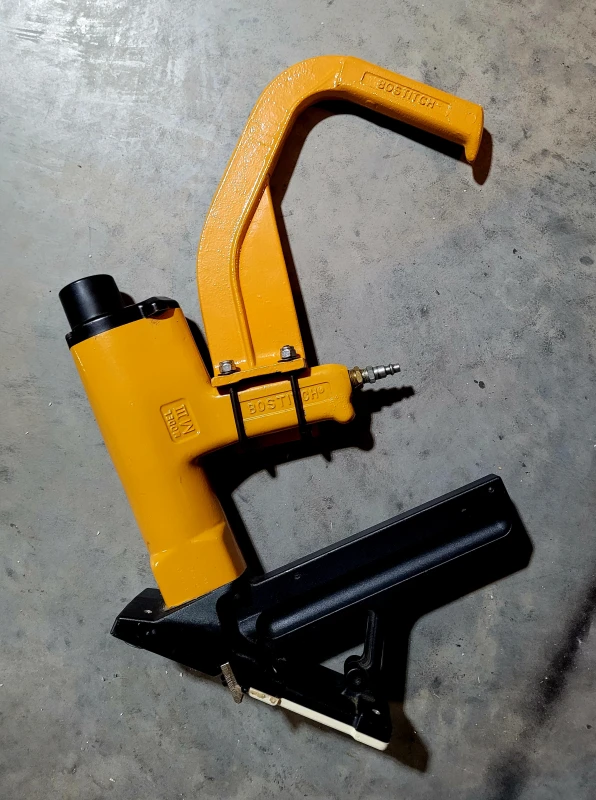

MIIIFS / MIIIFN
HERRAMIENTAS DE PISOS
CLOUEURS DE PLANCHER
OPERATION and MAINTENANCE MANUAL
MANUAL DE OPERACIÓN Y DE MANTENIMIENTO
MANUEL D'INSTRUCTIONS ET D'ENTRETIEN
BEFORE OPERATING THIS TOOL, ALL OPERATORS SHOULD STUDY THIS MANUAL TO
UNDERSTAND AND FOLLOW THE SAFETY WARNINGS AND INSTRUCTIONS. KEEP THESE
INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE. IF YOU HAVE ANY QUESTIONS,
CONTACT YOUR STANLEY-BOSTITCH REPRESENTATIVE OR DISTRIBUTOR.
ANTES DE OPERAR ESTA HERRAMIENTA, TODOS LOS OPERADORES DEBERÁN ESTUDIAR
ESTE MANUAL PARA PODER COMPRENDER Y SEGUIR LAS ADVERTENCIAS SOBRE SEGURI-
DAD Y LAS INSTRUCCIONES. MANTENGA ESTAS INSTRUCCIONES CON LA HERRAMIENTA
PARA FUTURA REFERENCIA, SI TIENE ALGUNA DUDA, COMUNÍQUESE CON SU REPRESEN-
TANTE DE STANLEY-BOSTITCH O CON SU DISTRIBUIDOR.
LIRE ATTENTIVEMENT LE PRÉSENT MANUEL AVANT D'UTILISER L'APPAREIL. PRÉTER UNE
ATTENTION TOUTE PARTICULIÈRE AUX CONSIGNES DE SÉCURITÉ ET AUX AVERTISSE-
MENTS. GARDER CE MANUEL AVEC L'OUTIL POUR FUTUR RÉFÉRENCE. SI VOUS AVEZ DES
QUESTIONS, CONTACTEZ VOTRE REPRÉSENTANT OU VOTRE CONCESSIONNAIRE
STANLEY-BOSTITCH.
103697REVD 5/99
BOSTITCH
FLOORING TOOLS
BOSTITCH
Stanley Fastening Systems
®
®
Advertisement
Table of Contents
Related Manuals for Bostitch MIIIFS
Summary of Contents for Bostitch MIIIFS
- Page 1 DAD Y LAS INSTRUCCIONES. MANTENGA ESTAS INSTRUCCIONES CON LA HERRAMIENTA PARA FUTURA REFERENCIA, SI TIENE ALGUNA DUDA, COMUNÍQUESE CON SU REPRESEN- TANTE DE STANLEY-BOSTITCH O CON SU DISTRIBUIDOR. LIRE ATTENTIVEMENT LE PRÉSENT MANUEL AVANT D’UTILISER L’APPAREIL. PRÉTER UNE ATTENTION TOUTE PARTICULIÈRE AUX CONSIGNES DE SÉCURITÉ ET AUX AVERTISSE- MENTS.
-
Page 2: Table Of Contents
NOTE: Additional safety measures may be required because of your particular application of the tool. Contact your Stanley-Bostitch repre- sentative or distributor with any questions concerning the tool and its use. Stanley-Bostitch, Inc., East Greenwich, Rhode Island 02818. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS EYE PROTECTION which conforms to ANSI specifications and provides protection against flying particles both from the FRONT and SIDE should ALWAYS be worn by the operator and others in the work area when loading, operating or servicing this tool. Eye protection is required to guard against flying fasteners and debris, which could cause severe eye injury. -
Page 4: Tool Specifications
MIII TOOL SPECIFICATIONS All screws and nuts are english. MODEL LENGTH HEIGHT WIDTH WEIGHT MIIIFS 17-1/4” (438mm) 11-1/2” (292mm) 3-1/8” (80mm) 11.2lbs (5.1kg) MIIIFN 17-1/4” (438mm) 11-1/2” (292mm) 3-1/8” (80mm) 11.2lbs (5.1kg) FASTENER SPECIFICATIONS: MODEL FASTENER CROWN WIDTH WIRE SIZE... -
Page 5: Air Supply: Fittings, Hoses, Filters, Air Consumption, Regulators, Operating Pressure, Setting Correct Pressure
Frequent, but not excessive, lubrication is required for best performance. Oil added through the air line connection will lubricate the internal parts. Use STANLEY-BOSTITCH Air Tool Lubricant, Mobil Velocite #10, or equivalent. Do not use detergent oil or additives as these lubricants will cause accelerated wear to the seals and bumpers in the tool, resulting in poor tool performance and frequent tool maintenance. -
Page 6: Loading The Tool
The tool is now ready to operate. MIIIFN NAIL LOADING: Insert nails. Pull pusher assembly back to engage pusher to strip of nails. Tool is now ready to operate. NOTE: Use only fasteners recommended for use in Bostitch MIII series models. -
Page 7: Tool Operation
TOOL OPERATION EYE PROTECTION which conforms to ANSI specifications and provides pro- tection against flying particles both from the FRONT and SIDE should ALWAYS be worn by the operator and others in the work area when loading, operating or servicing this tool. Eye protection is required to guard against flying fasteners and debris, which could cause severe eye injury. - Page 8 IN ADDITION TO THE OTHER WARNINGS CONTAINED IN THIS MANU- AL OBSERVE THE FOLLOWING FOR SAFE OPERATION • Use the STANLEY-BOSTITCH pneumatic tool only for the purpose for which it was designed. • Never use this tool in a manner that could cause a fastener to be directed toward the user or others in the work area.
-
Page 9: Basic Tool Operation (Diagram)
Care must also be taken to insure no permanent kinks are put in the spring as this will reduce the springs force. REPLACEMENT PARTS: STANLEY-BOSTITCH replacement parts are recommended. Do not use modified parts or parts which will not give equivalent performance to the original equipment. ASSEMBLY PROCEDURE FOR SEALS: When repairing a tool, make sure the internal parts are clean and lubricated. -
Page 10: Trouble Shooting
COIL NAILERS Skipping fasteners; intermittent feed Feed piston dry ....Add STANLEY-BOSTITCH Air Tool Lubricant in hole in feed piston cover Feed piston O-rings cracked/worn ..Replace O-rings/check bumper and spring. -
Page 11: Maintaining The Miii Series Tools
Insert new O-ring in stepped hole in cap directly over piloted valve. Assemble cap using four socket head cap screws and replace exhaust deflectors. MIIIFS TO REPLACE WEAR PLATE OR BLADE GUIDE: Seperate the magazine from the nose by removing four socket head cap screws. -
Page 12: Accessories
ACCESSORIES AVAILABLE BC1297 Handle (short) 105043 Bumper 105056 Spacer (5/16” Special) 104301 Mallet -12-...
