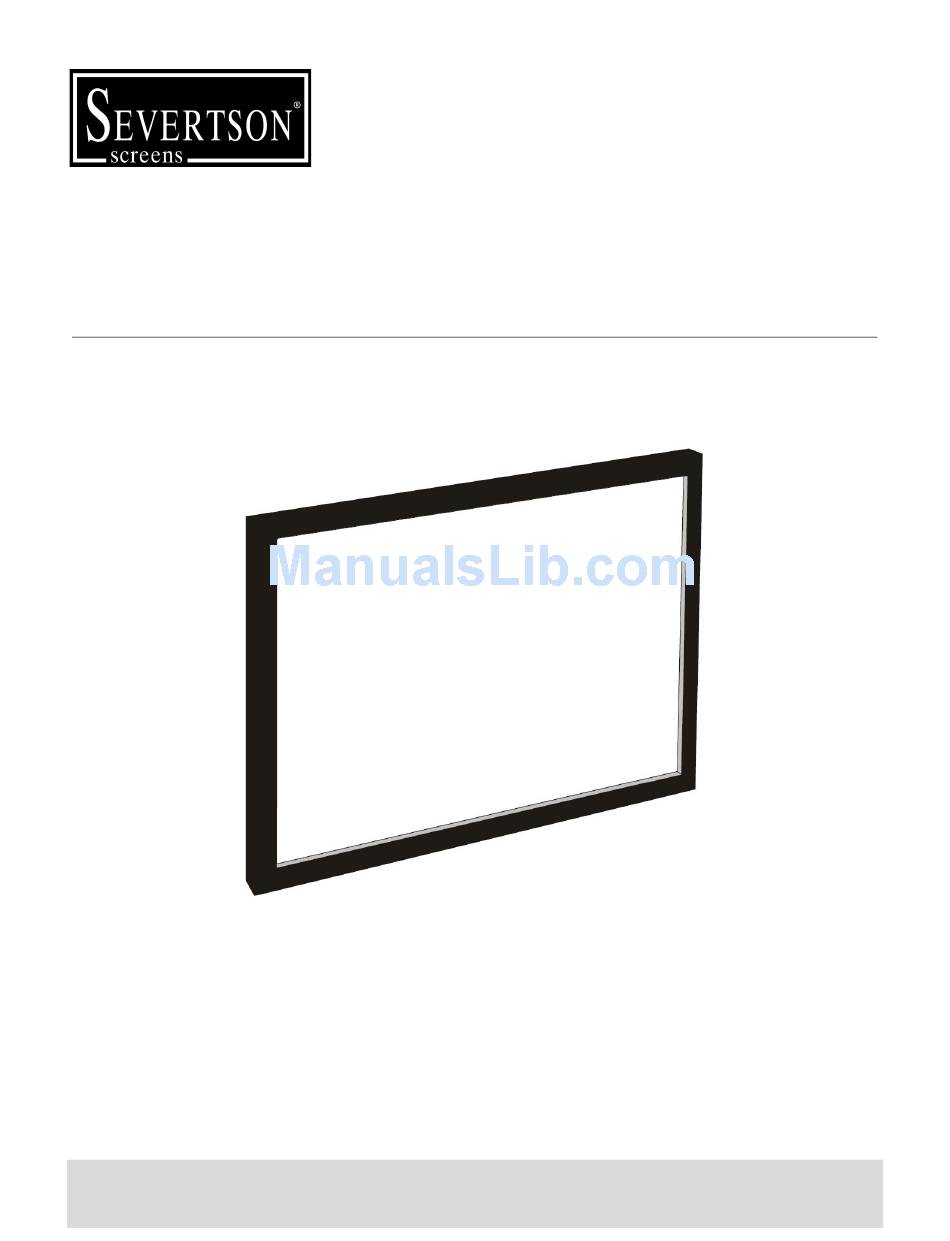

- Page 1 Instruction Manual for Deluxe Series Fixed Frame MODELS: DF169***, DF1610***, DF235*** Thank you for purchasing a Severtson projection screen. Before use, please read the instructions carefully. After installation, store the instructions for future reference. ...
- Page 2 Instruction Manual for Deluxe Series Fixed Frame Overview Parts Included ...
-
Page 3: Installation Instructions
Instruction Manual for Deluxe Series Fixed Frame Installation Instructions Take out all the parts from the packaging and verify that all the parts have been included, then follow the steps below to install the screen. Note 1.1: The screen should be installed at the best possible viewing position for the audience. - Page 4 Instruction Manual for Deluxe Series Fixed Frame 3. Align frame corner to 90° and fasten with one corner bracket screw. Repeat for each corner (Figure 6-7). 4. Unroll screen fabric as shown. Insert the four tension bars into the pockets of the screen material, using the long bars on the top and bottom and the short bars on the two sides. Be careful not to puncture the screen material (Figure 8-10).
- Page 5 Instruction Manual for Deluxe Series Fixed Frame 5. Align fixing lugs with the arrows (arrows are approximate). Starting in the middle of a short side, pull the tension bar over each of the fixing lugs, allowing the lugs to fit through the fabric holes. Repeat for the other short side, then repeat for each of the two longer sides.
- Page 6 Instruction Manual for Deluxe Series Fixed Frame 7. Determine where the brackets should be placed as explained in the note above. Use two 5x40mm screws to mount each top wall bracket to the wall (Figure 16-17). 8. Align the screen frame with wall brackets (Figure 18). Move the sliding brackets on the frame to line up with the top wall brackets.
-
Page 7: Appendix A: Black-Backing Instructions
Instruction Manual for Deluxe Series Fixed Frame Appendix A: Black-Backing Instructions Follow these instructions to properly secure the included black backing to a Severtson Screens Fixed Frame Projection Screen. This guide applies to all Deluxe Series Fixed Frame models. This guide is intended to be followed after the rest of the screen has been fully assembled and before it has been installed in its intended location. - Page 8 Instruction Manual for Deluxe Series Fixed Frame 4. Secure the black backing at each upper corner. Slide each corner of the folded-over black backing over the respective vertical tension rod, pushing the rod about 1/2” through the punched-out holes. Each vertical support rod will now have the black backing secured at each corner.
- Page 9 Instruction Manual for Deluxe Series Fixed Frame the tension rod and plastic pin so that it will be secured in place. Your black backing is now properly installed. ...
- Page 10 Instruction Manual for Deluxe Series Fixed Frame Warnings 1. The frame is made with lightweight aluminum. Please handle with care. 2. Make sure the fasteners used are firmly secured to the wall to avoid any damage. 3. When installing the screen material onto the frame, make sure it is facing forward (viewing side toward the projector).
