- Page 1 Remote Control Panel Installation & Operation Guide 404CP / 408CP...
-
Page 2: Table Of Contents
Table of Contents INTRODUCTION ......................... 3 IMPORTANT......................... 3 WIRING..........................3 PROGRAMMING........................5 OPERATION ........................12... -
Page 3: Introduction

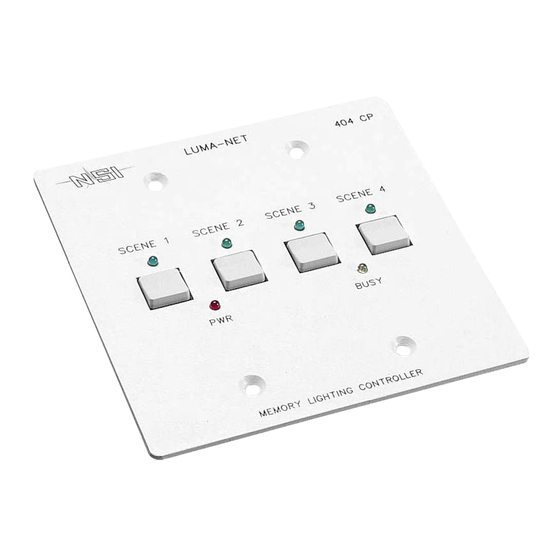

Introduction The Leviton 404CP and 408CP represents a key part of a state of the art, total lighting control system. Combined with Leviton dimmers and optionally, a Leviton memory control console, a totally integrated system is achieved. The 404CP can automatically take control and preset the lighting level of up to 100 dimmer channels, while the 408CP will control 45 of 100 dimmer channels. - Page 4 fingers or metal objects. On daisy-chain runs, the panels closest to the dimming system should be connected first. 404CP and 408CP panels have dip switches to set network ID number and must have their ID programmed before the system power is connected. It is recommended that the installer review the programming procedures for network ID before proceding.
-
Page 5: Programming
Factory Default Setting: The 404CP and 408CP are programmed at the factory for scene 1-3 (1-7) to be set for channel 1-4 (1-8) respectively. Scene 4 (8) is programmed for dimmers 1-8 off. The fade rate and other parameters are also set to factory defaults. - Page 6 To program each scene: 1. Make sure that the 404CP or 408CP is in the program select mode as discussed. The BUSY LED should be flashing. 2. Press the SCENE 2 button to select “dimmer assignment mode” and the BUSY LED will stop flashing.
- Page 7 Assigning dimmer channels to each scene. Each of the scenes of the 404CP and 408CP must be programmed with the desired levels for each dimmer assigned to the scene. In order to easily identify dimmer channels while programming, the system should have all installed lamps or loads operational.
- Page 8 To program scene fade time: 1. Make sure that the 404CP or 408CP is in the program select mode as discussed. 2. Press the SCENE 3 button to enter the “Fade time mode”, and the BUSY LED will stop flashing.
- Page 9 Master/Slave Mode 404CP or 408CP panels may be slaved to one another. Several panels may act as slaves to a master panel which contains the programming. The slaves will mimic the master LED’s and will operate the scenes and fade times of the master. This is ideal for installations with several panels in one room.
- Page 10 Panels need not be in program mode to change network ID number, since a dipwitch is used. To set Network ID number: 1. Locate dipswitch on rear of unit as illustrated below. 2. Set the switches as per the chart on the following page. REAR VIEW OF 404CP / 408CP TERMINATION JUMPER PROGRAM...
- Page 11 ID number codes / dipswitch settings ID number 12345678 ID number 12345678 ID number 12345678 00000000 10000000 01000000 11000000 00100000 10100000 01100000 11100000 00010000 10010000 01010000 11010000 00110000 10110000 01110000 11110000 00001000 10001000 01001000 11001000 00101000 10101000 01101000 11101000 00011000 10011000 01011000 11011000...
-
Page 12: Operation
Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and proper use for two years from the purchase date. Leviton’s only obligation is to correct such defects by repair or replacement, at its option.
