Specifications
Transmitter Unit (Tx) Receiver Unit (Rx)
EVBMN-M210
EVBMN-210L EVBMN-210R
Input → Output HDMI → RJ-45 RJ-45 → HDMI
PSE ( Power Source
Power over HDBaseT TM ** PD ( Powered Device)
Equipment)
Status LED Dual Color x 1 Dual Color x 1
LED
LAN LED Single Color x 3 Single Color x 3
Video Resolution (Max.) UHD (3840 x 2160 @ 30Hz)
Full HD 1920 x 1080 @ 100M
Extension Distance*
UHD 3840 x 2160 @ 70M
RJ-45 x 3 RJ-45 x 3
Ethernet Port
10/100 Mbps
DCE, DB9-F DTE, DB9-M
Serial Port
115kbps (max.)
x 1, IR Transceiver x 1, IR Transceiver
IR Extension
x 1, IR Receiver x 1, IR Receiver
Slide Switch Auto Power Saving / Normal / Long Reach
Power Supply DC 12V
Enclosure Metal
H x W x D (mm) 140 x 85 x 34
Weight (g) 1195 (each unit)
*Above video resolution and extension distance are based on a single CAT5e/6
24AWG solid cable without cascade. STP cabling is recommended for environments
with high EMI or RFI. For the best performance results, using stranded cabling or
other thinner cables, and coiling of excess cable lengths should be avoided.
NOTE:
Rextron EVBMN-M210, Transmitter Unit (PSE) and Receiver Unit (PD) is compatible
with HDBaseT TM PoH standard. It only need to connect power adapter to Tx and
it will automatically transmit power to Rx. If user may want to use other brand's Tx
or Rx, please make sure whether it is compatible with HDBaseT TM PoH standard.
Moreover, Transmitter Unit should be PSE and Receiver Unit should be PD, or it may
not work. It is highly recommended use Rextron's Tx connecting to Rextron's Rx for
optimal transmission quality.
Installation
● Prior to installation, ensure to power off all devices that will be
connected to this system.
● Ensure that all devices you will connect are properly grounded.
● Place cables away from fluorescent lights, air conditioners, and
machines that are likely to generate electrical noise.
Users can connect the video source to the Transmitter Unit, connect
the monitor to the Receiver Unit. Connect to Ethernet devices to the
Transmitter and the Receiver Units (LAN ports) and use CAT5e/6 cable
(EIA / TIA 568B industry standard compliant) for the connection between
the Transmitter (Link Port) and Receiver Unit (Link Port) . After all device
connections are completed, connect the provided power cord into an
appropriate power source and plug the opposite end into the power
connector* on the Unit to power up.
CAUTION: The CAT5e/6 cables that connect the Transmitter and Receiver
Units carry electrical current and should not be plugged in to other
devices, as they may cause damage. We strongly recommend marking the
CAT5e/6 cables you are using with this product at both locations for easy
identification.
Operation
The LEDs on the Extender Units show the real-time status indicating the
linking and communication between the Transmitter Unit and Receiver
Unit. Users can identify the present status through the LED indicator on
the top.
The quality of the output signal will depend largely upon the quality of
video source, cable and display device used. Low quality cables degrade
output signal causing elevated noise levels. Please use the proper cable
and make sure the display device is capable of handling the resolution
and refresh rate selected.
NOTE:
1. The system will disable the video output signal when it detects non-
HDCP compliant display(s) on playing the HDCP video source. All the
connected output displays MUST be HDCP compliant, when the video
source is HDCP compliant.
2. If there's no signal detected from HDMI port, the baud rate will
automatically speed down to 9,600 bps.
Cabling Requirements
HDMI transmission running along the Ethernet cabling is particularly
susceptible to EMI (electro magnetic interference) or RFI (radio frequency
interference). It can be caused by being in close to fluorescent lighting or
power cabling. The following are some considerations that you should pay
attention to.
1. Place cables away from fluorescent lights, air conditioners, and machines
that are likely to generate electrical noise.
2. The shielded cables (FTP, STP) are suggested for they can reduce the
interference, and work better to EMI or RFI than UTP cables.
3. For superior video quality, unbundled cables work better than bundled
ones. Bundled cable of greater than 3 ft. diameter will have minor effect on
the cable length.
4. The solid cable will work better than stranded cable. It may shorten the
transmission distance if you use stranded cabling or other cables thinner
than 24AWG. That is, solid cable of larger than 24AWG is strongly
suggested. Additionally, CAT6 is more recommended.
5. Joined cables can result in signal loss and shortening transmission
distance. Therefore, for the optimal transmission distance, we recommend
using only one piece of cable (without any immediate joints) between
transmitter and receiver units.
Other Notices
1. Due to EMI or RFI, some certain brands/types of displays, like monitors
and TVs, may result fuzzy or snowing on screens. In this case, please try
to restart the displays.
2. As the system transmits massive data, temperature rises on the unit is a
normal phenomenon, so please do not open any components inside by
yourself.
3. The unit is a sealed structure; should not be tampered with by anyone
other than registered installer.

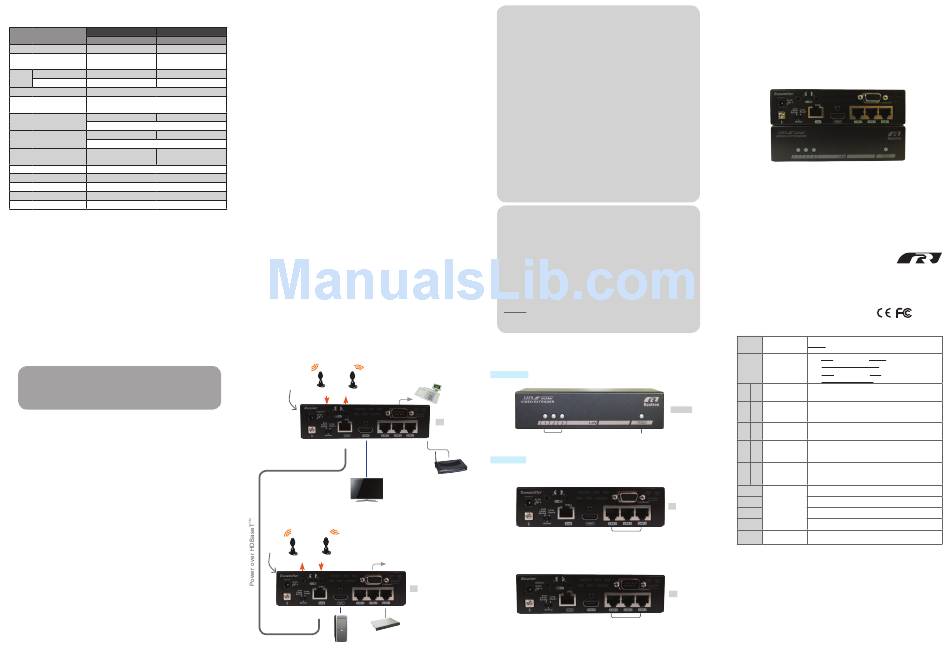

Connection Pattern
DC 12V
Serial Devices
(optional)
IR Receiver IR Transceiver
(PD)
CAT5 100M
DC 12V
IR Transceiver IR Receiver
To Serial Terminal
Tx
(PSE)
Switch Hub
Features
● Compatible with HDBaseT TM PoH standard
● Send HDMI signal to multimedia display over CAT5e/6 cable of up to
100 meters
● Uses HDBaseT TM Technology
● Low cost standard CAT5e/6 LAN cable; advanced and inexpensive
all-in-one connectivity technology
● HDCP compliant and Blu-ray ready
● Support Deep Color, HD-3D video and HD Audio formats
● Support resolution up to Full HD 1080p / 2048 x 1152
● Bi-directional LAN & Serial
● Compact size; easy to set up; simple to install
● Ideal for hospitality (hotels, conference rooms), digital signage
(airports, shopping malls), surveillance cameras, whole-home
networking and point-to-point consumer applications
Exclusive 5PlayTM Feature
● Transmit full uncompressed HD video and audio over CAT5e/6 cable
● Support LPCM 7.1 Audio, Dolby® TrueHD and DTS-HD Master
Audio™ pass-through
● 100BaseT Ethernet Pass-Thru; simultaneously distribute HDMI and
Ethernet streaming video from source to display
● Multiple interface options allow controlling the unit by Hotkey control
and Serial control
● Transmitter Unit deliver DC power to Receiver Unit over CAT5e/6
cable
Package Contents
● Transmitter Unit
● Receiver Unit
● Power Adapter Set
Power Adapter with necessary AC Cord
or
Plug-in Power Adapter
● User's Manual
● Foot Pad Set
● CAT5 Cable
● Grounding Wire
Optional:
● IR External Sensor Kit
● Serial Cable ● HDMI Cable
Product Description
Front Panel
Rx
La
Rear Panel
ADSL
P IR2(out) IR1(in)
Grounding T5
T3 T2
P IR2(in) IR1(out)
Grounding R5 R3 R2
User's Manual
HDMI Extender over CAT5
with IR, Ethernet & Serial Extending
(Power over HDBaseT
(EVBMN-210L + EVBMN-210R)
x 1
x 1
x 1
x 1
x 2
x 1
x 2
La LAN LED
Ls Status LED
RJ-45
T1 R1
Connector
HDMI
Tx / Rx
T2 R2
Connector
RJ-45
T3 R3
Connector
Ls
T4 R4 Serial Port
T5 R5 Slide Switch*
T4
IR1(in)
IR1(out)
IR Remote
Tx
Jack
IR2(in)
IR2(out)
T1
P Power Supply** Apply power to the unit.
*Please set both of slide switches on the same position to reach the goal.
Normal: The extension distance of HDMI signal over CAT5/6 is up to 100M
for 1080p and 70M for 4Kx2K.
R4
Long Reach: The extension distance of HDMI signal over CAT5/6 will
be increased up to 150M for 1080p, but the unit can not transmit 4Kx2K
resolution.
Rx
Auto power saving: The extension distance of HDMI signal over CAT5/6
is the same as "Nornal", but the unit can automatically save energy for
increasing efficiency use.
TM
**Power over HDBaseT
R1
connect to power adapter and power the entire system. The PoE standard
is based on the IEEE 802.3at standard.
TM
)
EVBMN-M210
Rextron
◘ The final specification is the actual product based.
◘ Features and functions may be added or changed
after the manual was written. Please visit our
website to download the latest version of manual
for reference.
RoHS
PP5-HEM257Z-000
Yellow: LAN status (Data communication)
[Tx] Blue: Link status; Green: Power on;
Flashing Blue+Green: Power-saving mode
[Rx] Blue: Link status; Red: Power on;
Flashing Blue+Red: Power-saving mode
Connect to Ethernet devices
[T2] Connect to an HDMI video source
[R2] Connect to an HDMI disply
Use CAT5e/6 for connection between two units.
[T4] (DCE) Connect to a computer
[R4] (DTE) Connect to a serial device
Please set on the same position for Tx and Rx
Connect to an IR Receiver
Connect to an IR Transceiver
Connect to an IR Receiver
Connect to an IR Transceiver
(PoH): Only Transmitter Unit is required to
