User's Manual
4K2K HDMI + USB 2.0
Extender over CATx
with Bi-directional IR Extension &
Independent Audio Extraction
EVBMU-M2010
EVBMU-2010L + EVBMU-2010R
Related Products
Type
100M
Tx + Rx
EVBMUN-M2010
1
Connection Pattern
Audio cable
RJ12 to DB9 Adapter
IR Receiver IR Transceiver
Transmitter
EVBMU-2010L
100M @ Full HD
90M @ UHD 30Hz
90M @ UHD 60Hz (4:2:0)
2
LED Indicator
LED
Unit
Transmitter Unit
Power ON: Green / Link OK: Blue / HDCP content: Purple
Receiver Unit
Power ON: Red / Link OK: Blue / HDCP content: Purple
Function
HDBaseT2.0 HDMI Extender (1-in / 1-out)
with IR, Ethernet, USB 2.0 & Serial Extending
◘
The final specification is the actual product based.
◘
Features and functions may be added or changed
after the manual was written. Please visit our
website to download the latest version of manual
for reference.
PP5-HE2002Z-200
Receiver
EVBMU-2010R
Analog Audio Output
(Serial Device)
IR Receiver IR Transceiver
Status
Package Contents
● Transmitter Unit
● Receiver Unit
●
Power supplies
Power Adapter Set
Power Adapter with necessary AC Cord
Plug-in Power Adapter
● mini-USB to USB-A Cable
● User's Manual
● Foot Pad Set
Optional
● IR Extension Kit
Features
● Send HDMI and 4 USB signal to multimedia display up to 100 meter
● Transmit full uncompressed HD video and independent audio (analog
stereo and Toslink (S/PDIF)) over CAT5e/6/7 cable
● Bi-directional IR extension
● USB Port is compatible for most of popular USB devices (USB KM, USB
printers, USB Scanner, external hard disk drives ....)
● Support resolutions up to 4Kx2K @60 (4:2:0) and HD Audio Formats
● Compatible with most of the popular screen resolution to XGA, SXGA,
UXGA, WSXGA ...Full HD, WUXGA, UHD system
● Low cost standard CAT5e/6/7 LAN cable
● HDTV, 3D HDTV compatible
● HDCP compliant and Blu-ray ready
● Compact size; easy to set up; simple to instal
● Ideal for hospitality (hotels, conference rooms), digital signage (airports,
shopping malls), surveillance cameras, whole-home networking and
point-to-point consumer applications
NOTE:
Video resolution and extension distance are based on a single CATx 24AWG solid cable without
cascade. STP cabling is recommended for environments with high EMI or RFI. For the best
performance results, using stranded cabling or other thinner cables, and coiling of excess cable
lengths should be avoided.
RoHS
3

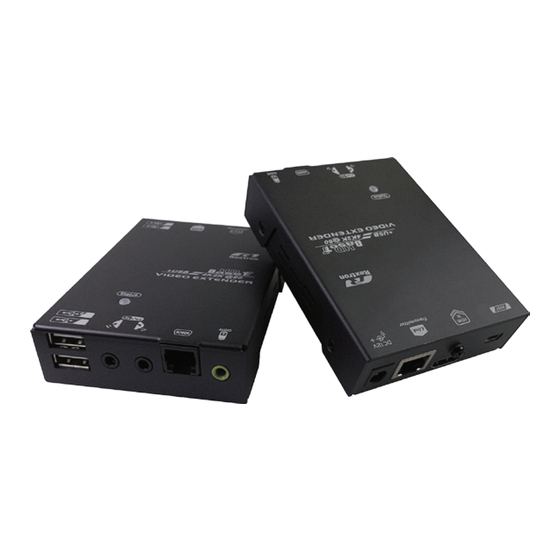

Product Description
L4
L1
R1
RJ-45 Jack
L2
R2
Input / Output Connector
L3
R3
USB connector
L4
R4
LED Indicator
L5
R5
IR Extension
L6
R6
RJ12 Connector
L7
R7
Audio Connector
Pl
Power Supply
Pr
4
Specifications
Model
EVBMU-M2010
Interface
Interconnection
LED
(Link / Video status)
Video Resolution (max.)
Extension Distance
Power Supply
Enclosure
H x W x D (mm)
Weight (g)
or
● RJ12 Cable + RJ12 to DB9 Adapter
L3
L2
L1
Pl
R3
R2
R4
R3
R5
L5
L6 L7
Use a CATx cable for connection between two units
[L3] connects to PC
[R3] connects to Monitor
[L3] connects to PC
[R3] connects to USB devices
[L2] Green: Power on
[R2] Green: Power on / Blue: Link OK
[In] connects to IR Receiver
[Out] connects to IR Transmitter
[L6] connect to PC
[R6] connect to Serial device
[L7] connect to PC
[R7] connect to the speaker
(optional) Apply power from power supplier to the unit
Apply power from power supplier to the unit
Transmitter Unit
Receiver Unit
EVBMU-2010L
EVBMU-2010R
HDMI x 1
HDMI x 1
Analog Stereo x 1
Analog Stereo x 1
RJ-12 x 1
RJ-12 x 1
IR Transceiver x 1
IR Transceiver x 1
IR Receiver x 1
IR Receiver x 1
USB Host x 1
USB Device x 4
RJ-45 x 1
RJ-45 x 1
(Multi-Color) x 1
(Multi-Color) x 1
100M
Full HD (1920 x 1080)
90M
UHD (3840 x 2160 @30Hz)
90M
UHD (3840 x 2160 @60Hz YCbCr 4:2:0)
100M
DC 12V
Metal
24 x 75 x 102
311~340
x 1
x 1
x 2 set / pc
x 1
x 1
x 2
R1
Pr
R6 R7
