  • Page 1 ® ™ ASSEMBLY AND OPERATION MANUAL duratrax.com...

  • Page 2: Battery Adapter

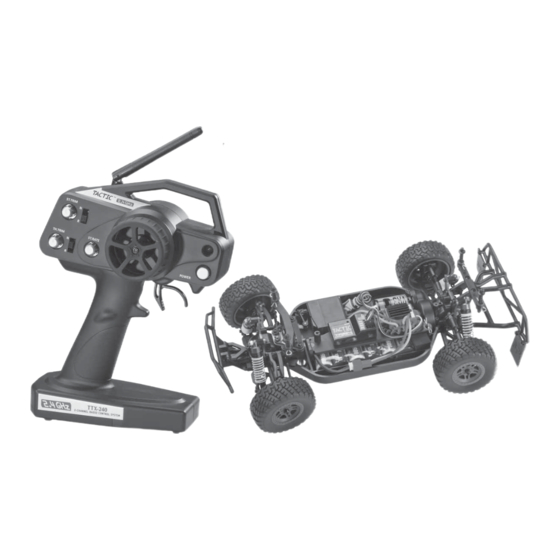

    ITEMS INCLUDED The following items are included with your Vendetta SC. Chassis Transmitter Body Decal Sheet Instruction Manual Exploded View/Parts Listing YOU WILL NEED BATTERY ADAPTER (FOR CHARGING) DTXC2210 6-CELL 1600 MAH NIMH BATTERY DTXC2193 ™ ONYX 220 PROGRAMMABLE PEAK CHARGER...

  • Page 3: Warranty

    Services address listed under the warranty the date of purchase. DuraTrax will warranty • Do not operate the Vendetta SC near on the left. this kit for 90 days after the purchase people. Spectators should be behind the date.

  • Page 4: Transmitter Preparation

    FINISHING THE VENDETTA SC TRANSMITTER PREPARATION • Slide off the batttery tray door and install four “AA” batteries. Make sure the polarity is correct. • Raise the antenna at the top of the transmitter. RED BATTERY LIGHT • Turn on the transmitter and check the battery light.
  • Page 5 6-CELL BATTERY INSTALLATION • Remove the body clip from the battery strap post. • Remove the battery strap and foam spacer. • Install a fully charged 7.2V battery into the chassis. • Reinstall the battery strap and foam spacer. Secure them in place with the body clip.

  • Page 6: Speed Control Set Up

    ALWAYS CHECK THE RADIO Rate OPERATION BEFORE EACH RUN Reverse • Slowly pull on the throttle trigger. The Vendetta SC should slowly move forward. If the truck goes in reverse, move the Forward throttle reversing switch on the transmitter. The throttle trim knob may also need to be adjusted to find neutral.

  • Page 7: Maintenance Tips

    AFTER EVERY 10 RUNS replace/recharge if necessary. • Make sure that the bearings are free of dirt and debris, and • Make sure that all of the moving parts of the Vendetta SC roll smoothly. move freely and do not bind.
  • Page 8 (White, DTXC8953). For high traction or smooth tracks, use a fi rm spring (Green, DTXC8954). When tuning the Vendetta SC make sure that you have equal lengths from one side to the other on the shocks, upper rods, FRONT SHOCK ADJUSTMENT and front pivot ball knuckles.

  • Page 9: Shock Oil

    SHOCK OIL CAMBER The Vendetta SC comes with 30-weight oil in the shocks. The handling of the truck can be tuned by changing the shock oil 2˚ NEGATIVE CAMBER to either heavier (bigger number) or lighter (smaller number). By putting heavier oil in the shocks, the truck will have less chassis roll and become more responsive.
  • Page 10 MAINTENANCE GUIDE The following section is provided to help you with maintenance and repairs to your Vendetta SC...2 8x12mm Ball Bearing ..2 8x12mm Ball Bearing ..2 1.5x16mm Pin ..2 1.5x16mm Shaft ..8 2x6mm F/H S/T Screw 6x10mm 8x12mm 8x12mm ..1...
  • Page 11 2.6x12mm S/T Screw 2.6x8mm S/T Screw ..1 2.6x12mm S/T Screw ..4 2.6x8mm S/T Screw ..1 4.5mm ..2 3x3mm Set Screw 2.6x6mm Screw...
  • Page 12 ..2 2.6x6mm Screw 2.6x12mm S/T Screw 2.6x8mm ..2 S/T Screw 2.6x8mm S/T Screw ..2 2.6x12mm S/T Screw ..1 2.6x10mm F/H S/T Screw ..2 2.6x8mm F/H Screw 2.6x10mm F/H S/T Screw 2.6x8mm F/H Screw...
  • Page 13 ..3 3.8mm Ball Stud ..2 3x25mm Threaded Shaft ..2 2x6mm S/T Screw 39mm ..4 ..2 2.6x8mm Screw 2.6x6mm Screw ..2 Body Clip Use bottom ..2 hole 2x16mm Socket Head Cap Screw...
  • Page 14 ..4 2.6x8mm S/T Screw ..2 2.6x10mm F/H S/T Screw 2.6x8mm S/T Screw 2.6x10mm F/H S/T Screw Use bottom hole ..2 2.6x8mm S/T Screw ..2 Body Clip ..2 2x16mm Socket Head Cap Screw ..2 2mm Lock Nut ..2 2.6x8mm S/T Screw ..2 3.8mm Ball Stud...
  • Page 15 2.6x12mm S/T Screw ..3 2.6x8mm S/T Screw ..1 2.6x12mm S/T Screw 2.6x8mm S/T Screw ..4 Pivot Ball Retainer ..2 3.8mm Ball Stud ..4 6x10mm Ball Bearing Left Right ..4 Front Knuckle Piviot Ball Left Right Thread pivot ball in to cover half the hole. 2x8mm Shaft Pin The pins should...
  • Page 16 Right Left 2x26.5mm Hinge Pin..2 2x37.5mm Hinge Pin..2 ..2 2.6x8mm Screw ..1 2.6x10mm F/H S/T Screw 2x26.5mm 2.6x8mm Hinge Pin S/T Screw 2.6x10mm F/H S/T Screw 2x37.5mm Hinge Pin ..2 2x6mm S/T Screw...
  • Page 17 14.5mm ..2 3x20mm Threaded Shaft Right ..2 2x12mm R/H Screw ..4 6x10mm Ball Bearing 2x26.5mm Hinge Pin..2 Left...
  • Page 18 Right Left 2x37.5mm Hinge Pin..2 2.6x6mm Screw ..4 2x6mm S/T Screw 2.6x6mm Screw 2.6x10mm F/H S/T Screw ..4 2x6mm S/T Screw 2.6x8mm 2.6x6mm S/T Screw ..4 Screw 2.6x8mm S/T Screw ..3 2.6x10mm F/H S/T Screw Front Rear Short shock Long shafts shock ..8...
  • Page 19 Rear Front Slowly move the shaft up and down Long springs to remove trapped Short springs air bubbles Rear ..4 2x12mm Screw ..4 2mm Lock Nut Front...
  • Page 20 ..1 3.8mm Ball Stud 2.6x12mm R/H Screw Varies with servo type Double-Sided Tape Double-Sided Tape Double-Sided Tape Servo Ch1, ESC Ch2 Yellow to motor to ESC...
  • Page 21 Wear eye protection when gluing tires. Glue Glue ..4 2.6mm Lock Nut ..4 2.6mm Washer...
  • Page 22 Graphite Front Brace Ball Differential DTXC6599 DTXC7348 Aluminum Rear Hub (Blue) DTXC8005 Front Sway Bar Set DTXC9602 Rear Sway Bar Set DTXC9603 Aluminum Hinge Pin Support Front DTXC8066 For more optional parts and accessories, contact your hobby dealer or duratrax.com...
  • Page 23 6-cell 1600 mAh NiMH Battery DTXC2193 Onyx 220 Programmable Peak Charger DTXP4220 Graphite Front Shock Tower DTXC9186 Aluminum Shocks DTXC8997 Front DTXC8998 Rear Graphite Rear Shock Tower DTXC9187 Pit-Tech Mini Car Stand DTXC2361...
  • Page 24 ® Entire Contents Copyright © 2009 DTXZ1064 for DTXD17** v1.0...
