User Manual
Quick Installation Guide

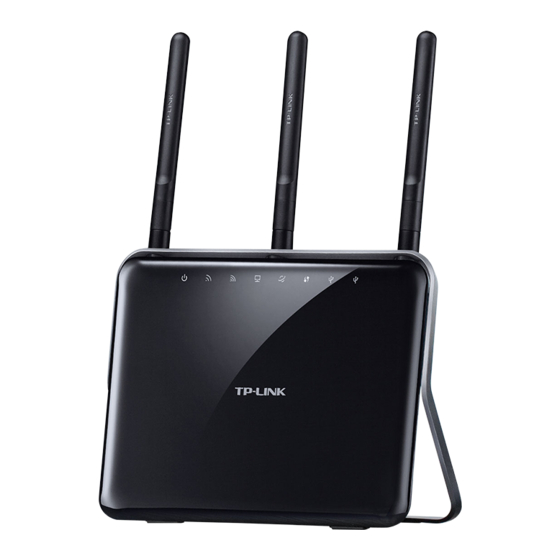

AC1900 High Power Wireless Dual Band Gigabit Router
7106506180 REV1.0.0
Connect the Hardware
If your Internet connection is through an Ethernet cable from the wall
instead of through a DSL / Cable / Satellite modem, connect the Ethernet
cable directly to the router's Internet port, then follow steps 5 and 6 to
complete the hardware connection.
Internet
Power adapter
1
Install the antennas.
2
Turn off the modem,
and remove the backup
battery if it has one.
Modem
3
Connect the modem to the
Internet port on your router
with an Ethernet cable.
4
Turn on the modem, and then
wait about 2 minutes for it to
restart.
Router
6
Verify that the following LEDs are on
and solid before continuing with the
configuration.
Power
On
Note: If the 2.4G LED
the Wi-Fi On/Off button on the side panel for 2 seconds
and check the LEDs again a few seconds later.
Power adapter
5
Turn on the router.
2.4G
5G
Internet
On
On
On
and 5G LED
are off, please press
Advertisement
Related Manuals for TP-Link Archer C1900
Summary of Contents for TP-Link Archer C1900
- Page 1 Quick Installation Guide Power adapter AC1900 High Power Wireless Dual Band Gigabit Router Install the antennas. 7106506180 REV1.0.0 Connect the Hardware If your Internet connection is through an Ethernet cable from the wall instead of through a DSL / Cable / Satellite modem, connect the Ethernet Turn on the router.
- Page 2 If you are not sure which WAN Connection Type you have, use Auto Detect or contact your Internet Service Provider (ISP) for assistance. 1. Scan the QR code to download the TP-LINK Tether app from the Apple App Store or Google Play.
