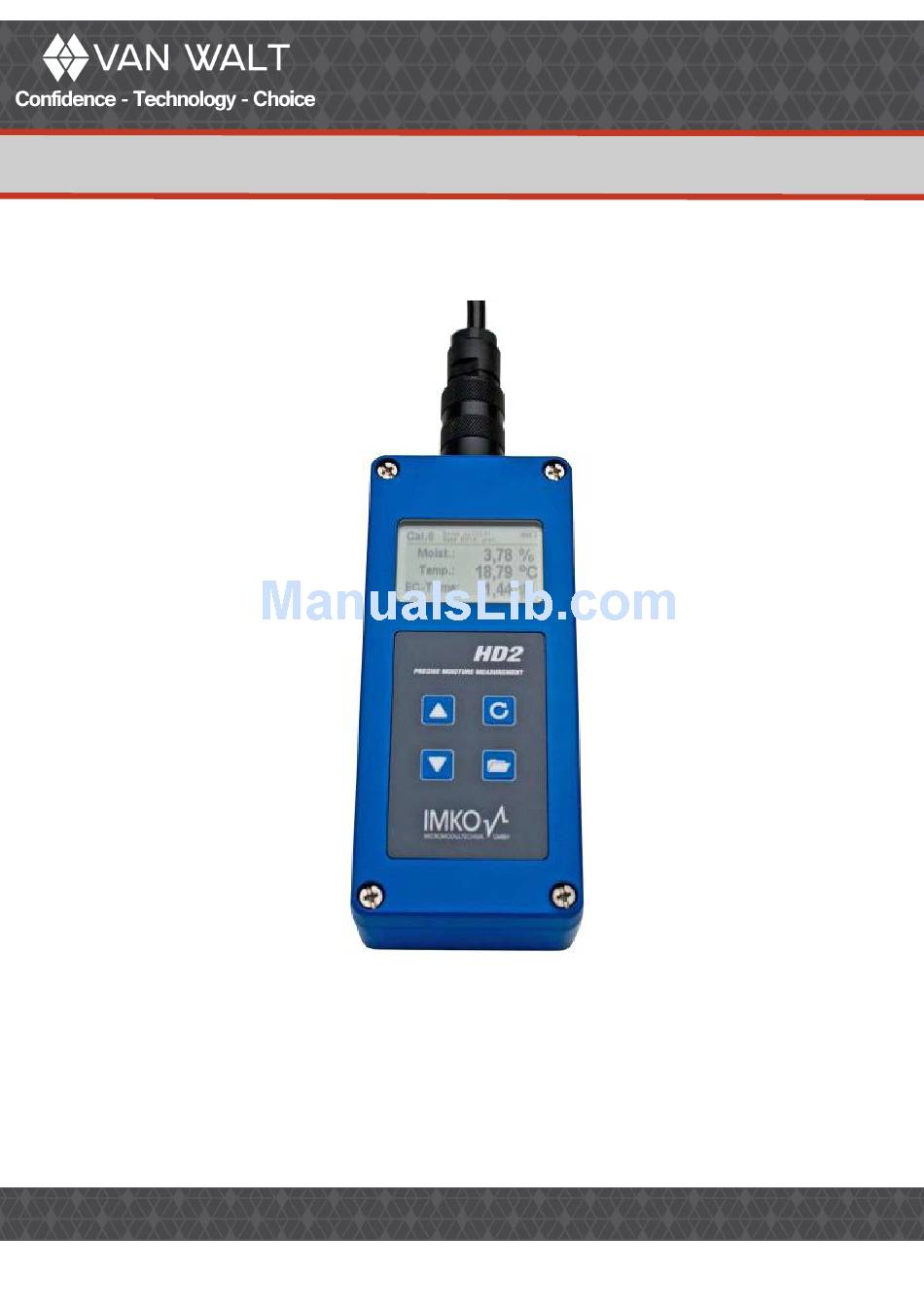

- Page 1 Operating Instructions HD2 – Mobile Moisture Meter Van Walt Ltd | Prestwick Lane | Grayswood | Haslemere | Surrey | GU27 2DU | Tel. 01428 661 660 | Fax. 01428 656 808 | www.vanwalt.com MA167V1_25/02/2016_JO...
- Page 2 Trime moisture measurement sensors and was designed for mobile field deployment. Van Walt Ltd | Prestwick Lane | Grayswood | Haslemere | Surrey | GU27 2DU | Tel. 01428 661 660 | Fax. 01428 656 808 | www.vanwalt.com...
-
Page 3: Table Of Contents
Exchange of the Probe Rods................... Technical Data TRIME-PICO probes ................ TRIME-PICO64 ......................TRIME-PICO32 ......................Van Walt Ltd | Prestwick Lane | Grayswood | Haslemere | Surrey | GU27 2DU | Tel. 01428 661 660 | Fax. 01428 656 808 | www.vanwalt.com... -
Page 4: General Notices
The operation of the device under conditions beyond those depicted may lead to damage to the same. Van Walt Ltd | Prestwick Lane | Grayswood | Haslemere | Surrey | GU27 2DU | Tel. 01428 661 660 | Fax. 01428 656 808 | www.vanwalt.com... -
Page 5: Control Elements
(only for operation mode „Average „Settings“ Value“) - Concluding settings - Leaving a Menu Item Van Walt Ltd | Prestwick Lane | Grayswood | Haslemere | Surrey | GU27 2DU | Tel. 01428 661 660 | Fax. 01428 656 808 | www.vanwalt.com... -
Page 6: Charging The Accumulator
Connect the moisture probe to the HD2 by plugging in the 7-pole plug into the respectively provided socket at the HD“ and fastening the coupling nut. Van Walt Ltd | Prestwick Lane | Grayswood | Haslemere | Surrey | GU27 2DU | Tel. 01428 661 660 | Fax. 01428 656 808 | www.vanwalt.com... - Page 7 Remaining time until shut-down (illumination / APO) Press button „UP“ Press button „DOWN“ Van Walt Ltd | Prestwick Lane | Grayswood | Haslemere | Surrey | GU27 2DU | Tel. 01428 661 660 | Fax. 01428 656 808 | www.vanwalt.com...
-
Page 8: Switching On The Hd2 Portable Measuring Instrument
3. Continuous Measurement continuously measures the measurement variables Moisture, Temperature and the EC-Trime Van Walt Ltd | Prestwick Lane | Grayswood | Haslemere | Surrey | GU27 2DU | Tel. 01428 661 660 | Fax. 01428 656 808 | www.vanwalt.com... -
Page 9: Operating Mode „Average Value
Individual Values of the Measurements Residual Accumulator Capacity Average Value of the Measurements Van Walt Ltd | Prestwick Lane | Grayswood | Haslemere | Surrey | GU27 2DU | Tel. 01428 661 660 | Fax. 01428 656 808 | www.vanwalt.com... - Page 10 “Measurement” . You can exit the current menu item, and also the menu “Settings”, with the button “Settings” . Van Walt Ltd | Prestwick Lane | Grayswood | Haslemere | Surrey | GU27 2DU | Tel. 01428 661 660 | Fax. 01428 656 808 | www.vanwalt.com...
-
Page 11: Hd2-Mode
Only a maximum of 6 values can be stored in the list. Older values are removed from the list and are no longer involved in the formation of the average value. Van Walt Ltd | Prestwick Lane | Grayswood | Haslemere | Surrey | GU27 2DU | Tel. 01428 661 660 | Fax. 01428 656 808 | www.vanwalt.com... -
Page 12: Detecting Sensor/Probe
Should this not deliver a positive result, please contact our service department. Van Walt Ltd | Prestwick Lane | Grayswood | Haslemere | Surrey | GU27 2DU | Tel. 01428 661 660 | Fax. 01428 656 808 | www.vanwalt.com... -
Page 13: Display Illumination
Van Walt Ltd | Prestwick Lane | Grayswood | Haslemere | Surrey | GU27 2DU | Tel. 01428 661 660 | Fax. 01428 656 808 | www.vanwalt.com... - Page 14 These are: Serial Number Hardware Version (HW) Firmware Version (FW) Accumulator Capacity Accumulator Voltage Van Walt Ltd | Prestwick Lane | Grayswood | Haslemere | Surrey | GU27 2DU | Tel. 01428 661 660 | Fax. 01428 656 808 | www.vanwalt.com...
- Page 15 IMP-BUS-Protocol II Bus-Protocol 8 Data Bits, 2 Stop Bits, Odd Parity IMP-Bus Port Settings Van Walt Ltd | Prestwick Lane | Grayswood | Haslemere | Surrey | GU27 2DU | Tel. 01428 661 660 | Fax. 01428 656 808 | www.vanwalt.com...
-
Page 16: Handling Of The Trime-Pico Probes
For this reason, it is important to completely insert the probe rods in the material intended for measurement. Van Walt Ltd | Prestwick Lane | Grayswood | Haslemere | Surrey | GU27 2DU | Tel. 01428 661 660 | Fax. 01428 656 808 | www.vanwalt.com... -
Page 17: Measurement Of Laboratory Samples In The Bucket
5. After completion of the measurement, you can still carry out further measurements. To obtain a representative measurement, the sand is again agitate well. Van Walt Ltd | Prestwick Lane | Grayswood | Haslemere | Surrey | GU27 2DU | Tel. 01428 661 660 | Fax. 01428 656 808 | www.vanwalt.com... - Page 18 3) Press the gaskets until they reach the interior thread 4) Screw the rods into the probe body Van Walt Ltd | Prestwick Lane | Grayswood | Haslemere | Surrey | GU27 2DU | Tel. 01428 661 660 | Fax. 01428 656 808 | www.vanwalt.com...
-
Page 19: Technical Data Trime-Pico Probes
• Robust (IP68), proven, and suited for long-term in- stallation long-term in- stallation Van Walt Ltd | Prestwick Lane | Grayswood | Haslemere | Surrey | GU27 2DU | Tel. 01428 661 660 | Fax. 01428 656 808 | www.vanwalt.com... - Page 20 Operating Instructions HD2 – Mobile Moisture Meter Van Walt Ltd | Prestwick Lane | Grayswood | Haslemere | Surrey | GU27 2DU | Tel. 01428 661 660 | Fax. 01428 656 808 | www.vanwalt.com...
