Summary of Contents for Maxcom MM238 3G

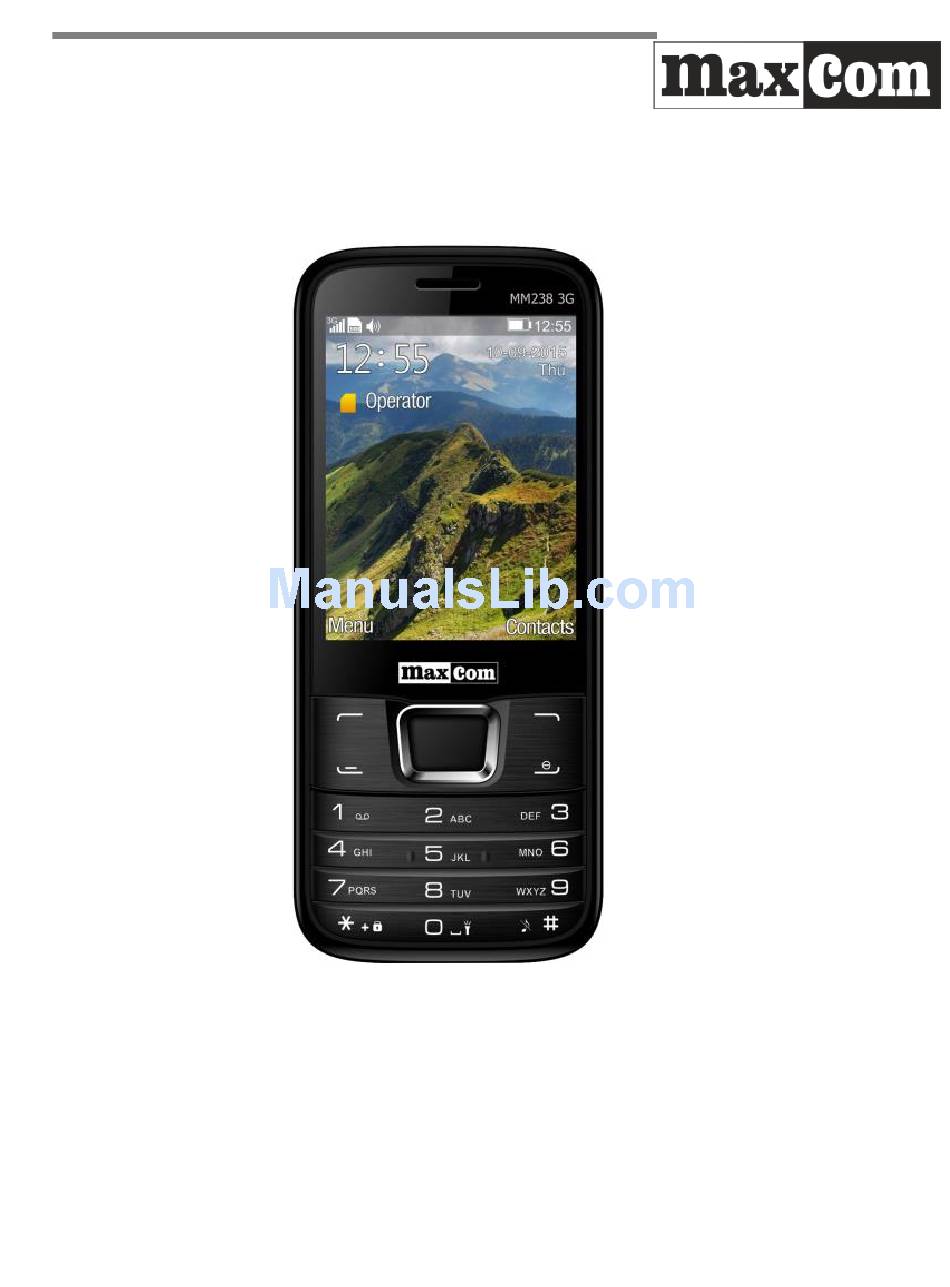

- Page 1 Mobile Telephone MM238 3G USER MANUAL Reading this Manual is highly recommended prior to using.
-
Page 3: Table Of Contents
Introduction ..............7 Accessories................ 7 Important Safety Precautions ..........7 Telephone Description ............ 10 ....................10 LCD Desciption ............. 12 4.1.1 Icons on LCD ............12 Getting started ..............13 SIM Card Installation ........... 13 Memory Card Installation ..........14 Battery Installation: ............. - Page 4 Drafts ................29 Outbox ................. 29 Templates ..............29 Network Messages ............29 Voicemail ..............29 8.10 Text & Multimedia Message Settings ....... 30 Call Log ................31 Call Log ................ 31 Multimedia ..............32 10.1 Images..............32 10.2 Audio ................ 32 10.3 Video ................
- Page 5 16.1.1 Time and Date ........... 42 16.1.2 Language ............42 16.1.3 Shortcut Settings ..........43 16.1.4 Auto Power On/Off ........... 43 16.1.5 Battery Level ............. 43 16.1.6 Browser Selection ..........43 16.2 LCD ................43 16.3 Security Settings ............44 16.4 Call Settings..............
- Page 6 If any technical assistance is required, please call the hotline at (48) 32 325 07 00 or email us at serwis@maxcom.pl Our website: http://www.maxcom.pl/ The set contains Mobile telephone Charger Battery 1200mAh Headset User Manual Warranty Card Keeping the original package is recommended as it might be used for transport.
-
Page 7: Introduction
User Manual. For more information or assistance, go to our website at www.maxcom.pl. The Manufacturer reserves his rights to information provided in this User Manual. Copyrights and trademarks as mentioned in this document remain the property of their owners. - Page 8 refueling points or at proximity of flammable materials. Using mobile phones in such places might expose others to danger. • Never use your phone without suitable accessories while driving. • A device and its accessories might contain small parts. Keep your phone and all parts out of reach of children.
- Page 9 • LCD – never press hard the LCD and never use sharp tools as doing so might damage the display screen. • Never press battery contact pins with metal tools as it might lead to explosion. • Never expose the phone to either low or high temperature, direct sunlight, or high humidity.
-
Page 10: Telephone Description
ELEPHONE ESCRIPTION Speakerphone Left Function Key (LFK)/Right Function Key (RFK): Allows you to use a feature as it is displayed in the bottom left/right corner. The Make Call button is used to make/answer phone calls. In Idle mode, press the key to see the latest phone call. - Page 11 The ON/OFF key, END CALL/ABORT button: allows you to end or reject an incoming phone call. Press and hold this key to switch the phone ON or OFF. The key also restores Idle mode if the phone is in other options. Navigation keys: Allow you to move a cursor left, right, up and down, or navigate within the menu.
-
Page 12: Lcd Desciption
LCD Desciption Pole ikon wyświetlacza Date & Time Logo/SIM card service provider’s name Right Function Key function (RFK) Left Function Key function (LFK) Icons on LCD 4.1.1 Icon Meaning Network signal strength: the more bars it displays, the stronger the signal. Alarm clock has been set and activated Missed phone calls: the icon is displayed as soon as there is/are missed phone call(s) -
Page 13: Getting Started
A profile on The icon is displayed as soon as Bluetooth is activated The icon is displayed when the headphone set in activated. Note: To save power, the LCD automatically goes to sleeping mode after a certain time has gone past. To disable backlit LCD, press the Right Function Key or the End Call button ETTING STARTED SIM Card Installation... -
Page 14: Memory Card Installation
Memory Card Installation There is an option to install a Micro SD Memory Card of 16GB. The memory card might me slide out from its position while shaking the phone. Never bend or scratch the memory card; never expose it to static electricity or dust;... -
Page 15: Battery Installation
Be careful while using the memory card especially while installing and uninstalling the card. Some memory cards must be formatted on a PC before the first use. Make backup copies of data stored on cards used in other devices, if you use SD cards! Misuse or other factors might cause damage or loss of data stored on the cards. - Page 16 3. Put the battery cover back, and slide it upwards.
-
Page 17: Removing The Battery
Removing the Battery Switch off the phone, press the back cover, and slide it down the phone, then slightly lift the cover, and remove it. After removing the battery, you might lose all settings or information saved on the card or in the phone. -
Page 18: Security Codes
your phone. If the charger is properly plugged in, battery indicator bars will blink on the LCD. As soon as the battery is fully charged and battery indicator bars stop blinking, unplug the battery. If the battery is almost discharged, the telephone will emit a warning sound alert (if it is enabled in Profiles->Options->Other Notification Alerts);... -
Page 19: Telephone Code
You might unlock the card by entering the PUK that is PIN Unlock Key. If you enter an incorrect PUK ten times, the SIM card will be permanently locked. For more information, contact your service provider. Telephone Code Telephone Lock Code does not allow anybody to use your phone with no authorization (the original phone lock code is 1234). -
Page 20: Making Phone Calls
only or for non-communication purposes. Making Phone Calls In Idle mode, type the phone number you want to dial. Press the right function key [Delete] to delete errors you have entered. If there a single SIM card on the phone, press the key to make a phone call. -
Page 21: Keypad Lock
special ringtone; if your network accepts the caller’s ID, on the LCD you will see the name or the number of the caller (it depends on whether information about the caller has been saved in the Phonebook). 1. Press the Make Call button or the Left Function Key to answer an incoming phone call. -
Page 22: Viewing Phonebook
Contacts. There are two locations for you to save frequently used names and phone numbers: either on the SIM card or in the phone memory. The number of Contacts to be saved depends on the SIM card and its storage capacity. Select Menu to enter the Phonebook. -
Page 23: Adding Entry To Phonebook
Adding Entry to Phonebook In Idle mode, enter the phone number directly, then press the middle navigation key „Enter”, and press its location: the SIM card or the telephone. Press the OK button, and then enter the name, and pressing the Left Function Key press [Save] * While adding a new entry to the Phonebook, you can add not only a name and a phone number, but also some additional... -
Page 24: Speed Dial
„Mark/Highlight All” -> „Options” -> „Ok.” Import/Export Contacts In the Phonebook, select „Options” -> „Import/Export” -> „Import Contacts”. Select where you want to import Contacts from, press „mark” and then „select”, and Contacts will be added to the Phonebook. In the Phonebook „Options” -> „Import/Export” -> „Export Contacts”. -
Page 25: Inbox
Menu->Messages Inbox As soon as you received a text or multimedia message, you will hear a sound alert, and an unread message icon will be displayed on the LCD. Text messages you have received might be stored either in the phone or on the SIM card whereas multimedia messages might be stored either in the phone memory or on the Micro SD card. -
Page 26: Sentbox
• Relocate: you can move the message either to the phone or the SIM card • Copy: you can copy the message to either the phone or the SIM card • Mark: marked messages might be moved, copied, locked or replied to by the text or multimedia message •... -
Page 27: Creating A Multimedia Message
and press Options->OK. Press the key Down to go to the text input box. Note: A single message can’t be longer than 160 characters. If diacritical marks are used, the number of characters might not exceed 60. In the top right corner there will appear information on how many characters and how many text messages will be sent. - Page 28 go to the text input box, press add and enter you’re the text of your message. Sending a multimedia message – in the frames you might add an image, sound, or other attachment. Press the Left Function Key [Options] to select the following options while editing the message: •...
-
Page 29: Drafts
• Set slide timing: specify time for each slide to be displayed • Position of the text: select whether to place the text over or below the image. Drafts You can save unsent messages in the Drafts folder. To do so, type your message, and after pressing the Left Function Key select: „Save in Drafts”... -
Page 30: Text & Multimedia Message Settings
contact your service provider. You can get the voicemail number from your service provider. The number should be entered: Menu->Messages->Voicemail>Line 1 number (Edit). Hold and press the key 1 in Idle mode to get to your voicemail. Text & Multimedia Message Settings 8.10 In „Menu”->”Messages”... -
Page 31: Call Log
- set reading options. Call Log The telephone saves received, missed (if such service is offered by a network and if there is some reception), dialed, and rejected phone calls. To get Call Log displayed, press the Make Call button in the Idle mode. -
Page 32: Multimedia
and received. After pressing the Left Function Key, the counter can be reset. When the selected call log is displayed, press the Make Phone key or the Left Function Key [Option->Connect] to dial a given number; press the Left Function Key to select any out of the following options: Details, Make Call, Create Message, Add to Phonebook, Add to Blacklist, Delete All. -
Page 33: Video
Enter the audio file player, press „Options”, and then: - Playlist: Open a playlist or create your own playlist, - Add: add a song to a saved playlist or to a newly created playlist, - Set as ringtone: set a song as a ringtone or as an alarm - Randomly: songs will be played randomly - Replay: song/songs will be automatically replayed - Settings: select a background for the audio player, equalizer,... -
Page 34: Voice Recorder
- Details: you can verify each detail of the file - Abort: leave the player. Voice Recorder 10.4 Your phone has a feature of recording phone calls or any sound in the file AMR or WAV. After entering the Voice Recorder, press the middle key OK to start recording. -
Page 35: Camera/Video Camera
• Speaker on – radio will be played via speaker (radio does not work without a headset that doubles as an aerial) • Play in the background – switch on to use other phone features, • Save – allows you to record radio programs, •... -
Page 36: Bluetooth
enabled/disabled Settings->Call Settings->Others->Auto Record Call. You can also start recording while already talking on the phone– using the keys Right/Left, select “Save” and press “OK”. Bluetooth 10.8 Select Menu->Bluetooth The phone might be used to transfer data in Bluetooth technology. Bluetooth technology might establish a wireless connection between electronic devices within a range of 10m. -
Page 37: My Files
want to share, • Bluetooth name: you can get any nickname for the phone to be visible as to other Bluetooth devices, • Memory: select a location to save received files. Y FILES Menu->My files You can select from files saved on the memory card or in the phone memory. -
Page 38: Extras
XTRAS Calculator 12.1 Select Menu->Calculator Your telephone has a calculator that can perform four basic mathematical operations, making calculations easy. Note: The calculator is precise up to 13th digit. Type the first number, using the keys up/down/right/left, select an operation, type the second number, and press OK. -
Page 39: Measurement Converter
go off again. While the user is making a phone call, he will be notified about alarm going off by a discreet sound. Select an alarm from the list, and press the key OK [Edit] to go to the settings menu; next steps are as follows: rename the alarm, set time, set ringtone and select days for the alarm to go off. -
Page 40: Sim Service (Stk)
value, and then press „OK” SIM Service (STK) 12.5 Regardless features of the phone, the SIM card might offer you some additional service. Name and features of such menu depend on types of available service. While using the MM238, some service does not apply due to its limited functionality. -
Page 41: Internet Browser
Internet Browser 14.1 There are two Internet browsers on the phone, Opera Mini and Dorado. After starting the browser, select an account to use. To surf the websites, use the keys Up/Down/Right/Left. To click, press the OK key. E-mail 14.2 You can check emails on the phone. -
Page 42: Settings
• Volume: Adjust volume of ringtone, message alert, and calendar, of conversation volume, and ringtone volume (phone on/off) • Alert type: select Ringtone, Vibration, Silent, Vibration then Ringtone, • Other notification sounds: Set keypad sound, low battery alert, ringtone (switching on/off the phone), dialing sound. ETTINGS Phone Settings 16.1... -
Page 43: Shortcut Settings
- 2x Left Function Key Then, select a language and press the Left Function Key to confirm. Shortcut Settings 16.1.3 Navigation keys Up, Down, Left, Right and the Right Function Keys might serve as shortcut keys, giving you the access to certain features in Idle mode. -
Page 44: Security Settings
- Menu appearance: select effect for moving between icons in Menu -3D effect for the list: switch on/off the effect while scrolling the list - Switch on animation – select an image or animation to be displayed while the phone is being switched on, - Switch off animation: select an image or animation to be displayed while the phone is being switched off, - Wallpaper –... -
Page 45: Call Settings
any wrong PIN code three times, type the PUK code you have received from the provider, and then type your new PIN; you will be asked to type this code every time you switch on the phone. • PIN2: to get the PIN2 code, contact your service provider, •... -
Page 46: Call Waiting
Call Waiting 16.4.2 It is a network service – you might either enable or disable the feature of call waiting. If Call Waiting is enabled, and the user is talking on the phone, he/she will be notified about any other incoming phone call by a special beep of a second call;... -
Page 47: Other
Other 16.4.5 • Call duration alert – set time for the phone to emit a short beep at a certain point of the phone talk, • Auto redial – when the feature is enabled, and the recipient does not answer your call, the phone will automatically redial the number. -
Page 48: Account
- GSM preferred – any time it is possible, the phone will get connected with the 2G network, if such a connection can’t be established, it will connect with the 3G network - GSM – the phone will connect with the 2G network, - WCDMA –... -
Page 49: Network Selection
by the application) or “Energy saving mode” (only when the phone is active). Network Selection 16.5.5 The telephone automatically searches for a network. If you want to do it manually, press „OK”-> „Manual” and select a provider. Restore Factory Settings 16.6 To restore the phone to factory setting, enter the phone lock code (default 1234), and select „Yes”... - Page 50 „The phone The phone might be switched off; to switch on the does not work. phone, press the Make Call button and hold The phone it for about 3 seconds. does not charge If you have not used the phone for a long time, the when plugged battery might be “deeply-discharged”;...
-
Page 51: Technical Specs
Places such as buildings reduce signal strength, therefore you should get closer to a window or relocate to an area not surrounded by many buildings. „My display Keypad lock is on. Unlock the keypad by pressing reads: „Press*”, the Left Function Key, and then *. keys do not work. -
Page 52: Battery Information
Battery type Li-ion 3,7V Battery capacity 1200 mAh Talk time: Up to 6 hrs (2G) Up to 4 hrs (3G) Idle time: up to 200 hrs. ATTERY INFORMATION There is a battery in the phone. The battery can be recharged with a charger that is included in the set. -
Page 53: Sar Information
phone. Do not use a battery that is clearly damaged. Doing so might cause a short circuit, and might damage your phone. Make sure to install the battery in accordance with polarization. Leaving the battery in excessively hot or cold places will reduce the battery life. -
Page 54: Protect Your Environment
Such discrepancies result from automatic changes in device power necessary to ensure that the device operates at a minimum power level required to be connected with network. Although SAR values might vary for different models of phones or even for different positions of the same model, they are all compliant with regulations pertaining to safe level of radiation. - Page 55 Note: The phone follows the European Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE) and the Polish Act on Waste Electrical and Electronic Equipment. Such a logo tells us that the equipment, after use, must not be disposed of in the normal waste stream. Note Never throw your phone &...
- Page 56 Manual might vary depending on the software and country. If technical assistance is required, please contact the technical department as +48 32 325 07 00 or send an email to: serwis@maxcom.pl Our website: http://www.maxcom.pl/ Note: Actual performance of battery depends on a local network environment, SIM card, and the way your phone is used.
-
Page 58: Declaration Of Conformity
ECLARATION OF ONFORMITY... - Page 60 MAXCOM S.A. ul. Towarowa 23a 43-100 Tychy Poland tel.: +48 32 327 70 89 fax: +48 32 327 78 60 www.maxcom.pl e-mail: office@maxcom.pl...
- Page 61 0700...
