Summary of Contents for Maxcom MM715BB

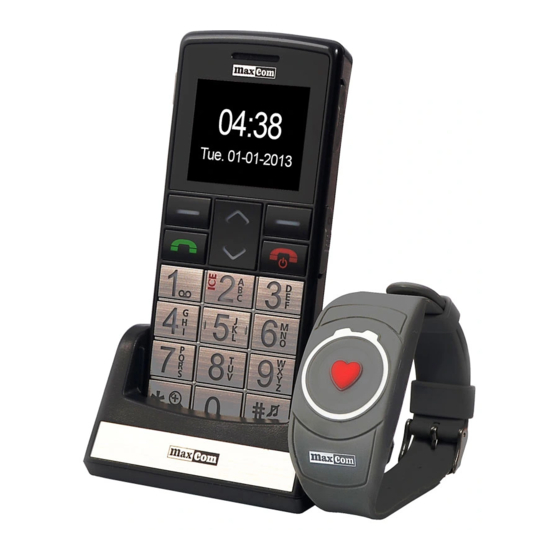

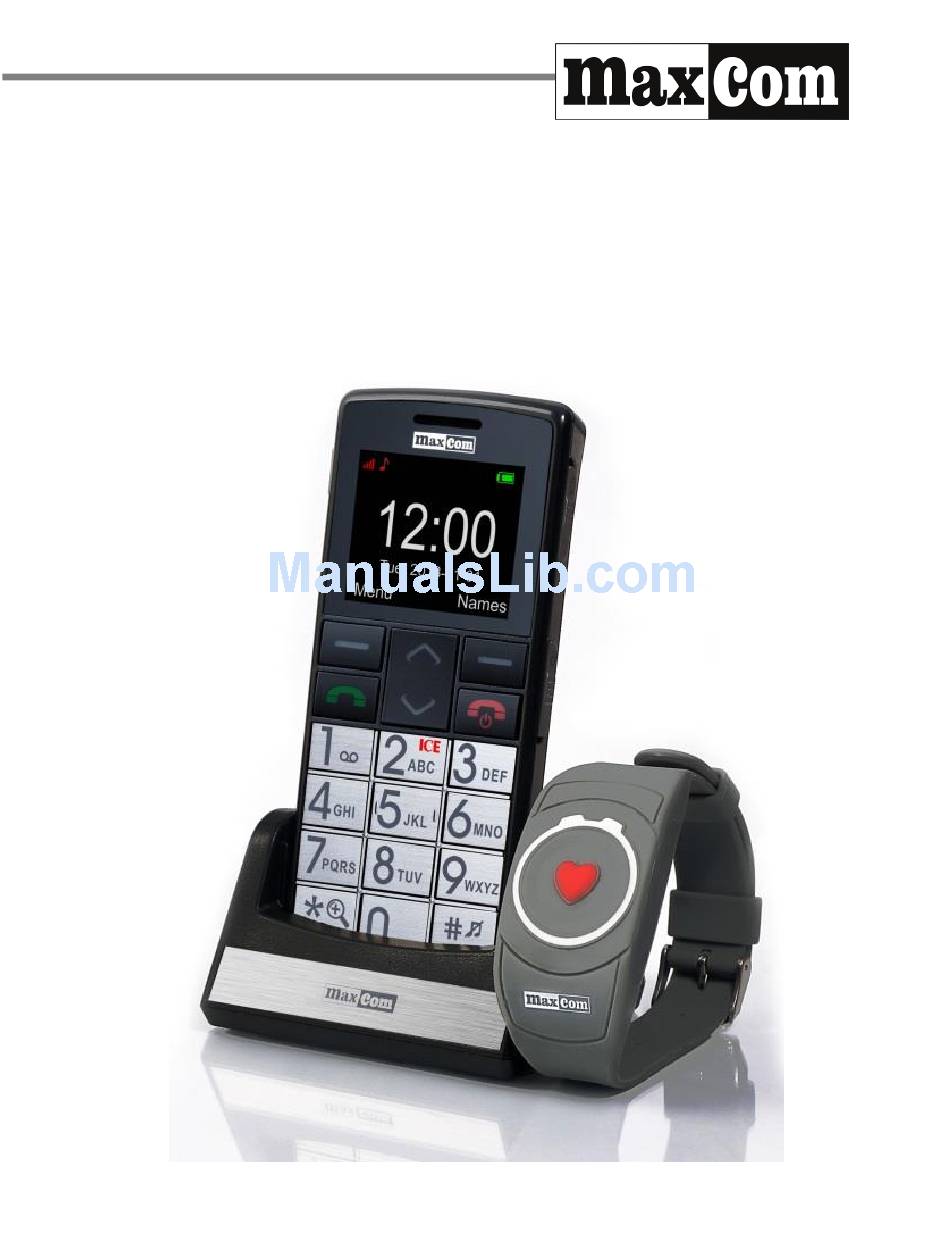

- Page 1 User manual GSM Mobile phone Maxcom MM715BB with wireless SOS bracelet...
- Page 3 If you need a technical assistance, call the hotline (+48) 32 325 07 00 or write an e-mail to serwis@maxcom.pl Our website: http://www.maxcom.pl/ The set includes GSM phone Battery Charger USB cable Hands-free kit Desktop charger SOS bracelet User manual...
- Page 4 GSM 900/1800 Mobile phone 1,8"- coloured LCD display 160x 128 New SMS / missed call indicator VGA camera - 1.3MP (interpolated) Audio and video player Sound recording Talking Clip – telling the incoming number or a name (possibility to record the name and assign it to the contact) Voice prompts of contacts (number or recorded name) Bluetooth, GPRS, WAP, MMS Slot for Micro SD...
- Page 5 Standby time: to 105 hours, (220 hours, if the option of wireless SOS bracelet is deactivated)*. Talking time to 7 hours* Weight :82g *depending on conditions and GSM network signal SOS bracelet Operational frequency 433.92MHz , Interchannel spacing +/-300KHz, ASK modulation Input power: 81mW Watertightness IP56 Range to 20m (indoors),to 100m (open space)
-
Page 6: Table Of Contents
Table of contents Rules of safe operation ..............10 1. Installation of elements...............11 Installation of SIM card and a battery ........11 Charging the battery..............14 1.2.1 Desktop charger (option) .............15 Low battery alarm ..............15 2. Localisation of buttons..............16 Basic functions of buttons ............17 3. - Page 7 6.9.7 Memory state ...............32 7. Calls ....................32 Direct number dialing ..............32 Dialing the number from the phonebook ........32 Dialing numbers from the list of last calls .......33 Quick dialing ................33 ICE key ..................33 Emergency calls ..............34 7.2.1 Information about the user ...........35 7.2.2 Entering and modifying emergency contacts ......35 7.2.3...
- Page 8 Voice mail ................45 10. Applicatios...................45 10.1 Magnifier ..................45 10.2 FM Radio .................46 10.3 Calculator ................47 10.4 Alarm clock ................47 10.5 Calendar ..................48 10.6 Tasks ..................48 11. Multimedia...................49 11.1 Files manager ................49 11.2 Camera ..................50 11.3 Video recording ...............52 11.1 Picture viewer ................52 11.2 Video player................53 11.3 Audio player................53 11.4 Dictaphone ................53...
- Page 9 13.6 Restoring factory settings ............61 13.7 Shortcuts .................61 13.8 Data account ................61 13.9 Network services ..............62 13.9.1 WAP ..................62 13.9.2 SIM services .................63 14. Connection to the computer ............63 15. FAQ (Solving problems) .............63 16. Conditions for use and safety ............67 17.
-
Page 10: Rules Of Safe Operation
Rules of safe operation Acquainting with the following rules will minimalize the risk of incorrect usage of the phone. · Do not use the phone In the area, where it is forbidden, for example on petrol stations or in hospitals. Using the phone in such places may put other persons in danger. -
Page 11: Installation Of Elements
· The device and its accessories may consist of small parts. The phone and its elements should be protected against children. · It is forbidden to perform repairs or modifications of the phone. All the defects should be removed by qualified service. - Page 12 When the phone is switched off, on the right side of the bottom part of the phone lever the battery cover with your nail. Take out the battery by levering it with the nail from the top of the phone. Insert the SIM card to „...
- Page 13 · Above the SIM card nest, on the left side there is a place for MicroSD memory card. Move the cotter pin towards OPEN and then lift it up. Insert the MicroSD memory card so that the contacts of the card touch the phone contacts, close the cotter pin towards LOCK.
-
Page 14: Charging The Battery
Charging the battery Note! Use the battery included in the set. Using another battery may damage telephone and cause the loss of warranty. It is forbidden to connect the charger when the rear cover of the housing is removed. To charge the phone: 1. -
Page 15: Desktop Charger (Option)
1.2.1 Desktop charger (option) In the case of using the desktop charger, first connect the small plug of the wall charger to the socket of the desktop charger, and then connect the power adapter to the power network. To charge the phone just place it to the desktop charger with the contacts directed downwards. -
Page 16: Localisation Of Buttons
The symbol will be displayed. Charge the battery when such kind of information will appear. 2. Localisation of buttons LED indicator Flashes: Red- low battery level Blue-missed call Speaker Green-unread message Screen LFK (Left function key) RFK (Right Green reciever, function key) przycisk połączenia... -
Page 17: Basic Functions Of Buttons
Basic functions of buttons Button Function LFK (left function Entering menu, confirmation key key) RFK (right function Entering contacts, return key key) Press: return to standby mode; end a call. Red receiver Press and hold: switch on/off the phone Green Making calls;... - Page 18 Press: digits from 3 to 9 Press and hold: dials of the programmed number of quick dialing Press: Entering characters: *, +, P, W Press and hold: Enlarging /Reducing menu type Press： Changing the mode of entering text while writing an SMS; entering # Press and hold: Switching on/off the silent mode...
- Page 19 Torch SOS button Pressing and holding will Ringtones activate the speaker emergency procedure. It will call the defined number and it will send SMS Volume adjusting +/- Torch switch button Keylock switch Camera Micro Earphones USB/Charging socket socket...
-
Page 20: Sos Bracelet
3. SOS bracelet LED diode SOS button SOS bracelet is usually registered to a particular phone placed in the package by default. It enables making SOS call in the case when we do not have the phone at hand. In order to ensure that the SOS procedure was performed, the bracelet must be registered and switched on in the phone. - Page 21 Press and hold SOS button for more than 3 seconds to start SOS procedure. To end SOS procedure press and hold SOS button on the phone Note. Indoors the range of the bracelet is up to 20m, outdoors up to 100m The range of the bracelet of the phone depends on the surrounding (line of the land, thickness of walls, electromagnetic interferences etc.) and it may be...
-
Page 22: Using The Phone
SOS bracelet has a protection against strong streams of water or flooding with the wave. It is not resistant to complete immersion in the water. 4. Using the phone Switching off the phone Press and hold red button used for ending a call, to switch on the phone. -
Page 23: Switching Off The Phone
Switching off the phone To switch off the phone press and hold the button used for ending a call. Standby mode When the phone is switched on, but no operations are performed then it is in standby mode. Description of the display 1. -
Page 24: Keylock
2. Icons indicating functions: Earphones Only sound signal connected Sound signal + New SMS vibrations Only vibrations Muted Call transfer Alarm active activated Roaming Missed call active icon appears also in domestic roaming in the Bluetooth switched situation when the subscriber uses the network of the other operator... -
Page 25: Using Menu
It is not necessary to unlock the keys to answer the call. 5. Using MENU To enter the MENU in standby mode press left function key. To navigate the MENU use UP and DOWN keys. To confirm the selected function press left function key (LFK). -
Page 26: Adding A Photo To The Contact
Select „Save”, press LFK, select where you want to save and enter the name of the contact. Press Ok, and then „Done” 3. You may add the new contact directly to the phonebook. In standby mode select MENU- >Contacts->New Contact. Select where you want to save it and enter the name and the number of the contact. -
Page 27: Scrolling Contacts
If a special ringtone has been assigned to the contact, then during a call coming from the contact it will signal the call instead of a general ringtone. If the name has been assigned, it will be repeated instead of the ringtone. In contact edition menu select: Ringtone... -
Page 28: Deleting Contacts
Method 2 1. In standby mode press right function key 2. Enter the first letter of the name, that you are searching The phone will go to the names beginning with this letter. You can scroll the list with UP/DOWN navigation keys. -
Page 29: Copying Contacts
Copying contacts To copy the contacts from SIM card to the phone or from the phone to SIM card: 1. Select: MENU->Contacts->Copy, and then select, where you want to copy the contacts. 2. Select whether you want to copy the contacts individually or all. -
Page 30: Marking A Few
the person calling from this number will always hear busy signal. Marking a few Select MENU->Contacts->Mark a few and then: - Send SMS, if you want to send SMS to few recipients - Send a business card, if you want to send a business card to several recipients. -
Page 31: My Number
6.9.3 My number You can enter your number (or other). In the display settings you may activate the function of displaying this number on the screen in standby mode. 6.9.4 Simple dialing Select MENU->Contacts->Settings->Simple dialing->State, to activate or deactivate quick dialing. If quick dialing is activated and numbers are assigned to keys 3-9, after pressing and holding appropriate key the call will be made with the saved number. -
Page 32: Memory State
then during scrolling the phonebook the voice note will be played. 6.9.7 Memory state This option makes it possible to check the state of card and phone memory. Select: MENU->Contacts->Settings- >Memory state 7. Calls Direct number dialing 1. Enter the phone number you want to call For international calls it is required to enter „00”... -
Page 33: Dialing Numbers From The List Of Last Calls
With the use of UP/DOWN keys select appropriate contact. If you want to go to the contact quickly beginning for example with U letter, press 8 key twice. To make a call with the selected contact press green receiver. Dialing numbers from the list of last calls Press green receiver, when the phone is in standby mode, to go to the list of last calls. -
Page 34: Emergency Calls
Entering and modifying emergency contacts and Informa Emergency calls If you do not have any SOS number set, after pressing and holding SOS button, the call with 112 number will be made. You may set five emergency numbers. After pressing and holding SOS button (located in the back of the phone) SOS function will be activated. -
Page 35: Information About The User
7.2.1 Information about the user Select MENU->In the case of emergency.->Inf. about the user, to set the name of the user, their illnesses, allergies and blood group. This information will be displayed after the emergency call as well as after pressing “2” key (ICE) 7.2.2 Entering and modifying emergency contacts You may select up to 5 emergency numbers. -
Page 36: Sos Button
7.2.3 SOS Button You may activate or deactivate SOS button. In order to do this select MENU-> In the case of emergency->SOS button. 7.2.4 Emergency text You may change the text of SMS message, which is sent during the emergency call. The following text is entered by default: „... -
Page 37: Setting Sos Bracelet
answering the call by pressing 5 ensures that, the call was answered by a human, and not by for example by a voice mail. SOS message can be deactivated only in the case, when we are sure that saved emergency contacts have all transfers to the voice mail cancelled ( when busy, when there is no answer, when out of range, when inaccessible ...) -
Page 38: 3Logging In/Out Sos Bracelet
7.2.7.3 Logging in/out SOS bracelet To log out SOS bracelet press MENU-> In the case of emergency-> SOS bracelet->Log out the bracelet and press LFK to confirm To log in SOS bracelet press MENU-> In the case of emergency-> SOS bracelet->Log in the bracelet and press and hold SOS button of a bracelet Answering calls To answer an incoming call press green receiver. -
Page 39: Sms And Mms Messages
Missed calls (to display missed calls). If you have not answered a call, in the readiness mode the symbol of a receiver will be displayed in the left upper corner of the screen and LED indicator will flash blue. Dialed numbers (to display dialed numbers). Answered calls (to display answered calls) Delete the list (to delete selected calls from the list) Call time (allows to check the duration of selected calls) -
Page 40: Writing And Sending Sms-Es
full, icon will flash. Delete messages from inbox, to solve the problem. Writing and sending SMS-es 1. Enter MENU->Messages->Write a message>SMS open the message editor. 2. Write your message. · Changing the method of entering the text: To change the method of entering the text (digits, small or capital letters) press „#”... -
Page 41: Reading And Responding To Sms-Es
If you want to send MMS, select MENU->Messages- >Write a message->MMS, Press LFK (Options) and select the content (Picture, sound, video, subject...)> LFK (Options) > Send to > enter the recipient> LFK (Options)> Send. Reading and responding to SMS-es 1. When the icon of unread message will appear on the display or when you want to read received messages, select MENU->Messages->Inbox. -
Page 42: Sms Boxes
SMS boxes 9.3.1 Inbox Shows received messages, sorted by date of receiving. To navigate the inbox use UP and DOWN keys. To display additional functions, during scrolling the inbox press „Options”: - Preview: allows to read the message - Respond via SMS: write SMS to the sender - Respond via MMS: write MMS to the sender - Call: call the sender - Transfer: allows to send the message to another... -
Page 43: Outbox
9.3.4 Outbox If the message was not successfully sent it will be saved in the outbox. 9.3.5 Network messages Network messages are kind of an information service, they are sent by the operator. In MENU->Messages->Network messages you may activate or deactivate the function, set the channels, language and read the messages. -
Page 44: Mms
- Delivery report.: You may set the phone so that to receive returnable SMS that your message was delivered to the sender (network service) - Respond path: allows to activate or deactivate the respond path. - Call: allows to select the type of a call when sending ·... -
Page 45: Network Messages
9.5.3 Network messages You may enable receiving network messages and select the method they are going to be started. 9.5.4 Type size Allows to set the type size in SMS. The type size can be changed with the use of Voice mail The voice mail is an operator’s service allowing to leave the voice recordings, when someone cannot call us. -
Page 46: Fm Radio
reduce the picture in size. In order to leave the function of Magnifier, press red receiver. 10.2 FM Radio The phone is equipped with built-in FM radio receiver. To use the radio connect handsfree set. There is no possibility to receive the radio through the phone’s speaker. -
Page 47: Calculator
· 6: next station · RFK (right function key): return to menu · LFK (left function key) – options: List of channels, manual entering, automatic searching, setting (play in the background) 10.3 Calculator To switch on the calculator, select MENU->Calculator. The following mathematic operations are available: addition, subtraction, multiplication, division. -
Page 48: Calendar
10.5 Calendar To activate the function of the calendar, select MENU- >Organizer->Calendar. To go to the next/previous day use Up/Down keys. To go to the previous/next week use 2 and 8 keys. In the calendar you can save the reminders concerning important events. -
Page 49: Multimedia
press Options (LFK), to view the details of the task, to delete or edit it. If an alarm was set for the task, the phone will start ringing on specified time and it will display the content of the task. 11. -
Page 50: Camera
11.2 Camera The phone makes it possible to take pictures and record the video. To switch on the camera, select MENU->Multimedia- >Camera. After switching on you will see the picture on the screen. The camera is equipped with digital zoom (enlargement). - Page 51 You may select: normal, sepia, grey Settings of effects scale etc. Allows to select whether the pictures are Memory going to be saved on memory card or in internal phone’s memory Restore default Restores default camera settings Internal memory of the phone allows to take several pictures.
-
Page 52: Video Recording
- Sort by, allows to change the function of sorting, for example by date, name, size - Memory, allows to select whether the pictures are going to be displayed from the memory card or from phone’s memory To record a video, in options select Switch to camera. 11.3 Video recording To set the option of recording press left function key. -
Page 53: Video Player
11.2 Video player With the use of a video player you may view previously saved films. Select appropriate film with the use of Up/Down keys. To start and stop playing press 5 key. To stop playing, press right function key. During scrolling the list of films, press “Options, to display additional Options - Open... -
Page 54: Bluetooth
The recordings are saved in the folder Files manager- >Phone->Audio. · Select Options, to enter relevant setting of the dictaphone. 12. Bluetooth Thanks to Bluetooth connection you can send and receive files. You may also connect other devices for example wireless handsfree set. -
Page 55: Settings
13. Settings Select MENU->Settings and then: 13.1 Phone settings 13.1.1 Date and time settings To set the date and time select MENU->Settings->Phone settings->Date and time. Select „Time zone”, to set appropriate town, and then „Set the time” and „Set the date”, to enter the time and date. -
Page 56: Language
13.1.3 Language Allows to change the language of phone’s menu. If you set a foreign language accidently, to set correct language in standby mode press: - 1x LFK (left function key) - 2x Up - 2x LFK - 2x Down - 1x LFK Select appropriate language and press LFK 13.1.4 Display... -
Page 57: Waiting Call
This function makes it possible to hide your own number during the call. Select „Establish network”, „Hide the number” or „Show the number” and press „Ok”. 13.2.2 Waiting call This is the network service. If an operator offers this service, it is required to perform relevant configuration. On entering MENU->Settings->Call settings->Waiting call you can check the state of availability readiness and select whether you want to activate this function. -
Page 58: Call Barring
(Transferring incoming calls, when you are currently having a conversation), 5 Transfer all data calls 3. Press Activate and enter the number to which you want to transfer the calls to activate the service or Deactivate to deactivate the service. To check the currently selected state of the service select Check the state 13.2.4 Call barring... -
Page 59: Profiles
· Sound in the background: You can set the sound which will be heard in the background by the persons having a conversation, for example motorcycle sound · Displaying call time.: If the function is activated, during a call the call time will be shown on the display. -
Page 60: Network Settings
- Ringtone volume - Message signal - Message signal volume - Keys tone - Keys volume - Sound at switching on the phone - Sound at switching off the phone - Warnings sound (for example signaling low battery) - Telling the incoming number (during incoming call the digits of incoming number will be told). -
Page 61: Phone Security
13.5.2 Phone security You can activate the phone blockade. When switching on the phone you will have to enter the blockade code. Default code is 1122. 13.5.3 Automatic keylock The function allows to activate and set after what time the keys will be automatically blocked. -
Page 62: Network Services
Menu->Settings->Data account Correct configuration can be obtained from your operator. Some operators enable remote configuration of the phone. 13.9 Network services 13.9.1 WAP The browser in the phone allows to use different WAP services. The phone has settings of some operators. To activate select: Menu->Network services>WAP->Settings->Data account- >select appropriate account and press OK. -
Page 63: Sim Services
13.9.2 SIM services Regardless of the functions of the phone itself, SIM card may offer additional services. Name and functions of this menu depend on the type of available services. Services requiring Internet connection may not be available. 14. Connection to the computer You may connect the phone to the computer with the use of USB cable thanks to which you can copy and transfer files between the phone and a computer. - Page 64 „Cannot make a Check whether the dialed number is correct. call ” When dialing the number of another country always add relevant prefix (for example Germany 0049 or +49) If a user has a card of prepaid type(supplying with a card), check whether the means on the account are available to make a call.
- Page 65 „Is it possible to It is not possible to make any call, if the phone is make an out of range. emergency call in the place If the user does not have any means on the which is out of account, it is possible to make emergency calls range or when 112.
- Page 66 How to check Activate the option of delivery report. After the whether SMS delivery of a message you will get returnable was delivered SMS with the information that the message was to the recipient? delivered (network service).
-
Page 67: Conditions For Use And Safety
16. Conditions for use and safety · Do not switch on the phone if it can cause interferences in the operation of other devices! · It is forbidden to use the phone without appropriate set while driving a car. · The phone emits electromagnetic field, which may have negative influence on other electronic devices including for example medical equipment. -
Page 68: Warranty Conditions
· The device and its accessories may consist of small parts. The phone and its elements must be protected against children. · The phone cannot be cleaned with chemical or caustic substances. · It is forbidden to use the phone in small distance from pay and credit cards - it can cause the loss of data on the card. -
Page 69: Information Concerning The Battery
If the user attempted to repair or modify the phone for themselves it causes the loss of warranty! The above information is presented for informative purposes. 18. Information concerning the battery There is battery in the phone which may be recharged with the use of the charger included in the set. -
Page 70: Information About Sar
Never use the battery with visible damage. It can lead to short circuit and damaging the phone. The battery must be installed in compliance with the polarity. Leaving the battery in the places of too high or too low temperature will shorten its life. The battery should be stored in the temperature from 15°C to 25°C. - Page 71 The guidelines have been prepared by ICNIRP independent scientific organization with the regard of safety margin in order to ensure the protection for all the people regardless of age and health state. The guidelines use the unit of measure called Specific Absorbtion Rate (SAR) –...
-
Page 72: Information Concerning The Environment Protection
World Health Organization stated that the current researches indicated that there is no need to use any special limitations in the usage of mobile devices. It also indicates that if we want to reduce the influence of radiation it is recommended to reduce the length of calls or to use handsfree set, in order not to hold the phone near the body or head. -
Page 73: Declaration Of Compliance
21. Declaration of compliance... - Page 74 It depends on installed software, service provider and SIM card. The right to make any changes in the product and its functions, without prior presentation of information about it, is reserved. Technical assistance, - number: 32 325 07 00 or email serwis@maxcom.pl...
- Page 76 MAXCOM S.A. 43-100 Tychy, ul Towarowa 23a POLAND tel. 32 327 70 89 fax 32 327 78 60 www.maxcom.pl office@maxcom.pl 0678...
