Summary of Contents for Salora LED39UAT

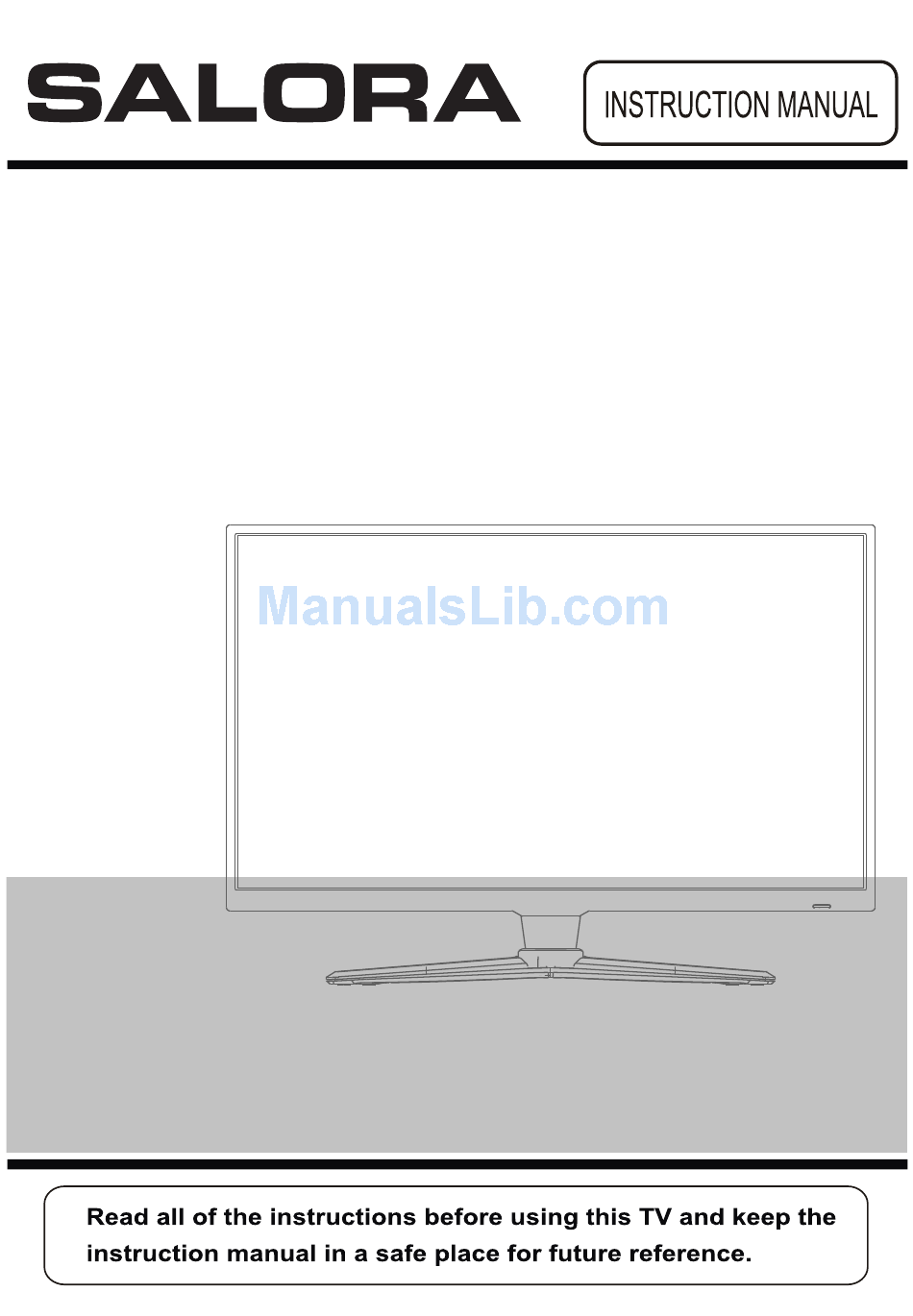

- Page 1 39” LED TV and Digital MPEG4 DVB-T2/C Tuner LED39UAT...
-
Page 3: Table Of Contents
Contents Contents Safety Precautions Caution................................1 Safety Information.............................. Power Supply..............................Installation ................................. Use and Maintenance ............................. User Guidance Information Names of each part(Front View) / Accessories ....................Names of each part(Back View) ........................7 Remote control ..............................8-9 Basic Operation Basic Operation .............................. -
Page 4: Safety Precautions
Safety Precautions Caution WARNING TO PREVENT DAMAGE WHICH MAY RESULT IN FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. intended to alert the user to the presence of un-insulated “dangerous voltage” a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 5: Safety Information
Safety Precautions Safety Information The following precautions are divided into The purpose of these precautions “Warnings“ and “Cautions“. is to ensure user safety and prevent property damage. Warning: Ignoring this precaution may result in death or serious injury. Be sure to read and observe all safety Caution: Ignoring this precaution may result precautions. -
Page 6: Power Supply
Safety Precautions Power Supply Warnings Do not touch the power Do not use a damaged Do not plug several Insert the power plug plug with wet hands. power cord or plug or devices into the same fully into the outlet. A Doing so may result in a loose outlet. -
Page 7: Installation
Safety Precautions Installation Warnings Do not place containers Do not place the unit Do not use or store Do not place the unit on an where it is exposed to unstable surface, such as vases, soft drink cans, or rain, excessive moisture materials near the unit. -
Page 8: Use And Maintenance
Safety Precautions Use and Maintenance Warnings Do not insert any metal Do not allow children to Never disassemble or Disconnect the power cord from the wall outlet during a objects, such as a climb or hang on the unit. modify the unit in any lightning storm. -
Page 9: User Guidance Information
User Guidance Information Names of each part Front View SOURCE Display the input source menu. MENU Display/exit the OSD menu. CH+/- Scan through channels. VOL+/- Adjust the volume. POWER Turn on/standby the TV set. Remote Control window POWER VOL- VOL+ MENU SOURCE (IR) Infrared Receiver: Receives IR signals from the remote control. -
Page 10: Names Of Each Part(Back View)
User Guidance Information Names of each part Back View CA module must be installed with boxer logo away from your TV. The smart card must be installed as shown below. AC POWER IN Audio in Connect it to AC100-240V~ 50/60Hz power supply with the mains cable. AC POWER IN: Connect it to the HDMI of DVD or other equipment. -
Page 11: Remote Control
User Guidance Information Remote Control POWER: Turn the TV on/standby. POWER MUTE MUTE: Press to mute the sound, press again or press VOL+ to unmute. PICTURE: Select the picture mode. ASPECT: Change the screen display mode. SOUND: Select the sound mode. PICTURE ASPECT SOUND... -
Page 12: Remote Control
User Guidance Information Remote Control POWER MUTE PICTURE ASPECT SOUND SUBTITLE SLEEP CH.LIST REC.LIST Fast reverse. Fast forward. Previous chapter. TV/RADIO Next chapter. Play/Pause program. DISPLAY SOURCE Stop program. Colour buttons: Short cuts-follow the coloured links in the text TV/TXT: Turn off/on the Teletext display. CANCEL: Cancel the Teletext display. -
Page 13: Basic Operation
Basic Operation Basic Operation Power on/off 1. Connect to the power supply with the power cord. 2. -To turn on the TV Press POWER button on the TV or remote control. -To turn off theTV Press POWER button on the TV or remote control. Input Source select Press SOURCE button on the TV set or remote control to display input source menu, and use CH+/- button on the TV set or... -
Page 14: Osd Menu
OSD Menu OSD Menu 1. CHANNEL menu Rowridge Description Auto Tuning Press OK button to enter the hint menu, and Press button to select the Tune Type, then press button, and use button to select the Country for the TV, then press OK button to start auto tuning. - Page 15 OSD Menu OSD Menu CA modules supported by this TV Neotion Boxer TV-Module CI+ SMiT Boxer TV-Module CI+ SMiT Boxer TV-Module CI Programme Edit Press OK button to enter the Programme Edit menu as the following picture. Delete: Select a channel and press RED button, the program will be deleted. Rename: Select an ATV channel and press the GREEN button to change the name of the channel by buttons.
-
Page 16: Picture Menu
OSD Menu OSD Menu 2. PICTURE menu Description Picture Mode: Choose from Standard, Dynamic, Personal and Mild. Note: Contrast, Brightness, Colour and sharpness are only available and can be adjusted in the User mode option in the Picture Mode Settings. Contrast: Controls the difference between the brightest and darkest regions of the picture. -
Page 17: Sound Menu
OSD Menu OSD Menu 3. SOUND menu Description Sound Mode: Allows you to select among: Standard, Music, Movie, Sports and Personal. Treble(Can be adjusted when the sound mode is Personal) : Controls the relative intensity of higher pitched sounds. Bass (Can be adjusted when the sound mode is set to Personal): Controls the relative intensity of lower pitched sounds. -
Page 18: Time Menu
OSD Menu OSD Menu 4. TIME menu Description Clock: Display the time. Time Zone: Allows you to select the time zone. Sleep Timer: Allows you to setup the sleep timer among: 10min, 20min, 30min, 60min, 90min, 120min,180min, 240min and off. Auto Standby : According to the latest ERP regulation, this unit will switch off itself automatically if no change in status within the last sereral 4 hours of operation. -
Page 19: Lock Menu
OSD Menu OSD Menu 5. LOCK menu Description Lock System: Turn on/off the Lock System function. Note: You should enter the code to operate the menu.(original code is 1234) Set Password: Set pin code. If the Pin code has been changed you must enter the present code. - Page 20 OSD Menu OSD Menu Import Database Export Database Clear Lock Source Lock: Import Database: Import all Hotel Settings from the USB device. Export Database : Export all Hotel Settings to the USB device. Clear Lock: Clear all the locks above, it means set all the locks to OFF and max volume to 100.
-
Page 21: Setup Menu
OSD Menu OSD Menu 6. SETUP menu Description OSD Language: Allows you to select menu language. TT Language: Allows you to select teletext language. Audio Language: Allows you to select audio language. Subtitle Language: Allows you to select subtitle language. Hearing Impaired: Turn on/off the Hearing Impaired function. -
Page 22: Multimedia Operation
Multimedia Operation Multimedia Operation Basic Operation 1). Press the SORUCE button on the remote control to display the input source menu, select Media source by the buttons, and press OK button to enter the Multimedia menu seen below. Hints and informations of USB device MAINS MENU: PHOTO MUSIC MOVIE TEXT 2). - Page 23 Multimedia Operation Multimedia Operation 1. Photo Photo viewing Press button to select the option on the menu, and press OK button to change. Pause: Play/pause the photo view. Prev./Next: View the previous/next photo. Stop: Stop the photo view. Repeat: Select the repeat mode from Repeat All, Repeat 1, Repeat None. Music: Play/Pause the music.
-
Page 24: Multimedia Operation
Multimedia Operation Multimedia Operation Multimedia Operation 3. Movie Play the movie Press button to select the option on the menu, and press OK button to change. Pause: Play/pause the music. FB/FF: Fast backward/fast forward. Prev./Next: Play the previous/next file. Stop: Stop the movie. Char Set: Select a switable character libraly of the subtitle of the movie that you view such as Western Europe(Windows). -
Page 25: Recording Operation
Recording Operation Recording Operation PVR settings 1. PVR File System Press the MENU button, select SETUP menu, and select “PVR File System”, then press OK button to enter the setting menu. Please check whether your USB device works or not before recording. Select Disc: Select the device for the Record files. - Page 26 Recording Operation Recording Operation Recording Record and Time shift function buttons REC: Press to start recording. PAUSE: Press to enter the timeshift mode, press play to play the recording. Stop: Press to stop recording or timeshift. REC LIST: To display the recorder menu. 1) Recording menu When you press REC button in DTV mode, the screen will display the recording menu as below:...
-
Page 27: Epg Menu
EPG menu EPG menu Press the button EPG in the remote control to enter EPG menu. Display the information of the programme Display the Channel list programme name Options You can select a programme for recording using the buttons. Record: Press RED button to display the Recorded Mode menu, and set the timer record. -
Page 28: Maintenance And Service
Maintenance and Service Trouble shooting Do not use other functions that are not mentioned in this user’s manual. In case a problem occurs with your TV, please take the following steps first. If you still have the problem, turn the power off and contact your dealer or an authorized service center. i t c Is the power plug pulled out? Insert the power plug. -
Page 29: Specifications
Maintenance and Service Specifications Technical – LED39UAT Panel Panel 39” Screen Size 853.92(H) × 480.33 (V) Display Area 1920(H) x 1080(V) Display Res 178(H)/178(V) (CR>10) Viewing Angle 16: 9 Aspect 0.17675(H) ×0.53025(V) Pixel pitch (H/V) 250nits Brightness 4000:1 Contrast Response 16.7M... - Page 30 USB MULTIMEDIA PLAYBACK FORMAT Codec File Media Ext. Remark Video Audio Max Solution:1920x1080 .mpg MPEG-1, MPEG-2 Max Data Rate:40 Mbps Xvid, MJPEG, MPEG-4 SP/ASP, .avi H.264 Max Solution:1920x1080 MPEG-2,H.264 MP3, WMA, AAC, Movie MPEG-4 SP/ASP, .mov/ AC3,PCM .mkv H.264 Max Data Rate:20 Mbps MPEG-1 .dat MPEG-4 SP/ASP,...
- Page 31 -Annual energy consumption is calculated on the basis of the On-mode(Home, Standard-mode) power consumption, operating 4 hours a day and 365 days a year. (Measured according to IEC 62087 Ed.2) -The power consumption of On-mode varies depending on setting the TV displays. Screen Resolution: 1920(H) x 1080(V) Peak Luminance Ratio Mercury content...
