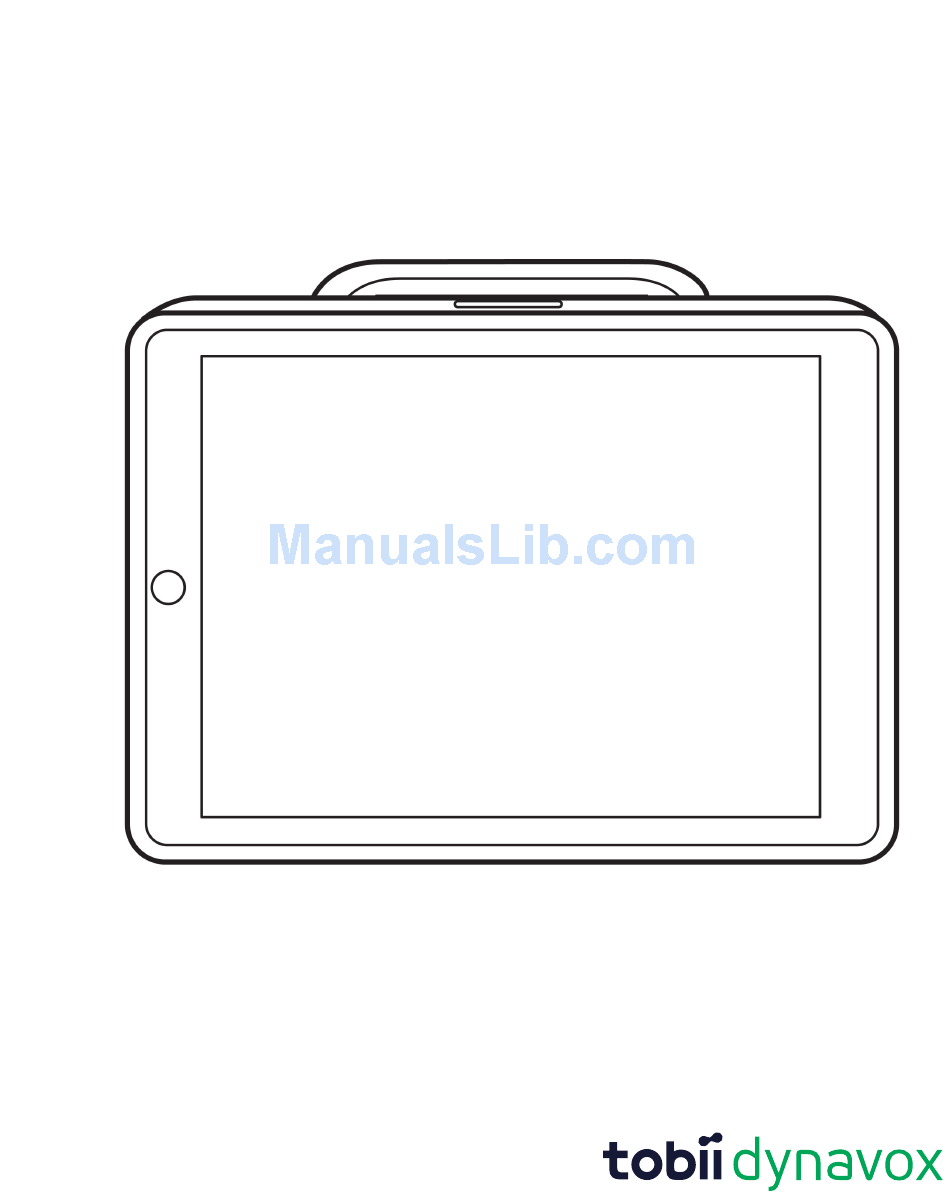

- Page 1 Tobii Dynavox Speech Case and Speech Case Pro User’s Manual...
- Page 2 User’s manual Tobii Dynavox Speech Case and Speech Case Pro Version 1.0 04/2018 All rights reserved. Copyright © Tobii AB (publ) No part of this document may be reproduced, stored in a re- trieval system, or transmitted in any form, by any means (elec- tronic, photocopying, recording, or otherwise) without the prior written permission of the publisher.
-
Page 3: Table Of Contents
Mounting ............................8 Emergency..........................9 Electricity ............................9 Child Safety ..........................9 Magnetic Field..........................9 Third Party ..........................9 Overview of the Speech Case ......................10 Key Features ..........................10 Product Layout ..........................11 3.2.1 Ports and Device Buttons ....................11 Pre-installed Firmware ........................12 Batteries in the Speech Case ......................13 Batteries ...........................13... - Page 4 B1.2 For Portable Devices ....................20 Appendix C Technical Specifications ..................... 22 Appendix D Approved Accessories ......................24...
-
Page 5: Introduction
To ensure the optimal performance of this product, please take the time to read this manual carefully. Speech Case is a Tobii Dynavox speech accessory intended for use with an iPad as an augmentative communication aid and for computer access for those with speech, language, physical, and cognitive disabilities. -
Page 6: Intended Use
When used with an appropriately configured iPad, the Tobii Dynavox Speech Case is a speech generating device (SGD) for people that have challenges in their ability to speak due to injury, disability or illness. The Tobii Dynavox Speech Case pairs with the iPad through Bluetooth to work as an audio output device and switch hub. -
Page 7: Safety
The user may never attempt to change the battery. Altering of the battery may cause risk of explosion. The Speech Case is not to be used as a life supporting Device, and it shall not be relied on in case of loss of function due to power loss or other causes. -
Page 8: Temperature
For safe operation of the Speech Case device, use only charger and accessories approved by Tobii Dynavox. Do not open, or modify, the casing of the Speech Case device or of the power supply, since you may be exposed to po- tentially hazardous electrical voltage. -
Page 9: Emergency
As a general rule, maintain a minimum distance of 6 inches (15 centimeters) between any item with magnets and your heart device. If you suspect that the Speech Case device is interfering with your pacemaker or any other medical device, stop using the Speech Case device and consult your physician for specific information about that affected medical device. -
Page 10: Overview Of The Speech Case
2 × switch ports ● ● 1 × headphone connector ● 1 × Bluetooth® radio ● 1 × charging port #12006595 Tobii Dynavox Speech Case and Speech Case Pro User’s man- 3 Overview of the Speech Case ual v.1.0 - en-US... -
Page 11: Product Layout
Product Layout 3.2.1 Ports and Device Buttons Figure 3.1 Position Description Volume rocker switch Speakers #12006595 Tobii Dynavox Speech Case and Speech Case Pro User’s man- 3 Overview of the Speech Case ual v.1.0 - en-US... -
Page 12: Pre-Installed Firmware
Make sure that the connector matches the port and that you have positioned the connector correctly in relation to the port. Pre-installed Firmware The Speech Case is delivered with all required firmware installed and ready to use. #12006595 Tobii Dynavox Speech Case and Speech Case Pro User’s man- 3 Overview of the Speech Case... -
Page 13: Batteries In The Speech Case
Batteries in the Speech Case Batteries The Speech Case has one built-in battery. If the Speech Case battery is not charged sufficiently, the Speech Case will shut down automatically. When the Speech Case shuts down due to loss of battery charge, the Bluetooth®pairing is lost. When the Speech Case is powered on again, re-establish Bluetooth®... -
Page 14: Using The Speech Case
If you have paired this Speech Case with this iPad previously, you must first “forget” the Speech Case in the Bluetooth device list. Go to Settings > Bluetooth. Find the Speech Case in the list and select the “i” icon next to it. Select “Forget this Device.”... -
Page 15: Install The Ipad And Pair Through Bluetooth
Adjusting the Volume To adjust the volume, use the Volume Up and Down rocker (Position 1 in Figure 3.1 ) on the top of the Speech Case. Volume adjustments can also be done in the iOS software on the iPad. -
Page 16: Switches
● Switch 2 — Enter key When the Speech Case is in touch mode, set the Access Method in your Tobii Dynavox apps to Scanning, and set Switch 1 to Space key and Switch 2 to Enter enter. When the Speech Case is in iOS scanning mode, switches send the following by default: ●... -
Page 17: Product Care
The cleaning should be done using a wipe style product only. Wipe only outer surfaces of the Speech Case device and allow the product to dry naturally or follow the wipe instructions. Do not use spray product which may saturate the Speech Case device or allow moisture into the unit. -
Page 18: Disposing Of The Speech Case
Disposing of the Speech Case Do not dispose of the Speech Case in general household or office waste. Follow your local regulations for the disposal of electrical and electronic equipment. #12006595 Tobii Dynavox Speech Case and Speech Case Pro User’s man- 6 Product Care ual v.1.0 - en-US... -
Page 19: Appendix A Support, Warranty, Training Resources
For support, please contact your local representative or Support at Tobii Dynavox. In order to receive assistance as quickly as possi- ble, make sure you have access to your Speech Case and, if possible, an internet connection. You should also be able to supply the serial number of the device, which you will find on the Service tag label. -
Page 20: B1.1 For Part 15B Equipment
(1) this device may not cause harmful interference and (2) this device must accept any interference received, in- cluding interference that may cause undesired operation. Modifications not expressly approved by Tobii Dynavox could void the user’s authority to operate the equipment under FCC rules. - Page 21 CNR-102 à le grand public (environnement non contrôlé) des limites (1.6W/Kg). La valeur maximale mesurée de SAR pour le Speech Case dispositif est: 0.3 W/kg. Ce dispositif peut être exploité en toute sécurité avec un 0cm distance minimale entre le matériel et les corps de l’utilisateur.
-
Page 22: Technical Specifications
1 × 3.5 mm” Headset/Audio-out port (stereo) with jack detection 1 × Micro-AB USB 2.0 Buttons 1 × Volume Up 1 × Volume Down Bluetooth® Bluetooth® 3.0 Tobii Dynavox Speech Case and Speech Case Pro User’s manual v.1.0 - en- Appendix C Technical Specifications... - Page 23 100 to 240 VAC .48 A Input current (max) Input frequency 50 to 60 Hz 4.8A Output current Rated output voltage 5 VDC Tobii Dynavox Speech Case and Speech Case Pro User’s manual v.1.0 - en- Appendix C Technical Specifications...
- Page 24 Appendix D Approved Accessories For information about the latest approved accessories for the Speech Case, please visit www.TobiiDynavox.com or contact your lo- cal Tobii Dynavox reseller. Tobii Dynavox Speech Case and Speech Case Pro User’s manual v.1.0 - en- Appendix D Approved Accessories...
- Page 26 For questions or problems with your product, contact your Tobii Dynavox sales representative or authorized reseller for assistance. They are most familiar with your personal setup and can best help you with tips and product training. For contact details, visit www.TobiiDynavox.
