Summary of Contents for Tobii Dynavox PCEye Plus

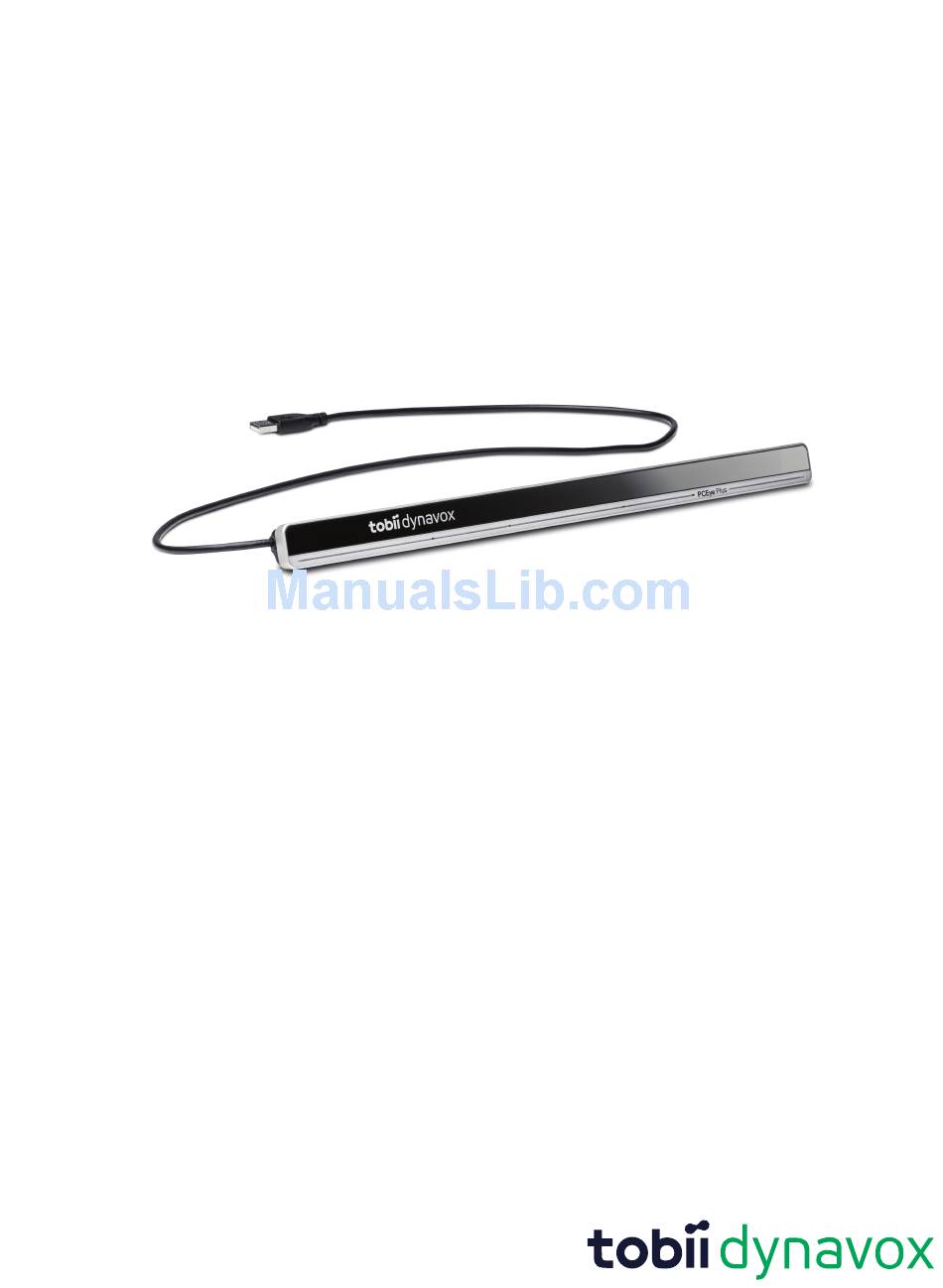

- Page 1 Tobii Dynavox PCEye Plus User’s Manual...
- Page 2 Content subject to change without notice. Please check Tobii Dynavox web site www.TobiiDynavox. for updated versions of this document. The PCEye Plus is protected by the following U.S. Patents: ● 7.572.008 ● 6.659.611...
-
Page 3: Table Of Contents
Magnetic Field Warning ......................6 Child Safety...........................6 Do not open PCEye Plus ......................6 Emergency ..........................7 Windows Control ........................7 Third Party..........................7 Getting Started with PCEye Plus ....................8 System Requirements ......................8 Overview..........................8 Using PCEye Plus .......................... 9 Positioning the User........................9 Settings ............................10 Microphone Settings ......................10... -
Page 4: Introduction
Intended Use The PCEye Plus is an eye tracker that lets you access and control your computer using only your eyes. Simply look at the com- puter screen and select commands by dwelling, zooming and/or clicking a switch. Alternatively, fully control the mouse cursor directly with your eye movements. -
Page 5: Package Contents
For more information about Screen Sizes, see Appendix C Technical Specifications. Figure 1.1 PCEye Plus Do not cover the front of the PCEye Plus in any way (with decorations, Post-Its, etc.) as Windows Control will be compromised. Using an antivirus program is strongly recommended. -
Page 6: Safety
The PCEye Plus should be mounted according to the instructions of the approved mounts used. Tobii Dynavox or its agents are not liable for damage or injuries to a person or its property due to a PCEye Plus falling from a mounted configuration. -
Page 7: Emergency
Remoisturizing eye drops can be helpful to combat dryness. Third Party Any use of the PCEye Plus outside the intended use and together with any third party software or hardware that changes the intended use is a risk and nothing that Tobii Dynavox can take any responsibility for. -
Page 8: Getting Started With Pceye Plus
Windows 10 (32-bit or 64-bit) .NET version Tobii Eye Tracking Core Software Version 2.8 or later To be able to use the PCEye Plus one of the following Tobii Dynavox software must be installed: Tobii Dynavox Windows Control 2 ● Tobii Dynavox Gaze Point ●... -
Page 9: Using Pceye Plus
Figure 4.1 Positioning The mounted PCEye Plus attached to its Magnetic Mounting Plate and to your device is designed to work optimally when it is parallel to the user’s eyes at a distance from about 50 — 90 cm (20 to 35 inches), see Figure 4.1 Positioning, page 9 or Figure 4.2 Positioning for Users Leaning Sideways or Lying Down, page 9. -
Page 10: Settings
Switch Settings The built in switch port on the PCEye Plus is intended to be used with one 3.5 mm switch connected directly to the PCEye Plus or with one 3.5 mm switch connected to the Switch Port Extension Cable and then into the PCEye Plus. The switch port is by default configured as "Joystick 1"... -
Page 11: Applicable Application Software
Applicable Application Software The PCEye Plus has a number of different uses depending on the user's need and the application software installed. www.tobiidynavox.com to find support and documentation for the different compatible software. 6 Applicable Application Software Tobii Dynavox PCEye Plus User’s manual v.1.3 - en-US... -
Page 12: Product Care
Cleaning Before cleaning the PCEye Plus device shut down the computer to which it is attached and unplug all cables. Use a soft, slightly damp, lint-free cloth. Avoid getting moisture in openings on the device. Don’t use window cleaners, household cleaners, aerosol sprays, solvents, alcohol, ammonia, or abrasives to clean the device. -
Page 13: Appendix A Support And Warranty
For support, please contact your local representative or Tobii Dynavox Support. In order to receive assistance as quickly as possible, make sure you have access to your PCEye Plus and, if possible, an Internet connection. You should also be able to supply the serial number of the device, which you find on the back of the device. -
Page 14: Appendix B Compliance Information
Appendix B Compliance Information The PCEye Plus is CE-marked, indicating compliance with the essential health and safety requirements set out in European Directives.. FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 15: Appendix C Technical Specifications
Across 80% of population <0.25° Across 65% of population <0.2° Ideal <0.1° Max Head Movement Speed Eye Position 40 cm/s (15.7 in/s) Gaze Data 10 cm/s (3.9 in/s) Appendix C Technical Specifications Tobii Dynavox PCEye Plus User’s manual v.1.3 - en-US... - Page 16 Though “ideal” numbers are useful to get a general feel about comparative quality and performance, they are not applicable to real world usage in the same way as quantitative degree-of-accuracy and precision over percentage-of-population numbers based on extensive testing across representatives of the whole population. Appendix C Technical Specifications Tobii Dynavox PCEye Plus User’s manual v.1.3 - en-US...
- Page 18 Support for Your Tobii Dynavox Device Get Help Online See the product-specific Support page for your Tobii Dynavox device. It contains up-to-date information about issues and tips & tricks related to the product. Find our Support pages online at: www.TobiiDynavox.com or www.myTobiiDynavox.com.
