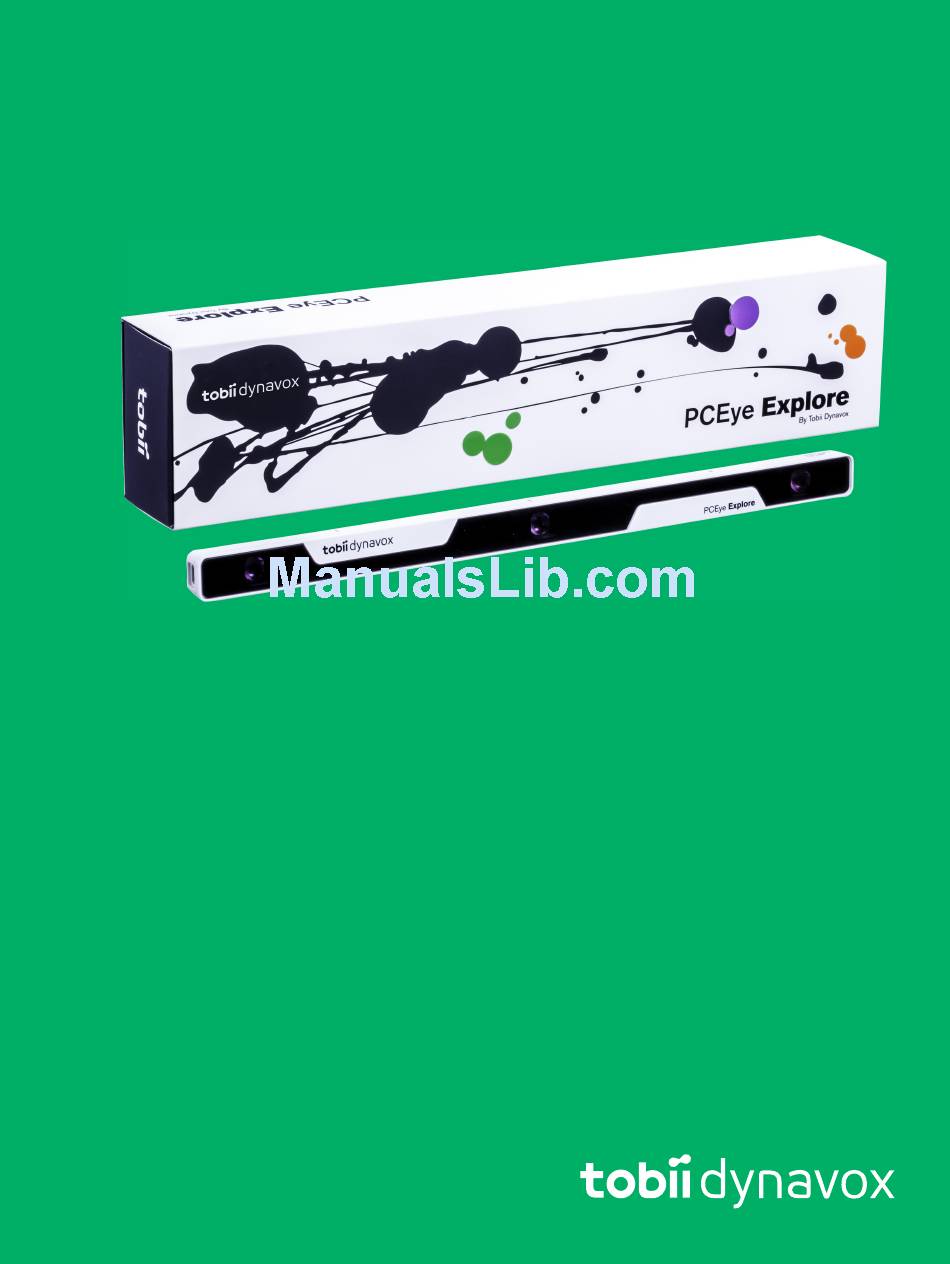

The PCEye Explore is an entry level, peripheral Eye tracker that opens up the wonderful world of Gaze Interaction to everyone. With the PCEye Explore, young or inexperienced users get a simple, fun and no-fail way to learn how to use Eye tracking and Gaze Interaction, while at the same time preparing them for AAC communication.
For more information about Screen Sizes, see Appendix D Technical Specifications. Figure 1.1 PCEye Explore Do not cover the front of the PCEye Explore in any way (with decorations, Post-Its, etc.) as Gaze Interaction will be compromised. Using an antivirus program is strongly recommended.
The PCEye Explore should be mounted according to MANUFACTURER instructions of approved mounts. Tobii Dynavox or its agents are not liable for damage or injuries to a person or its property due to a PCEye Explore fall- ing from a mounted configuration. The mounting of a PCEye Explore is done entirely at the user’s own risk.
To manually check for new updates of the Gaze Point software, look up the Update Notifierapplication on the device and select (Update Notifier) icon to start the application. The PCEye Explore Firmware will automatically be updated when a new version is available as long as the computer is con- nected to the internet.
First Start Up of PCEye Explore After running the Gaze Point Installation Guide and attaching the PCEye Explore to your computer, the Gaze Point Setup will open automatically. Follow the on-screen instructions. Select the Calibration Settings button to check and change the settings for the calibration. For more information regarding Calibration Settings, see 7.1.1.3 Calibration Settings, page 15...
The PCEye Explore allows for extensive Freedom of Head Movement. Once the PCEye Explore is properly calibrated and placed in front of the user, no further adjustments are required. At 70 cm (27.5 in) the PCEye Explore allows for lateral Freedom of Head Movement in an area of about 48 × 39 cm (19 × 15 in).
This can be changed under Settings. The under Settings. The chosen Keyboard chosen Keyboard shortcut will be shortcut will be shown on the button. shown on the button. 5 Using PCEye Explore Tobii Dynavox PCEye Explore User’s manual v.1.0 - en-US...
Page 11
Settings for Gaze Point, see 6 Gaze Point Settings, page 12 Using a physical computer mouse or a touch screen will take precedence over the Gaze Point software. 5 Using PCEye Explore Tobii Dynavox PCEye Explore User’s manual v.1.0 - en-US...
Default value is 1200 ms. Eye Tracker Settings: • Select the Eye Tracker Settings button to access the Eye Tracker Settings. For more information, see 7 Eye Tracker Settings, page 13 6 Gaze Point Settings Tobii Dynavox PCEye Explore User’s manual v.1.0 - en-US...
Follow the on-screen instructions to setup the user and to calibrate. Delete a User Profile Select the Profile to delete in the Drop down list Select the (Delete) button. 7 Eye Tracker Settings Tobii Dynavox PCEye Explore User’s manual v.1.0 - en-US...
Page 14
To perform a recalibration, select the Recalibrate button. To show the position guide, select the Position guide button. 7 Eye Tracker Settings Tobii Dynavox PCEye Explore User’s manual v.1.0 - en-US...
Page 15
Ideally, the two dots that represent the user’s eyes should be in the middle of the Position Guide. 7.1.1.3 Calibration Settings Select the Calibration Settings button to access the Calibration Settings page. 7 Eye Tracker Settings Tobii Dynavox PCEye Explore User’s manual v.1.0 - en-US...
Page 16
Sometimes it is easier to for the user to focus and to follow a picture or video instead of the dot when trying to do a calibration. Select the Browse button to browse for the stimuli of choice. • 7 Eye Tracker Settings Tobii Dynavox PCEye Explore User’s manual v.1.0 - en-US...
7.1.2 Display Configuration Select the Setup button to start the setup guide again. Select the Identify button if help is needed to decide which display the PCEye Explore is connected to if more then one display is used. 7.1.3 Eye Detection Indicator...
About Please have this information available if you have problems with the device and need to contact Customer Support. 7 Eye Tracker Settings Tobii Dynavox PCEye Explore User’s manual v.1.0 - en-US...
For support, please contact your local representative or Tobii Dynavox Support. In order to receive assistance as quickly as possible, make sure you have access to your PCEye Explore and, if possible, an Internet connection. You should also be able to supply the serial number of the device, which you find on the bottom of the device.
Appendix B Compliance Information All PCEye Explore are CE-marked, indicating compliance with the essential health and safety requirements set out in European Directives. FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 21
• FCC part 15, Class B Appendix B Compliance Information Tobii Dynavox PCEye ExploreUser’s manual v.1.0 - en-US...
Disposing of the Appendix C PCEye Explore Do not dispose of the PCEye Explore in general household or office waste. Follow your local regulations for the disposal of electrical and electronic equipment. Appendix C Disposing of the PCEye Explore Tobii Dynavox PCEye Explore User’s manual v.1.0 - en-US...
For large screens the limiting parameter is quality of gaze accuracy at the upper two corners. The freedom of movement for larger screens is 24-33 inch / 60-85 cm for 23-25 inch screens and 28-33 inch / 70-85 cm for 26-27 inch screens. USB 3.0 requirements: USB 3.0 provides the PCEye Explore with sufficient power and signal bandwidth. Appendix D Technical Specifications...
