Code CR2500 Quick Start Manual page 2

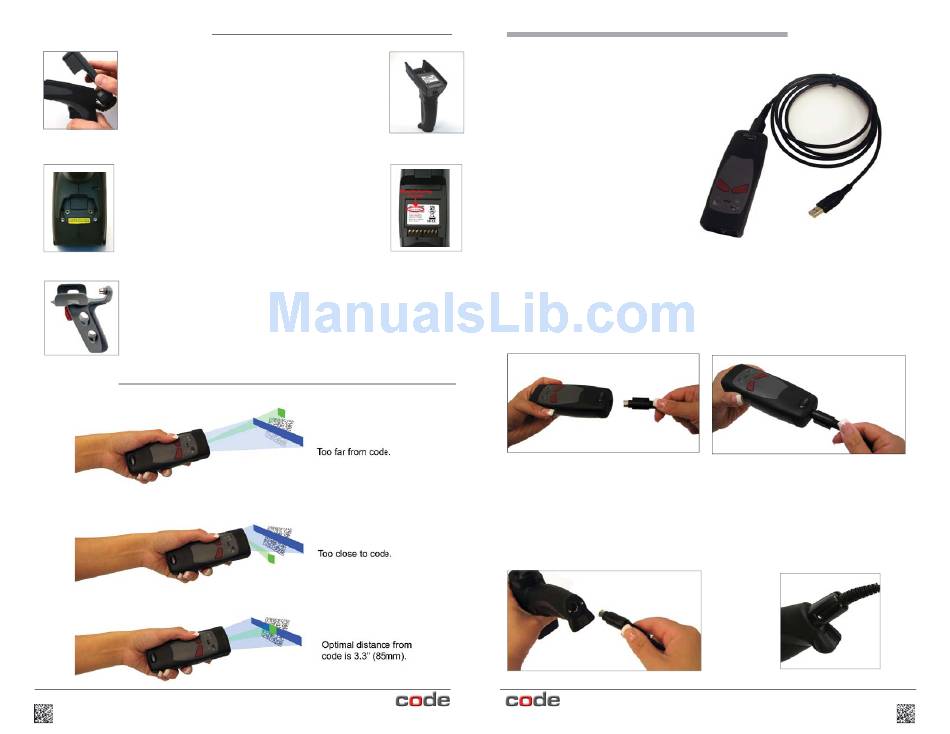

Reader & Handle Assembly
H2 Cabled Handle or BH1/BH2 Battery Handle
The CR2500 utilizes the battery compartment to 'snap
to' the handle. For the H2 (only) push the 8-pin DIN
connector at the end of the reader into the fl exible
connector at the end of the handle (Figure 10). For
all three handles, snap the reader onto the handle
matching the battery compartment to the battery
Figure 10
connectors, visible inside the handle (Figure 11).
Note: Readers with a MFG # of 012_05 can be
secured to H2 & BH1/BH2 handles with threaded
screws (Figure 12). To determine the Manufacturing #
of the reader, look at the reader's battery compartment
and view the MFG # displayed (Figure 13).
Figure 12
H1 Handle
Slide the CR2500 into the handle, aligning the 8-pin
DIN connector to the stationary connector pin on the
handle (Figure 14). Push reader and Handle together
fi rmly until you feel the reader 'click' in place.
Figure 14
Reading Tips
4
C004416_01_CR2500_MIU_Cabled_Quickstart
Code Reader 2500 - Cabled
The Code Reader 2500 (CR2500)
is a Multi-Interface Unit (MIU)
Figure 11
and is available with USB (6 ft. or
12 ft.), RS-232 and PS/2 cables.
All of the cables are connected
to the CR2500 with a 8-pin DIN
connector.
Figure 13
Hand Held CR2500 - To install a cable directly to the CR2500, correctly line up the 8-pin
DIN connector into the back end of the unit. The arrows on the connector should be facing
down (Figure 1). When the unit and the cable connector are lined up, fi rmly push the cable
into the reader. The cable has a locking mechanism that will fi rmly hold the cable in place
(Figure 2). To unattach the cable from the reader, you must pinch the plastic on the 8-pin
DIN and pull back to disengage the connector.
CR2500's unique targeting
function uses two converging
targeting LEDs to guide the
user to optimal reading range.
Figure 1
CR2500 with Cabled Handle - If a handle was purchased for use with the CR2500, the
8-pin DIN connector is at the bottom of the handle (Figure 3). Insert the 8-pin connector
and fi rmly push the cable into the handle. The cable has a locking mechanism that will
fi rmly hold the cable in place. If using the H2 cabled handle, for additional stability, there is
an optional cable attachment clip that can secure the cable to the handle with two threaded
screws (Figure 4). Screws shall be tightened to a torque setting of 2 inch-lbs.
Figure 3
Quickstart Guide
Figure 2
Figure 4
C004416_01_CR2500_MIU_Cabled_Quickstart
1
