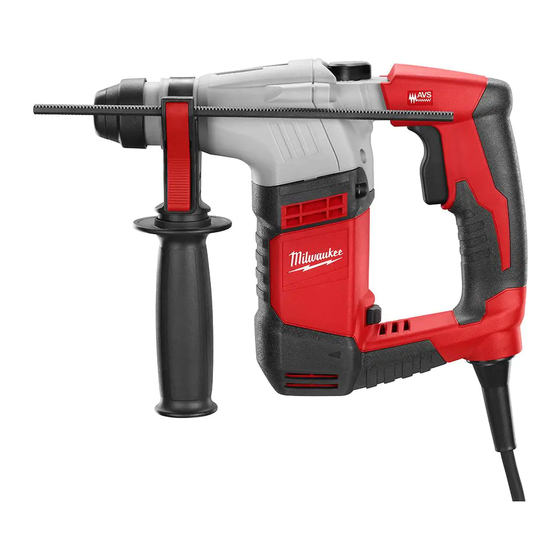

5/8 inch sds plus rotary hammer
Hide thumbs Also See for 5263-20:

Advertisement

Quick Links

Download this manual See also: Operator's Manual
OPERATOR'S MANUAL
Cat. No.
5263-20
SDS
PLUS
5/8" SDS PLUS ROTARY HAMMER
TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND OPERATOR'S
MANUAL.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 5263-20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Milwaukee 5263-20

Summary of Contents for Milwaukee 5263-20

  • Page 1 OPERATOR'S MANUAL Cat. No. 5263-20 PLUS 5/8" SDS PLUS ROTARY HAMMER TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND OPERATOR'S MANUAL.

  • Page 2: Work Area Safety

    GENERAL POWER TOOL SAFETY WARNINGS WARNING READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS Save all warnings and instructions for future reference WORK AREA SAFETY A wrench or a key left Cluttered or attached to a rotating part of the power tool may dark areas invite accidents.

  • Page 3: Specific Safety Rules

    2. Clamp shock. 3. Depth gauge These carry important information. If unreadable or missing, 4. SDS Plus contact a MILWAUKEE service facility for a free bit holder replacement. 5. Mode selector Some dust created by power sanding, lever sawing, grinding, drilling, and other construction 6.

  • Page 4: Specifications

    Release collar Use caution when han- dling hot bits and chisels. SPECIFICATIONS Tool No Load No Load Cat. No. 5263-20 0 - 3700 0 - 4400 5/8" 1" 1/2"...
  • Page 5 Do not use water to settle the dust since it will clog the bit These MILWAUKEE the bit should bind, a built-in, non-adjustable slip settings: rotation only and rotary hammering.
  • Page 6 Under normal conditions, relubrication is not neces- sary until the motor brushes need to be replaced. After six months to one year, depending on use, return your tool to the nearest MILWAUKEE service facility for the following: dles, bearings, housing, etc.)
  • Page 7 PLUS...
  • Page 8 GENERAL POWER TOOL SAFETY WARNINGS WARNING WORK AREA SAFETY POWER TOOL USE AND CARE ELECTRICAL SAFETY PERSONAL SAFETY SERVICE SPECIFIC SAFETY RULES FOR ROTARY HAMMER...
  • Page 9 GROUNDING WARNING WARNING WARNING EXTENSION CORDS SYMBOLOGY...
  • Page 10 SPECIFICATIONS Only use accessories with SDS or SDS+ shanks. FUNCTIONAL DESCRIPTION OPERATION WARNING ASSEMBLY WARNING WARNING...
  • Page 11 MAINTENANCE WARNING WARNING APPLICATIONS WARNING...
  • Page 12 Catalog No. 5303-20 ROTARY HAMMERS TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND OPERATOR'S MANUAL.
  • Page 13 GENERAL SAFETY RULES WARNING! READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury. SAVE THESE INSTRUCTIONS. 12. Avoid accidental starting. Be sure switch is off before WORK AREA plugging in.
  • Page 14 Wear ear protectors when using the tool for extended periods. Prolonged exposure to high intensity noise can cause hearing loss. Keep hands away from all cutting edges and moving parts. Maintain labels and nameplates. These carry important information. If unreadable or missing, contact a MILWAUKEE service facility for a free replacement.
  • Page 15 If total length, be sure each cord contains at least the minimum wire size damaged, have it repaired by a MILWAUKEE required. If you are using one extension cord for more than one tool, add service facility before use.
  • Page 16 TOOL ASSEMBLY WARNING! Adjusting the Side Handle Position (Fig. 3) reduce risk injury, Fig. 3 always unplug tool before attaching or remov- ing accessories. Use only specifically recom- mended accessories. Others Side Handle hazardous. Removing the Chuck (Fig. 1) Fig. 1 Clamping Screw Loosen the clamping screw slightly.
  • Page 17 MILWAUKEE Heavy-Duty Thin Wall Core Bits drill holes up to 3" deep. To make deeper holes, remove the bit, break and remove the core. Resume...
  • Page 18 (see “Repairs”). Under normal conditions, relubrication is not necessary until the motor brushes need to be replaced. After six months to one year, depending on use, return your tool to the nearest MILWAUKEE service facility for the following: • Lubrication •...
